Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

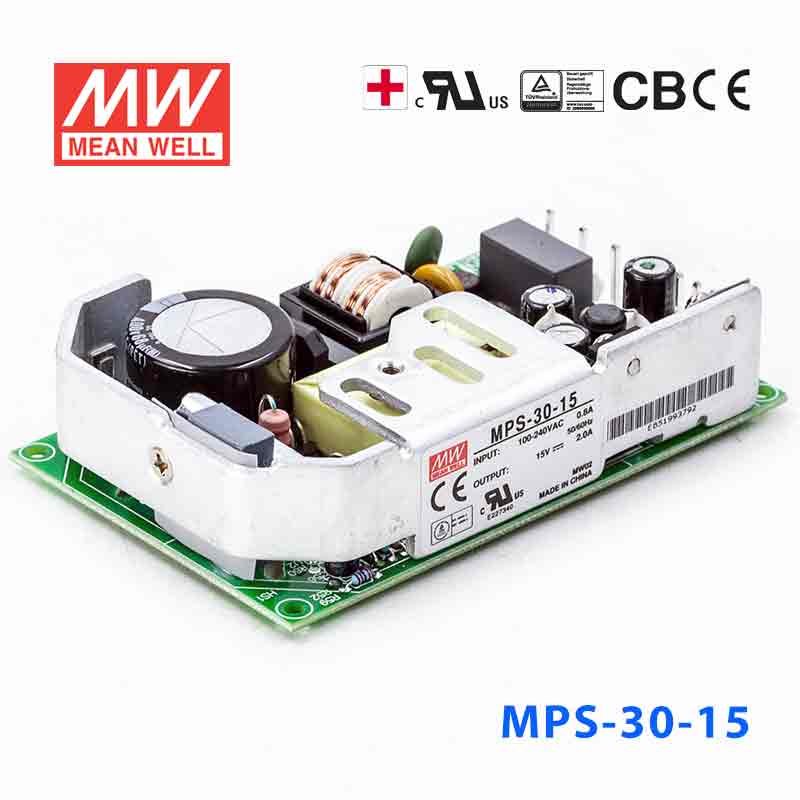

Mean Well MPS-30-15 Power Supply 30W 15V
Description
Description
MEAN WELL MPS-30 Series Power Supplies are 30W singlel output medical type power supplies low cost ,high reliability with 3 years warranty.
Features
- Universal AC input / Full range
- Low leakage current <200pA
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Medical safety approved (2 x MOPP between primary to secondary)
- Fixed switching frequency at 100KHz
- Low cost
- High reliability
- 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating30 Watt
-
Output Voltage15 Volt
-
Rated Current2 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length4 in
-
Width2.59 in
-
Height0.93 in
-
Weight0.35 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MPS-30-15 for a 15V industrial control panel load?
It is designed for constant-voltage 15V DC output and can supply up to 2A, with a total power limit of 30W. That makes it suitable for 15V control, interface, or automation devices that stay within those output limits.
Is this power supply appropriate for a 15V embedded system or test fixture?
Yes, if the equipment requires a regulated 15V DC source and draws no more than 2A. The wide 88-264VAC input also helps when the fixture or embedded system may be deployed across different AC mains environments.
Can this model power a small 15V automation accessory or sensor hub?
It can be used for 15V automation loads that fit within 30W and 2A. For applications with higher inrush or sustained current demand above 2A, this model would be undersized.
Is the MPS-30-15 suitable for outdoor or harsh-environment use?
The listed operating temperature range is -10°C to +60°C, so it is specified for that temperature window. No IP rating is provided in the specs, so it should not be treated as a sealed outdoor power supply based on the available product data.
How does the MPS-30-15 compare with the other 30-series MPS models?
Within the smaller MPS family, the nearby variants are MPS-30-5 at 25W, 5V, 5A; MPS-30-12 at 30W, 12V, 2.5A; MPS-30-24 at 28.8W, 24V, 1.2A; MPS-30-27 at 29.7W, 27V, 1.1A; and MPS-30-48 at 28.8W, 48V, 0.6A. The MPS-30-15 version sits in that group at 30W, 15V, 2A.
Other MPS-30 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPS-30-5 Power Supply 30W 5V | 25W | 5V | 5A | Indoor | $38.92 | View |
| Mean Well MPS-30-48 Power Supply 30W 48V | 28.8W | 48V | 0.6A | Indoor | $38.92 | View |
| Mean Well MPS-30-27 Power Supply 30W 27V | 29.7W | 27V | 1.1A | Indoor | $38.57 | View |
| Mean Well MPS-30-24 Power Supply 30W 24V | 28.8W | 24V | 1.2A | Indoor | $38.92 | View |
| Mean Well MPS-30-12 Power Supply 30W 12V | 30W | 12V | 2.5A | Indoor | $38.92 | View |
