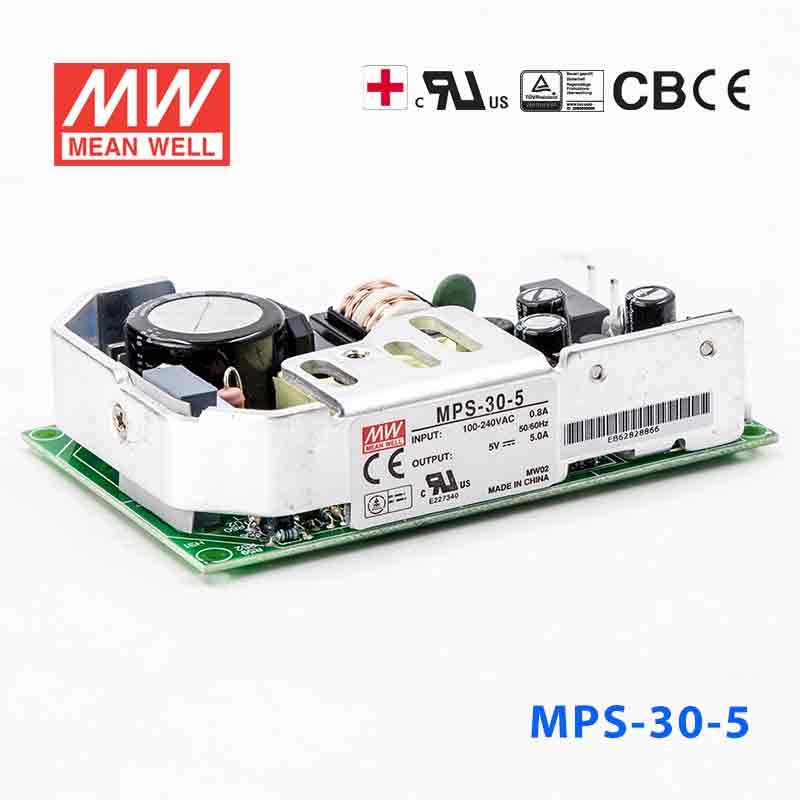

Mean Well MPS-30-5 Power Supply 30W 5V
MEAN WELL MPS-30 Series Power Supplies are 30W singlel output medical type power supplies low cost ,high reliability with 3 years warranty.
Key Features
- ✓Universal AC input / Full range
- ✓Low leakage current <200pA
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Medical safety approved (2 x MOPP between primary to secondary)
- ✓Fixed switching frequency at 100KHz
- ✓Low cost
- ✓High reliability
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating25 Watt
-
Output Voltage5 Volt
-
Rated Current5 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length4 in
-
Width2.59 in
-
Height0.93 in
-
Weight0.35 lb
::specification::
Frequently Asked Questions
Can I use the MPS-30-5 for a 5V embedded controller or industrial single-board computer?
Yes, if the device needs constant-voltage 5V DC and the total draw stays within 5A. This model is rated for 25W, which suits many compact 5V logic and embedded loads.
Is this power supply suitable for 5V automation electronics or a sensor-processing board?
It can support 5V automation electronics as long as the combined load does not exceed 25W or 5A. That makes it more appropriate for lower-power 5V control electronics than for larger mixed loads.
Can the MPS-30-5 power a small 5V industrial interface or HMI accessory?
It is intended for constant-voltage 5V applications and provides up to 5A of output current. The 88-264VAC input range also helps when the equipment may be deployed on different AC mains systems.
Is the MPS-30-5 designed for indoor or outdoor use?
The unit is specified for operation from -10°C to +60°C. No IP rating is listed in the product data, so the specs support temperature limits but do not identify it as an outdoor-rated model.
How does the MPS-30-5 compare with the other compact MPS voltage options?
The related small-output models are MPS-30-12 at 30W, 12V, 2.5A; MPS-30-15 at 30W, 15V, 2A; MPS-30-24 at 28.8W, 24V, 1.2A; MPS-30-27 at 29.7W, 27V, 1.1A; and MPS-30-48 at 28.8W, 48V, 0.6A. The MPS-30-5 version is the 25W, 5V, 5A member of that group.
