Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

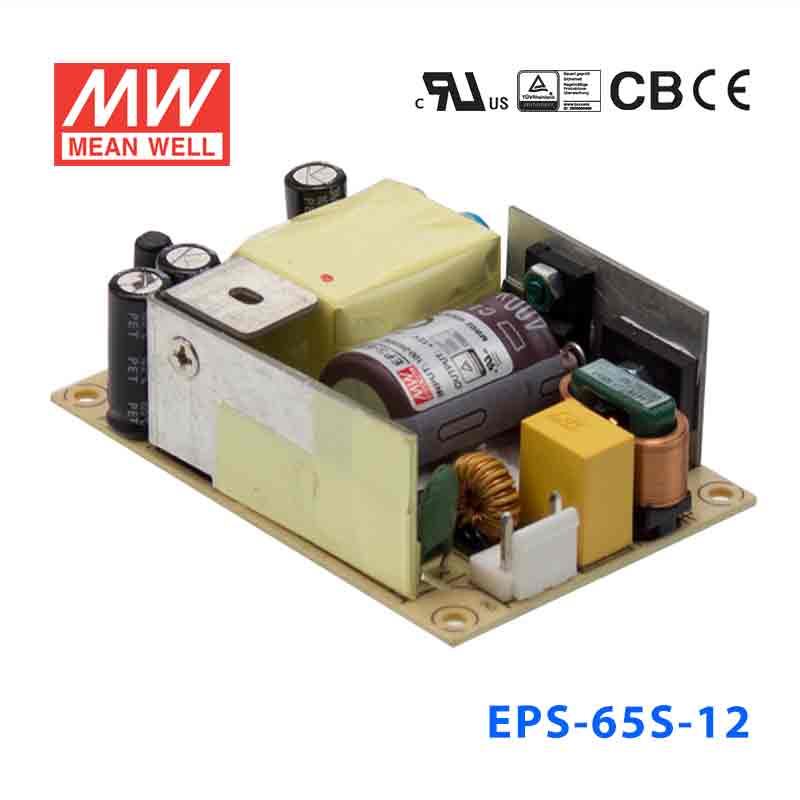

Mean Well EPS-65S-12 Power Supply 65W 12V
The EPS-65S is a 65W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating65 Watt
-
Output Voltage12 Volt
-
Rated Current5.42 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.24 lb
::specification::
Frequently Asked Questions
Can I use the EPS-65S-12 for a 12V PLC, HMI, or industrial control panel?
It can fit 12V industrial control equipment that requires constant-voltage 12VDC and stays within the unit's 65W and 5.42A output. The wide 80-264VAC input also makes it suitable for panels used in different AC supply regions. Check that the total 12V load does not exceed 65W.
Is the EPS-65S-12 suitable for embedded 12V electronics or edge devices inside a compact enclosure?
This model is often a fit for embedded or IT equipment that needs regulated 12VDC and draws up to 5.42A. Its 76.2 x 50.8 x 24.0 mm size and 0.11 kg weight make it easier to use where board space is limited. It is a constant-voltage supply, so it suits 12V loads rather than constant-current applications.
Can I use the EPS-65S-12 for 12V sensors, relays, and automation accessories on one DC bus?
Yes, if the connected devices all require 12V constant-voltage power and their combined draw stays within 65W or 5.42A. That makes it relevant for grouped 12V automation loads such as control accessories and low-power subsystems. It is not the right choice for equipment that requires a different output voltage.
Is the EPS-65S-12 meant for outdoor use or harsh ambient conditions?
The provided specs list an operating temperature range of -30C to +70C, but they do not list an IP rating. Without an IP rating in the published specs, it should not be treated as an outdoor-rated exposed power supply. It is better aligned with indoor equipment or protected enclosures where temperature still stays within -30C to +70C.
How does the EPS-65S-12 compare with the other EPS-65S models?
Within the EPS-65S group, the listed variants are 3.3V 33W 10A, 5V 50W 10A, 7.5V 60W 8A, 12V 65W 5.42A, 15V 65.1W 4.34A, 24V 65W 2.71A, and 48V 65.3W 1.36A. The EPS-65S-12 sits in the middle of the voltage range and provides 12V at up to 5.42A. All are compact EPS-65S open-frame models, but the output voltage, wattage, and current differ by SKU.
