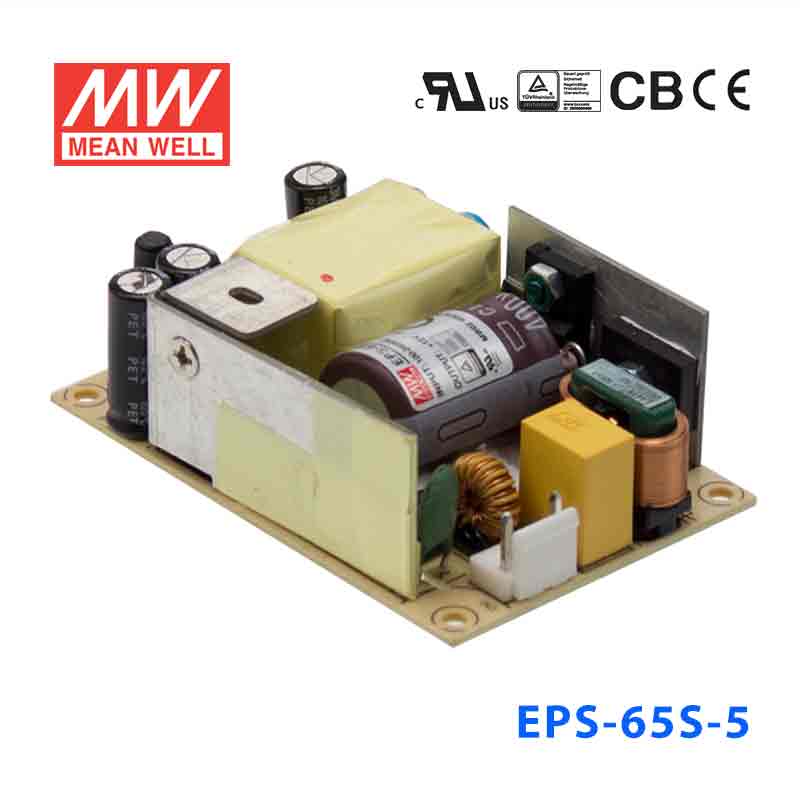

Mean Well EPS-65S-5 Power Supply 50W 5V 10A
5.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well EPS-65S-5 Power Supply 50W 5V 10A
Overview
EPS-65S-5 is the 5V output model of this series: rated current 10A, rated power 50W, typical efficiency 84%.
EPS-65S is a 65W highly reliable green PCB type industrial power supply with a high power density on the 3” by 2” footprint. It accepts 80~264VAC input and offers various output voltages between 3.3V and 48V. The working efficiency is up to 91% and the extremely low no load power consumption is down below 0.1W. EPS-65S is able to be used for ClassⅡ(no FG) system design.
Features
- 3"×2" miniature size
- Universal AC input / Full range
- ClassⅡ(without FG) installations
- No load power consumption<0.1W
- High efficiency up to 91%
- For 1U applications
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- -30~70℃wide range of operating temperature
- Operating altitude up to 5000 meters
- LED indicator for power on
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 5V
- RATED CURRENT
- 10A
- CURRENT RANGE
- 0 ~ 11A
- RATED POWER
- 50W
- PEAK LOAD(10sec.)Note.2
- 55W
- RIPPLE & NOISE (max.)Note.3
- 80mVp-p
- VOLTAGE ADJ.RANGE
- 4.7~5.5V
- VOLTAGE TOLERANCENote.4
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±2.0%
- SETUP, RISE TIME
- 500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 30ms / 230VAC 12ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.5
- 80 ~ 264VAC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 84%
- AC CURRENT (Typ.)
- 1.5A / 115VAC 1A / 230VAC
- INRUSH CURRENT (Typ.)
- COLD STAR 30A/115VAC 50A/230VAC
- LEAKAGE CURRENT(max.)
- 0.25mA/264VAC
PROTECTION
- OVERLOAD
- 115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 5.75~6.75V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 50℃)
- OPERATING ALTITUDENote.6
- 5000 meters
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368- 1, BS EN/EN60335-1, CCC GB4943.1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P: 3KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032(CISPR32) Class B, BS EN/EN61000-3-2,3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, Heavy industry Level , EAC TP TC 020
OTHERS
- MTBF
- 3334.3K hrs min. Telcordia SR-332 (Bellcore) ; 706.6K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 76.2*50.8*24mm or 3" * 2" *0.945" inch (L*W*H)
- PACKING
- 0.11Kg; 120pcs/14.2Kg/0.94CUFT
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
Technical drawings
Typical applications
- Industrial electrical equipment
- Mechanical equipment
- Factory automation equipment
- Handheld electronic device
Downloads
Datasheet1
Certificates9
Test reports1
Catalogues1
FAQ
Can I use the EPS-65S-5 for a 5V embedded controller or industrial logic board?
Yes, this model is a constant voltage 5V supply rated for up to 10A and 50W. That makes it suitable for 5V embedded controllers, logic boards, and other low-voltage electronics that need a regulated 5V rail within that current and power limit.
Is the EPS-65S-5 a good fit for 5V HMI, SBC, or USB-powered industrial electronics?
It can be a fit when the equipment requires 5V constant voltage and the total load stays within 10A or 50W. The wide 80-264VAC input also makes it practical for equipment used across different AC input ranges.
Can the EPS-65S-5 power multiple 5V embedded devices from one supply?
It is intended for 5V systems with a combined load up to 10A and 50W. In compact electronics assemblies, the 76.2 x 50.8 x 24.0 mm size and 0.11 kg weight also help when space is limited.
How does the EPS-65S-5 compare with other EPS 5V and 7.5V models?
This spec sheet covers only the EPS-65S series. Its 5V model, the EPS-65S-5, is rated 50W and 10A (0-11A current range, adjustable 4.7-5.5V). Its 7.5V model, the EPS-65S-7.5, is rated 60W and 8A (adjustable 7.12-8.3V). Both are 76.2 x 50.8 x 24 mm and take 80-264VAC input. Ratings for other EPS 5V and 7.5V series are not on this sheet, so check their own datasheets.
Is the EPS-65S-5 suitable for outdoor or harsh-temperature use?
The operating temperature range is -30°C to +70°C, with output derating at higher ambient temperatures per the derating curve, so the temperature spec supports a wide indoor equipment range. No IP rating is listed in the provided specs, so these specs do not identify it as an outdoor-rated power supply.
