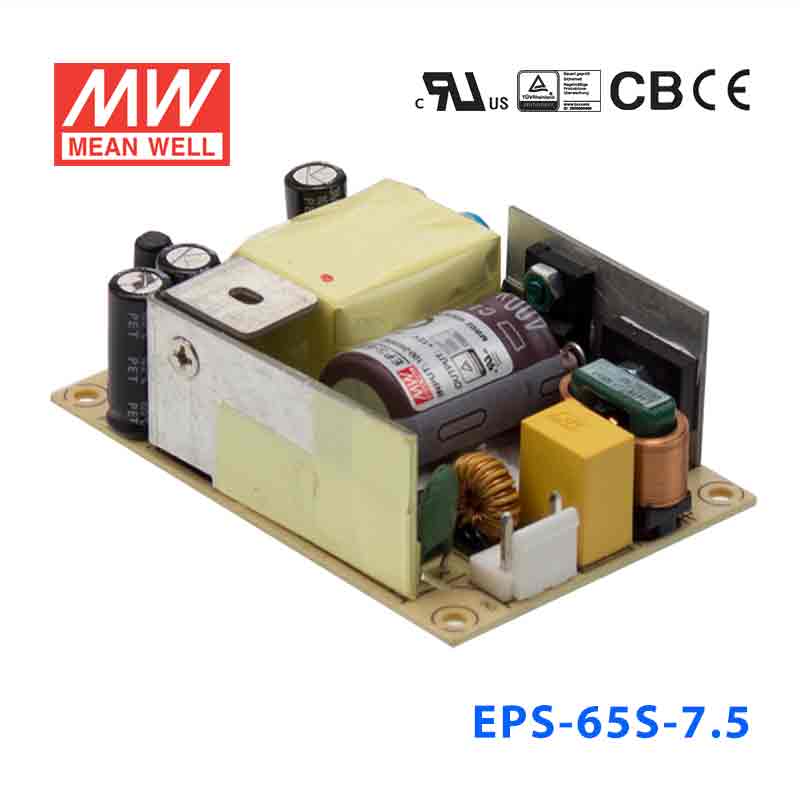

Mean Well EPS-65S-7.5 Power Supply 60W 7.5V
The EPS-65S is a 65W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating60 Watt
-
Output Voltage7.5 Volt
-
Rated Current8 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.24 lb
::specification::
Frequently Asked Questions
Can I use the EPS-65S-7.5 for 7.5V industrial control or embedded electronics?
Yes, if the load requires constant voltage 7.5V and stays within 8A or 60W. That makes it relevant for 7.5V control electronics, embedded assemblies, and low-voltage industrial devices designed for a 7.5V DC rail.
Is the EPS-65S-7.5 appropriate for 7.5V sensors, display modules, or test equipment?
It can be appropriate for 7.5V devices when the total demand does not exceed 8A or 60W. The 80-264VAC input range also supports use in equipment that may be deployed across different AC input standards.
Can the EPS-65S-7.5 be used in compact automation or embedded enclosures?
It is built in a compact 76.2 x 50.8 x 24.0 mm format and weighs 0.11 kg, which helps in space-constrained equipment. For 7.5V systems, it provides constant voltage output up to 8A.
When should I choose the EPS-65S-7.5 instead of another EPS 7.5V model?
The sibling 7.5V options listed are EPS-15-7.5 at 15W and 2A, EPS-25-7.5 at 25.5W and 3.4A, EPS-35-7.5 at 35.25W and 4.7A, EPS-45-7.5 at 40.5W and 5.4A, EPS-45S-7.5 at 40.5W and 5.4A, EPS-65-7.5 at 60W and 8A, and EPS-65S-7.5 at 60W and 8A. Compared with lower-power siblings, this model sits at the top of the listed 7.5V range at 60W and 8A.
Can the EPS-65S-7.5 be used in cold or warm indoor equipment environments?
The operating temperature range is -30°C to +70°C, which supports a broad range of indoor equipment conditions. No IP rating is provided in the specs, so the product data does not indicate outdoor or washdown suitability.
