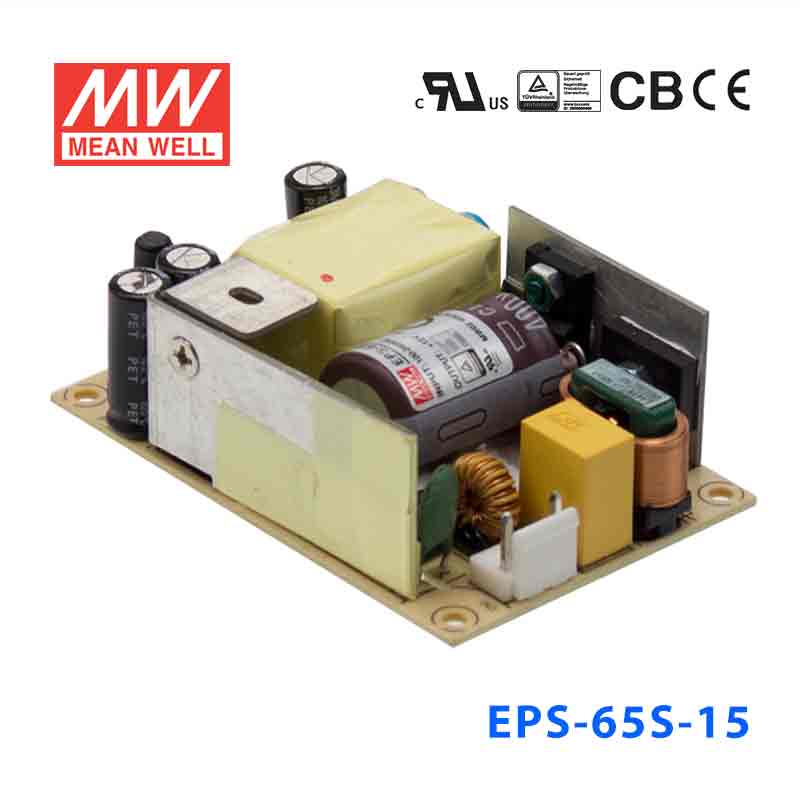

Mean Well EPS-65S-15 Power Supply 65W 15V 4.34A
5.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well EPS-65S-15 Power Supply 65W 15V 4.34A
Overview
EPS-65S-15 is the 15V output model of this series: rated current 4.34A, rated power 65.1W, typical efficiency 89%.
EPS-65S is a 65W highly reliable green PCB type industrial power supply with a high power density on the 3” by 2” footprint. It accepts 80~264VAC input and offers various output voltages between 3.3V and 48V. The working efficiency is up to 91% and the extremely low no load power consumption is down below 0.1W. EPS-65S is able to be used for ClassⅡ(no FG) system design.
Features
- 3"×2" miniature size
- Universal AC input / Full range
- ClassⅡ(without FG) installations
- No load power consumption<0.1W
- High efficiency up to 91%
- For 1U applications
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- -30~70℃wide range of operating temperature
- Operating altitude up to 5000 meters
- LED indicator for power on
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 15V
- RATED CURRENT
- 4.34A
- CURRENT RANGE
- 0 ~ 4.77A
- RATED POWER
- 65.1W
- PEAK LOAD(10sec.)Note.2
- 71.6W
- RIPPLE & NOISE (max.)Note.3
- 150mVp-p
- VOLTAGE ADJ.RANGE
- 13.5~16.5V
- VOLTAGE TOLERANCENote.4
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 30ms / 230VAC 12ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.5
- 80 ~ 264VAC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 89%
- AC CURRENT (Typ.)
- 1.5A / 115VAC 1A / 230VAC
- INRUSH CURRENT (Typ.)
- COLD STAR 30A/115VAC 50A/230VAC
- LEAKAGE CURRENT(max.)
- 0.25mA/264VAC
PROTECTION
- OVERLOAD
- 115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 17.25~20.25V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 50℃)
- OPERATING ALTITUDENote.6
- 5000 meters
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368- 1, BS EN/EN60335-1, CCC GB4943.1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P: 3KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032(CISPR32) Class B, BS EN/EN61000-3-2,3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, Heavy industry Level , EAC TP TC 020
OTHERS
- MTBF
- 3334.3K hrs min. Telcordia SR-332 (Bellcore) ; 706.6K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 76.2*50.8*24mm or 3" * 2" *0.945" inch (L*W*H)
- PACKING
- 0.11Kg; 120pcs/14.2Kg/0.94CUFT
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
Technical drawings
Typical applications
- Industrial electrical equipment
- Mechanical equipment
- Factory automation equipment
- Handheld electronic device
Downloads
Datasheet1
Certificates9
Test reports1
Catalogues1
FAQ
Can I use the EPS-65S-15 for 15V industrial control electronics?
It is intended for constant-voltage 15VDC loads and can supply up to 65.1W or 4.34A. That makes it relevant for industrial or automation devices designed specifically for a 15V rail. Confirm the equipment requires 15V rather than 12V or 24V.
Is the EPS-65S-15 a good fit for embedded systems that run on a 15V DC bus?
This power supply can fit embedded or test equipment built around a 15V constant-voltage input, provided the load stays within 4.34A. Its compact 76.2 x 50.8 x 24.0 mm form factor also helps in space-constrained electronics assemblies. The input range is 80-264VAC for broad AC compatibility.
Can the EPS-65S-15 power multiple 15V automation accessories from one supply?
It can support multiple 15VDC accessories on the same bus as long as the combined demand remains at or below 65.1W and 4.34A. This is useful for low- to moderate-power 15V control subsystems. All connected loads still need to be designed for constant-voltage 15V operation.
Is the EPS-65S-15 suitable for outdoor cabinets or unprotected environments?
The specs show an operating temperature range of -30C to +70C (with output derating at higher ambient temperatures per the derating curve), but no IP rating is listed. Because no IP rating is provided, the published data does not describe it as an exposed outdoor power supply. It is better suited to indoor equipment or protected housings that stay within -30C to +70C.
What are the main differences between the EPS-65S-15 and the other EPS-65S versions?
The EPS-65S family shown here includes 3.3V 33W 10A, 5V 50W 10A, 7.5V 60W 8A, 12V 65W 5.42A, 15V 65.1W 4.34A, 24V 65W 2.71A, and 48V 65.3W 1.36A. The EPS-65S-15 version is the 15V option and is rated for 65.1W with 4.34A output current. Selection across the family mainly comes down to matching the required output voltage and current.
