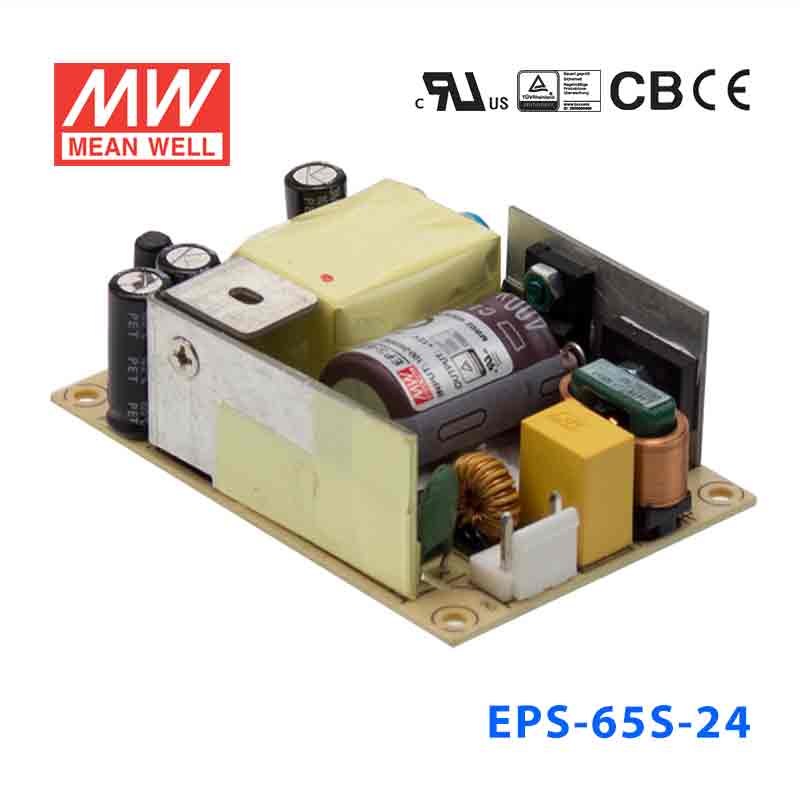

Mean Well EPS-65S-24 Power Supply 65W 24V
The EPS-65S is a 65W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating65 Watt
-
Output Voltage24 Volt
-
Rated Current2.71 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.24 lb
::specification::
Frequently Asked Questions
Can I use the EPS-65S-24 for 24V PLCs, controllers, or industrial I/O hardware?
Yes, if the equipment requires constant-voltage 24VDC and the total load stays within 65W and 2.71A. Those ratings align with many low- to mid-power industrial control applications built around a 24V bus. The input range is 80-264VAC for use across common AC mains ranges.
Is the EPS-65S-24 suitable for 24V embedded or automation devices inside a compact machine enclosure?
It can be a fit for compact 24V systems that need up to 2.71A from a constant-voltage supply. The body size is 76.2 x 50.8 x 24.0 mm and the weight is 0.11 kg, which helps where enclosure space is limited. It should be matched only to devices specified for 24VDC input.
Can the EPS-65S-24 support a small 24V control subsystem with sensors and actuators?
It can support a 24V control subsystem when the combined DC demand does not exceed 65W or 2.71A. That makes it relevant for small automation assemblies using a shared 24V rail. It is a constant-voltage model, so it should be used with 24V constant-voltage loads.
Can the EPS-65S-24 be used in cold or hot indoor equipment cabinets?
The rated operating temperature range is -30C to +70C, so the published specs support use across a wide ambient range. However, no IP rating is listed in the product specs. That means the available data supports protected indoor or enclosed use, not exposed outdoor use.
How does the EPS-65S-24 compare with the rest of the EPS-65S lineup?
The listed EPS-65S variants are 3.3V 33W 10A, 5V 50W 10A, 7.5V 60W 8A, 12V 65W 5.42A, 15V 65.1W 4.34A, 24V 65W 2.71A, and 48V 65.3W 1.36A. The EPS-65S-24 is the 24V member with a 65W output and 2.71A current rating. Compared with the lower-voltage versions, it delivers less current because the output voltage is higher.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other EPS-65S Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well EPS-65S-7.5 Power Supply 60W 7.5V | 60W | 7.5V | 8A | Indoor | $16.36 | View |
| Mean Well EPS-65S-5 Power Supply 50W 5V | 50W | 5V | 10A | Indoor | $16.35 | View |
| Mean Well EPS-65S-48 Power Supply 65W 48V | 65.3W | 48V | 1.36A | Indoor | $16.35 | View |
| Mean Well EPS-65S-3.3 Power Supply 33W 3.3V | 33W | 3.3V | 10A | Indoor | $16.36 | View |
| Mean Well EPS-65S-15 Power Supply 65W 15V | 65.1W | 15V | 4.34A | Indoor | $16.35 | View |
| Mean Well EPS-65S-12 Power Supply 65W 12V | 65W | 12V | 5.42A | Indoor | $15.98 | View |
