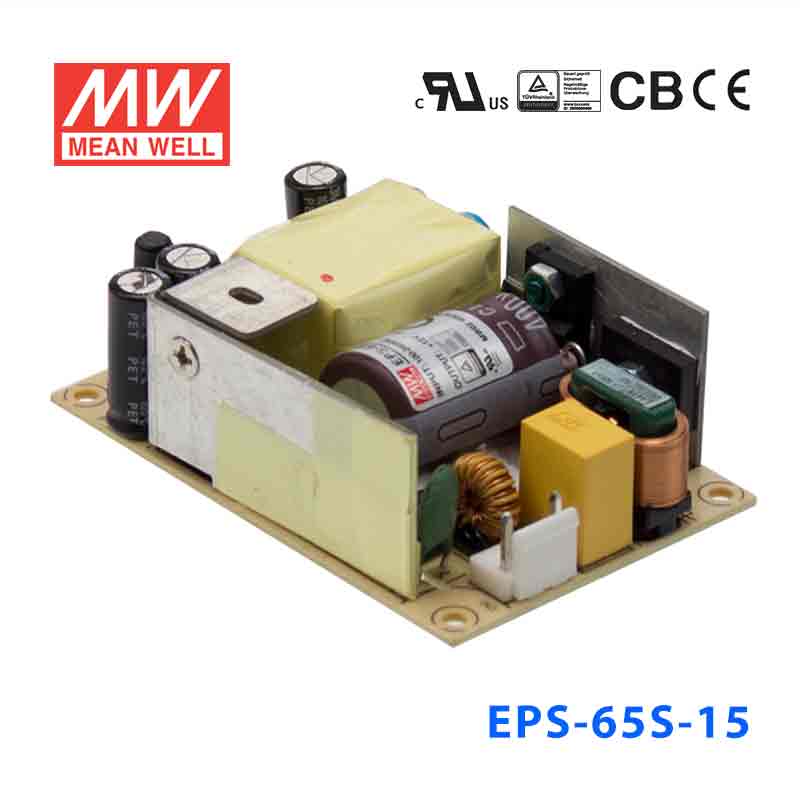

Mean Well EPS-65S-15 Power Supply 65W 15V
The EPS-65S is a 65W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating65.1 Watt
-
Output Voltage15 Volt
-
Rated Current4.34 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.24 lb
::specification::
Frequently Asked Questions
Can I use the EPS-65S-15 for 15V industrial control electronics?
It is intended for constant-voltage 15VDC loads and can supply up to 65.1W or 4.34A. That makes it relevant for industrial or automation devices designed specifically for a 15V rail. Confirm the equipment requires 15V rather than 12V or 24V.
Is the EPS-65S-15 a good fit for embedded systems that run on a 15V DC bus?
This power supply can fit embedded or test equipment built around a 15V constant-voltage input, provided the load stays within 4.34A. Its compact 76.2 x 50.8 x 24.0 mm form factor also helps in space-constrained electronics assemblies. The input range is 80-264VAC for broad AC compatibility.
Can the EPS-65S-15 power multiple 15V automation accessories from one supply?
It can support multiple 15VDC accessories on the same bus as long as the combined demand remains at or below 65.1W and 4.34A. This is useful for low- to moderate-power 15V control subsystems. All connected loads still need to be designed for constant-voltage 15V operation.
Is the EPS-65S-15 suitable for outdoor cabinets or unprotected environments?
The specs show an operating temperature range of -30C to +70C, but no IP rating is listed. Because no IP rating is provided, the published data does not describe it as an exposed outdoor power supply. It is better suited to indoor equipment or protected housings that stay within -30C to +70C.
What are the main differences between the EPS-65S-15 and the other EPS-65S versions?
The EPS-65S family shown here includes 3.3V 33W 10A, 5V 50W 10A, 7.5V 60W 8A, 12V 65W 5.42A, 15V 65.1W 4.34A, 24V 65W 2.71A, and 48V 65.3W 1.36A. The EPS-65S-15 version is the 15V option and is rated for 65.1W with 4.34A output current. Selection across the family mainly comes down to matching the required output voltage and current.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other EPS-65S Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well EPS-65S-24 Power Supply 65W 24V | 65W | 24V | 2.71A | Indoor | $15.98 | View |
| Mean Well EPS-65S-7.5 Power Supply 60W 7.5V | 60W | 7.5V | 8A | Indoor | $16.36 | View |
| Mean Well EPS-65S-5 Power Supply 50W 5V | 50W | 5V | 10A | Indoor | $16.35 | View |
| Mean Well EPS-65S-48 Power Supply 65W 48V | 65.3W | 48V | 1.36A | Indoor | $16.35 | View |
| Mean Well EPS-65S-3.3 Power Supply 33W 3.3V | 33W | 3.3V | 10A | Indoor | $16.36 | View |
| Mean Well EPS-65S-12 Power Supply 65W 12V | 65W | 12V | 5.42A | Indoor | $15.98 | View |
