Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

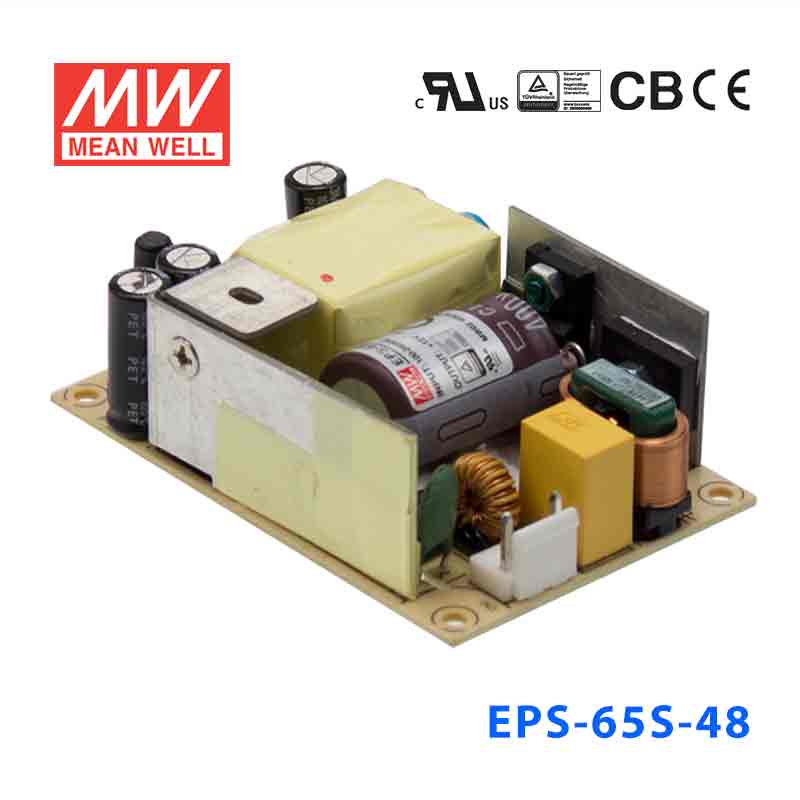

Mean Well EPS-65S-48 Power Supply 65W 48V
The EPS-65S is a 65W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating65.3 Watt
-
Output Voltage48 Volt
-
Rated Current1.36 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.24 lb
::specification::
Frequently Asked Questions
Can I use the EPS-65S-48 for 48V telecom or network equipment that needs a DC bus supply?
It can fit 48V constant-voltage equipment that stays within 65.3W and 1.36A. That makes it relevant for low-power telecom, communications, or network hardware designed for a 48VDC input. The connected load must specifically require 48V rather than 24V or 12V.
Is the EPS-65S-48 suitable for industrial control devices that operate from 48VDC?
Yes, if the device is specified for a constant-voltage 48V input and draws no more than 1.36A. This model provides 65.3W at 48V, which suits lower-current 48V control or interface equipment. Its 80-264VAC input supports broad AC source compatibility.
Can the EPS-65S-48 be used in compact embedded or automation assemblies where 48V is required?
It can be used where a regulated 48VDC rail is needed and the total demand remains within 65.3W. The compact dimensions of 76.2 x 50.8 x 24.0 mm and weight of 0.11 kg help in dense control assemblies. It is a constant-voltage model, so it should be paired with 48V constant-voltage loads.
Is the EPS-65S-48 intended for outdoor or washdown environments?
The specs state an operating temperature range of -30C to +70C, but they do not include an IP rating. Because no IP rating is published here, the product should not be treated as an exposed outdoor or washdown power supply based on these specs alone. It is better suited to protected indoor equipment or enclosed use within -30C to +70C.
How does the EPS-65S-48 compare with the other EPS-65S voltage options?
The listed EPS-65S models are 3.3V 33W 10A, 5V 50W 10A, 7.5V 60W 8A, 12V 65W 5.42A, 15V 65.1W 4.34A, 24V 65W 2.71A, and 48V 65.3W 1.36A. The EPS-65S-48 is the highest-voltage option in that group and has the lowest current rating at 1.36A. It is the relevant choice only when the application specifically calls for 48VDC.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other EPS-65S Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well EPS-65S-24 Power Supply 65W 24V | 65W | 24V | 2.71A | Indoor | $15.98 | View |
| Mean Well EPS-65S-7.5 Power Supply 60W 7.5V | 60W | 7.5V | 8A | Indoor | $16.36 | View |
| Mean Well EPS-65S-5 Power Supply 50W 5V | 50W | 5V | 10A | Indoor | $16.35 | View |
| Mean Well EPS-65S-3.3 Power Supply 33W 3.3V | 33W | 3.3V | 10A | Indoor | $16.36 | View |
| Mean Well EPS-65S-15 Power Supply 65W 15V | 65.1W | 15V | 4.34A | Indoor | $16.35 | View |
| Mean Well EPS-65S-12 Power Supply 65W 12V | 65W | 12V | 5.42A | Indoor | $15.98 | View |
