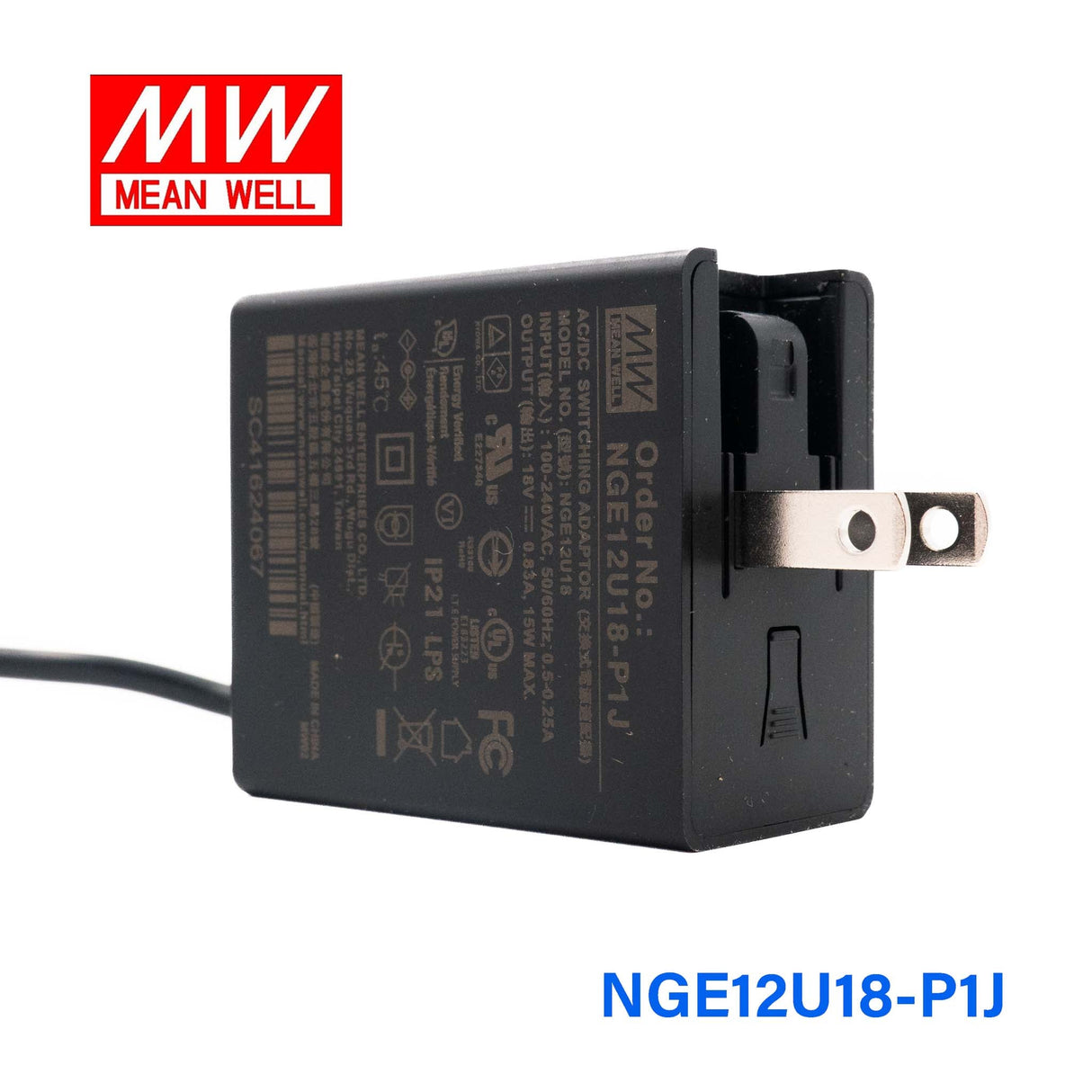

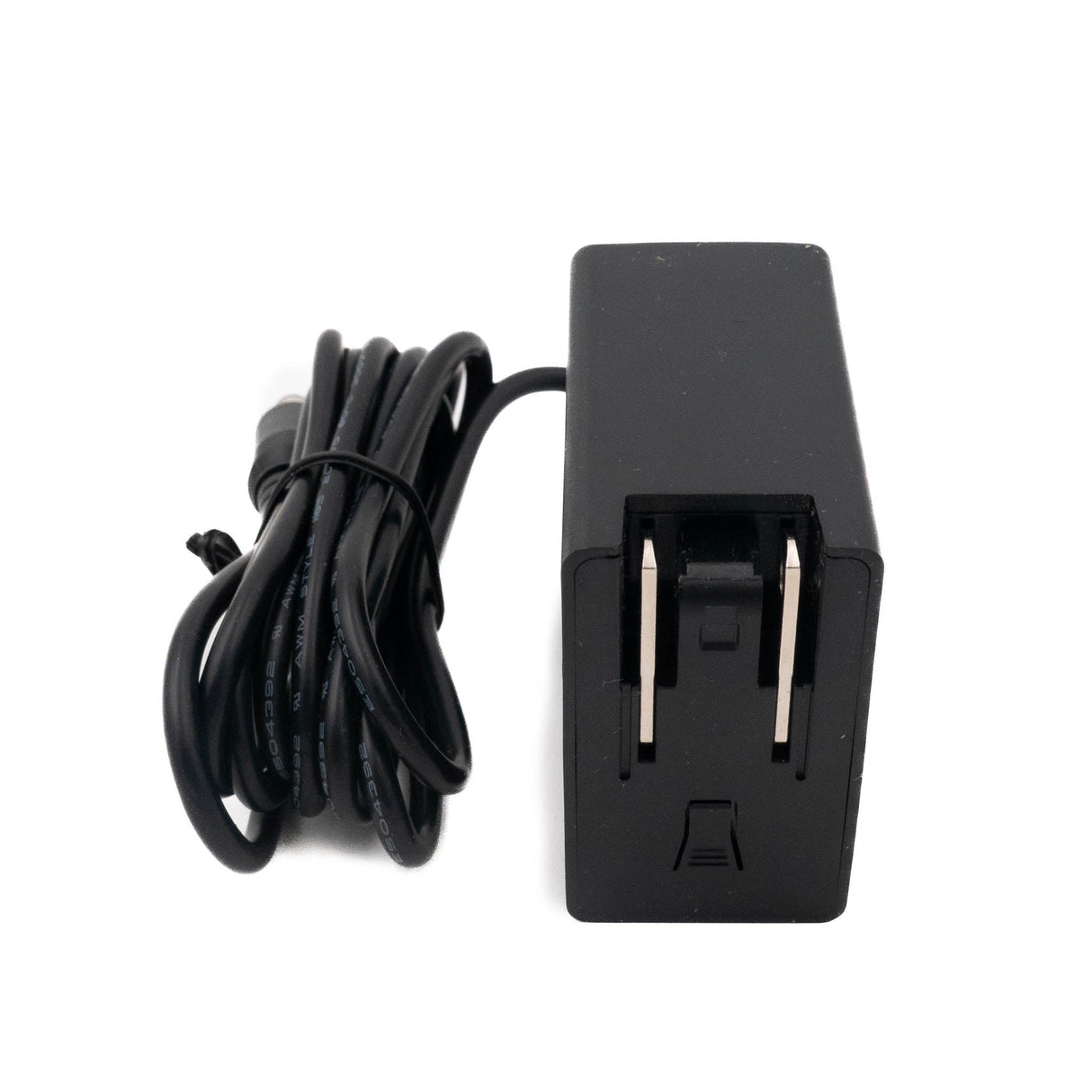

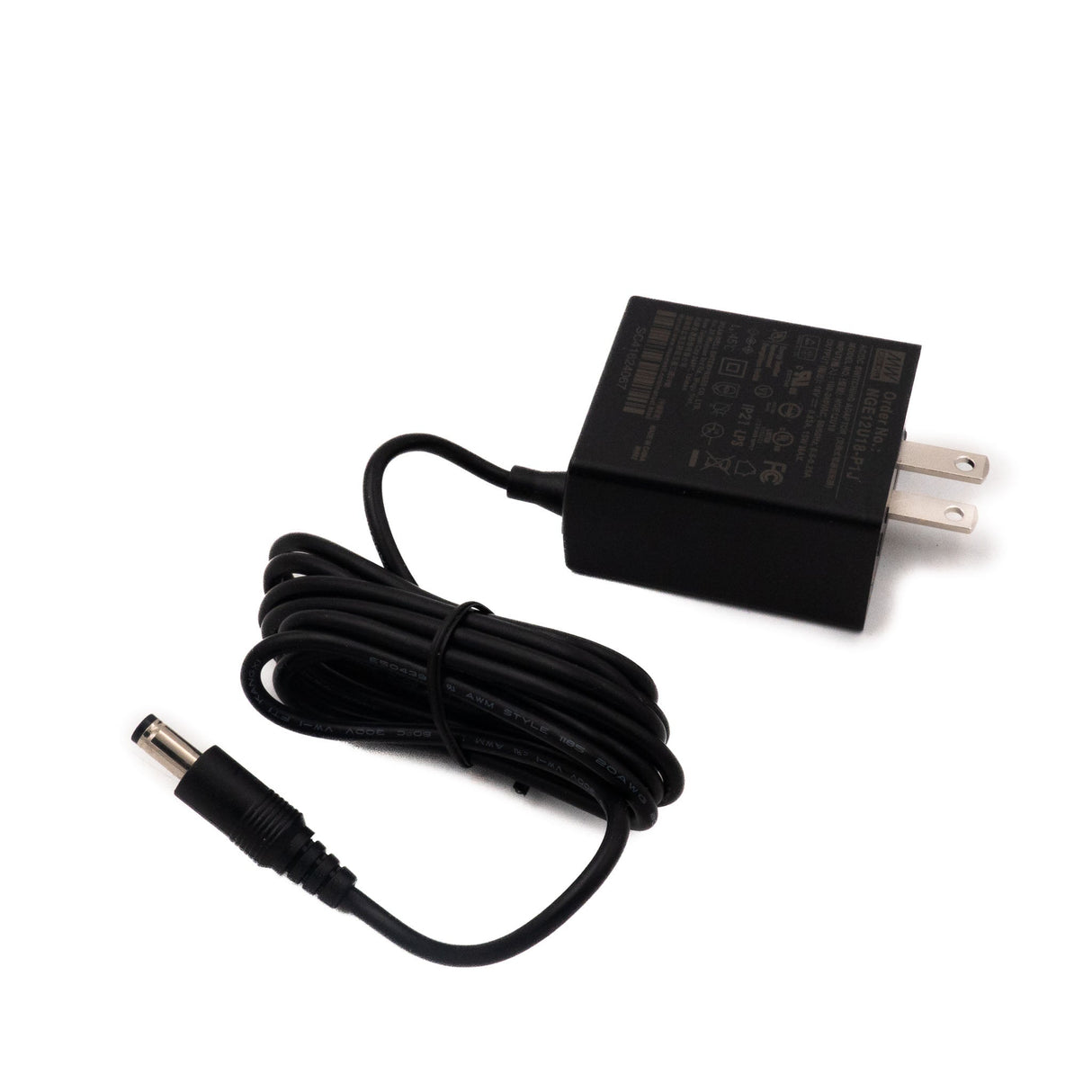

Mean Well NGE12U18-P1J AC-DC Wall-mounted Green Adaptor - US Plug - 12W 18V 0.83A

ultra slim(28mm), extremely low leakage current < 100μA, Class II
$12.98 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

MEAN WELL Patent Application Number: 202330347779.4
Interchangeable AC plugs
Universal AC input / Full range
Ultra slim(28mm)
No load power consumption< 0.075W
Energy efficiency level VI
Class II power (no earth pin)
Protections: Short circuit / Overload / Over voltage
Pass LPS
Extremely low leakage current <100uA
-30℃ ~ + 70℃ wide range working temperature

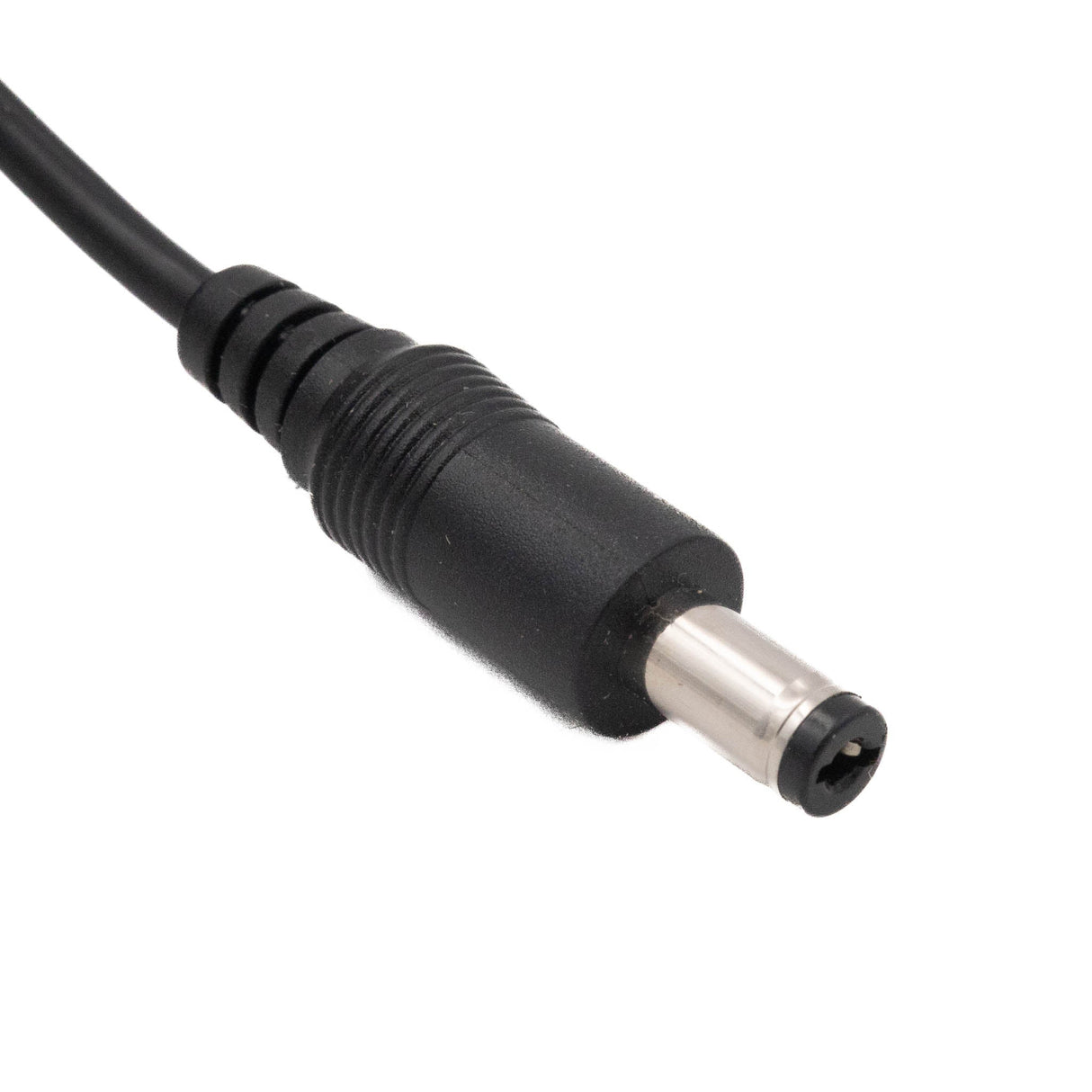

Various DC plug quick adapter accessory available
3 years warranty

General Specification

AC input voltage range 80 ~ 264VAC 113 ~ 370VDC
AC inrush current (max.) COLD START 40A / 115VAC 80A / 230VAC
Setup, rise, hold up time 1500ms, 30ms, 30ms / 230VAC 3000ms, 30ms, 10ms / 115VAC at full load
Overload protection Protection type : Hiccup mode, recovers automatically after fault condition is removed | 110% ~ 150% rated output power
Over voltage protection Protection type : Clamp by zener diode | 115% ~ 140% rated output voltage
Withstand voltage I/P-O/P:4000VAC
Working temperature -30 ~ +70℃ (Refer to "Derating Curve")
Safety standards CB IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1; UL UL62368-1, CSA C22.2 NO. 62368-1, ANSI/AAMI ES60601-1/-1-11(3.2 Version), CAN/CSA-C22.2 NO.60601-1/-1-11; DEKRA BS EN/EN62368-1, BS EN/EN60601-1/-1-11, BS EN/EN61558-1/-2-16, BS EN/EN60335-1; PSE J62368-1; BSMI CNS15598-1; RCM AS/NZS 61558-1/-2-16; EAC TPTC004; CCC GB4943.1 approved.
Dimension (LxWxH) 48x28x55mm

Specifications

  • Brand
    Mean Well
  • Series
    NGE Series
  • Power Rating
    15 Watt
  • Output Voltage
    18 Volt
  • Rated Current
    0.83 Ampere
  • Input Voltage
    80V~264V
  • No of Output
    1
  • Dimming Control
    Non Dimmable
  • Standards Met
    CB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    1.89 in
  • Width
    1.1 in
  • Height
    2.17 in
  • Weight
    0.29 lb
