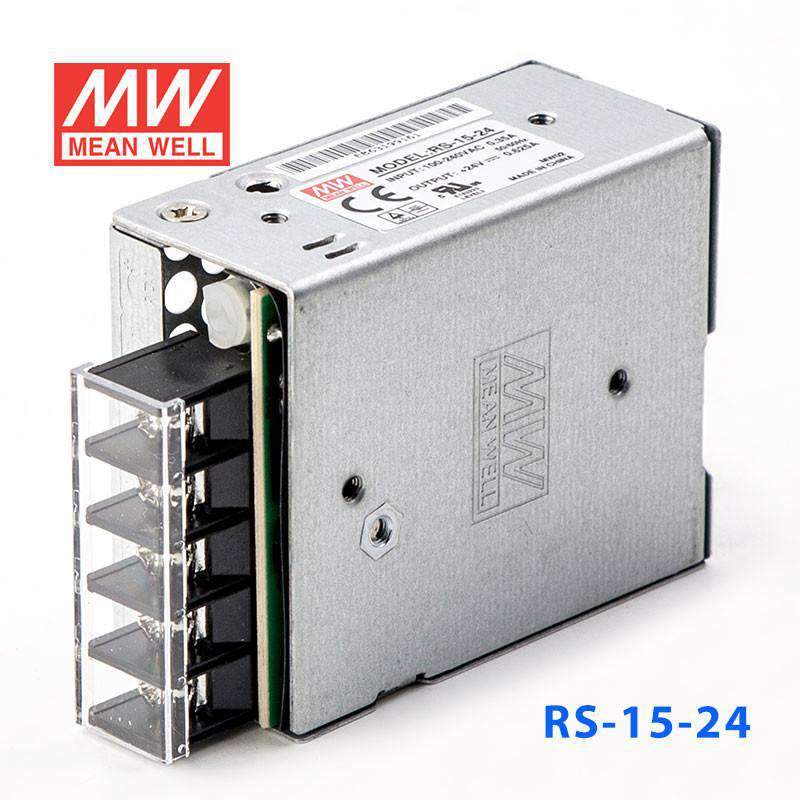

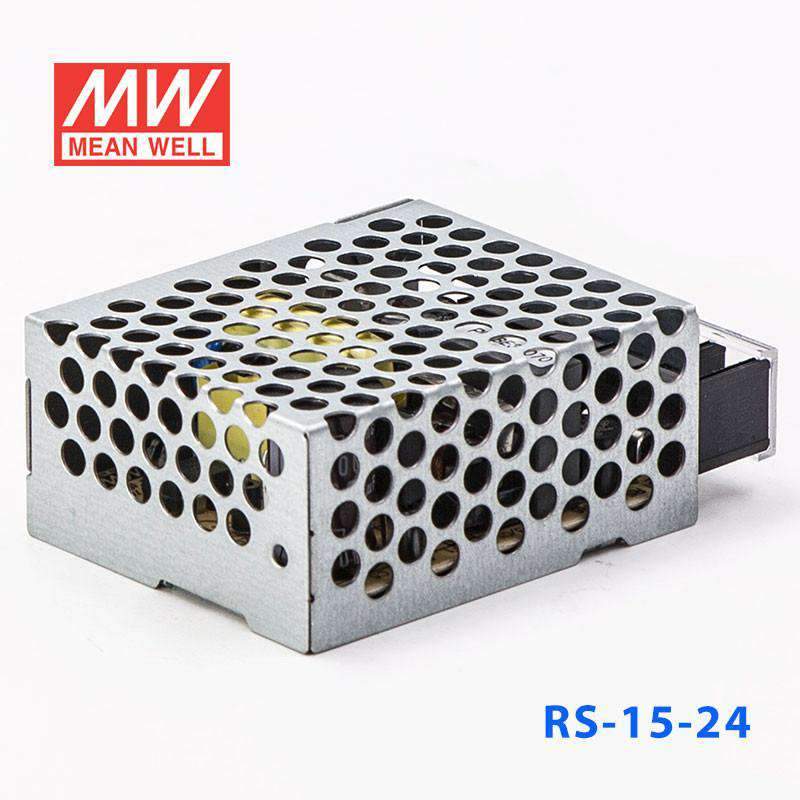

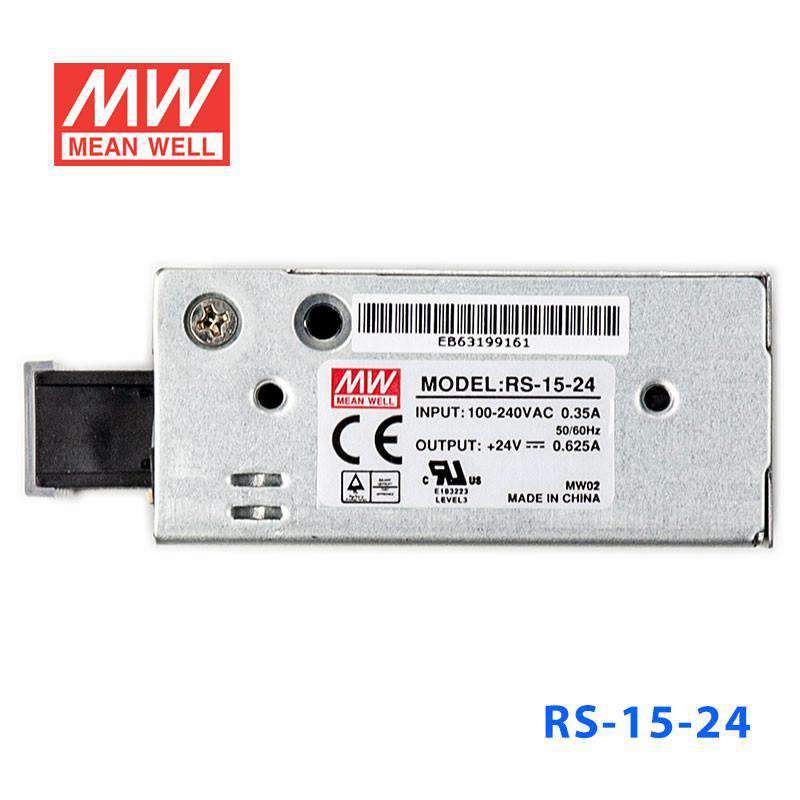

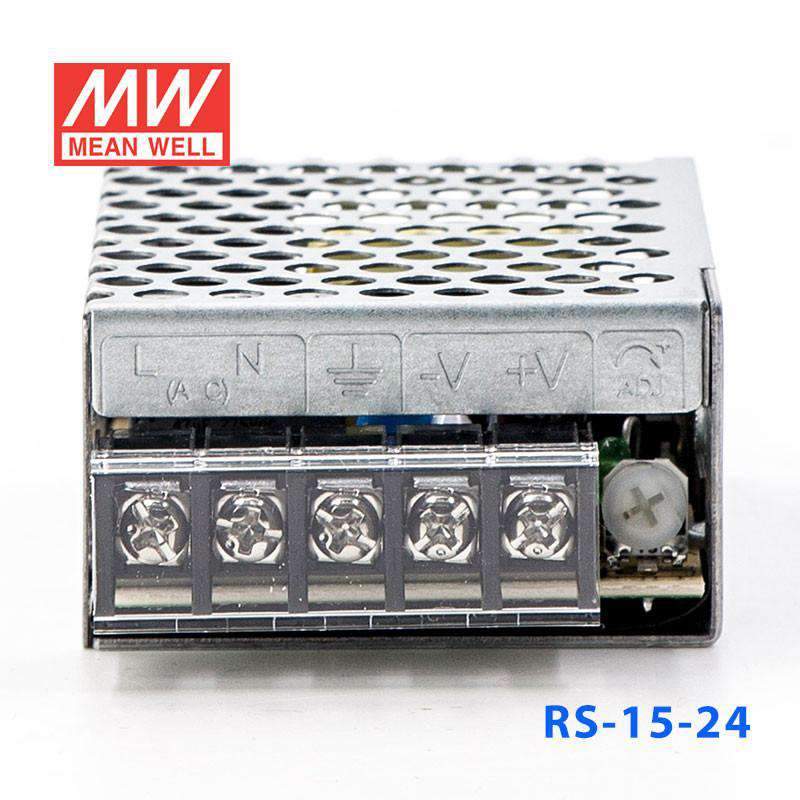

Mean Well RS-15-24 Power Supply 15W 24V
The RS-15 is a 15W Mean Well power converter (input range: 85~264VAC, operating temperature: -20~+70℃).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -20~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: WITHSTAND VOLTAGE 20 ~ 90% RH non-condensing -40 ~ +85 ± 0.03%/ ℃ ℃ , 10 ~ 95% RH ℃ (0 ~ 50 ) 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes UL62368-1, TUV EN62368-1 , EAC TP TC 004, CCC GB4943 .1, BSMI CNS14336-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRS Series
-
Power Rating15 Watt
-
Output Voltage24 Volt
-
Rated Current0.62 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCE,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.46 in
-
Width2.01 in
-
Height1.1 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
Can I use the RS-15-24 for a small 24V PLC, sensor, or automation load?
Yes, it is a constant-voltage 24V supply rated for up to 0.62A and 15W. That fits low-power 24V DC devices that do not need the higher current available from larger 24V models.
Is the RS-15-24 suitable for compact 24V embedded or control electronics?
It can be suitable for 24V equipment that stays within 0.62A and 15W. The compact 62.5 × 51.0 × 28.0 mm size and 0.13 kg weight help where enclosure space is limited.
Can this model power a low-demand 24V industrial interface module?
Yes, if the module requires a regulated 24V DC output and draws no more than 0.62A. Its 85-264VAC input range also supports use across a broad range of AC input conditions.
How does the RS-15-24 compare with other 24V RS power supplies?
For the listed 24V RS siblings, the RS-15-24 is 15W at 0.62A, the RS-25-24 is 26.4W at 1.1A, the RS-35-24 is 35W at 1.5A, the RS-50-24 is 52.8W at 2.2A, the RS-75-24 is 76.8W at 3.2A, the RS-100-24 is 108W at 4.5A, and the RS-150-24 is 156W at 6.5A. The main selection difference is how much 24V current and total wattage your load requires.
Is the RS-15-24 intended for indoor cabinets or outdoor locations?
The product is rated for -20°C to +70°C operation and is specified to withstand 5G vibration. No IP rating is listed in the provided specs, so the data supports temperature use limits but does not confirm outdoor weather resistance.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RS-15 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RS-15-5 Power Supply 15W 5V | 15W | 5V | 3A | Indoor | $9.68 | View |
| Mean Well RS-15-12 Power Supply 15W 12V | 15.6W | 12V | 1.3A | Indoor | $9.68 | View |
| Mean Well RS-15-15 Power Supply 15W 15V | 15W | 15V | 1A | Indoor | $9.68 | View |
| Mean Well RS-15-48 Power Supply 15W 48V | 15.02W | 48V | 0.31A | Indoor | $9.68 | View |
| Mean Well RS-15-3.3 Power Supply 15W 3.3V | 9.9W | 3.3V | 3A | Indoor | $9.86 | View |
