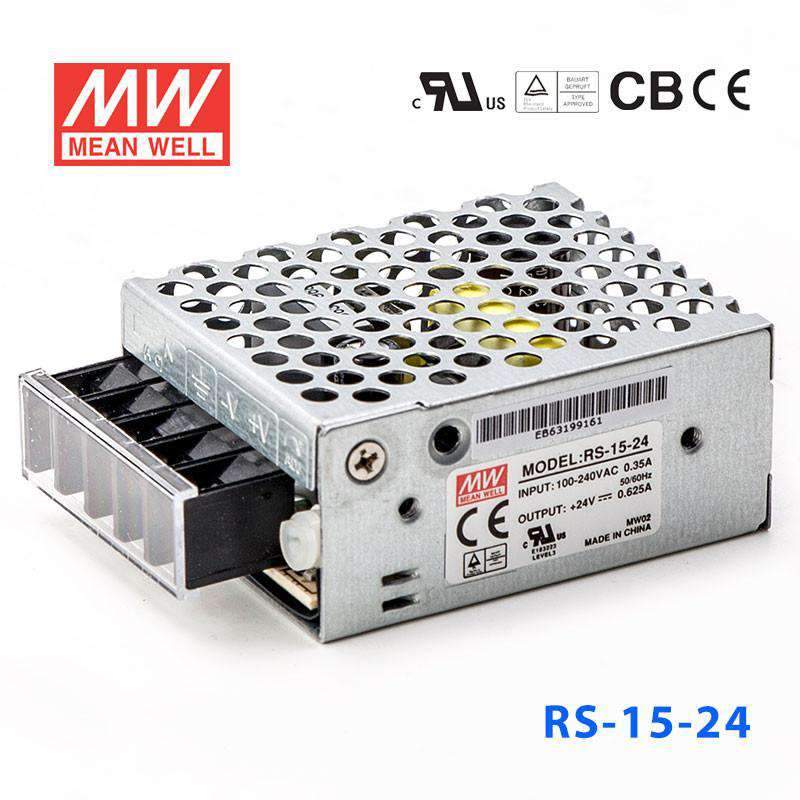

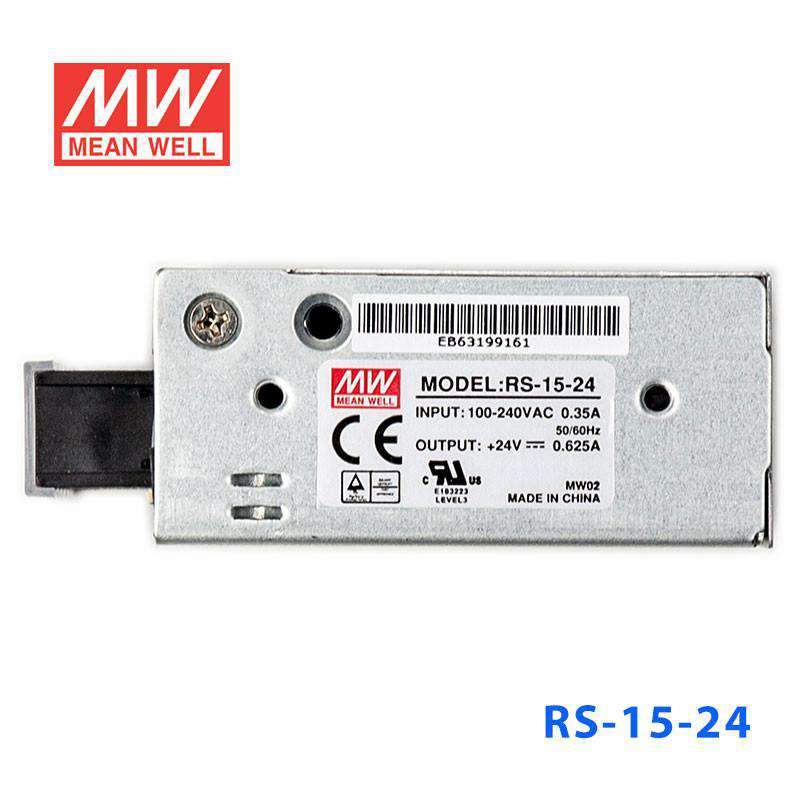

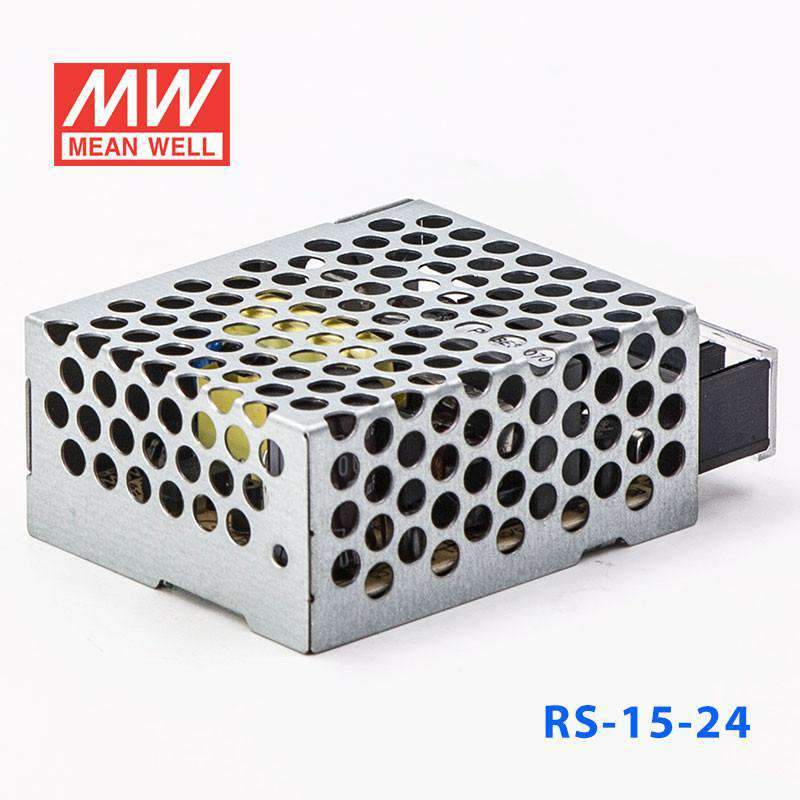

Mean Well RS-15-24 Power Supply 15W 24V
Description
Description
Features
| No load power consumption <0.5W |
| All using 105°C long life electrolytic capacitors |
| Protections: Short circuit / Overload / Over voltage / Over Temp. |
| Meet EMS EN50082-2/EN61000-6-2 |
| heavy industry level (35~150W) |
| Withstand 300VAC surge input for 5 sec. |
| High operating temperature up to 70°C |
| Withstand 5G vibration test |
| Miniature size, high power density |
| High efficiency, long life and high reliability |
| LED indicator for power on |
| 100% full load burn-in test |
| Suitable for critical applications |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC, 120~370VDC |
| AC inrush current | Cold start, 65A at 230VAC |
| DC adjustment range | ±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output |
| Overload protection | >105%, hiccup mode |
| Over voltage protection | 115%~135%, shut off |
| Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute |
| Working temperature | -20~+70°C |
| Vibration | 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W) |

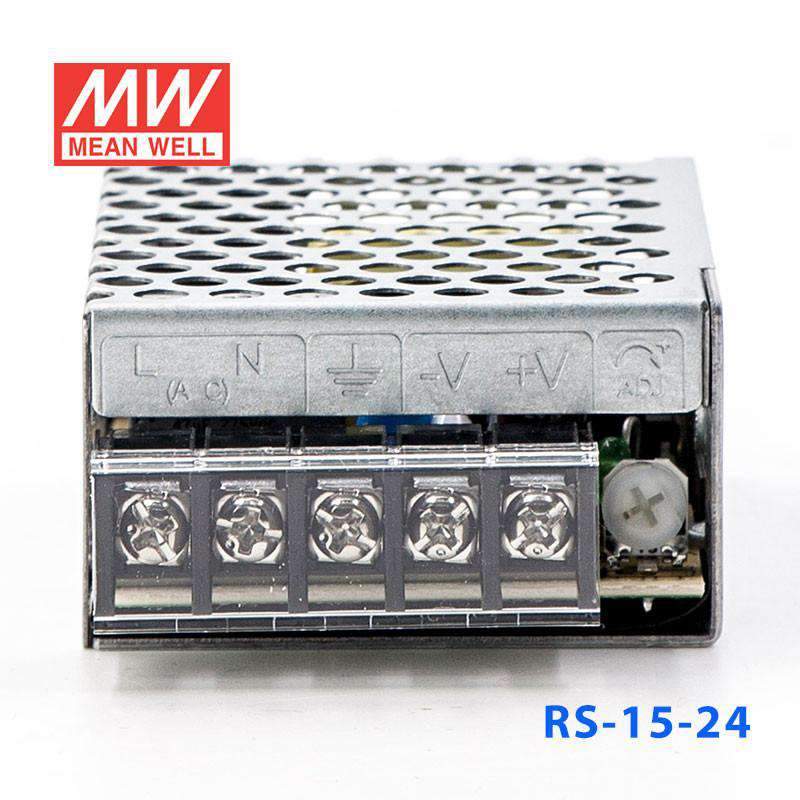

| Connection | Terminal block for input and output |
| Dimension (LxWxH) | 62.5x 51x 28 |
| Case No. | 971A |
| Packing | 108pcs /15.0kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRS Series
-
Power Rating15 Watt
-
Output Voltage24 Volt
-
Rated Current0.62 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCE,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.46 in
-
Width2.01 in
-
Height1.1 in
-
Weight0.29 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RS-15-24 for a small 24V PLC, sensor, or automation load?
Yes, it is a constant-voltage 24V supply rated for up to 0.62A and 15W. That fits low-power 24V DC devices that do not need the higher current available from larger 24V models.
Is the RS-15-24 suitable for compact 24V embedded or control electronics?
It can be suitable for 24V equipment that stays within 0.62A and 15W. The compact 62.5 × 51.0 × 28.0 mm size and 0.13 kg weight help where enclosure space is limited.
Can this model power a low-demand 24V industrial interface module?
Yes, if the module requires a regulated 24V DC output and draws no more than 0.62A. Its 85-264VAC input range also supports use across a broad range of AC input conditions.
How does the RS-15-24 compare with other 24V RS power supplies?
For the listed 24V RS siblings, the RS-15-24 is 15W at 0.62A, the RS-25-24 is 26.4W at 1.1A, the RS-35-24 is 35W at 1.5A, the RS-50-24 is 52.8W at 2.2A, the RS-75-24 is 76.8W at 3.2A, the RS-100-24 is 108W at 4.5A, and the RS-150-24 is 156W at 6.5A. The main selection difference is how much 24V current and total wattage your load requires.
Is the RS-15-24 intended for indoor cabinets or outdoor locations?
The product is rated for -20°C to +70°C operation and is specified to withstand 5G vibration. No IP rating is listed in the provided specs, so the data supports temperature use limits but does not confirm outdoor weather resistance.
