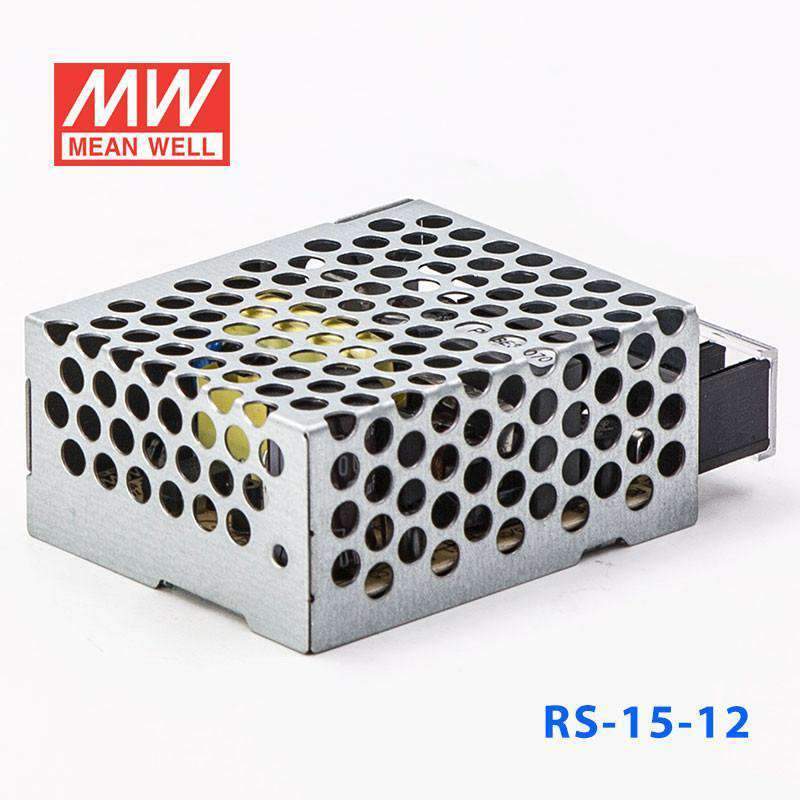

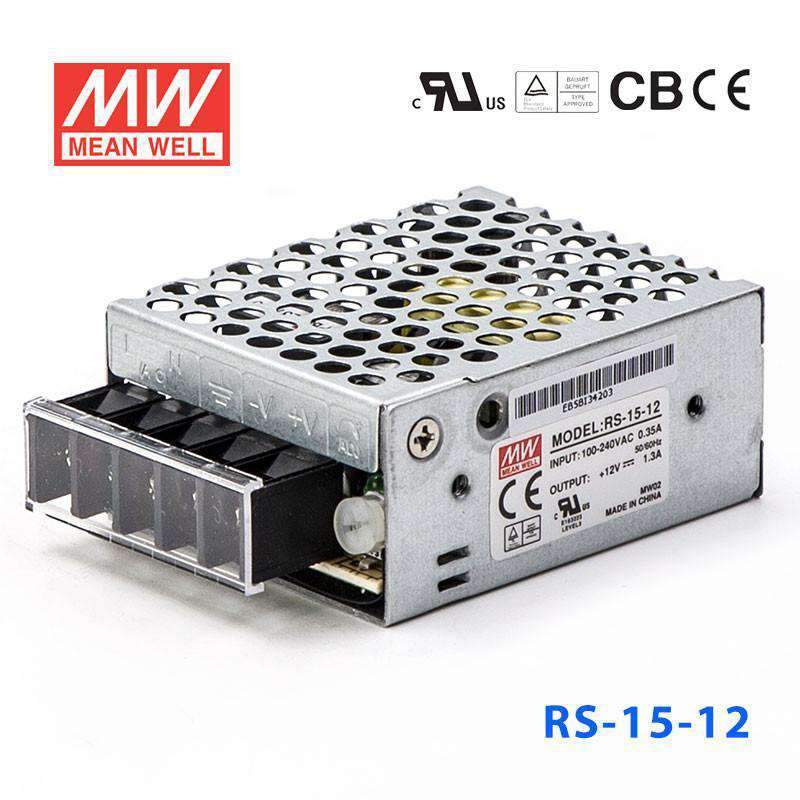

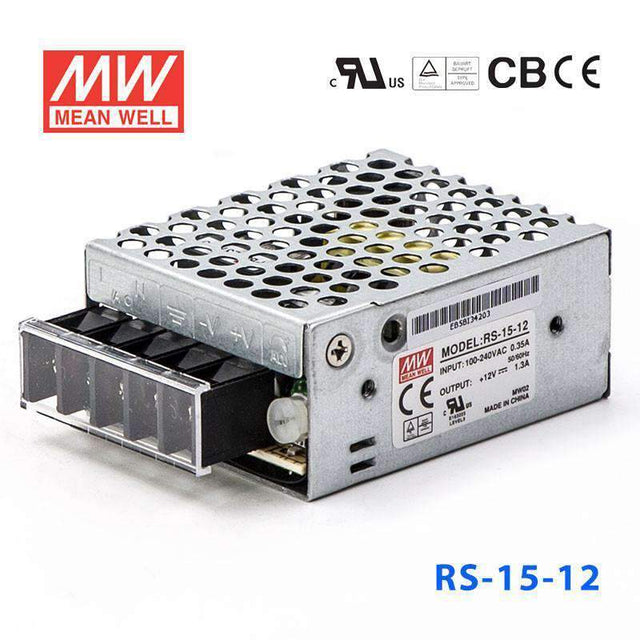

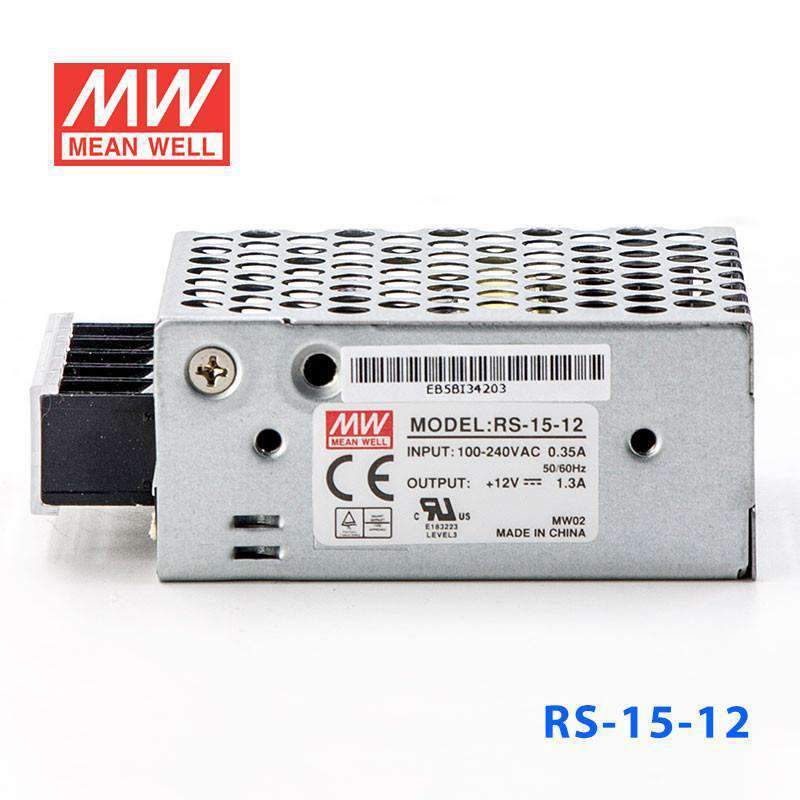

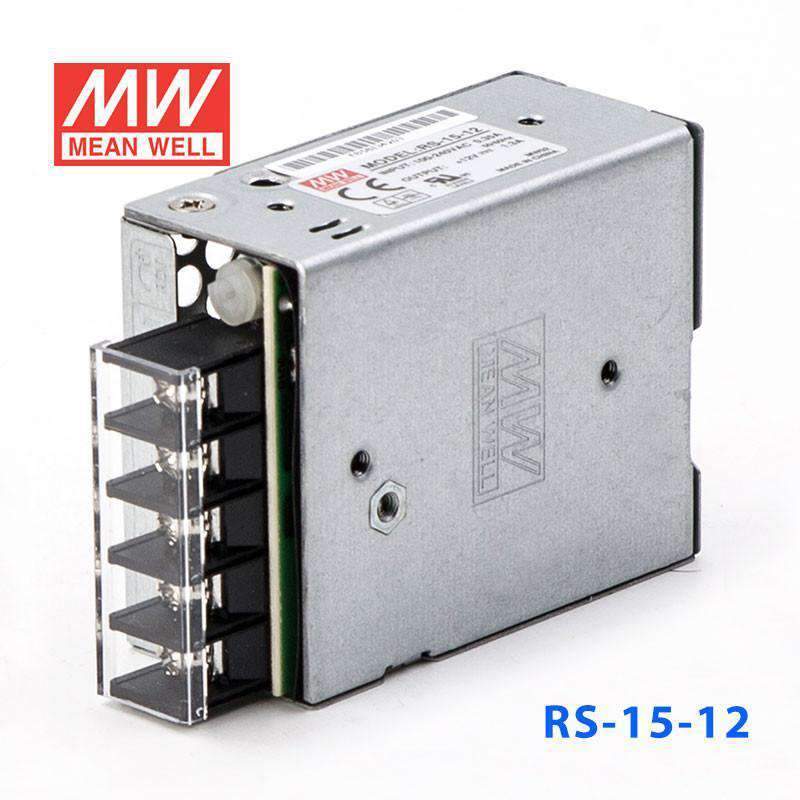

Mean Well RS-15-12 Power Supply 15W 12V
Description
Description
Features
| No load power consumption <0.5W |
| All using 105°C long life electrolytic capacitors |
| Protections: Short circuit / Overload / Over voltage / Over Temp. |
| Meet EMS EN50082-2/EN61000-6-2 |
| heavy industry level (35~150W) |
| Withstand 300VAC surge input for 5 sec. |
| High operating temperature up to 70°C |
| Withstand 5G vibration test |
| Miniature size, high power density |
| High efficiency, long life and high reliability |
| LED indicator for power on |
| 100% full load burn-in test |
| Suitable for critical applications |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC, 120~370VDC |
| AC inrush current | Cold start, 65A at 230VAC |
| DC adjustment range | ±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output |
| Overload protection | >105%, hiccup mode |
| Over voltage protection | 115%~135%, shut off |
| Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute |
| Working temperature | -20~+70°C |
| Vibration | 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W) |

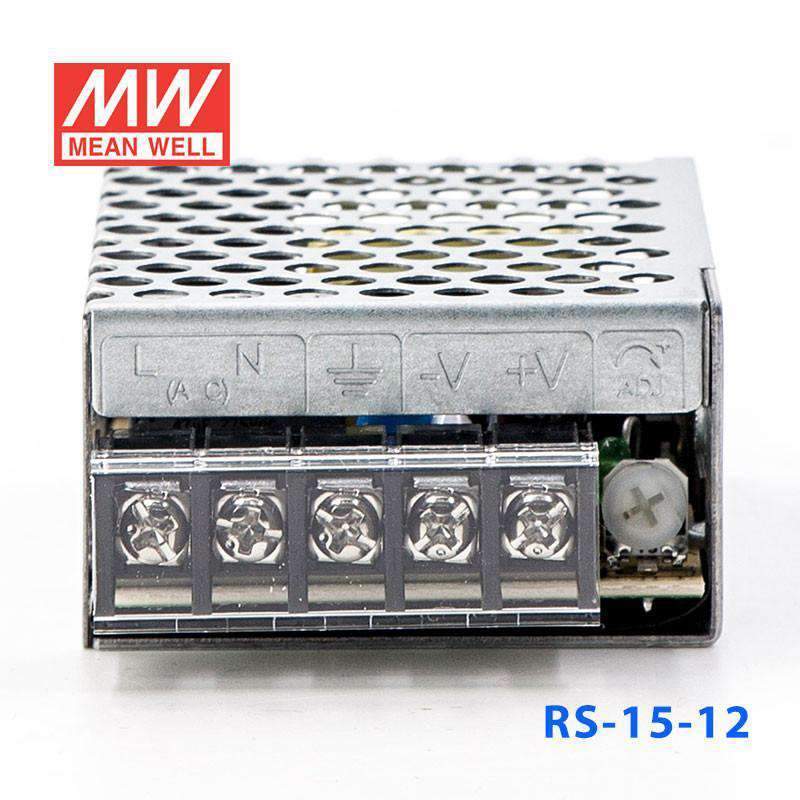

| Connection | Terminal block for input and output |
| Dimension (LxWxH) | 62.5x 51x 28 |
| Case No. | 971A |
| Packing | 108pcs /15.0kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRS Series
-
Power Rating15.6 Watt
-
Output Voltage12 Volt
-
Rated Current1.3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCE,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.46 in
-
Width2.01 in
-
Height1.1 in
-
Weight0.29 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RS-15-12 for a small 12V sensor or relay circuit in industrial equipment?
Yes, it provides a constant 12V output with up to 1.3A and 15.6W available. That makes it appropriate for lower-power 12V control loads that do not need the higher current of larger 12V models.
Is the RS-15-12 a good fit for compact embedded 12V electronics?
It can be a good fit for embedded 12V devices that stay within 1.3A and 15.6W. Its 62.5 × 51.0 × 28.0 mm dimensions and 0.13 kg weight are useful where board or enclosure space is tight.
Can this model power a small 12V automation accessory or interface board?
Yes, if the accessory requires a regulated 12V constant-voltage supply and its demand stays at or below 1.3A. It also accepts 85-264VAC input, which helps in applications that may see different AC input conditions.
How does the RS-15-12 compare with other 12V models in the RS line?
For the listed 12V siblings, the RS-15-12 is 15.6W at 1.3A, the RS-25-12 is 25.2W at 2.1A, the RS-35-12 is 35W at 3A, the RS-50-12 is 50.4W at 4.2A, the RS-75-12 is 72W at 6A, the RS-100-12 is 102W at 8.5A, and the RS-150-12 is 150W at 12.5A. The output voltage stays at 12V while the available current and wattage increase across the range.
Is the RS-15-12 suitable for outdoor use or only indoor enclosures?
The specs show an operating range of -20°C to +70°C and note 5G vibration resistance. No IP rating is listed, so the product data supports temperature capability but does not confirm weather-exposed outdoor use.
Other RS-15 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RS-15-5 Power Supply 15W 5V | 15W | 5V | 3A | Indoor | $9.68 | View |
| Mean Well RS-15-15 Power Supply 15W 15V | 15W | 15V | 1A | Indoor | $9.68 | View |
| Mean Well RS-15-48 Power Supply 15W 48V | 15.02W | 48V | 0.31A | Indoor | $9.68 | View |
| Mean Well RS-15-3.3 Power Supply 15W 3.3V | 9.9W | 3.3V | 3A | Indoor | $9.86 | View |
| Mean Well RS-15-24 Power Supply 15W 24V | 15W | 24V | 0.62A | Indoor | $9.68 | View |
