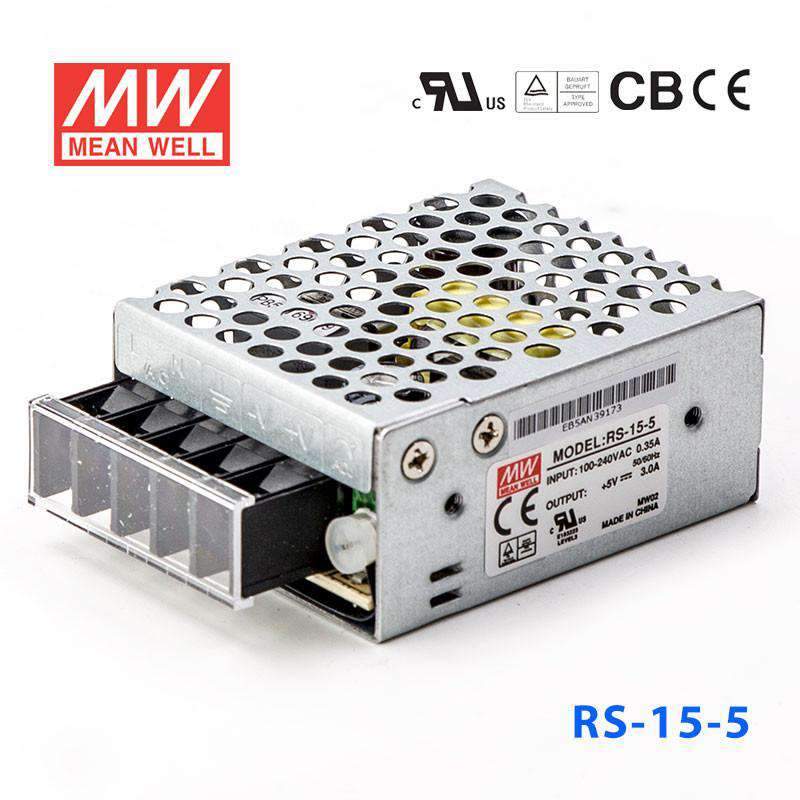

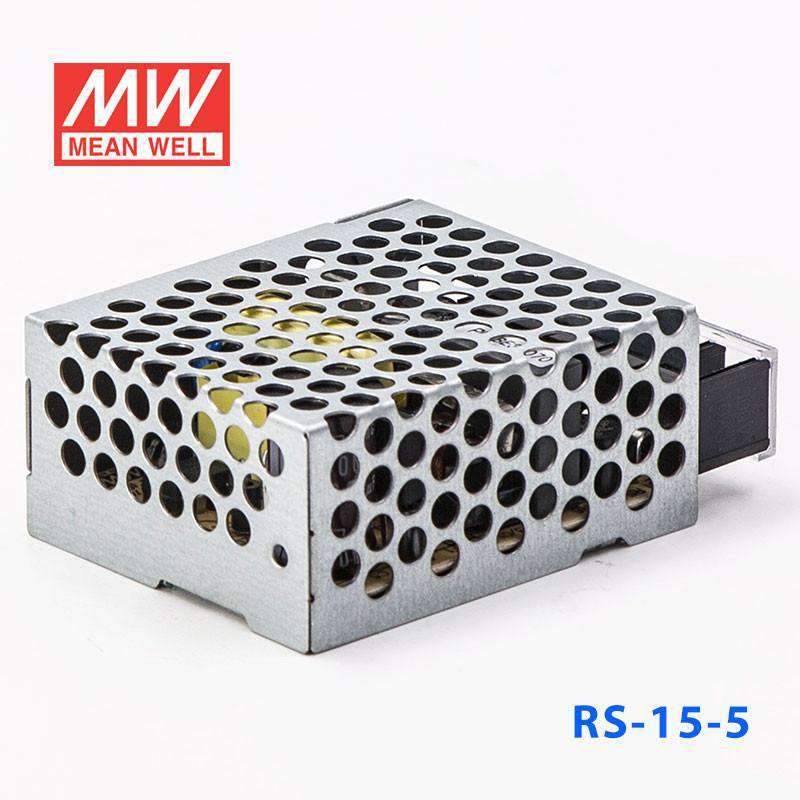

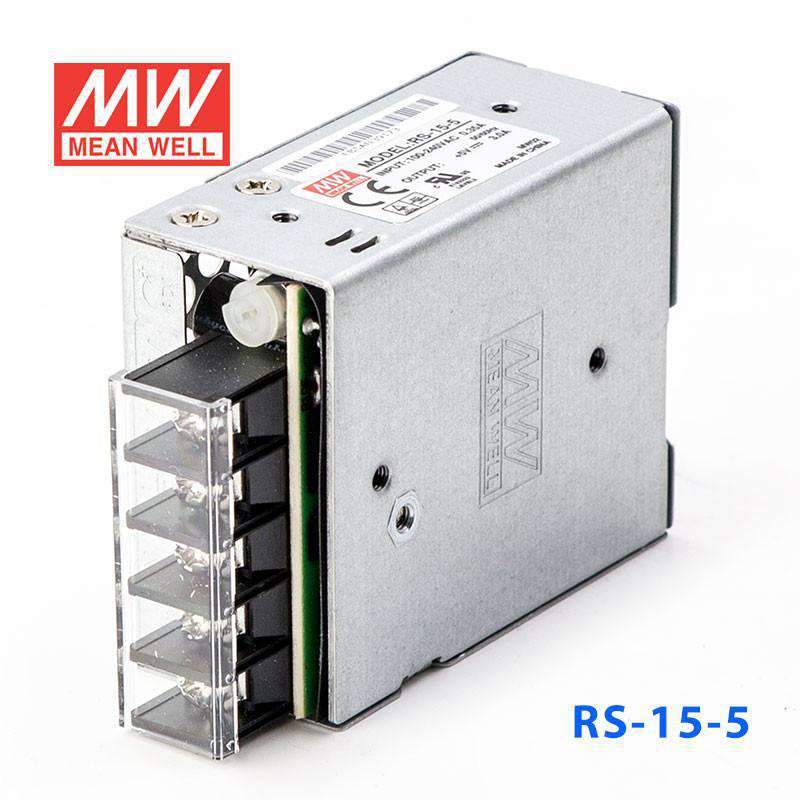

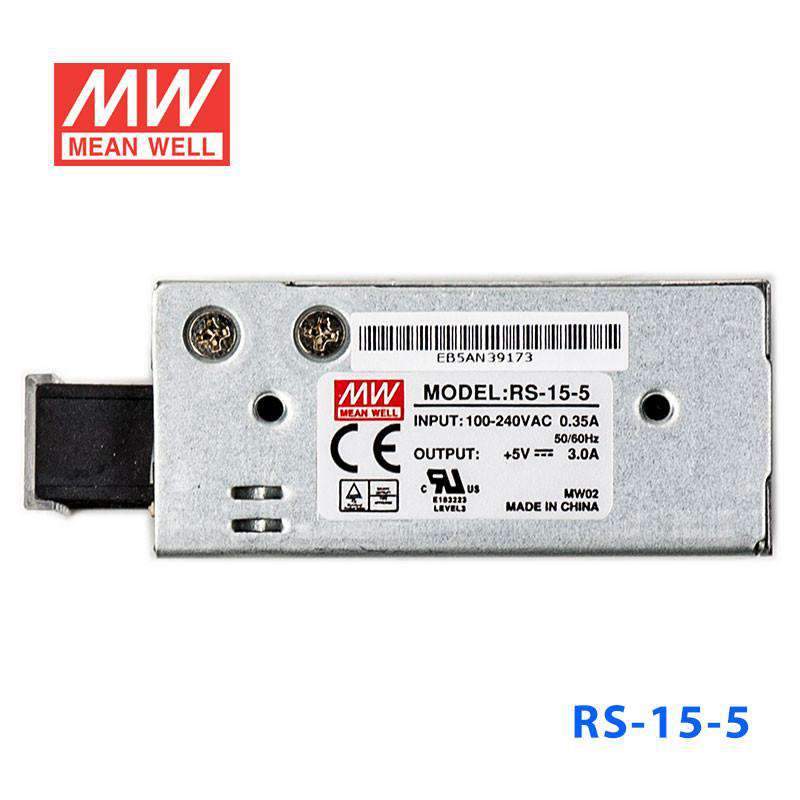

Mean Well RS-15-5 Power Supply 15W 5V

miniature size, economical, withstand 5G vibration and 70°C operation

SKU:

RS-15-5

Model

15W 5V

$9.68 USD

SKU: RS-15-5

25W 5V

$11.35 USD

SKU: RS-25-5

35W 5V

$15.59 USD

SKU: RS-35-5

50W 5V

$16.87 USD

SKU: RS-50-5

75W 5V

$20.43 USD

SKU: RS-75-5

100W 5V

$27.40 USD

SKU: RS-100-5

150W 5V

$29.34 USD

SKU: RS-150-5

Product variants

$9.68 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

No load power consumption <0.5W

All using 105°C long life electrolytic capacitors

Protections: Short circuit / Overload / Over voltage / Over Temp.

Meet EMS EN50082-2/EN61000-6-2

heavy industry level (35~150W)

Withstand 300VAC surge input for 5 sec.

High operating temperature up to 70°C

Withstand 5G vibration test

Miniature size, high power density

High efficiency, long life and high reliability

LED indicator for power on

100% full load burn-in test

Suitable for critical applications

3 years warranty

General Specification

AC input voltage range	85~264VAC, 120~370VDC
AC inrush current	Cold start, 65A at 230VAC
DC adjustment range	±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output
Overload protection	>105%, hiccup mode
Over voltage protection	115%~135%, shut off
Withstand voltage	I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
Working temperature	-20~+70°C
Vibration	10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W)

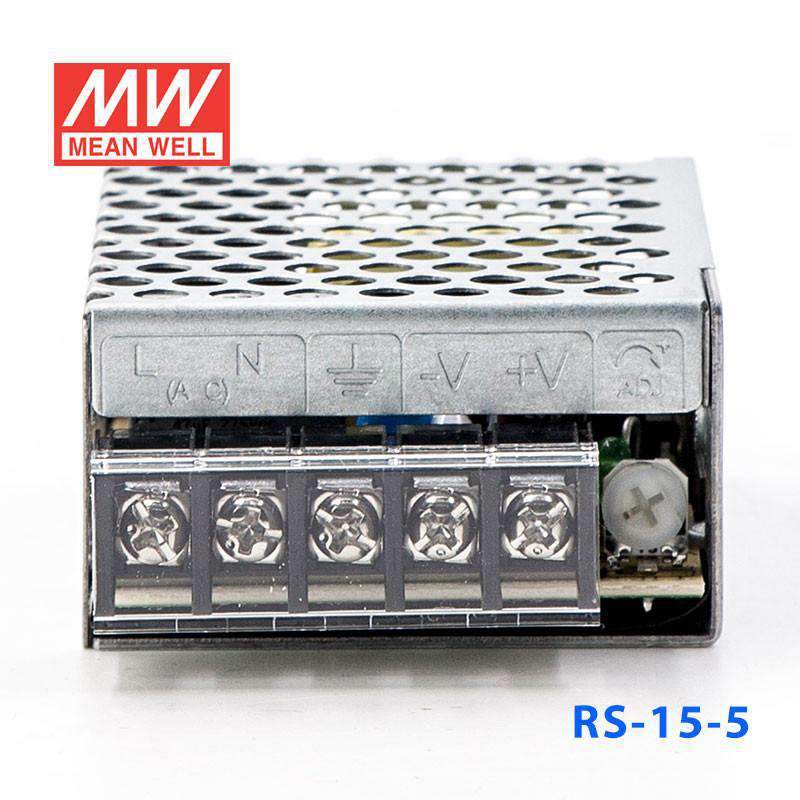

Connection	Terminal block for input and output
Dimension (LxWxH)	62.5x 51x 28
Case No.	971A
Packing	108pcs /15.0kg

Specifications

Brand

Mean Well
Series

RS Series
Power Rating

15 Watt
Output Voltage

5 Volt
Rated Current

3 Ampere
Input Voltage

85V~264V
No of Output

1
Standards Met

CE,EAC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-20°C~70°C
Warranty

3 Year
Length

2.46 in
Width

2.01 in
Height

1.1 in
Weight

0.29 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the RS-15-5 for a 5V embedded controller or development board in industrial equipment?

Yes, this unit provides constant-voltage 5V output up to 3A. It fits 5V embedded electronics, controller boards, and small industrial logic assemblies that stay within its 15W rating.

Is the RS-15-5 suitable for powering USB-class 5V electronics inside a machine or kiosk?

It can be appropriate for internal 5V electronics when the total load does not exceed 3A. The main selection points are its fixed 5V output and 15W maximum power.

Can this model support 5V sensor interfaces or automation I/O modules?

It is a reasonable choice for 5V sensor interface boards, compact I/O modules, and low-power automation electronics that need constant-voltage 5V power. Capacity is limited to 3A, so it is best for lighter 5V loads rather than larger systems.

Is the RS-15-5 useful in equipment that sees vibration or elevated cabinet temperatures?

The features list 5G vibration resistance and operation up to +70°C. That makes it relevant for protected industrial enclosures where a small 5V, 15W supply is needed and environmental stress is a concern.

Can the RS-15-5 be used in outdoor equipment?

The rated operating temperature is -20°C to +70°C, so the thermal range is broad for indoor equipment use. The provided specs do not show an IP rating, so it is better matched to protected indoor installations rather than exposed outdoor locations.

How does the RS-15-5 compare with other 5V models in the RS family?

The listed 5V siblings are RS-15-5 at 15W and 3A, RS-25-5 at 25W and 5A, RS-35-5 at 35W and 7A, RS-50-5 at 50W and 10A, RS-75-5 at 60W and 12A, RS-100-5 at 80W and 16A, and RS-150-5 at 130W and 26A. The RS-15-5 is the smallest-output 5V option among those models.
