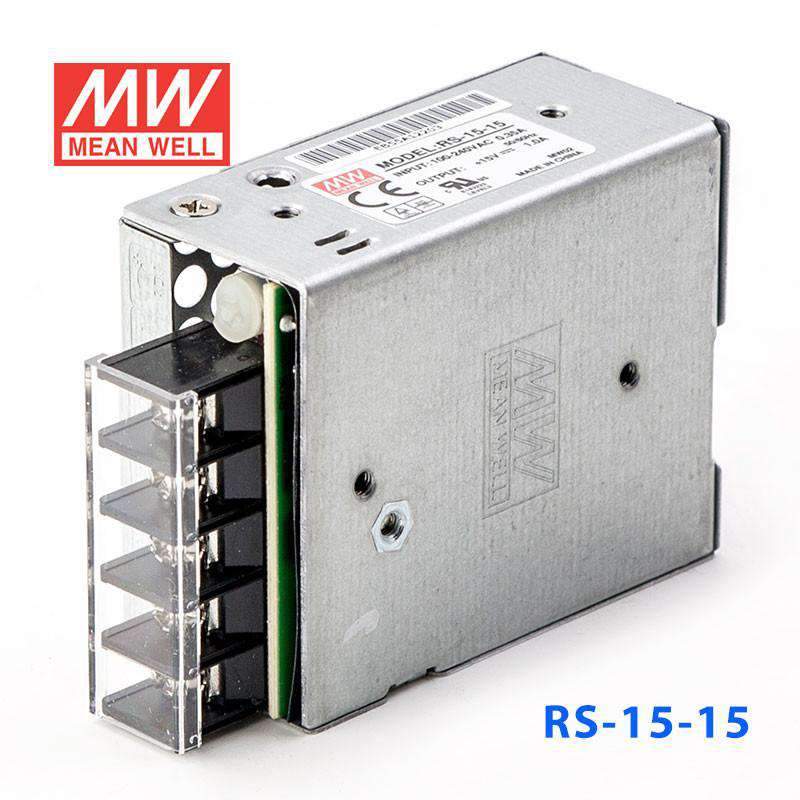

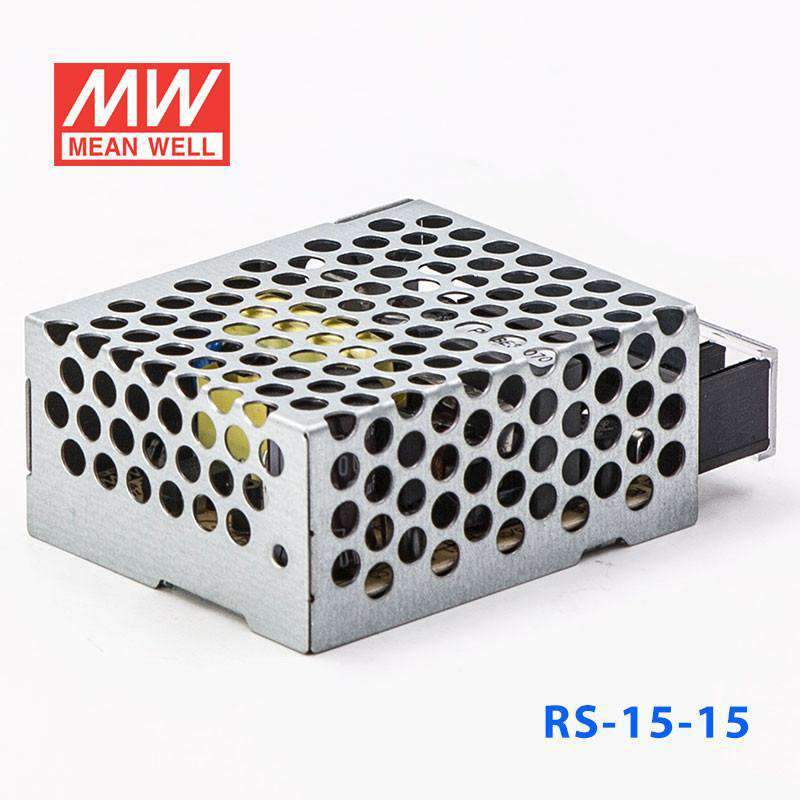

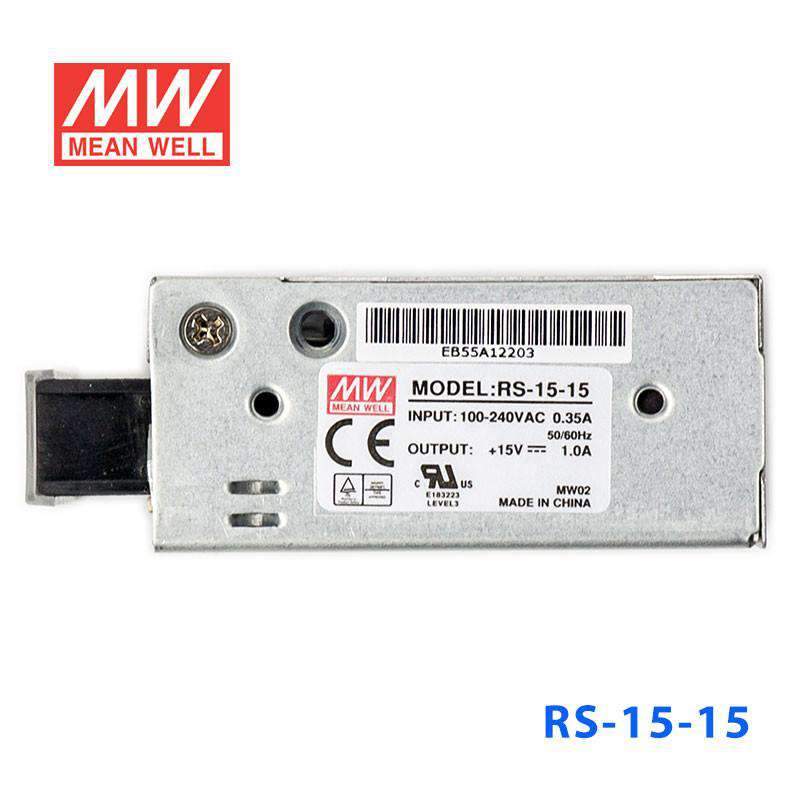

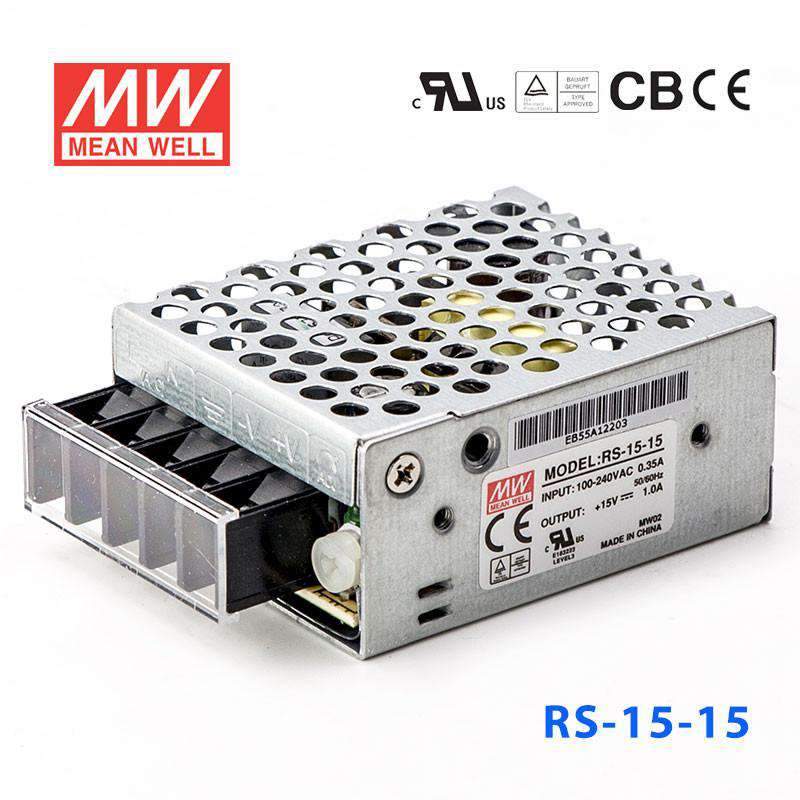

Mean Well RS-15-15 Power Supply 15W 15V
Description
Description
Features
| No load power consumption <0.5W |
| All using 105°C long life electrolytic capacitors |
| Protections: Short circuit / Overload / Over voltage / Over Temp. |
| Meet EMS EN50082-2/EN61000-6-2 |
| heavy industry level (35~150W) |
| Withstand 300VAC surge input for 5 sec. |
| High operating temperature up to 70°C |
| Withstand 5G vibration test |
| Miniature size, high power density |
| High efficiency, long life and high reliability |
| LED indicator for power on |
| 100% full load burn-in test |
| Suitable for critical applications |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC, 120~370VDC |
| AC inrush current | Cold start, 65A at 230VAC |
| DC adjustment range | ±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output |
| Overload protection | >105%, hiccup mode |
| Over voltage protection | 115%~135%, shut off |
| Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute |
| Working temperature | -20~+70°C |
| Vibration | 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W) |

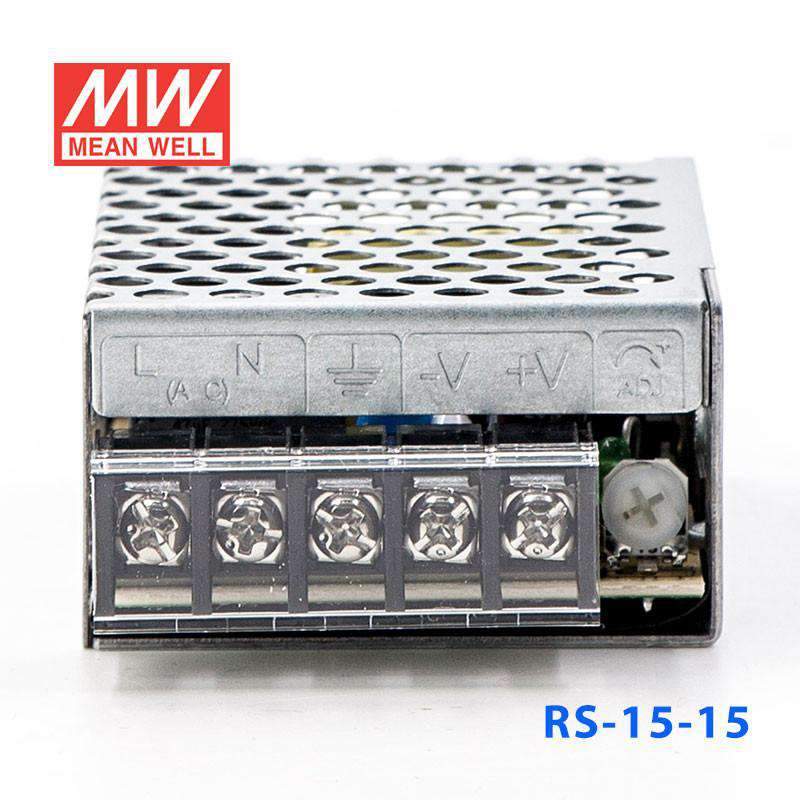

| Connection | Terminal block for input and output |
| Dimension (LxWxH) | 62.5x 51x 28 |
| Case No. | 971A |
| Packing | 108pcs /15.0kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRS Series
-
Power Rating15 Watt
-
Output Voltage15 Volt
-
Rated Current1 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCE,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.46 in
-
Width2.01 in
-
Height1.1 in
-
Weight0.29 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RS-15-15 for a small 15V analog or instrumentation circuit?
Yes, it provides a constant 15V output with up to 1A and 15W available. That suits lower-power 15V electronics that need a regulated DC rail rather than a higher-current supply.
Is the RS-15-15 appropriate for embedded control boards that require 15V DC?
It can be, as long as the board stays within 1A and 15W at 15V. Its small 62.5 × 51.0 × 28.0 mm housing and 0.13 kg weight also make it practical in compact equipment.
Can this power supply run a low-power 15V industrial interface or signal-conditioning device?
Yes, if the device is designed for constant 15V input and does not exceed 1A. The 85-264VAC input range is useful for equipment deployed in varied AC mains environments.
What are the differences between the RS-15-15 and other 15V RS models?
In the listed 15V group, the RS-15-15 is 15W at 1A, the RS-25-15 is 25.5W at 1.7A, the RS-35-15 is 35W at 2.4A, the RS-50-15 is 51W at 3.4A, the RS-75-15 is 75W at 5A, the RS-100-15 is 105W at 7A, and the RS-150-15 is 150W at 10A. They all provide 15V output, with the main differences being current and power capacity.
Can the RS-15-15 handle challenging ambient conditions?
The specified operating temperature range is -20°C to +70°C, and the features list includes 5G vibration resistance. No IP rating is provided, so these specs indicate temperature and vibration capability but not sealed outdoor exposure.
