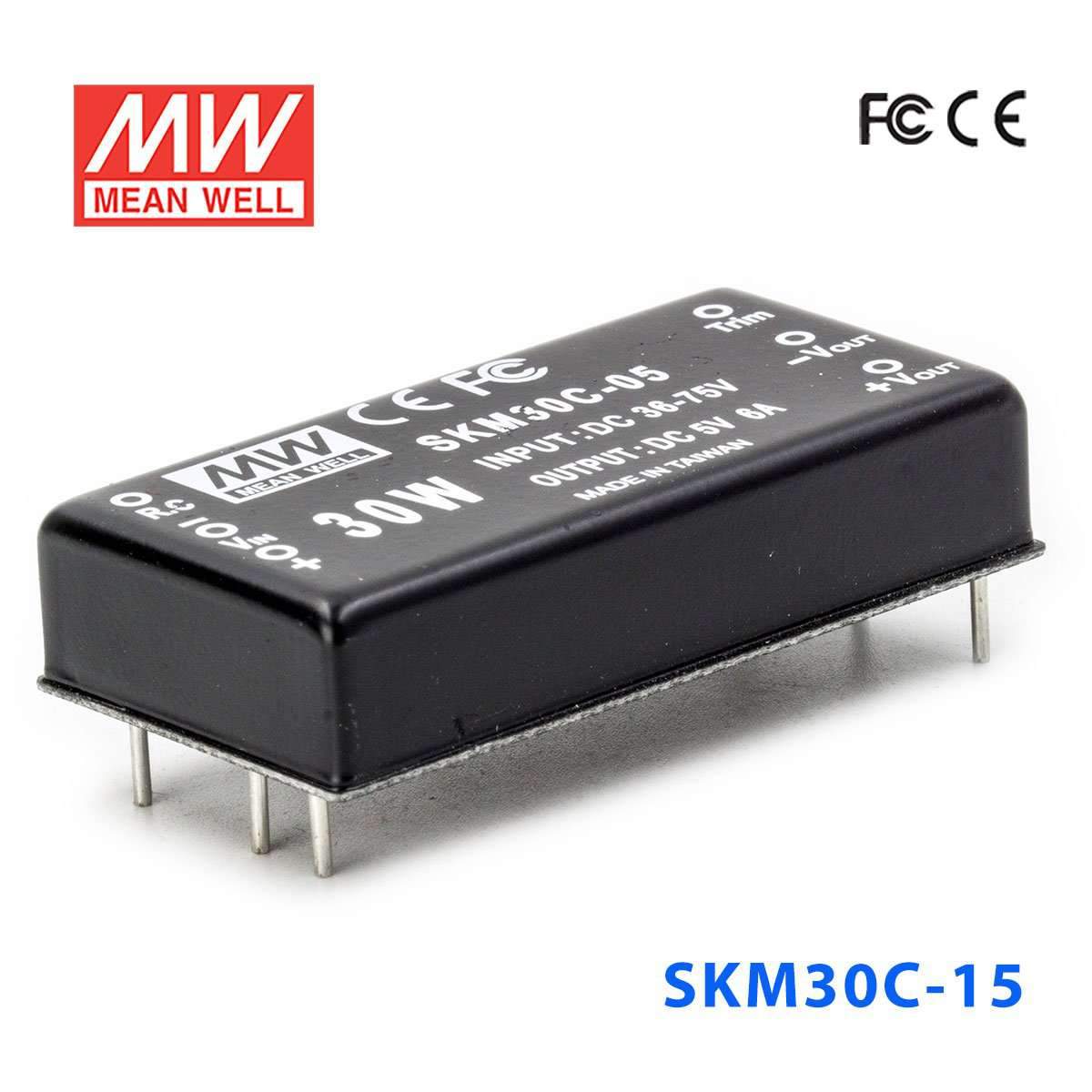

Mean Well SKM30C-15 DC-DC Converter - 30W - 36~75V in 15V out
The SKM30C is a 30W Mean Well power converter (operating temperature: -40~+75℃).
Key Features
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+75℃
- ✓ Protections: Short circuit / Over voltage / Under voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSKM Series
-
Power Rating30 Watt
-
Output Voltage15 Volt
-
Rated Current2 Ampere
-
Input Voltage36V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
::specification::
Frequently Asked Questions
Can I use the SKM30C-15 to power a 15V industrial controller or HMI?
It can fit 15V equipment that needs constant voltage output up to 2A. This model is rated for 30W with a 15V output, so it is suited to industrial control loads that stay within those limits.
Is the SKM30C-15 suitable for embedded systems that require a steady 15V rail?
Yes, it is built for constant voltage operation with a 15V output and 2A output current. For embedded designs that need up to 30W and can use the listed 36-75VAC input range, its electrical rating matches that requirement.
Can I use this DC-DC converter in automation equipment with a wide input range?
It is intended for systems that need a 15V constant voltage output and accept the stated 36-75VAC input range. With 30W total power and 2A output current, it can fit automation loads that remain inside those limits.
Is the SKM30C-15 a good fit for compact IT or control hardware with limited space?
It is relatively compact at 50.8 × 25.4 × 11.2 mm and weighs 0.0312 kg. That size can make it easier to use in compact IT, embedded, or control equipment that still needs 15V output at up to 2A.
How does the SKM30C-15 compare with the other SKM30C series models?
The SKM30C-15 is rated at 30W with 15V output and 2A output current. In the same series, the SKM30C-05 is 30W with 5V output and 6A, and the SKM30C-12 is 30W with 12V output and 2.5A.
Can the SKM30C-15 be used outdoors or in harsh temperature conditions?
The operating temperature range is -40°C to +75°C, so it is specified for demanding temperature conditions within that range. An IP rating is not listed in the provided specs, so outdoor exposure or unenclosed use is not confirmed by the information provided.
