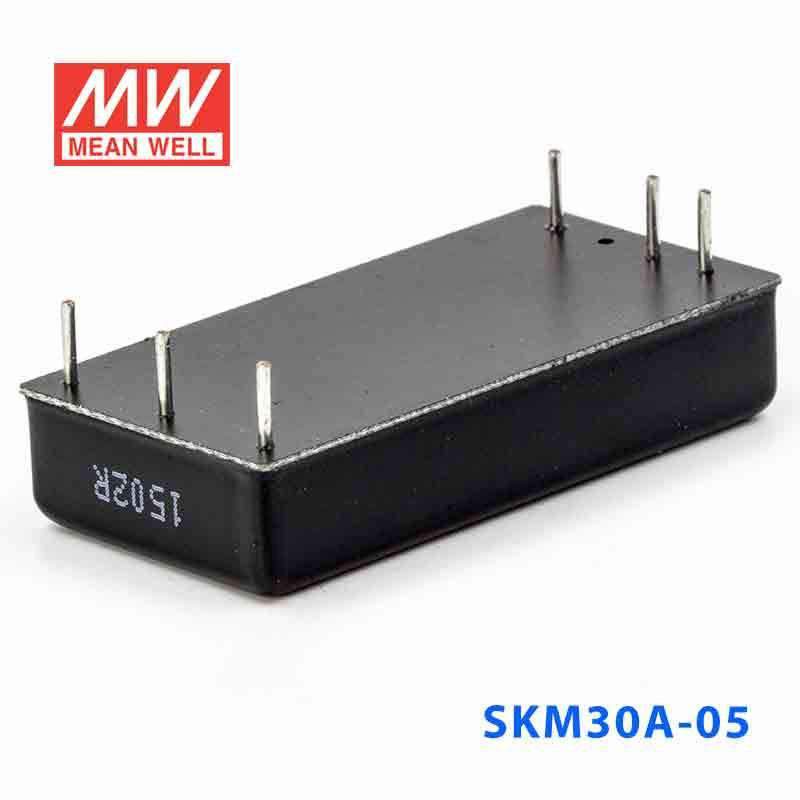

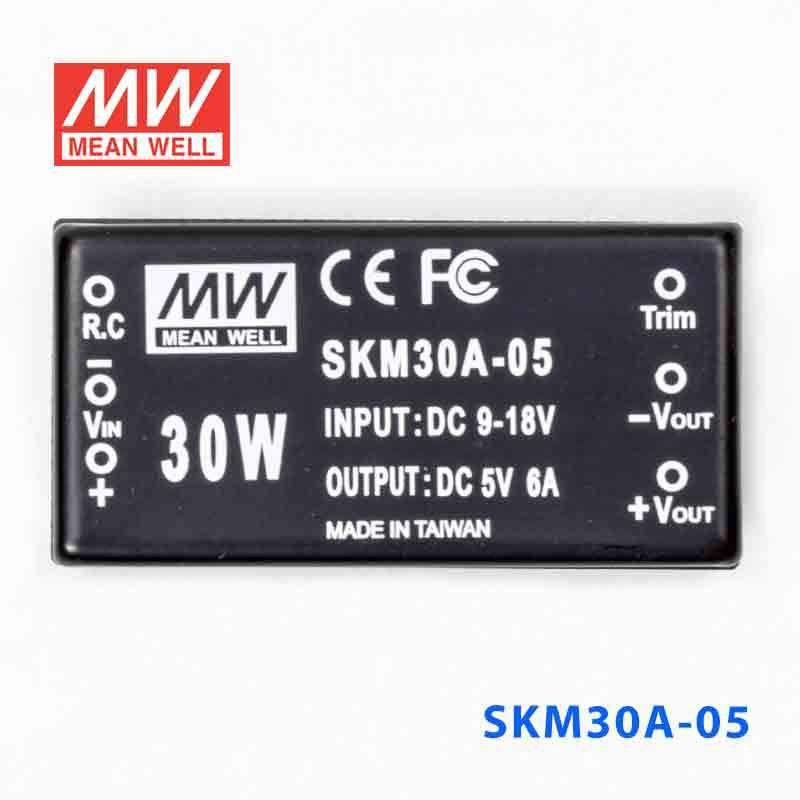

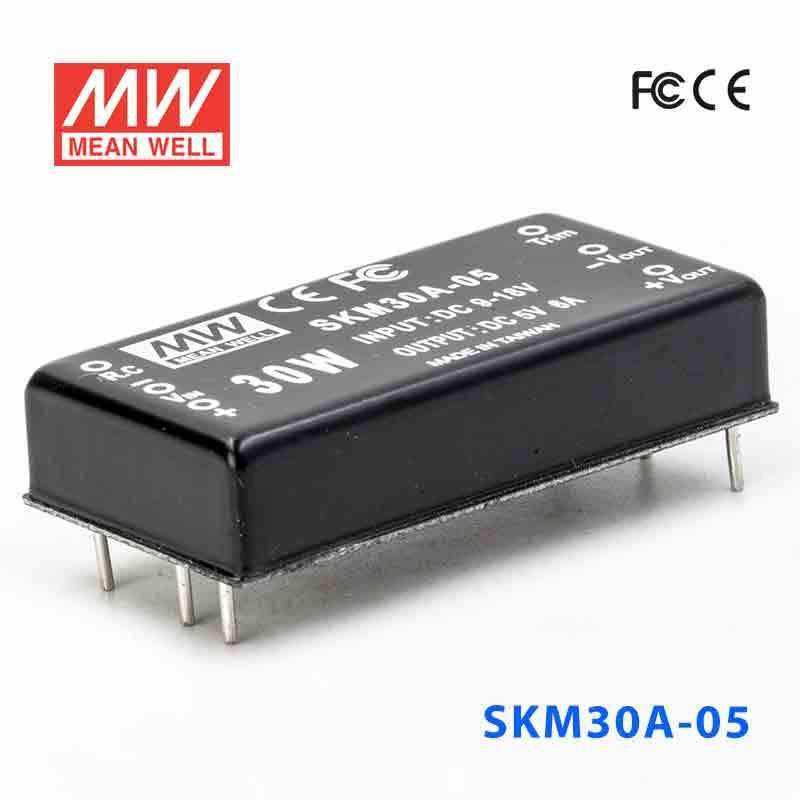

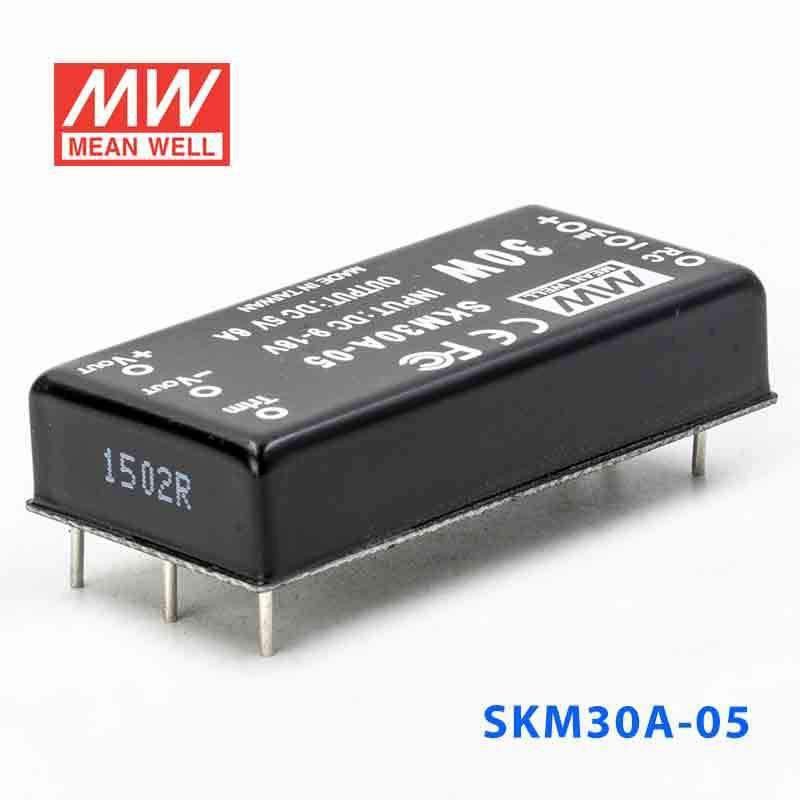

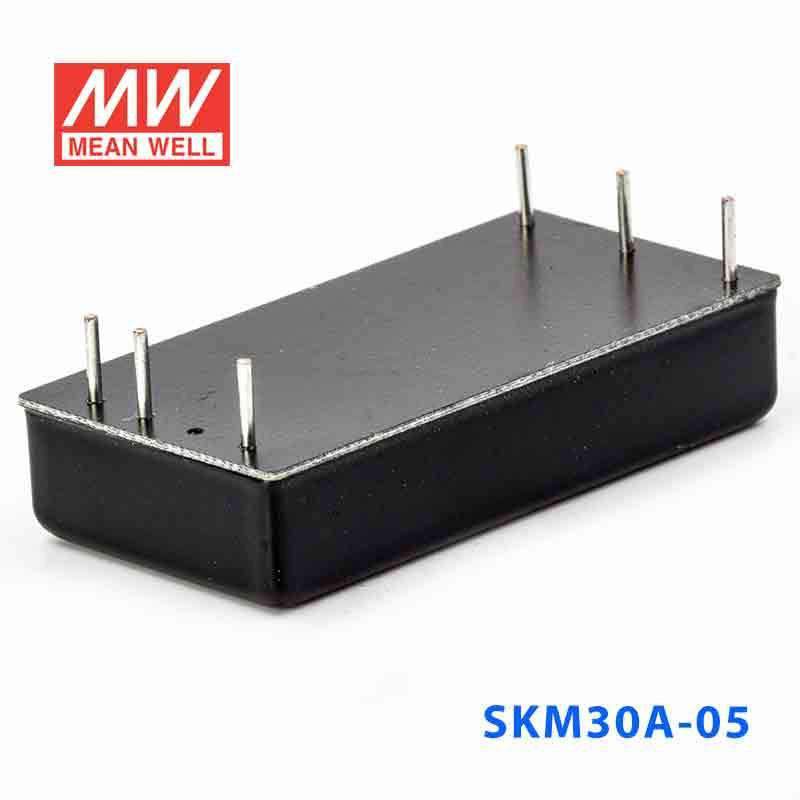

Mean Well SKM30A-05 DC-DC Converter - 30W - 9~18V in 5V out

SKU:
SKM30A-05

$30.06 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

2""x 1"" compact size
2:1 wide input range
1500VDC I/O isolation
Built-in remote ON/OFF control
Built-in EMI filter
Protection: Short circuit / Overload Input and output over voltage
Cooling by free air convection
Six-sided shield metal case
100% full load burn-in test
Low cost, high reliability
Trimming output (±10%)
2 years warranty

General Specification

Voltage set point accuracy ±2% (max.)
Line regulation ±0.2% (max.)
Load regulation ±0.5% (max.)@10~100% load
Overload protection 110%~180%, auto-recovery
Efficiency 90% (typical)
Short circuit protection Continuous, auto-recovery
I/O isolation voltage 1500VDC (min.)
I/O isolation resistance 100MQ(min.)@500VDC
Working temperature -40~+75°C (refer to output derating curve)
EMC Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Dimension (LxWxH) (mm) 2""x 1""x 0.44""

Specifications

  • Brand
    Mean Well
  • Series
    SKM Series
  • Power Rating
    30 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    6 Ampere
  • Input Voltage
    9V~18V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CE,EMC,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~75°C
  • Warranty
    2 Year
  • Length
    2 in
  • Width
    1 in
  • Height
    0.44 in
  • Weight
    0.07 lb
