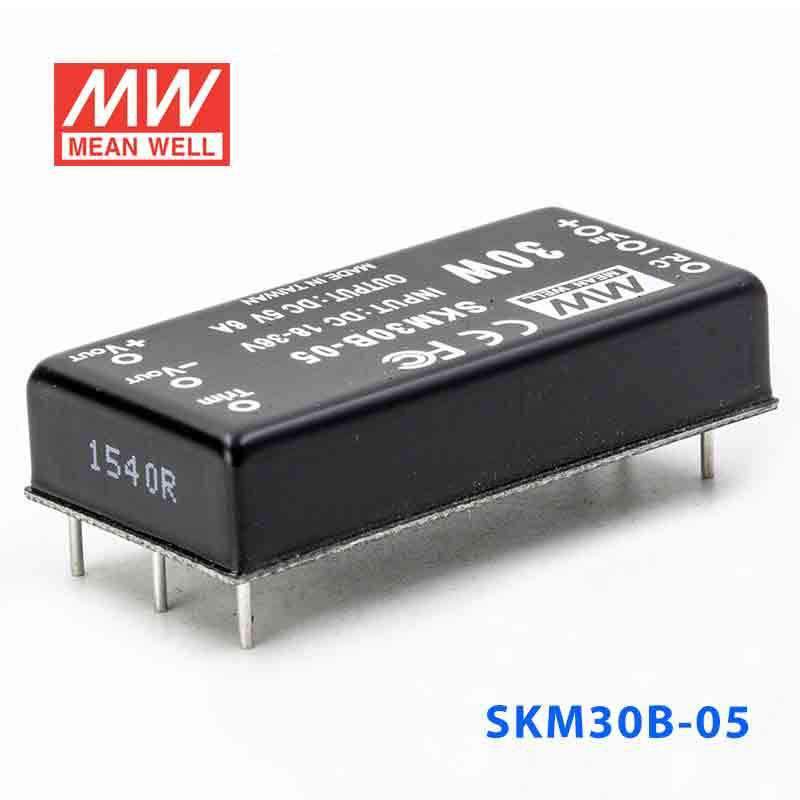

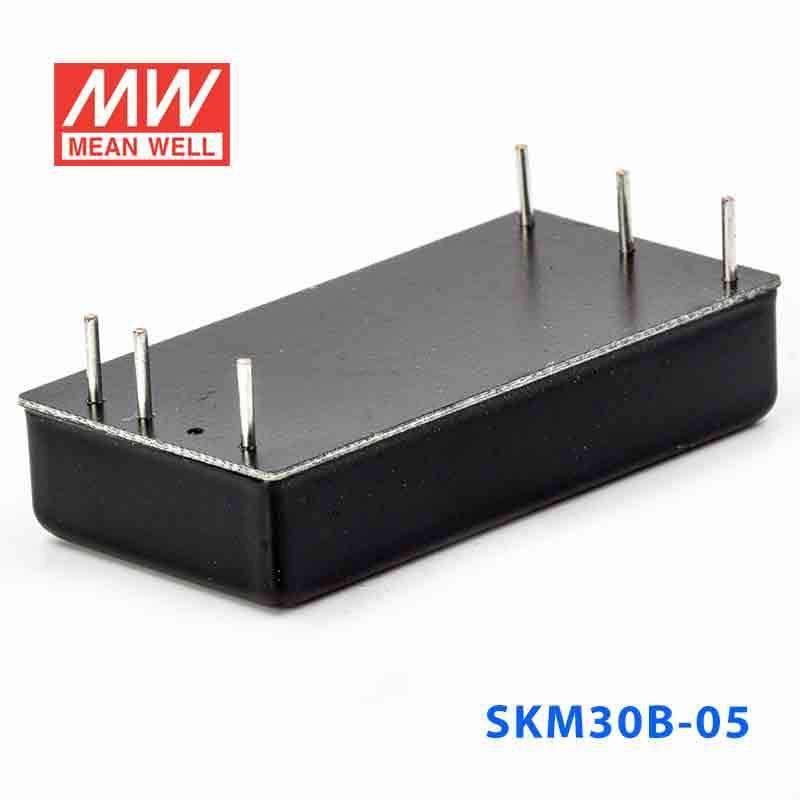

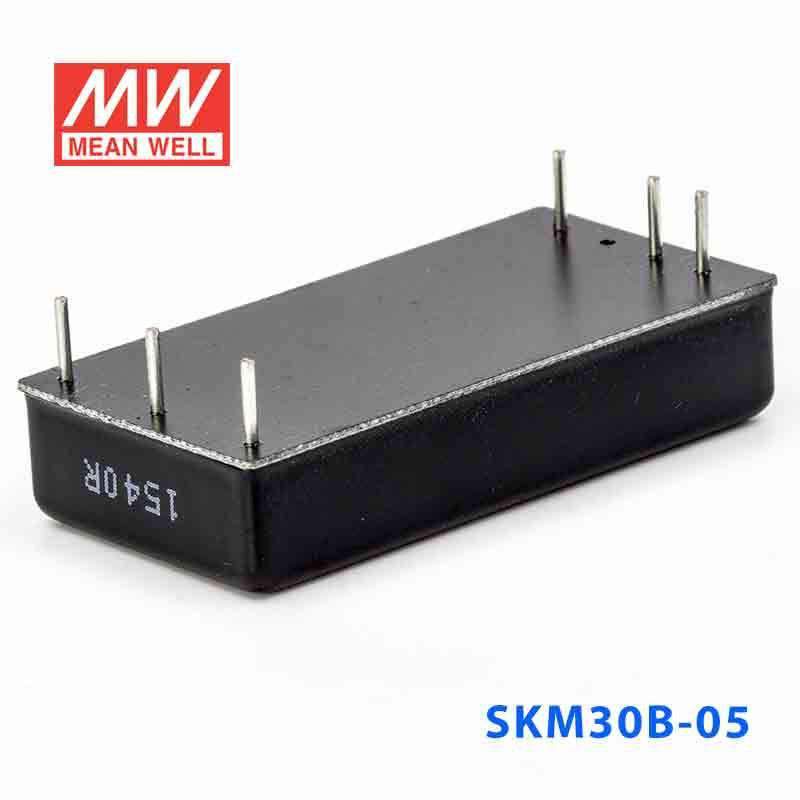

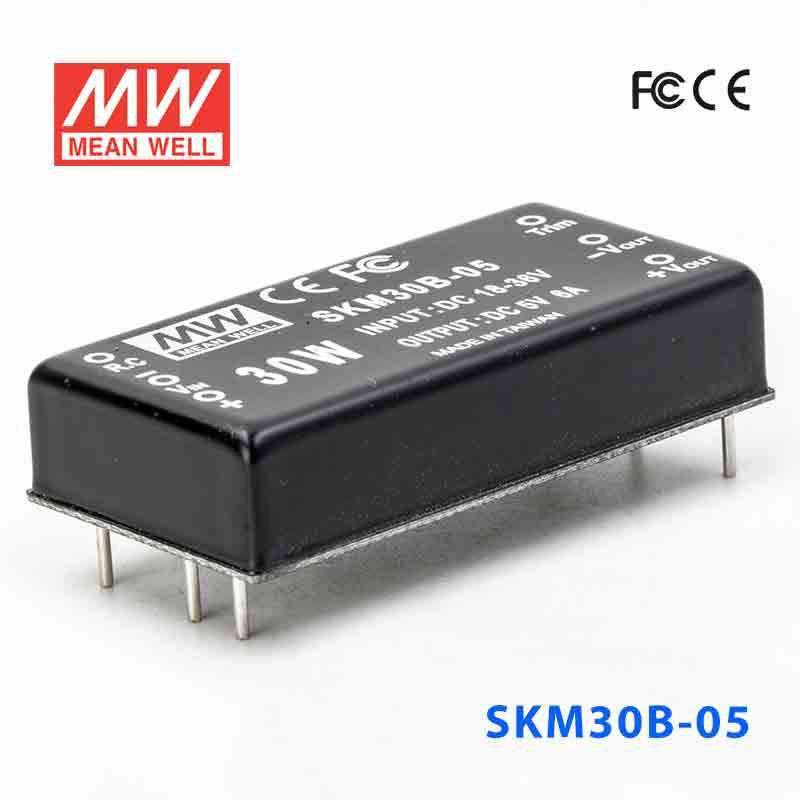

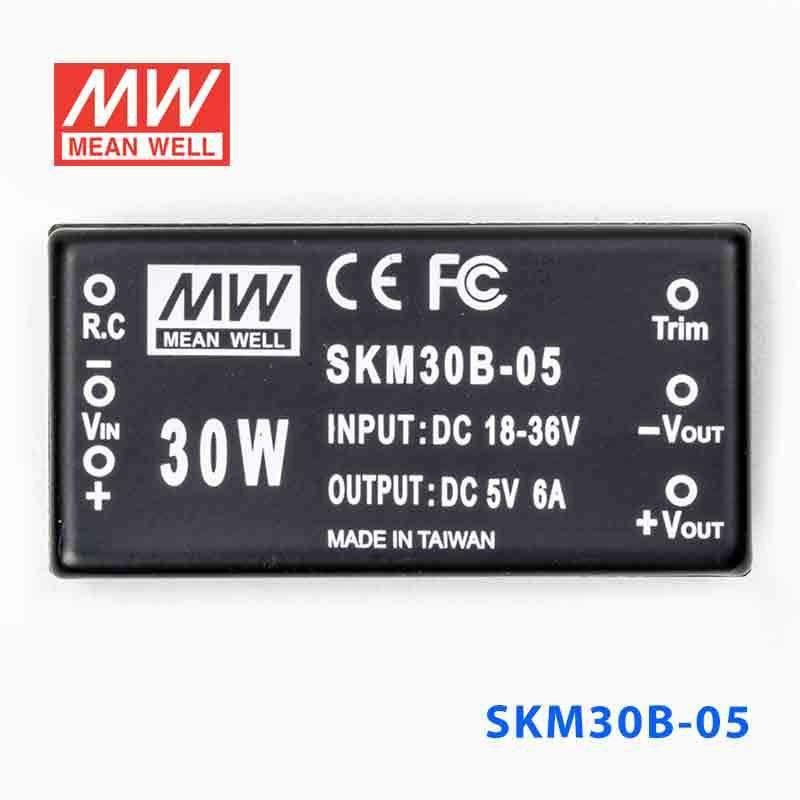

Mean Well SKM30B-05 DC-DC Converter - 30W - 18~36V in 5V out
Description
Description
The SKM30B is a 30W Mean Well power converter (operating temperature: -40~+75℃).
Key Features
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+75℃
- ✓ Protections: Short circuit / Over voltage / Under voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKM Series
-
Power Rating30 Watt
-
Output Voltage5 Volt
-
Rated Current6 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKM30B-05 for 5V industrial logic or controller boards?
Yes, this converter provides a constant 5V output at up to 6A, with a 30W maximum rating. It is a fit for 5V industrial logic or controller boards when the input source is within 18-36VAC.
Is the SKM30B-05 suitable for embedded 5V computing or interface modules?
It is appropriate for embedded 5V modules that need regulated constant-voltage output and draw no more than 6A. Its 50.8 × 25.4 × 11.2 mm dimensions also make it relatively compact for integrated equipment.
Can this model power 5V sensors, HMI electronics, or automation peripherals?
It can support 5V automation-related electronics as long as the load remains within 30W and 6A. The required source side must match the stated 18-36VAC input range.
Is the SKM30B-05 rated for outdoor use?
The specified operating temperature range is -40°C to +75°C, so the temperature rating is broad. However, no IP rating is listed, so there is no stated protection level for outdoor exposure to dust or water.
How does the SKM30B-05 differ from the other SKM30B versions?
All SKM30B models share the same 30W rating and 18-36VAC input range. The outputs differ: SKM30B-05 is 5V at 6A, SKM30B-12 is 12V at 2.5A, and SKM30B-15 is 15V at 2A.
