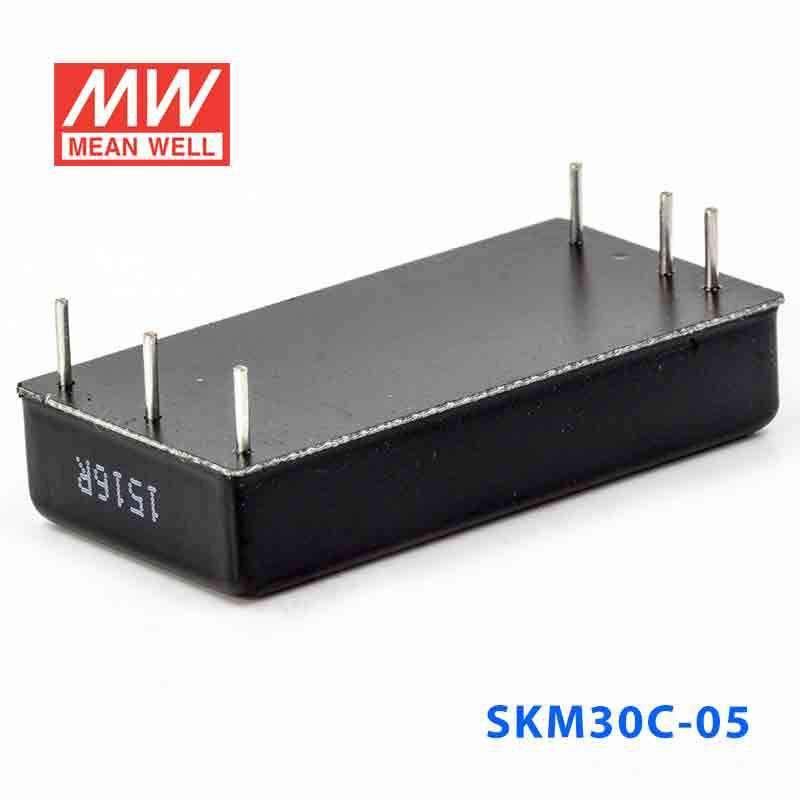

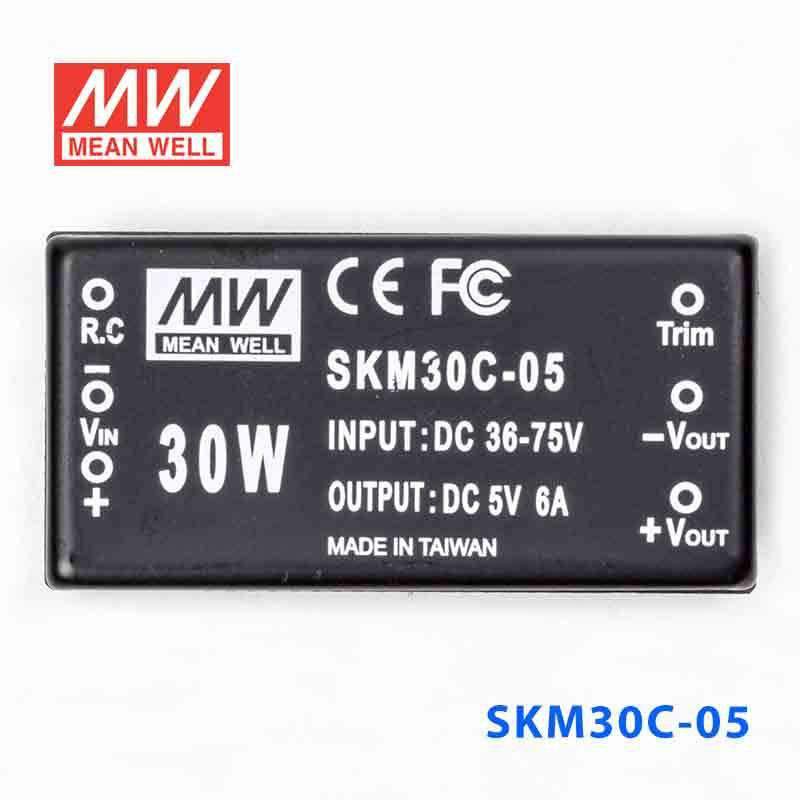

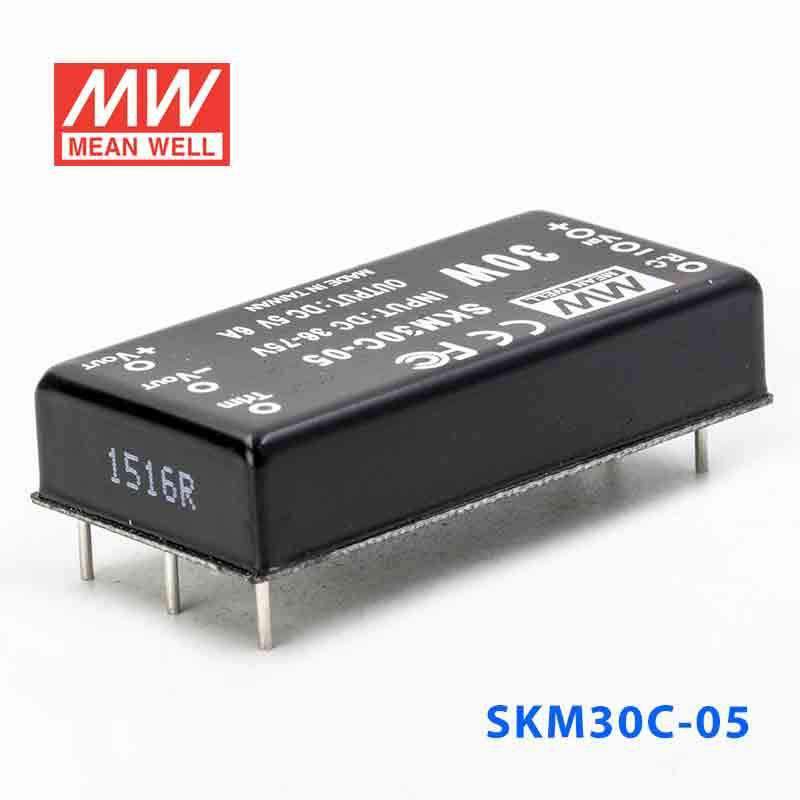

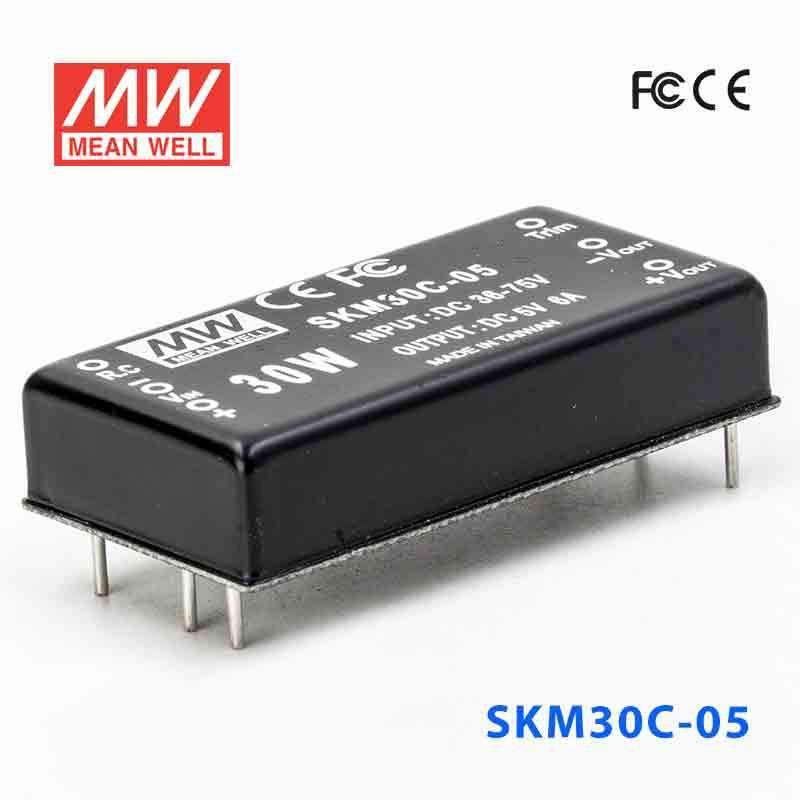

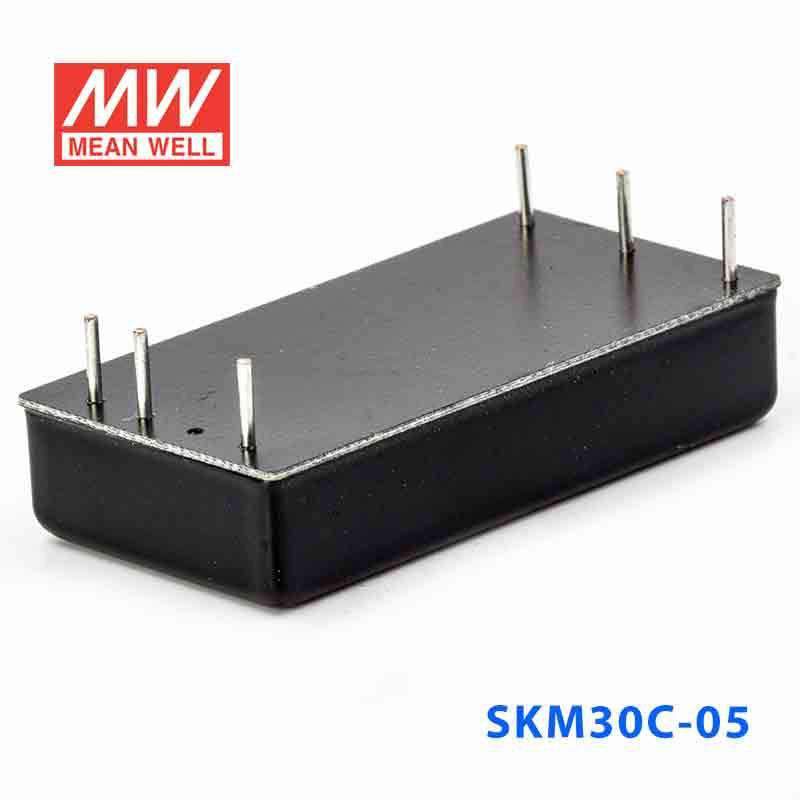

Mean Well SKM30C-05 DC-DC Converter - 30W - 36~75V in 5V out
Description
Description
The SKM30C is a 30W Mean Well power converter (operating temperature: -40~+75℃).
Key Features
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+75℃
- ✓ Protections: Short circuit / Over voltage / Under voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKM Series
-
Power Rating30 Watt
-
Output Voltage5 Volt
-
Rated Current6 Ampere
-
Input Voltage36V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the Mean Well SKM30C-05 in an industrial control or automation system that needs a regulated 5V rail?
This model is designed for constant-voltage output at 5V and can supply up to 6A, with a total power rating of 30W. That makes it suitable for industrial or automation equipment that requires a stable 5V DC rail within those output limits.
Is the SKM30C-05 a good fit for embedded systems or controller hardware that draw higher current at 5V?
It can support embedded or controller loads that need 5V output and draw up to 6A, as long as the total load stays within 30W. Its compact size of 50.8 × 25.4 × 11.2 mm also helps when space is limited inside embedded hardware.
Can this DC-DC converter be used in IT or communications equipment with a 5V power requirement?
It is suitable for IT or communications equipment that requires a constant 5V output and up to 6A of current. The operating temperature range of -40°C to +75°C also supports use in equipment that may run in demanding indoor conditions.
Is the SKM30C-05 suitable for outdoor use or harsh environments?
The provided specs list an operating temperature range of -40°C to +75°C, but they do not include an IP rating. Without an IP rating, outdoor suitability or exposure resistance cannot be confirmed from the listed specifications alone.
What is the difference between the SKM30C-05, SKM30C-12, and SKM30C-15?
All three models are 30W converters in the same series, but they differ in output voltage and output current. The SKM30C-05 provides 5V at 6A, the SKM30C-12 provides 12V at 2.5A, and the SKM30C-15 provides 15V at 2A.
Other SKM30 Models
13 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| SKM30W8-24 | — | — | — | Indoor | $30.17 | View |
| SKM30W8-15 | — | — | — | Indoor | $30.17 | View |
| SKM30W8-12 | — | — | — | Indoor | $30.17 | View |
| SKM30W8-05 | — | — | — | Indoor | $30.17 | View |
| SKM30W8-03 | — | — | — | Indoor | $30.17 | View |
| Mean Well SKM30C-15 DC-DC Converter - 30W - 36~75V in 15V out | 30W | 15V | 2A | Indoor | $30.06 | View |
| Mean Well SKM30C-12 DC-DC Converter - 30W - 36~75V in 12V out | 30W | 12V | 2.5A | Indoor | $30.06 | View |
| Mean Well SKM30B-15 DC-DC Converter - 30W - 18~36V in 15V out | 30W | 15V | 2A | Indoor | $30.06 | View |
| Mean Well SKM30B-12 DC-DC Converter - 30W - 18~36V in 12V out | 30W | 12V | 2.5A | Indoor | $30.06 | View |
| Mean Well SKM30B-05 DC-DC Converter - 30W - 18~36V in 5V out | 30W | 5V | 6A | Indoor | $30.06 | View |
| Mean Well SKM30A-15 DC-DC Converter - 30W - 9~18V in 15V out | 30W | 15V | 2A | Indoor | $30.06 | View |
| Mean Well SKM30A-12 DC-DC Converter - 30W - 9~18V in 12V out | 30W | 12V | 2.5A | Indoor | $30.06 | View |
| Mean Well SKM30A-05 DC-DC Converter - 30W - 9~18V in 5V out | 30W | 5V | 6A | Indoor | $30.06 | View |
