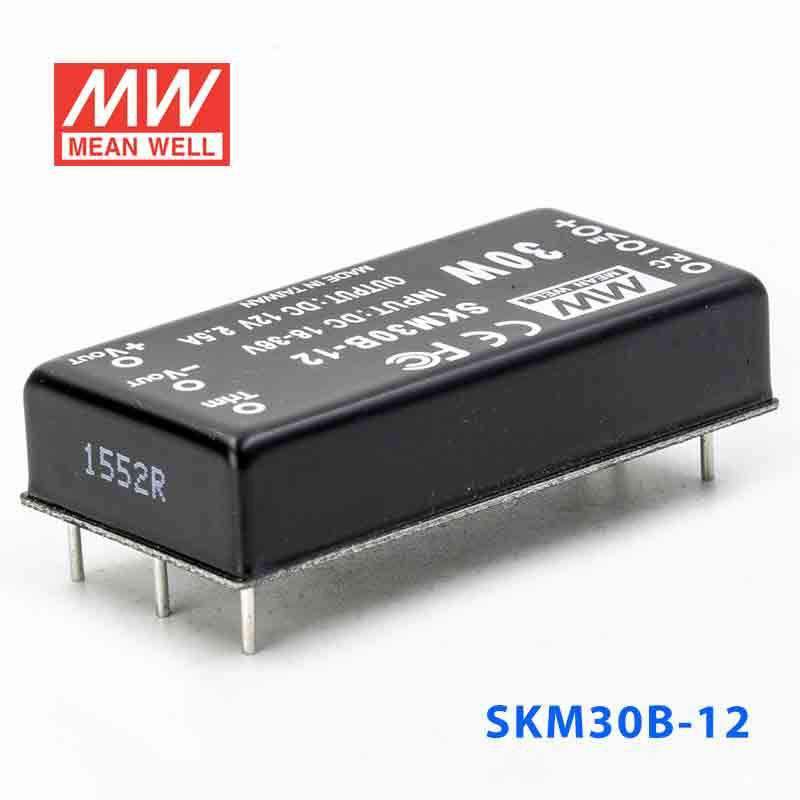

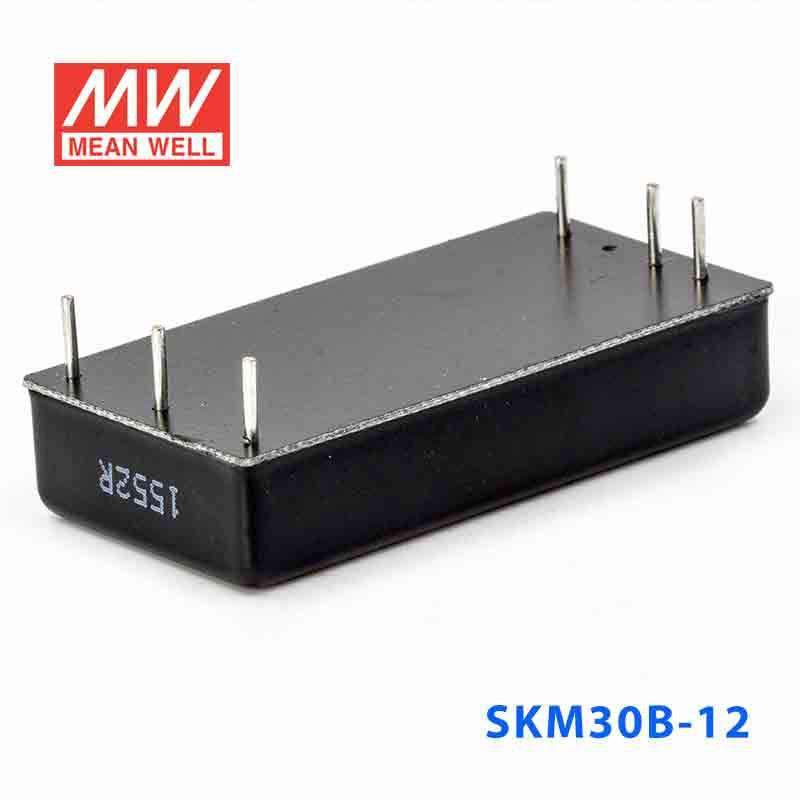

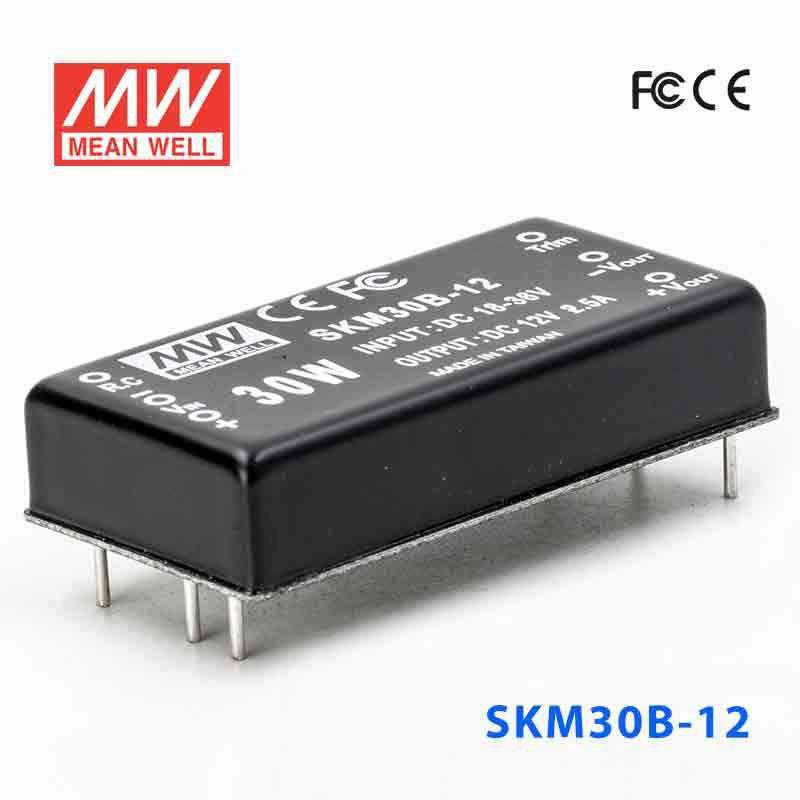

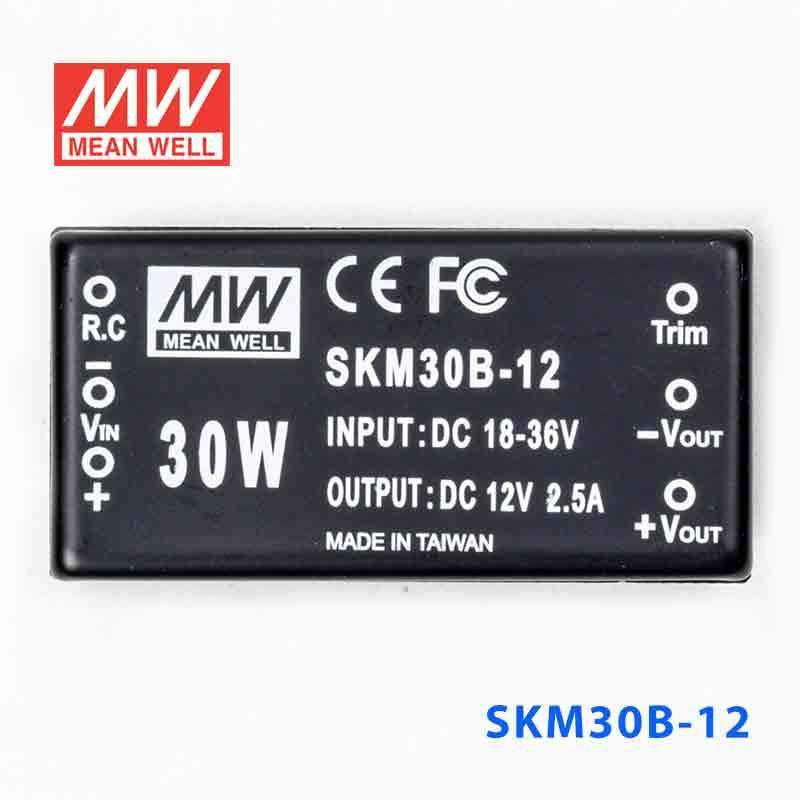

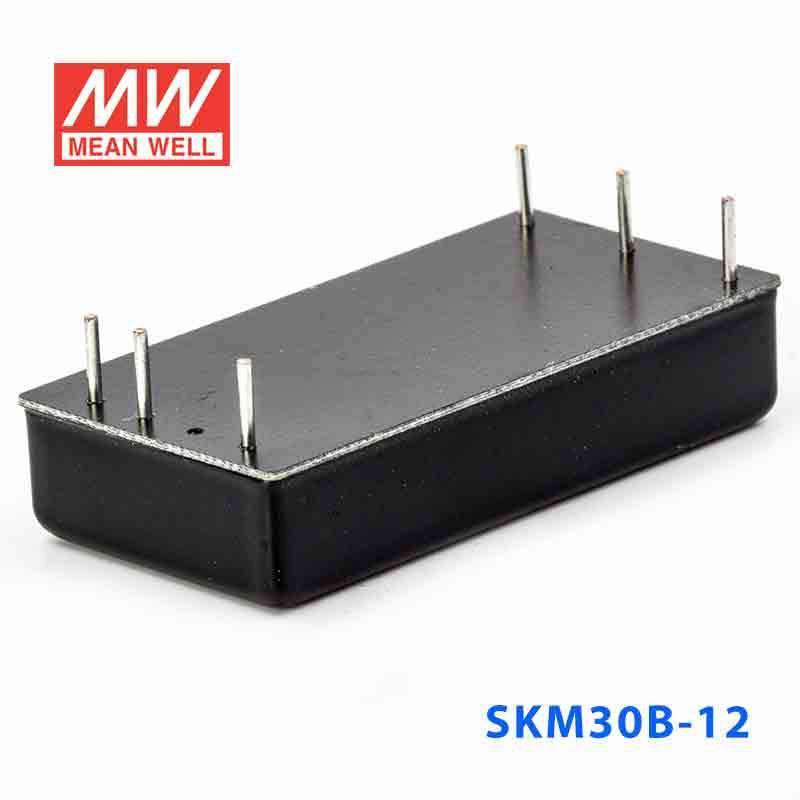

Mean Well SKM30B-12 DC-DC Converter - 30W - 18~36V in 12V out
Description
Description
The SKM30B is a 30W Mean Well power converter (operating temperature: -40~+75℃).
Key Features
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+75℃
- ✓ Protections: Short circuit / Over voltage / Under voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKM Series
-
Power Rating30 Watt
-
Output Voltage12 Volt
-
Rated Current2.5 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKM30B-12 for 12V automation and industrial panel electronics?
Yes, it delivers constant 12V output at up to 2.5A, with a total 30W rating. It is suited to 12V panel and automation electronics when the available input is within 18-36VAC.
Is the SKM30B-12 appropriate for embedded 12V subsystems in industrial equipment?
It can be used for embedded 12V subsystems that require constant-voltage output and stay within 2.5A. The compact 50.8 × 25.4 × 11.2 mm form factor can also be useful where installation space is limited.
Can this converter support 12V sensing, display, or control devices?
This model is intended for 12V loads with a combined demand up to 30W. It is relevant for 12V sensing, display, or control devices powered from an 18-36VAC source.
Will the SKM30B-12 handle cold and hot operating conditions?
The stated operating temperature is -40°C to +75°C, so it is specified for a wide temperature span. No IP rating is provided, so environmental sealing and outdoor suitability are not defined by the listed specs.
Which SKM30B model should I choose if I am comparing output options only?
The main difference inside the SKM30B family is output rating, while all models use 18-36VAC input and are rated at 30W. SKM30B-05 outputs 5V at 6A, SKM30B-12 outputs 12V at 2.5A, and SKM30B-15 outputs 15V at 2A.
Other SKM30 Models
13 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| SKM30W8-24 | — | — | — | Indoor | $30.17 | View |
| SKM30W8-15 | — | — | — | Indoor | $30.17 | View |
| SKM30W8-12 | — | — | — | Indoor | $30.17 | View |
| SKM30W8-05 | — | — | — | Indoor | $30.17 | View |
| SKM30W8-03 | — | — | — | Indoor | $30.17 | View |
| Mean Well SKM30C-15 DC-DC Converter - 30W - 36~75V in 15V out | 30W | 15V | 2A | Indoor | $30.06 | View |
| Mean Well SKM30C-12 DC-DC Converter - 30W - 36~75V in 12V out | 30W | 12V | 2.5A | Indoor | $30.06 | View |
| Mean Well SKM30C-05 DC-DC Converter - 30W - 36~75V in 5V out | 30W | 5V | 6A | Indoor | $28.21 | View |
| Mean Well SKM30B-15 DC-DC Converter - 30W - 18~36V in 15V out | 30W | 15V | 2A | Indoor | $30.06 | View |
| Mean Well SKM30B-05 DC-DC Converter - 30W - 18~36V in 5V out | 30W | 5V | 6A | Indoor | $30.06 | View |
| Mean Well SKM30A-15 DC-DC Converter - 30W - 9~18V in 15V out | 30W | 15V | 2A | Indoor | $30.06 | View |
| Mean Well SKM30A-12 DC-DC Converter - 30W - 9~18V in 12V out | 30W | 12V | 2.5A | Indoor | $30.06 | View |
| Mean Well SKM30A-05 DC-DC Converter - 30W - 9~18V in 5V out | 30W | 5V | 6A | Indoor | $30.06 | View |
