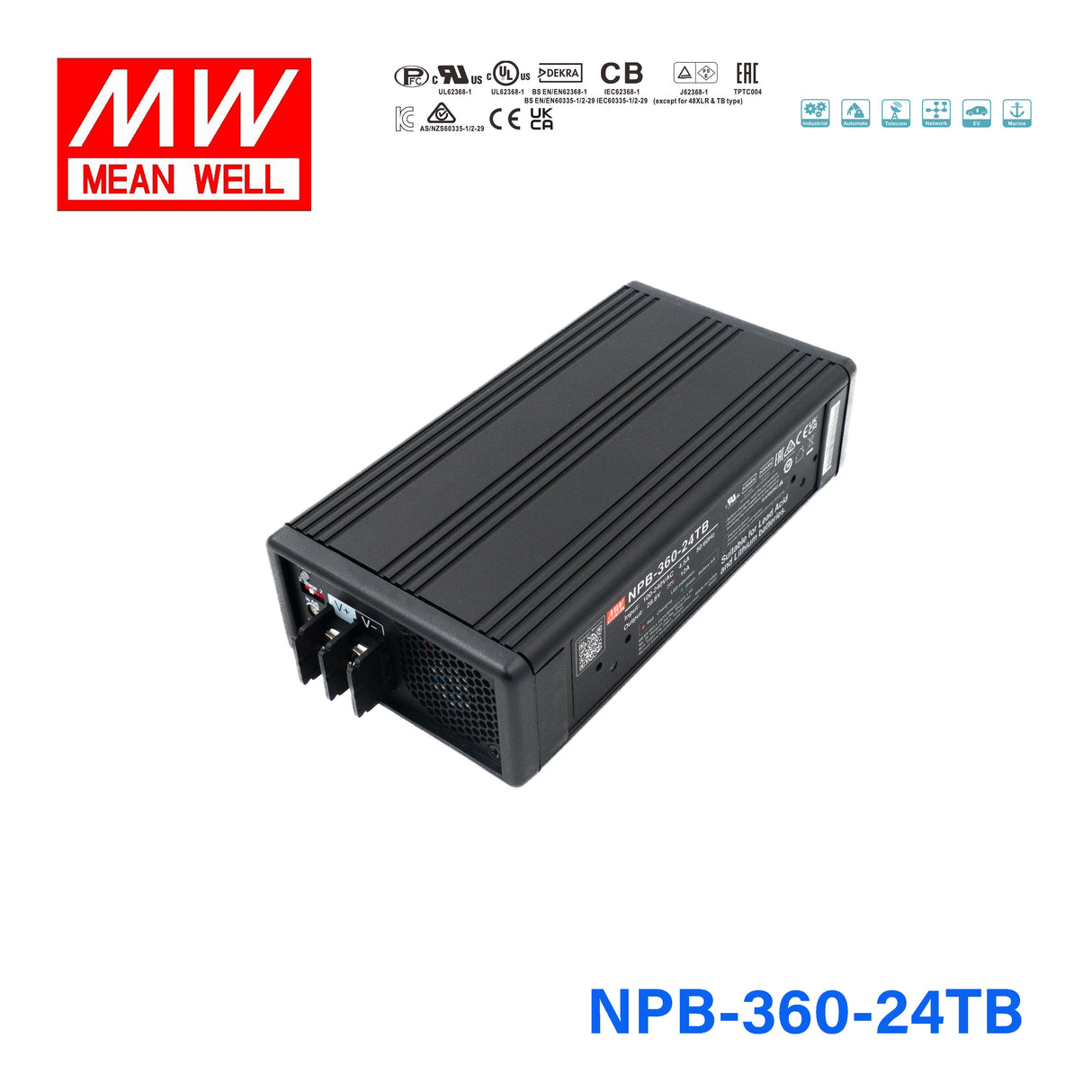

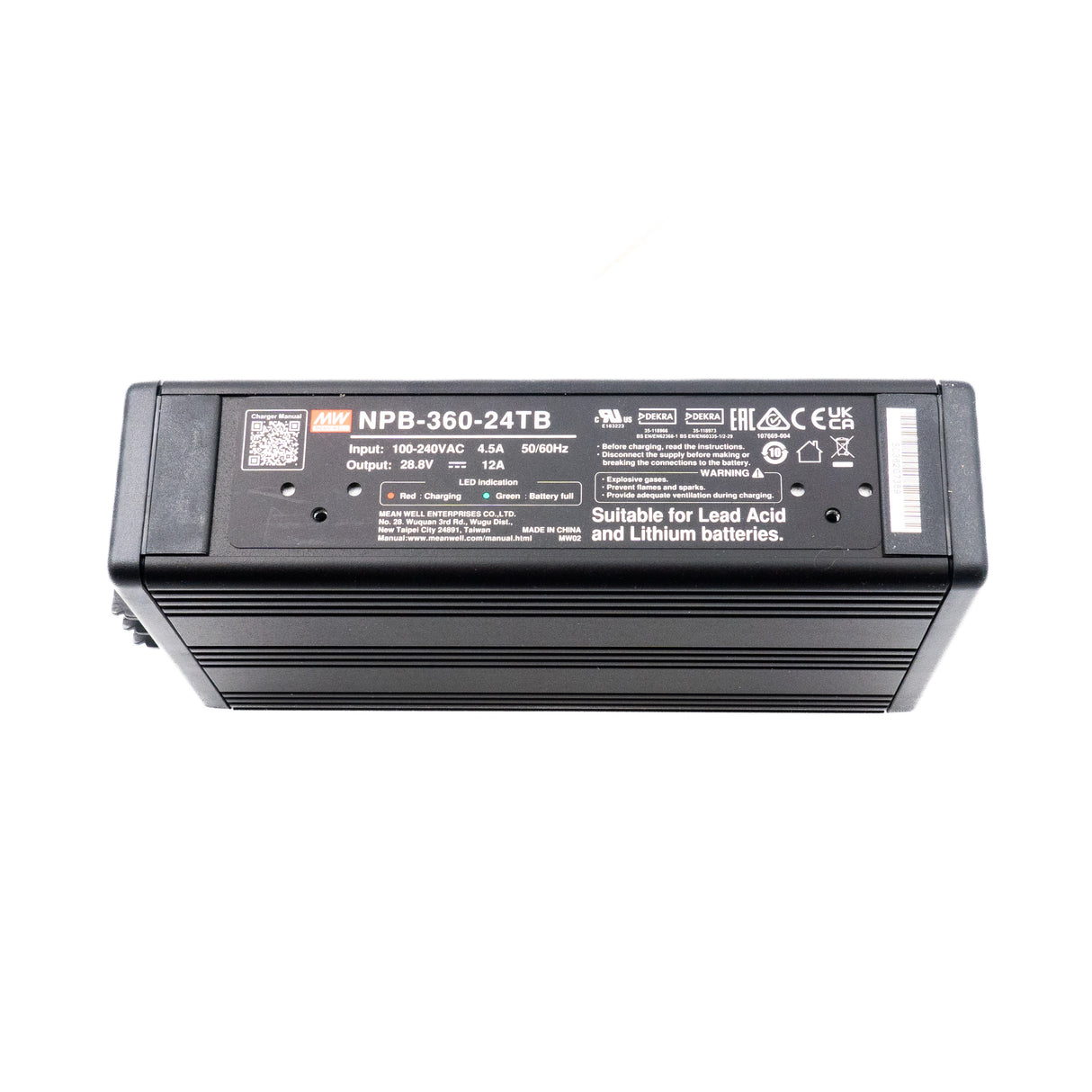

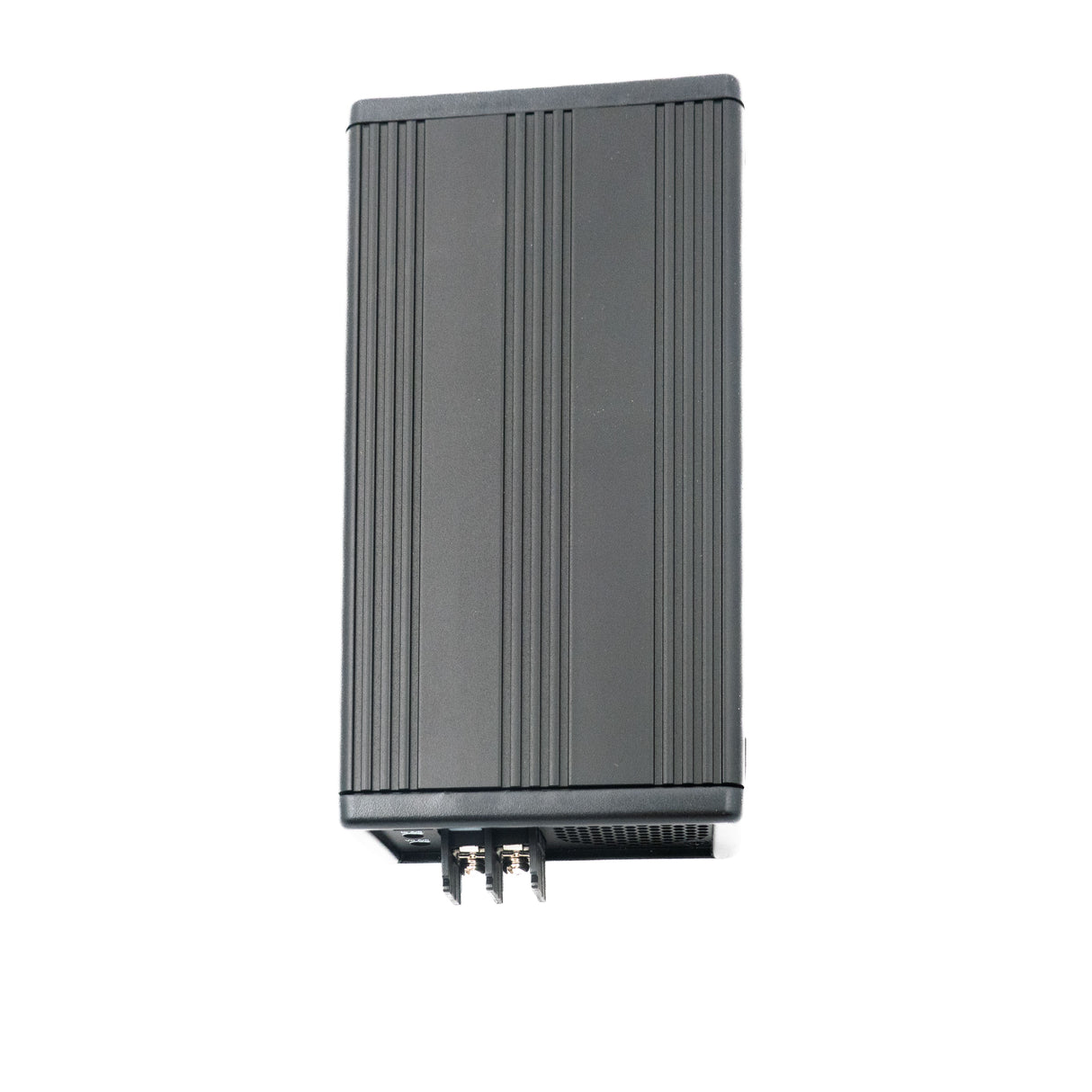

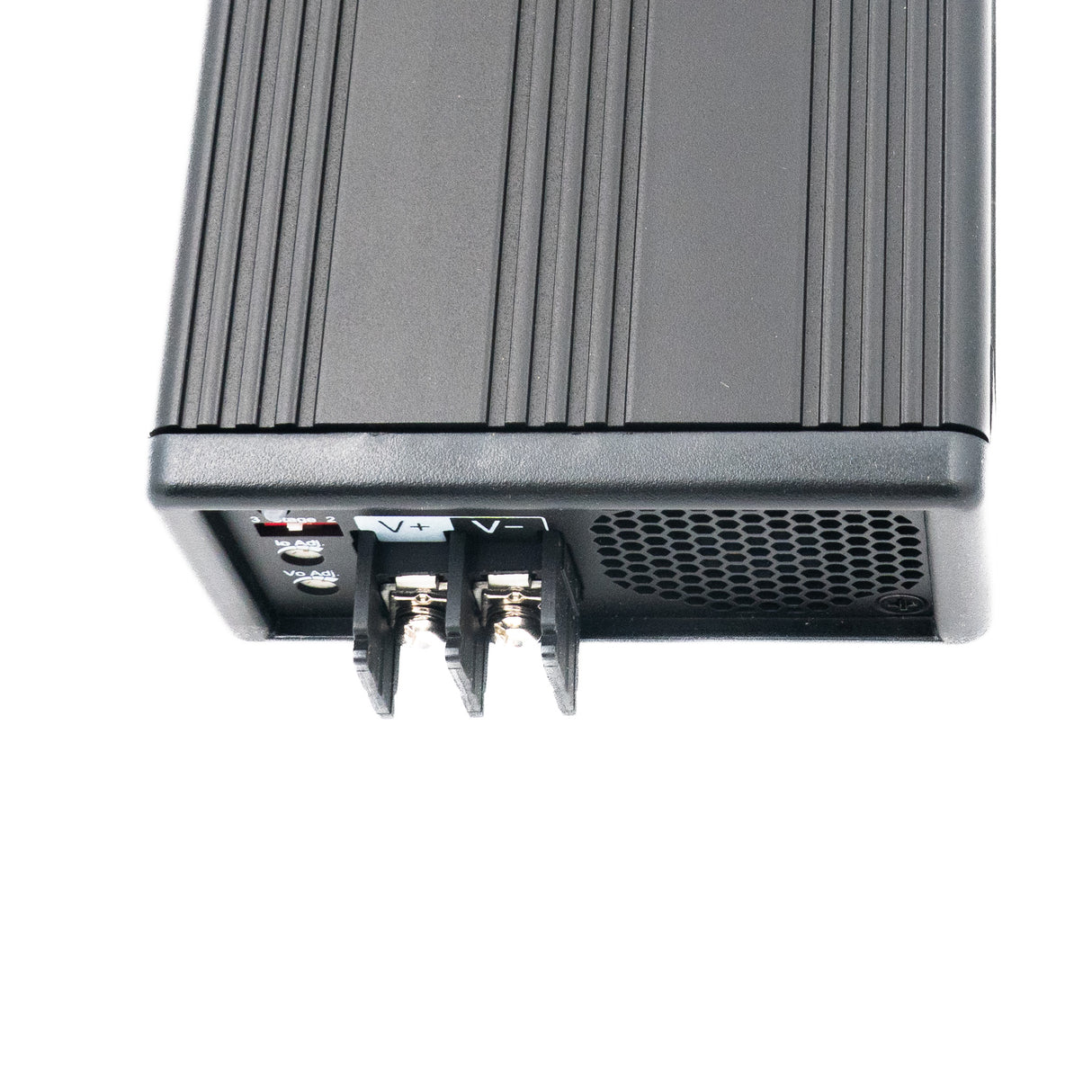

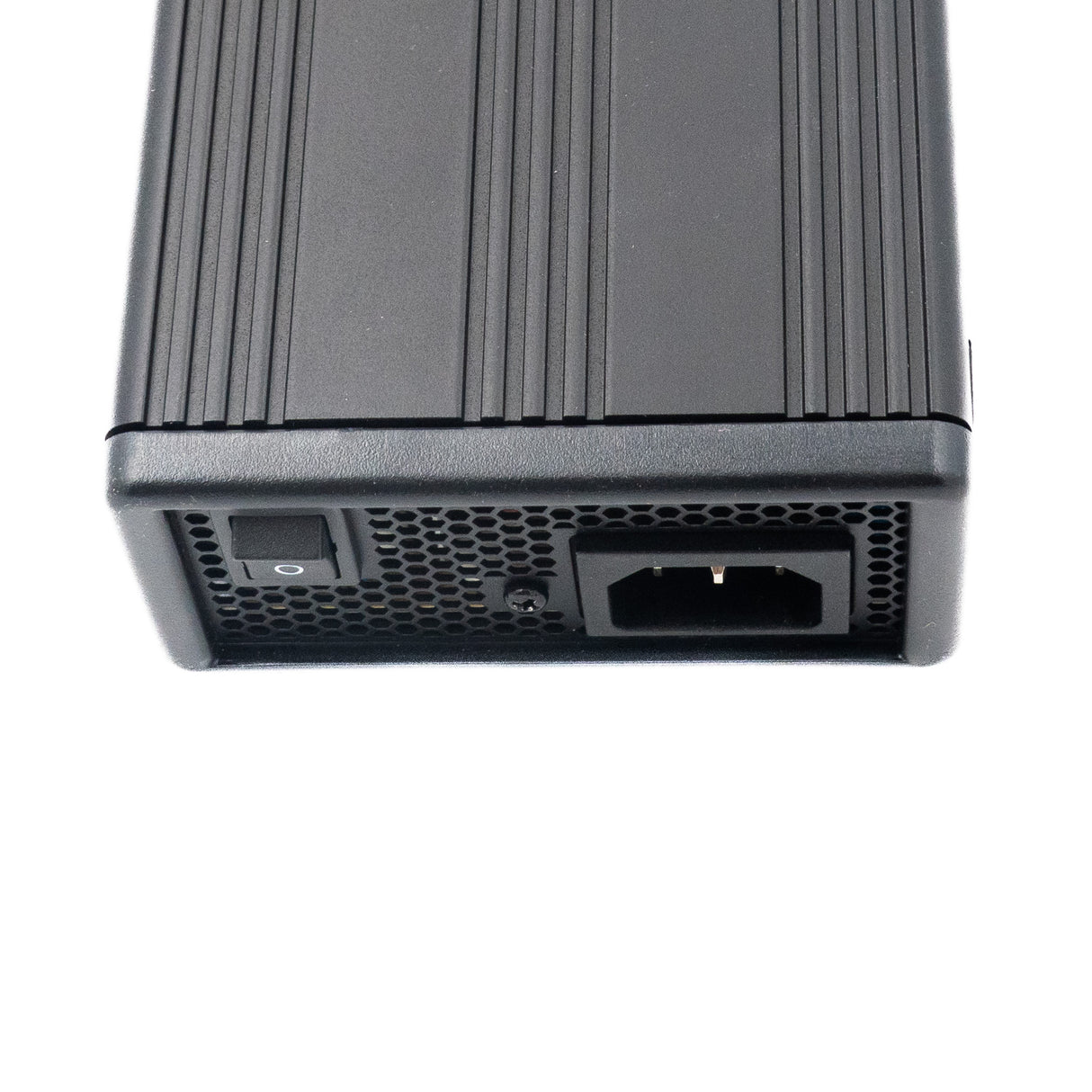

Mean Well NPB-360-24TB Battery Charger 360W 24V Terminal Block
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPB-360-24TB Battery Charger 360W 24V Terminal Block
The NPB-360 is a 360W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Over voltage / Over temperature / Reverse polarity
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPB Series
-
Power Rating360 Watt
-
Output Voltage28.8 Volt
-
Rated Current12 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.09 in
-
Width3.78 in
-
Height1.93 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
What is the Mean Well NPB-360-24TB designed for?
The NPB-360-24TB is a 360W AC-DC battery charger for 24V battery charging applications. It delivers 28.8V DC at up to 12A, making it a fit for commercial and industrial systems that need a higher-power charger in a compact format.
Is this model suitable for 24V battery systems?
Yes. This model is built for 24V battery charging and provides a 28.8V DC output with a rated current of 12A. Buyers looking for a charger in the 24V class often choose it when they need more charging power than smaller units can provide.
What are the key electrical specifications of the NPB-360-24TB?
This charger is rated at 360W output power and provides 28.8V DC at up to 12A. It also includes power factor correction and supports 2-stage or 3-stage charging, depending on the application requirements.
How does the NPB-360-24TB compare with lower-power 24V chargers?
Compared with lower-wattage 24V chargers, the NPB-360-24TB offers a higher 12A charging current and a 360W power rating. That makes it better suited to applications where faster charging or support for larger-capacity 24V battery systems is important.
Can this charger be used in demanding temperature conditions?
Yes. The NPB-360-24TB has a specified operating temperature range of -30°C to 70°C, which supports use in a wide range of industrial and commercial environments. Buyers with equipment exposed to cold or hot conditions often check this range as a key selection factor.
What input and charging features does this model include?
This model supports universal AC input, which helps when the same charger may be used across different mains environments. It also includes PFC and supports both 2-stage and 3-stage charging, features commonly requested for professional battery charging applications.
What warranty and physical details should buyers know?
The NPB-360-24TB includes a 3-year warranty from the manufacturer. It weighs 1.3 kg, which can matter for equipment planning where charger size and weight affect overall system packaging.
