Mean Well NPB-360-48AD1 Battery Charger 360W 48V Anderson Connector
Notify me when it's back in stock
Your order will be processed within 24 hours

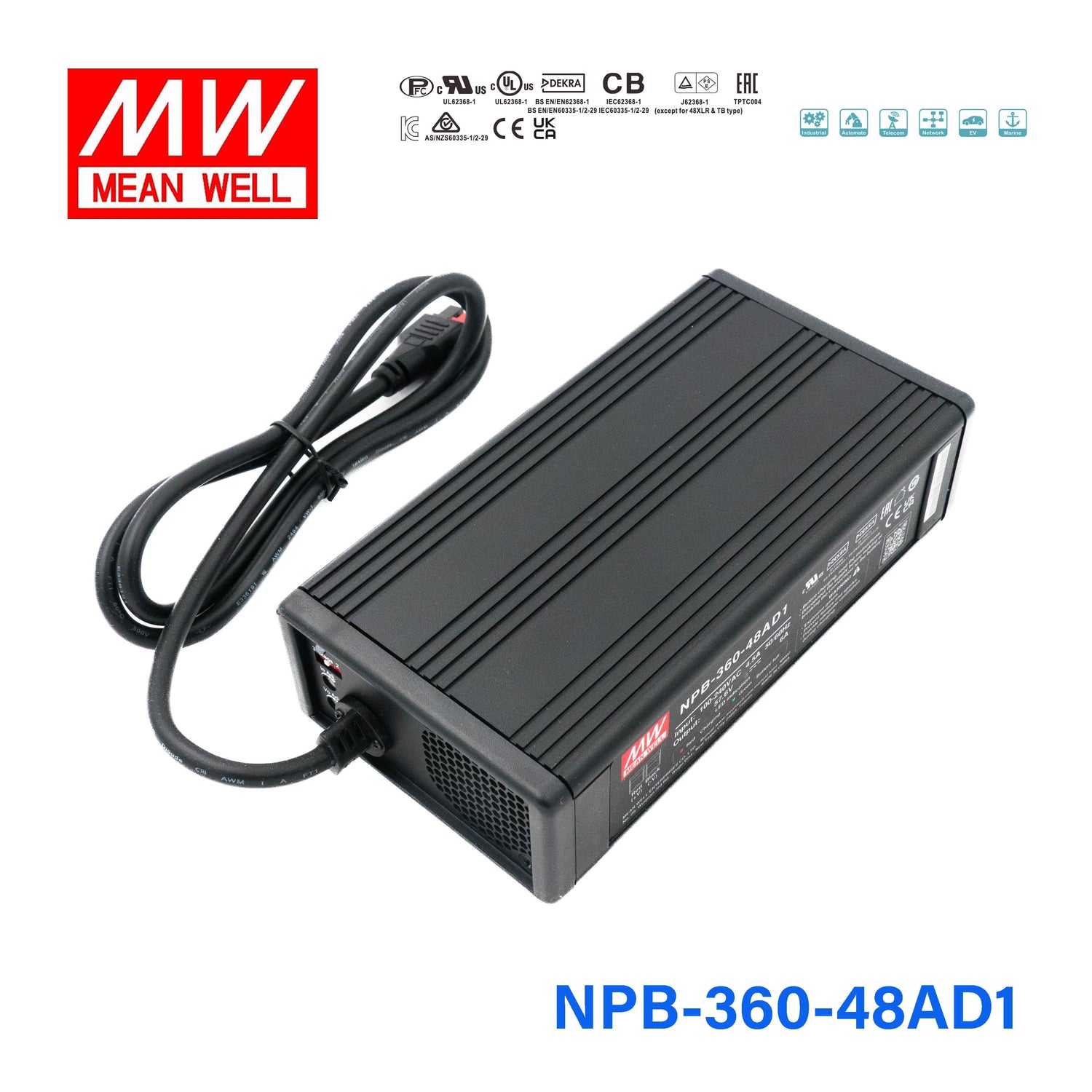

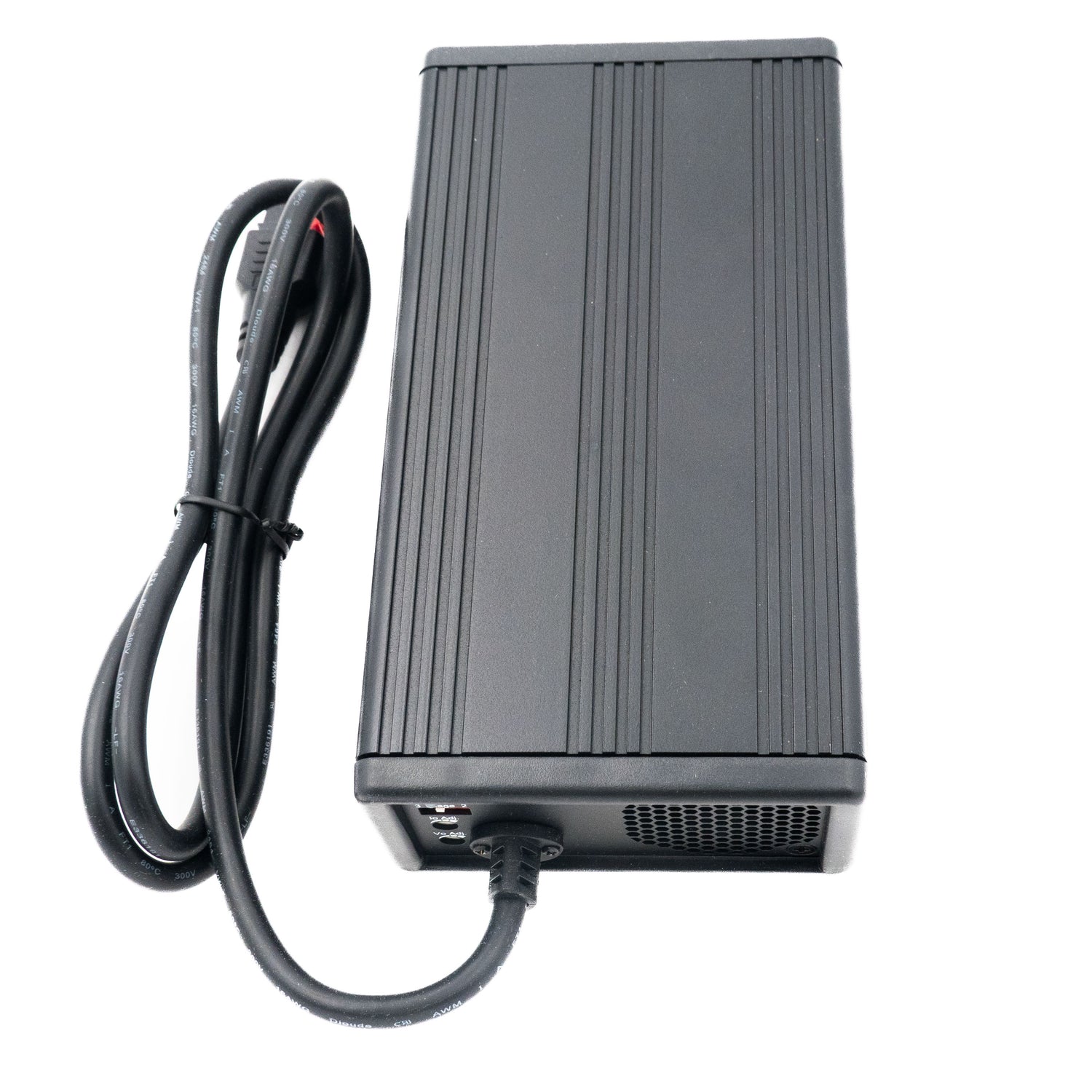

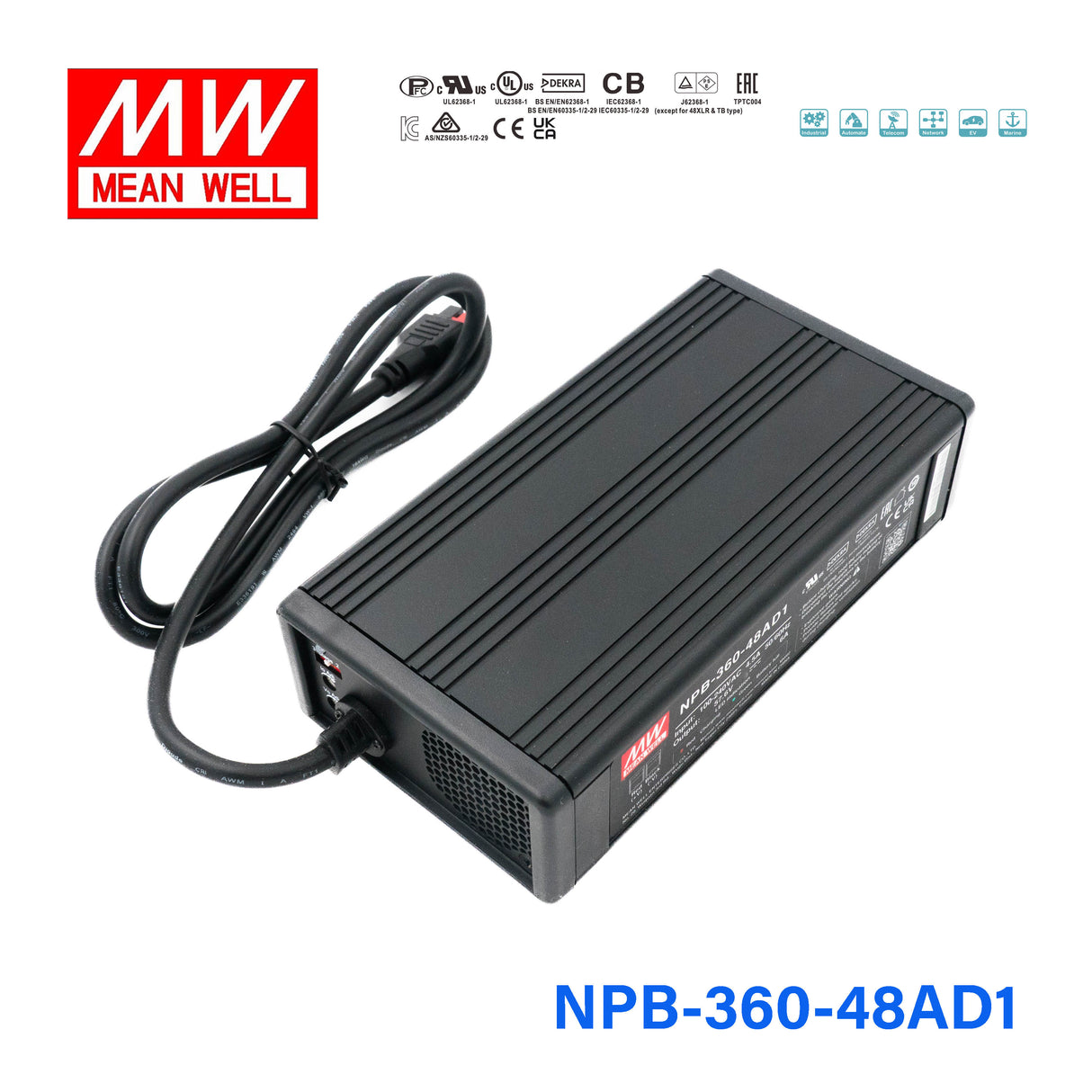

Mean Well NPB-360-48AD1 Battery Charger 360W 48V Anderson Connector
Description
Description
Specifications
Specifications
-
BrandMean Well
-
SeriesNPB Series
-
Power Rating360 Watt
-
Output Voltage57.6 Volt
-
Rated Current6 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.09 in
-
Width3.78 in
-
Height1.93 in
-
Weight2.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well NPB-360-48AD1 designed for?

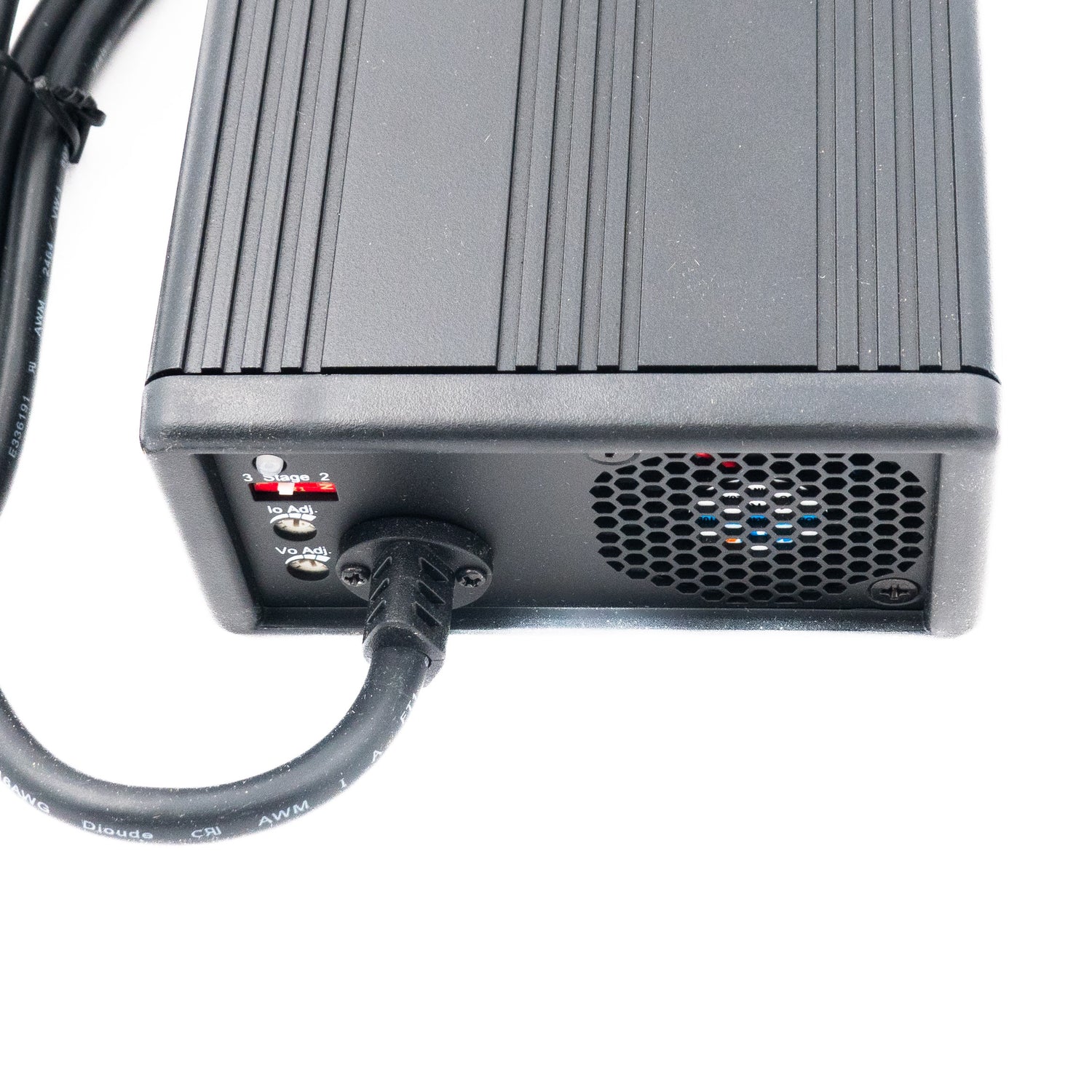

The Mean Well NPB-360-48AD1 is an AC-DC battery charger intended for 48V-class battery charging applications that require controlled charging and a portable form factor. It provides up to 360W output and is described as supporting 2-stage or 3-stage charging.
What are the main output specifications of the NPB-360-48AD1?

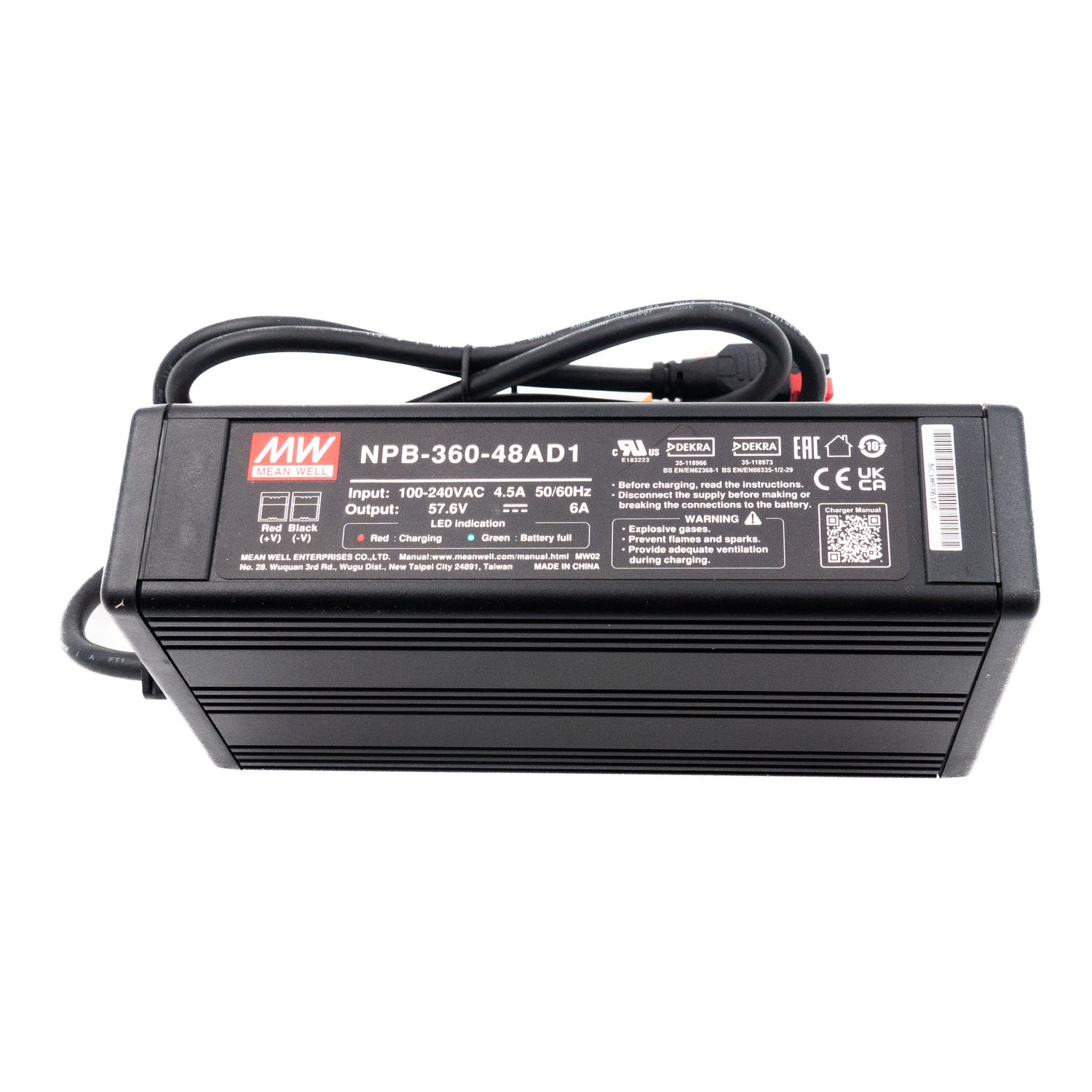

This model delivers a nominal output of 57.6V DC at 6A. Its total power rating is 360W, which matches applications needing a higher-voltage battery charger in this output class.
Does this model include an Anderson connector?
Yes, the product description for the NPB-360-48AD1 specifies an Anderson connector. That makes it a suitable option for buyers who specifically need this connector style on the charger model they purchase.
Can the NPB-360-48AD1 be used in demanding temperature conditions?
This charger is rated for operation from -30°C to 70°C. That wide temperature range makes it more suitable than many general-purpose chargers for industrial or variable-environment use, provided the rest of the application is designed for those conditions.
How does the NPB-360-48AD1 compare with lower-power 48V battery chargers?
A key difference is its 360W output rating, with 57.6V DC at 6A. Compared with lower-power 48V chargers, this model is better suited where a higher charging output is needed, while still being offered as a single-output charger with PFC.
Is the NPB-360-48AD1 suitable for buyers looking for a portable industrial charger?
It is positioned in portable battery charger categories and weighs 1.3 kg, which supports use in applications where portability matters. Buyers evaluating compact industrial chargers may also consider its universal AC input and 3-year warranty as practical purchasing factors.
