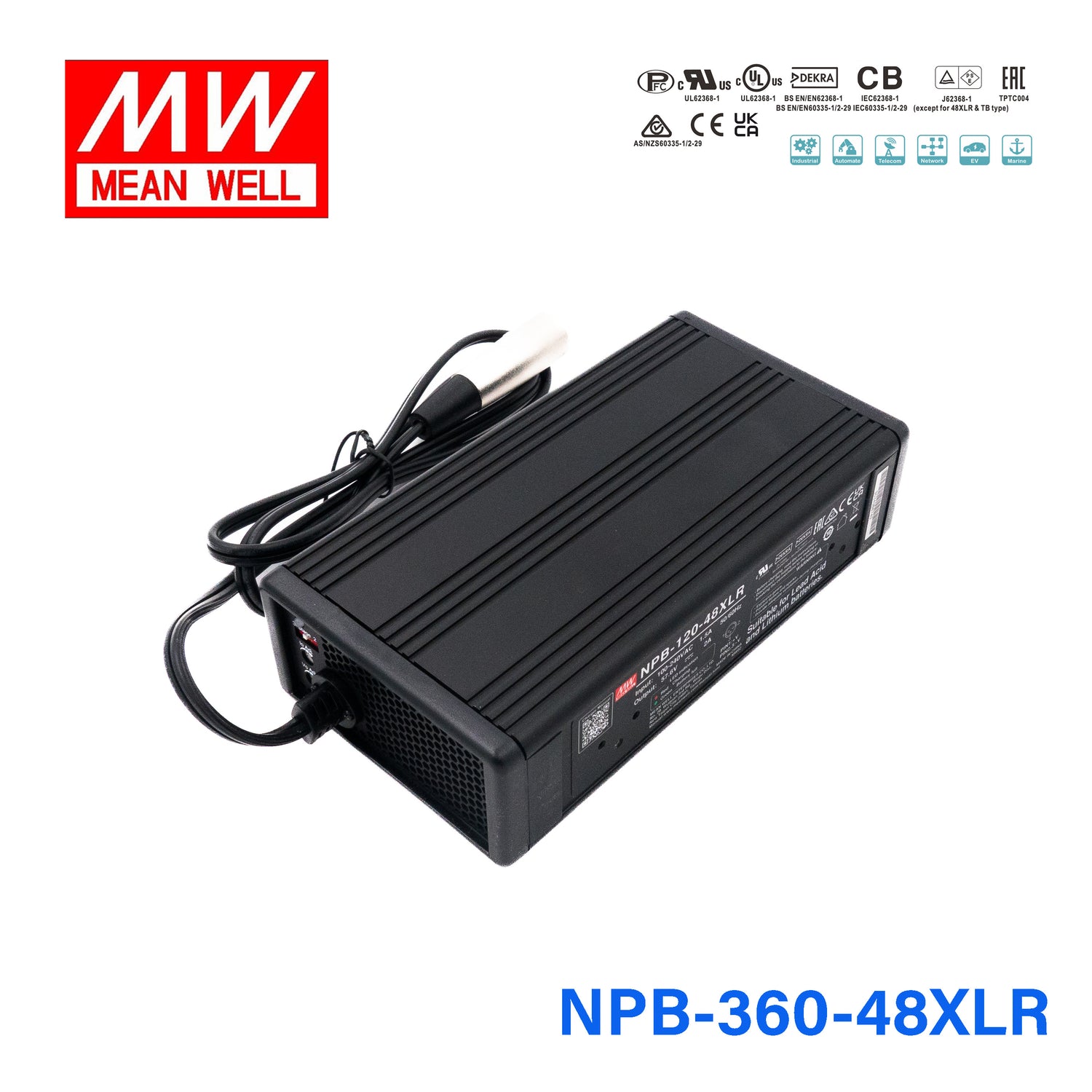

Mean Well NPB-360-48XLR Battery Charger 360W 48V 3 Pin Power Pin
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPB-360-48XLR Battery Charger 360W 48V 3 Pin Power Pin
The NPB-360 is a 360W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Over voltage / Over temperature / Reverse polarity
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPB Series
-
Power Rating360 Watt
-
Output Voltage57.6 Volt
-
Rated Current6 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-

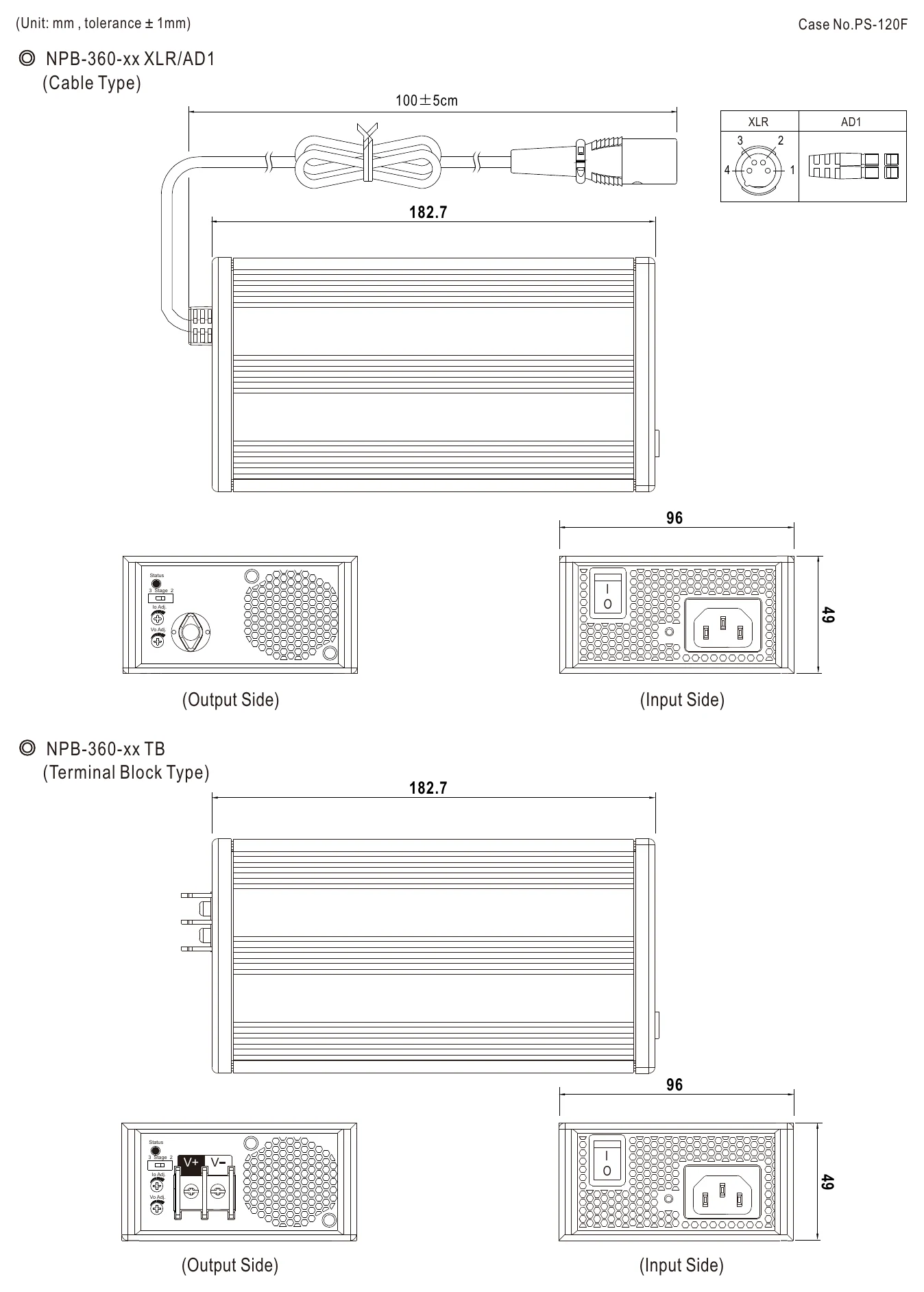

Length7.09 in
-
Width3.78 in
-
Height1.93 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
What is the Mean Well NPB-360-48XLR designed for?
The NPB-360-48XLR is an AC-DC battery charger intended for 48V battery-charging applications. This model delivers up to 360W with a 57.6Vdc output at 6A, making it a fit for buyers who need a dedicated charger rather than a general-purpose power supply.
What are the main output specifications of the NPB-360-48XLR?
This model is rated at 360W and provides a 57.6Vdc output with 6A rated current. Those are the key electrical figures buyers typically use when checking whether the charger matches the battery system requirements for a 48V setup.

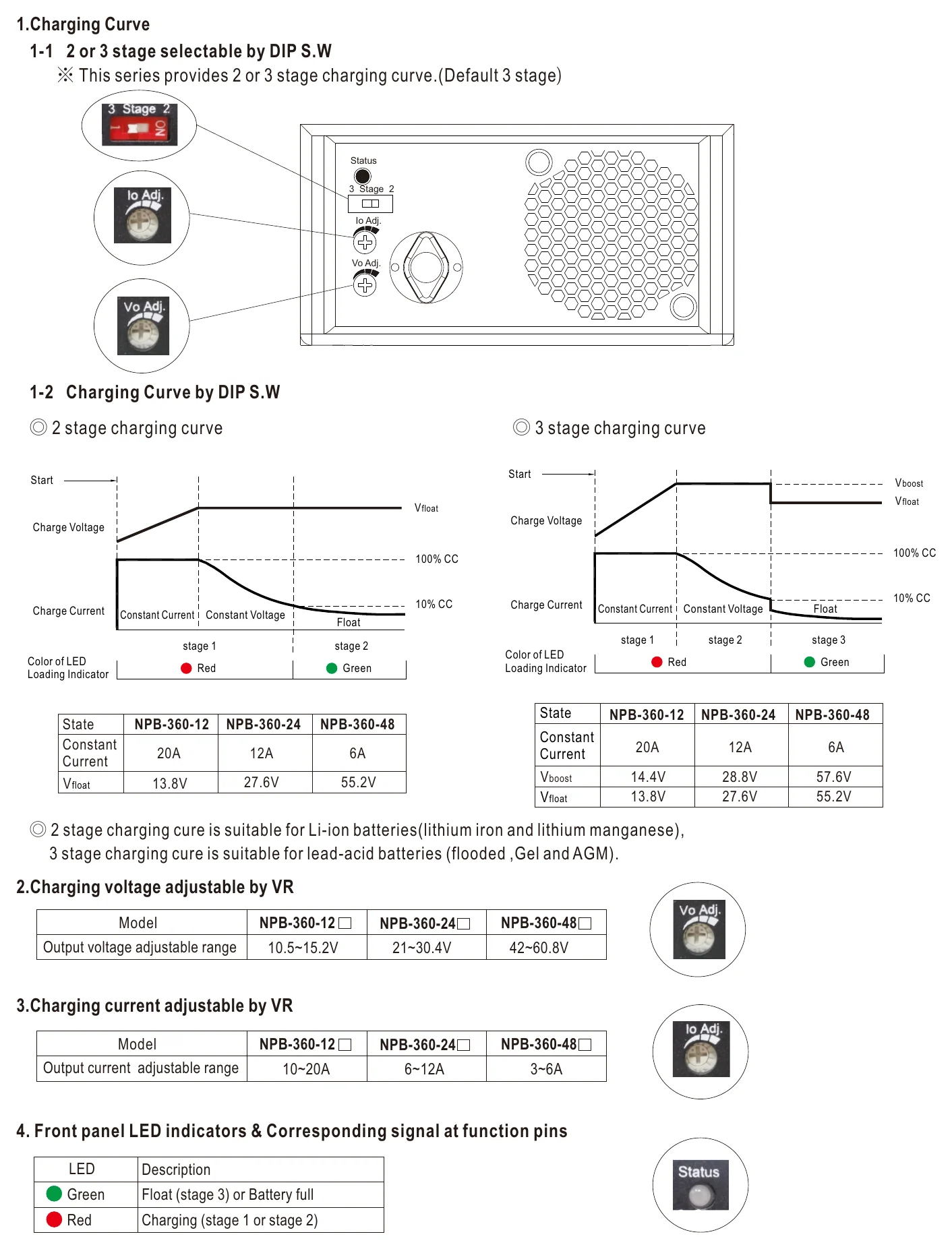

Does the NPB-360-48XLR support staged battery charging?
Yes. The NPB-360-48XLR supports 2-stage or 3-stage charging, which is useful for battery-charging applications that require a defined charging profile. It also includes power factor correction and accepts universal AC input.
How does the NPB-360-48XLR compare with lower-current 48V chargers?
The main difference is charging capacity: this model delivers up to 6A at 57.6Vdc with a 360W power rating. For buyers comparing options within 48V chargers, that makes it better suited to applications needing higher charging throughput than smaller, lower-current units.

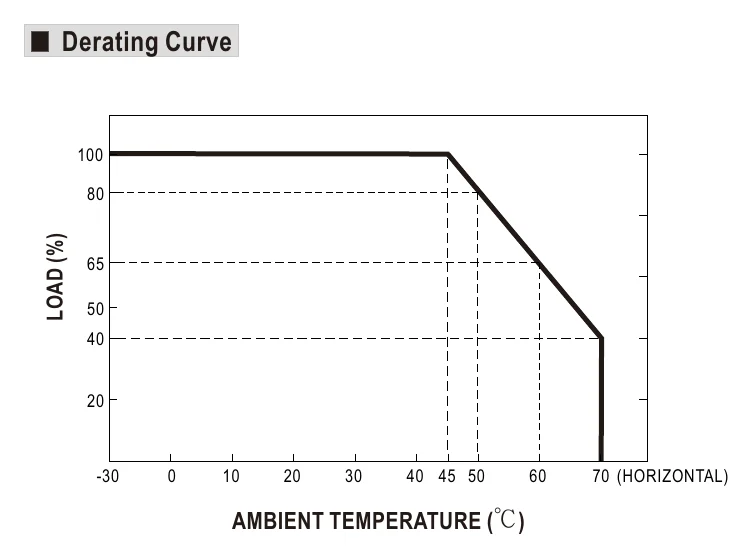

Can the NPB-360-48XLR be used in harsh temperature conditions?
This charger is rated for operation from -30°C to 70°C. That wide temperature range makes it more suitable for demanding commercial or industrial environments than chargers limited to narrower indoor-only conditions.
What physical and model-specific details should buyers know about the NPB-360-48XLR?
The NPB-360-48XLR weighs 1.3 kg and is supplied in the 3 pin power pin version of the NPB-360-48 series. It also carries a 3-year warranty, which is an important commercial consideration for replacement cycles and support planning.
