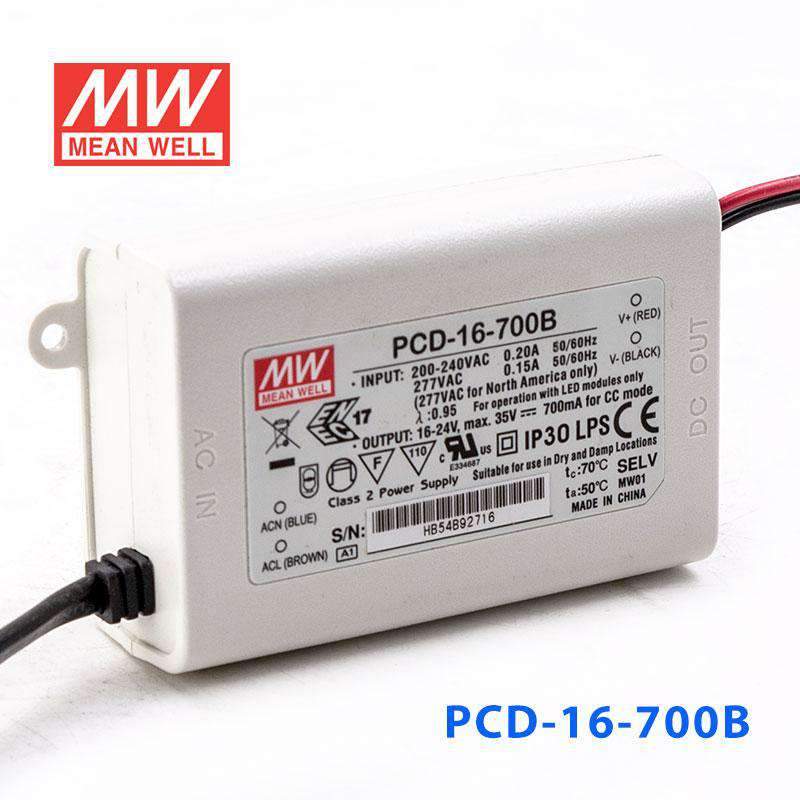

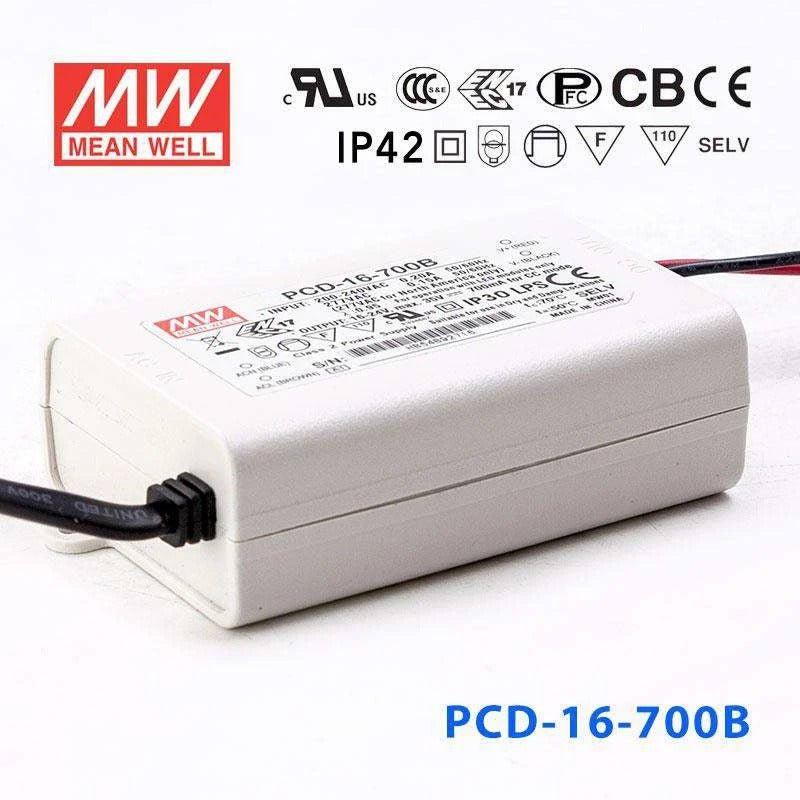

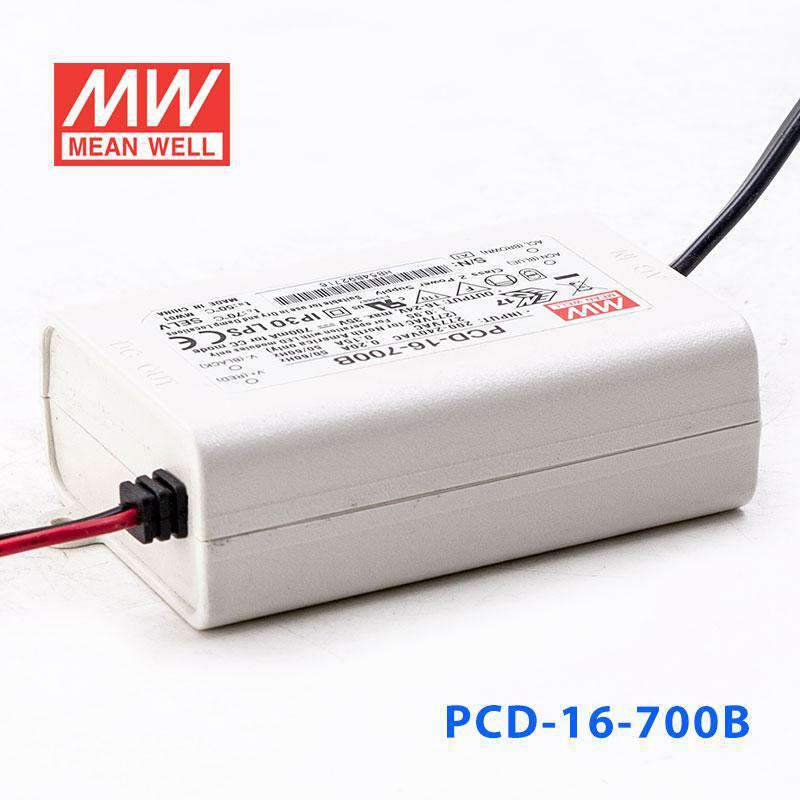

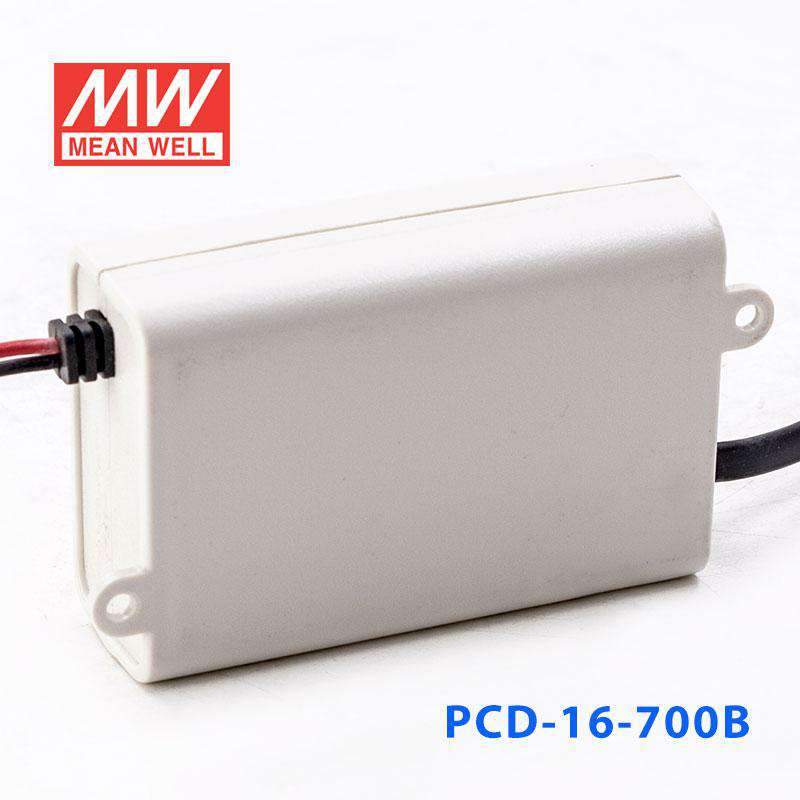

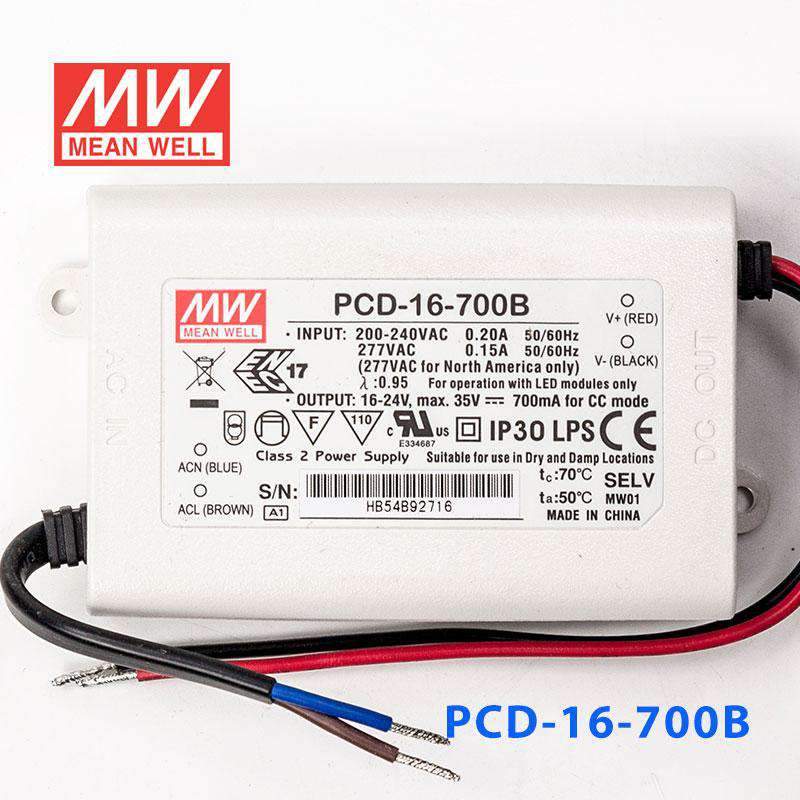

Mean Well PCD-16-700B Power Supply 16W 700mA
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PCD-16-700B Power Supply 16W 700mA
The PCD-16 is a 16W Mean Well power converter (input range: 24~48V, operating temperature: -30~+60℃).
Key Features
- ✓ Input voltage range: 24~48V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+60℃
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08(except for PCD-16-350), ENEC EN613471, EN61347-2-13, EN62384(for B type only), IP42
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPCD Series
-
Power Rating16.8 Watt
-
Output Voltage24 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~60°C
-
Warranty3 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can the PCD-16-700B be used with 700mA LED downlights?
Yes, if the downlight requires constant current at 700mA and the combined LED forward voltage stays within 16-24V. The driver is rated for 16.8W, so the load needs to remain within that output capacity.
Is this a good fit for signage modules on 180-295VAC input systems?
It can be, provided the signage module assembly is a constant-current 700mA load within the 16-24V constant-current range. This version is specified for 180-295VAC input, which is the main difference from the A version.
Can the PCD-16-700B power a small LED array instead of a constant-voltage strip?
Yes, if the small LED array is built for 700mA constant current and its forward-voltage demand falls between 16V and 24V. It is not intended for constant-voltage LED strips because the output mode is constant current.
What should I check before pairing the PCD-16-700B with LEDs?
Confirm that the LEDs need 700mA constant current and that the total forward voltage stays in the 16-24V constant-current window. The number of LEDs depends on the forward voltage of each LED, so there is no single fixed LED count for this driver.
Can the PCD-16-700B be used in dusty or damp areas?
The housing is IP42, so it is better suited to indoor or protected environments than directly exposed wet locations. Its operating temperature range is -30C to +60C, which defines the rated temperature window.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PCD-16 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PCD-16-700A Power Supply 16W 700mA | 16.8W | 24V | 0.7A | Indoor | $16.88 | View |
| Mean Well PCD-16-350B Power Supply 16W 350mA | 16.8W | 48V | 0.35A | Indoor | $17.51 | View |
| Mean Well PCD-16-350A Power Supply 16W 350mA | 16.8W | 48V | 0.35A | Indoor | $16.88 | View |
| Mean Well PCD-16-1400B Power Supply 16W 1400mA | 16.8W | 12V | 1.4A | Indoor | $17.51 | View |
| Mean Well PCD-16-1400A Power Supply 16W 1400mA | 16.8W | 12V | 1.4A | Indoor | $16.88 | View |
| Mean Well PCD-16-1050B Power Supply 16W 1050mA | 16.8W | 16V | 1.05A | Indoor | $17.51 | View |
| Mean Well PCD-16-1050A Power Supply 16W 1050mA | 16.8W | 16V | 1.05A | Indoor | $15.62 | View |
