Mean Well

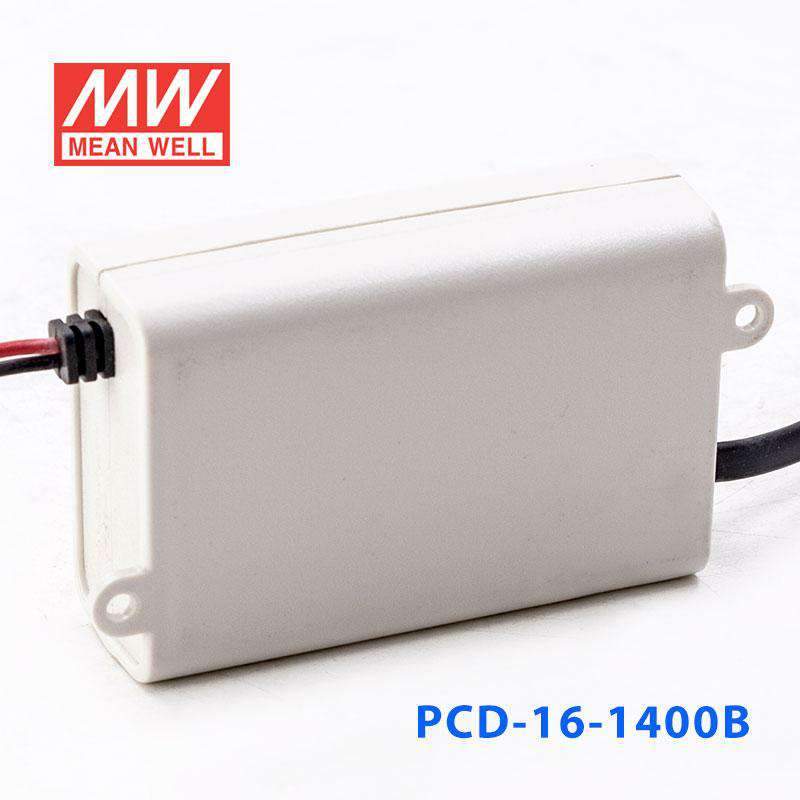

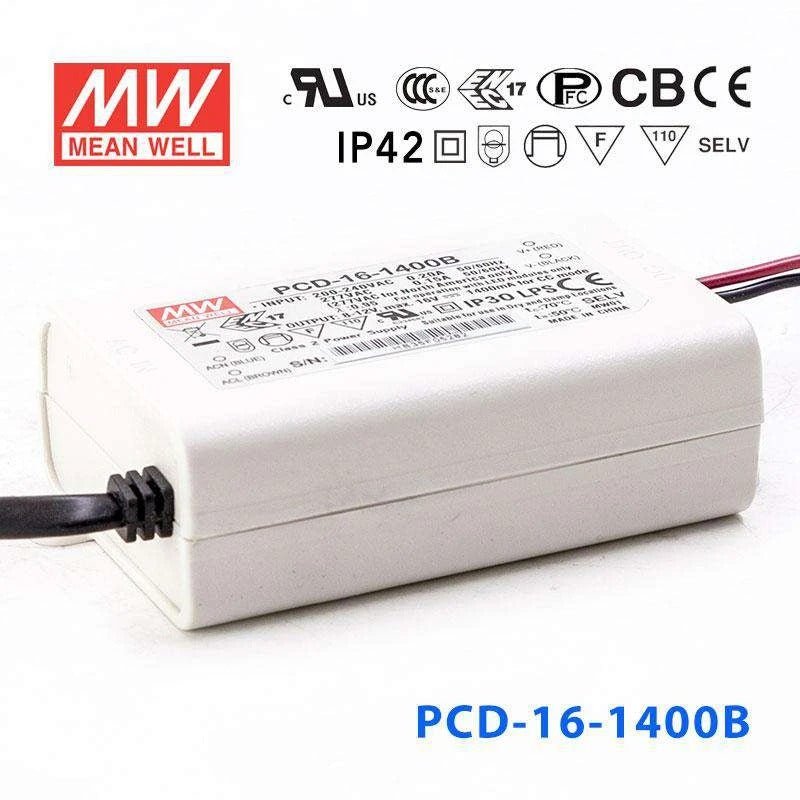

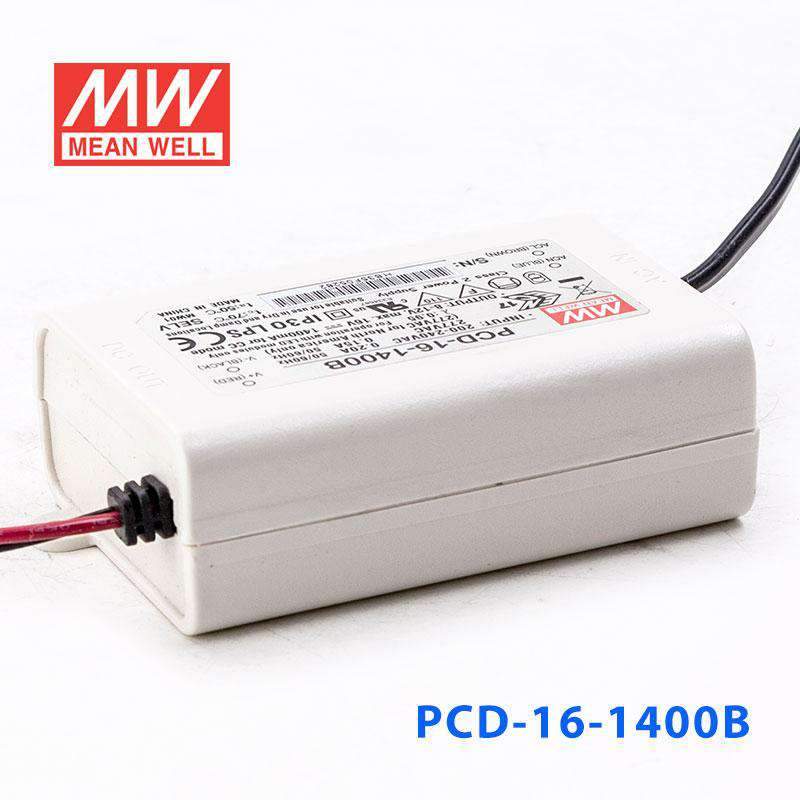

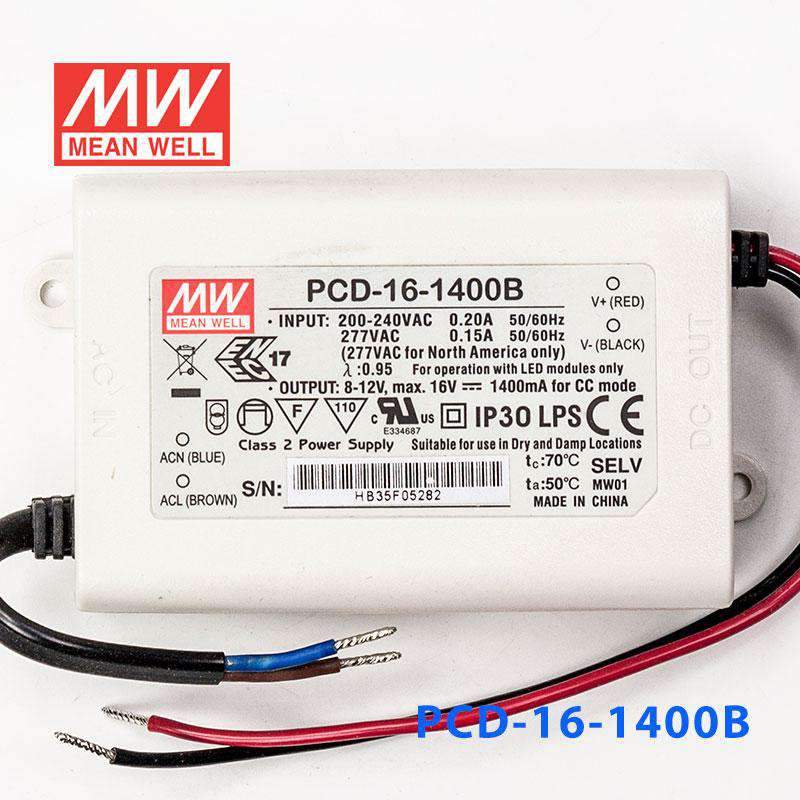

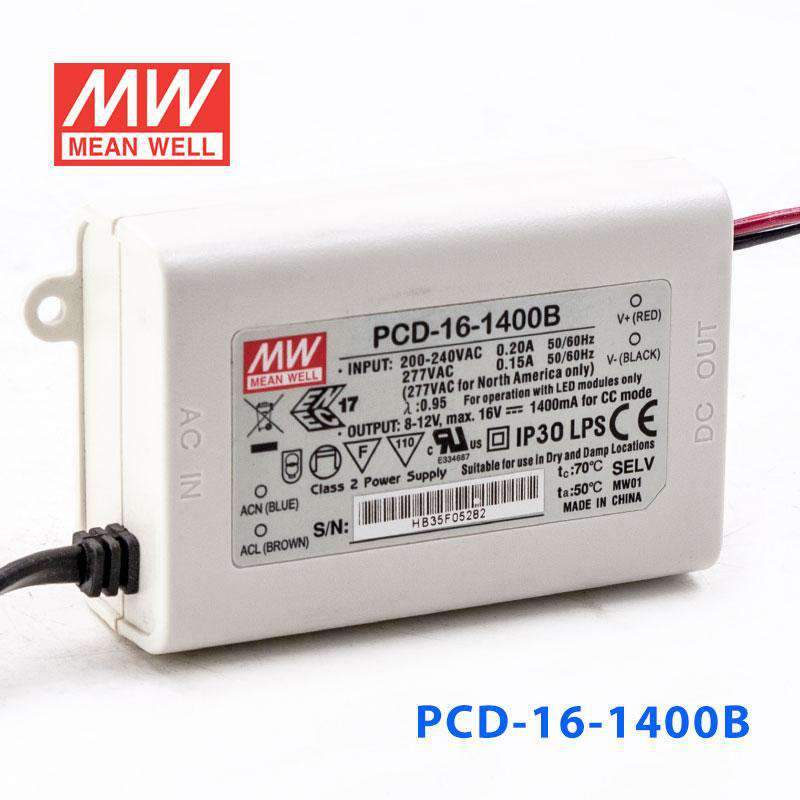

Mean Well PCD-16-1400B Power Supply 16W 1400mA

Name: Mean Well PCD-16-1400B Power Supply 16W 1400mA
Brand: Mean Well
SKU: PCD-16-1400B
Price: 19.45 USD
Availability: InStock

On Backorder

$19.45 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

AC input voltage range	115VAC (90 ~ 135VAC) or 230VAC (180 ~ 295VAC)
AC inrush current (max.)	Cold start, 10A at 230VAC
Withstand voltage	I / P - O / P: 3.75 k VAC
Working temperature	-30 ~ + 60ºC (refer to output derating curve)
Safety standards	UL8750 (PCD-16/25 only), ENEC EN61347-1, EN61347-2-13, EN62384 (B-Type only) approved
EMC standards	A-Type: FCC part 18 non-consumer equipment, B-Type: EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	A-Type: UL1430 18AWGx2C (7.5cm); B-Type: NISPT-1 18AWGx2C (7.5cm)
Connection Output	UL1430 18AWGx2C (15cm)
Dimension (LxWxH) (mm)	84x 57x 29.5
