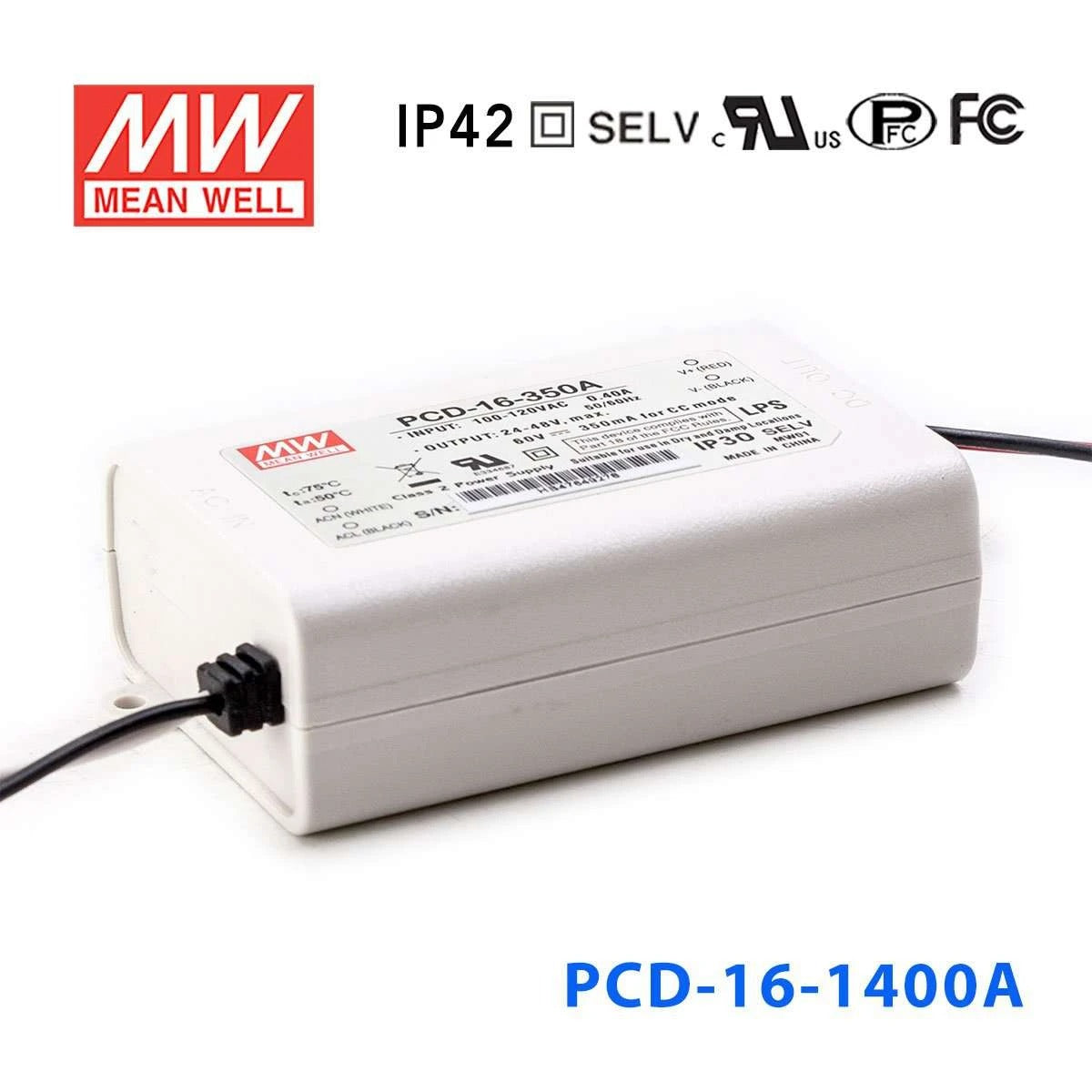

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well PCD-16-1400A Power Supply 16W 1400mA

TRIAC dimmable, plastic casing IP42, Class II design without FG, constant current

SKU:

PCD-16-1400A

$16.88 USD ~~$60.00~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

AC phase-cut dimming, work with leading edge and trailing edge TRIAC dimmers

115VAC or 230VAC input

Protections: Short circuit / Over temperature

Constant current design (CC mode)

Class 2 power unit / Pass LPS

Isolation class II, no FG

Fully isolated plastic case

Cooling by free air convection

Built-in active PFC function

IP30 design

3 years warranty

General Specification

AC input voltage range	115VAC (90 ~ 135VAC) or 230VAC (180 ~ 295VAC)
AC inrush current (max.)	Cold start, 10A at 230VAC
Withstand voltage	I / P - O / P: 3.75 k VAC
Working temperature	-30 ~ + 60ºC (refer to output derating curve)
Safety standards	UL8750 (PCD-16/25 only), ENEC EN61347-1, EN61347-2-13, EN62384 (B-Type only) approved
EMC standards	A-Type: FCC part 18 non-consumer equipment, B-Type: EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	A-Type: UL1430 18AWGx2C (7.5cm); B-Type: NISPT-1 18AWGx2C (7.5cm)
Connection Output	UL1430 18AWGx2C (15cm)
Dimension (LxWxH) (mm)	84x 57x 29.5

Specifications

Brand

Mean Well
Series

PCD Series
Power Rating

16.8 Watt
Output Voltage

12 Volt
Rated Current

1.4 Ampere
Input Voltage

90V~135V
No of Output

1
Dimming Control

AC Phase Cut Dimming
Standards Met

CE,EAC,ENEC,FCC,UL
Operation Mode

Constant Current
Operating Temperature

-30°C~60°C
Warranty

3 Year
Length

3.31 in
Width

2.24 in
Height

1.16 in
Weight

0.42 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PCD-16-1400A for a compact 1400mA LED downlight?

Yes, if the downlight is a constant current design that requires 1400mA and its LED load falls within the 8-12V constant current range. This driver delivers up to 16.8W, so it is intended for compact fixtures rather than larger arrays. It is not meant for constant voltage LED products.

Is this a good match for small high-current LED arrays?

It can be, when the array is built for 1400mA constant current and the combined forward voltage stays between 8V and 12V. That makes it more appropriate for lower-voltage, higher-current LED arrays than for long series strings. The output profile is constant current, not constant voltage.

Can the PCD-16-1400A be used with indoor LED light engines for display or accent fixtures?

Yes, for indoor light engines that are specified for 1400mA constant current and fit within the 8-12V CC range. The IP42 housing supports use in protected indoor environments rather than exposed wet locations. Its TRIAC dimmable design can also matter in retrofit dimming applications.

What kind of LED load works with this 1400mA driver?

The LED module or array must be designed for 1400mA constant current, with total forward voltage within the 8-12V output range. The number of LEDs depends on the forward voltage of each LED, so there is no single fixed LED count for this model. A constant voltage load is not compatible with this driver type.

Is the PCD-16-1400A for outdoor installations?

Its plastic case is rated IP42, so it is generally better suited to indoor or otherwise protected locations. The driver can operate from -30°C to +60°C, but the enclosure rating still matters for environmental exposure. For open outdoor use, an IP42 driver is usually not the first choice.
