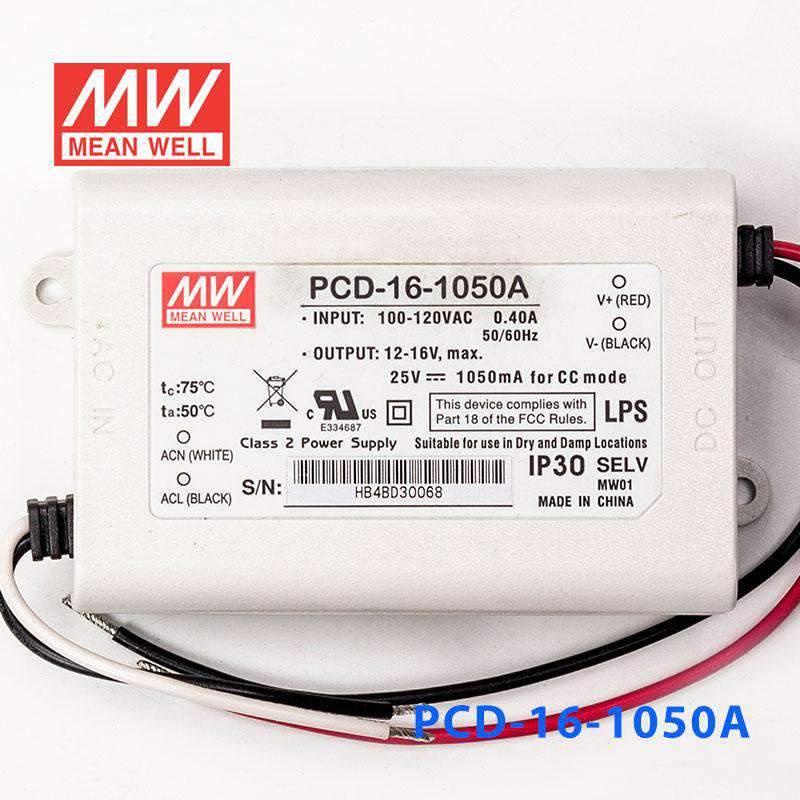

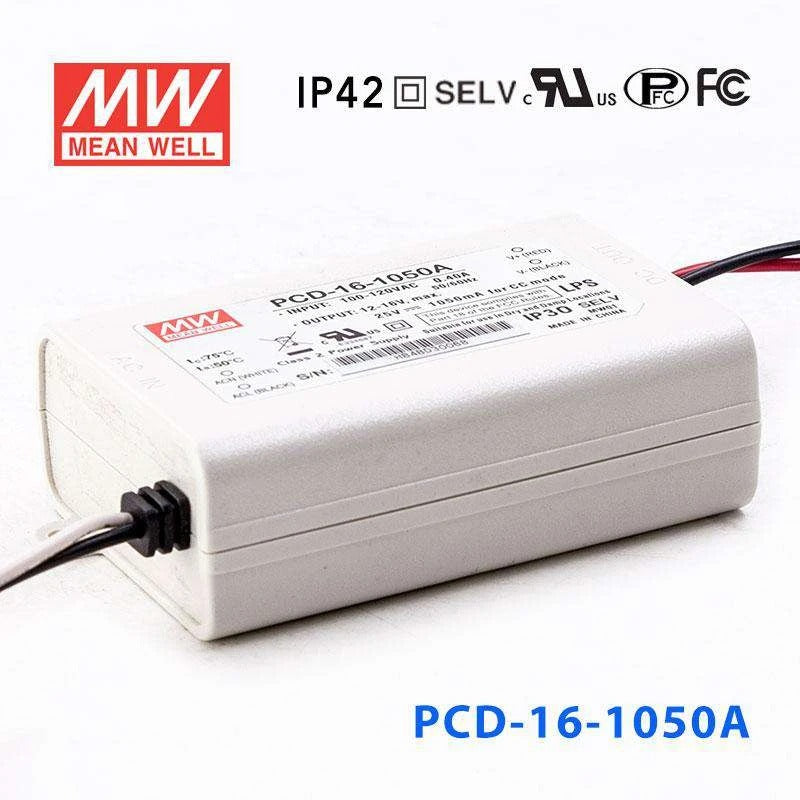

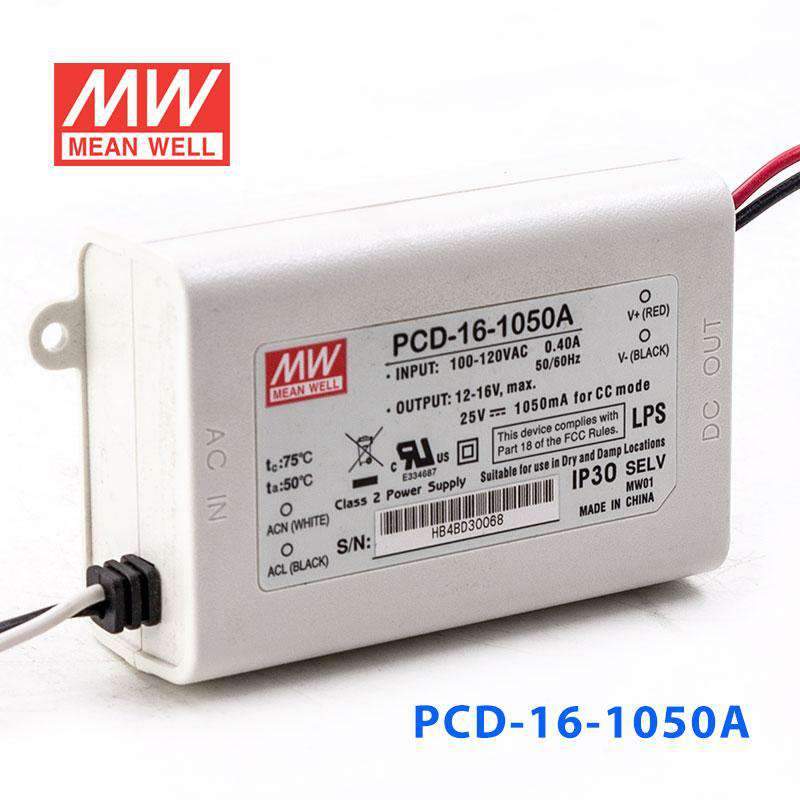

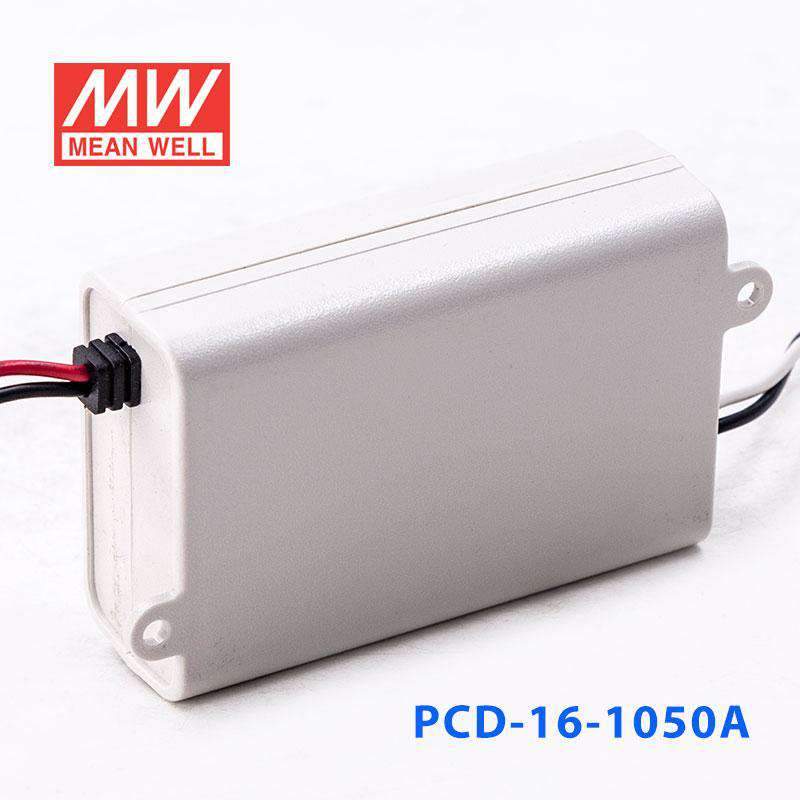

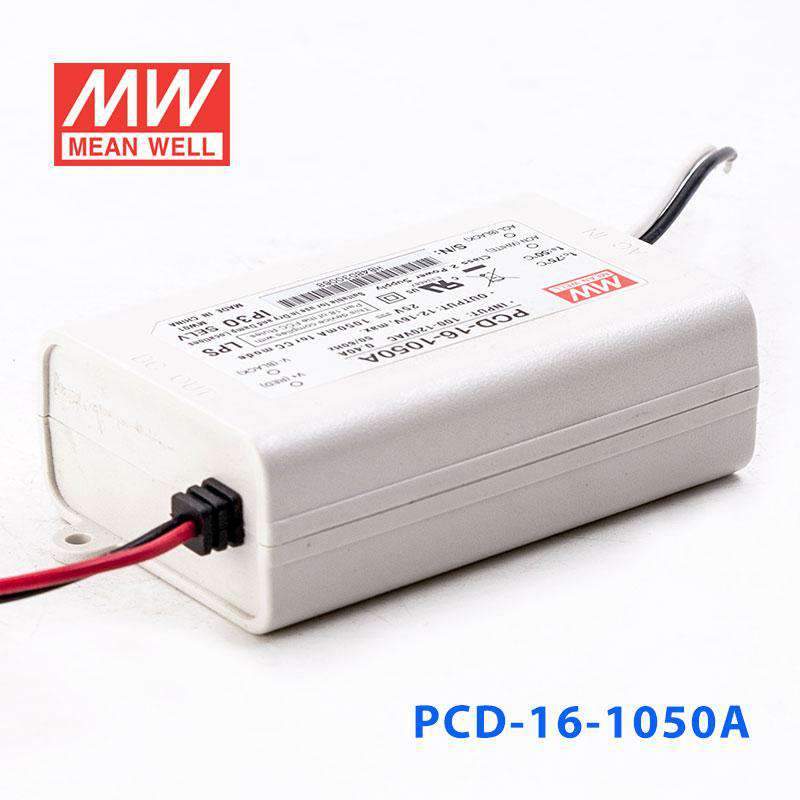

Mean Well PCD-16-1050A Power Supply 16W 1050mA
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PCD-16-1050A Power Supply 16W 1050mA
The PCD-16 is a 16W Mean Well power converter (input range: 24~48V, operating temperature: -30~+60℃).
Key Features
- ✓ Input voltage range: 24~48V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+60℃
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08(except for PCD-16-350), ENEC EN613471, EN61347-2-13, EN62384(for B type only), IP42
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPCD Series
-
Power Rating16.8 Watt
-
Output Voltage16 Volt
-
Rated Current1.05 Ampere
-
Input Voltage90V~135V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~60°C
-
Warranty3 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can I use the Mean Well PCD-16-1050A for LED downlights?
Yes, if the downlight needs a constant current LED driver at 1050mA and the LED load falls within the 12-16V constant current range. This model delivers up to 16.8W and is TRIAC dimmable, so it fits dimmable constant current downlight designs. It is not the right choice for lights that require a constant voltage power supply.
Can this LED driver power signage LED modules?
It can work for signage modules only when the modules are designed for constant current operation at 1050mA and the total forward voltage stays within 12-16V. The driver is rated 16.8W, so the load has to stay inside that output window. It is not intended for constant voltage signage modules.
Is the PCD-16-1050A suitable for a small LED array?
Yes, if the array is a constant current load that requires 1050mA and operates across 12-16V. The exact number of LEDs depends on the forward voltage of each LED, so matching should be based on the array's total forward voltage rather than a fixed LED count. Its 16.8W rating makes it a fit for smaller arrays within that range.
Can I use this driver for a dimmable indoor LED fixture?
Yes, this model is TRIAC dimmable and designed for constant current LED loads at 1050mA. Its plastic IP42 casing and Class II design make it a fit for indoor fixtures where that enclosure level is appropriate. The connected LED load still needs to stay within the 12-16V constant current range.
How do I check if the PCD-16-1050A is compatible with my LEDs?
Match the driver to LEDs that require constant current operation at 1050mA, not constant voltage output. The load must operate within the 12-16V constant current range, and the exact number of LEDs depends on the forward voltage of each LED. The total load also needs to stay within the 16.8W rating.
Is the PCD-16-1050A suitable for cold or warm environments?
It is rated for operation from -30°C to +60°C, so it can be used in a wide range of indoor temperature conditions. The housing is IP42, which means the environment should match that enclosure level. For locations needing a higher protection rating than IP42, this model would not be the right fit.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PCD-16 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PCD-16-700B Power Supply 16W 700mA | 16.8W | 24V | 0.7A | Indoor | $16.88 | View |
| Mean Well PCD-16-700A Power Supply 16W 700mA | 16.8W | 24V | 0.7A | Indoor | $16.88 | View |
| Mean Well PCD-16-350B Power Supply 16W 350mA | 16.8W | 48V | 0.35A | Indoor | $17.51 | View |
| Mean Well PCD-16-350A Power Supply 16W 350mA | 16.8W | 48V | 0.35A | Indoor | $16.88 | View |
| Mean Well PCD-16-1400B Power Supply 16W 1400mA | 16.8W | 12V | 1.4A | Indoor | $17.51 | View |
| Mean Well PCD-16-1400A Power Supply 16W 1400mA | 16.8W | 12V | 1.4A | Indoor | $16.88 | View |
| Mean Well PCD-16-1050B Power Supply 16W 1050mA | 16.8W | 16V | 1.05A | Indoor | $17.51 | View |
