Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

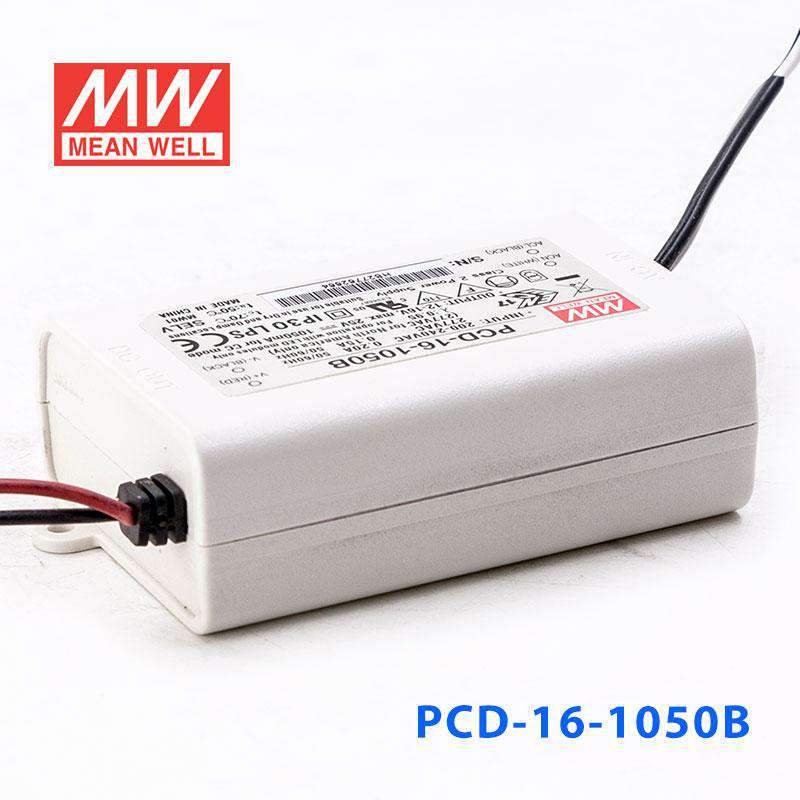

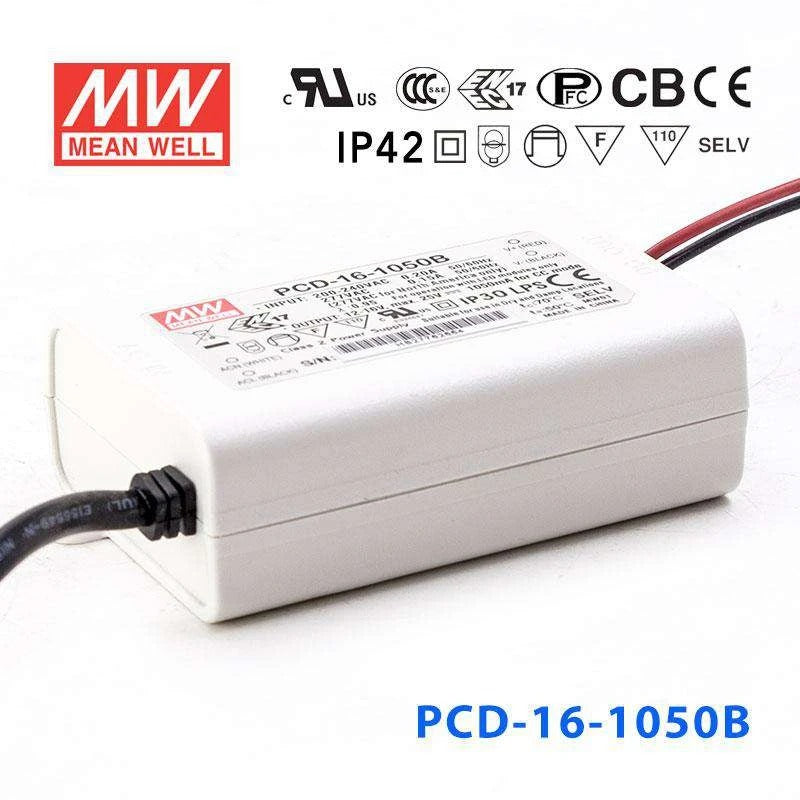

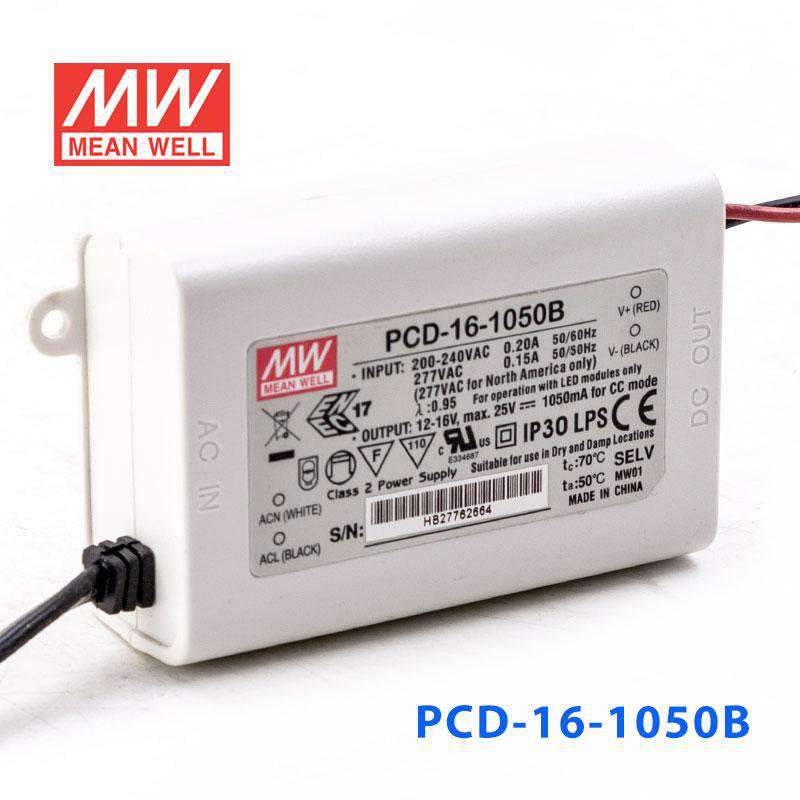

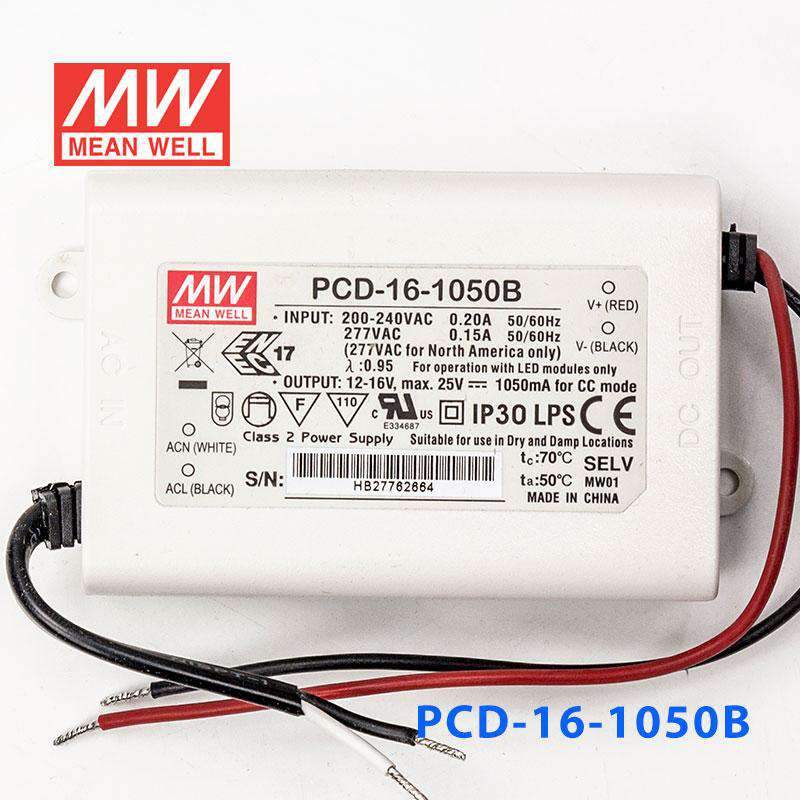

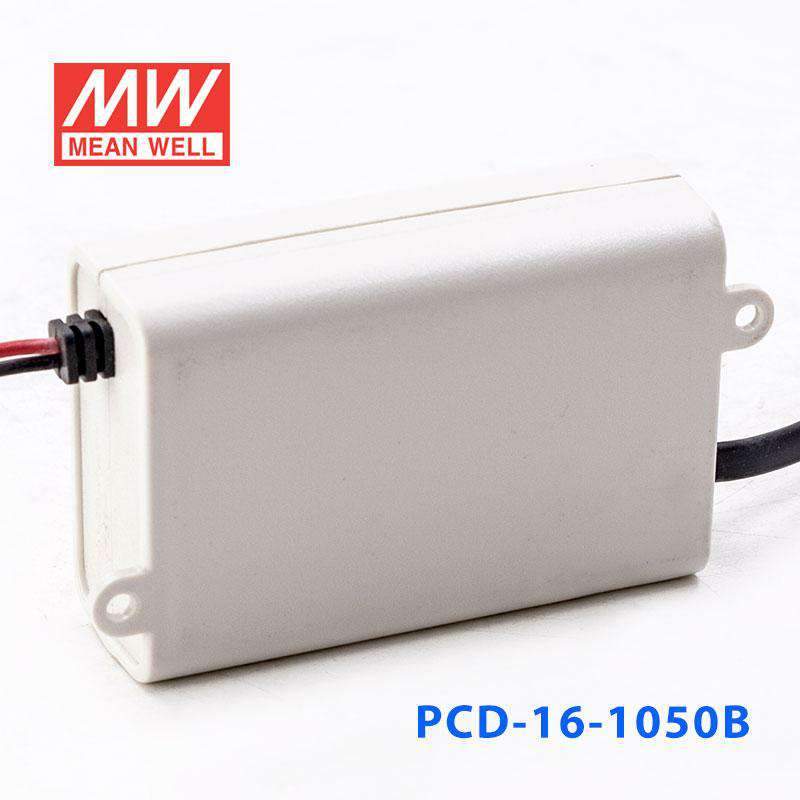

Mean Well PCD-16-1050B Power Supply 16W 1050mA
TRIAC dimmable, plastic casing IP42, Class II design without FG, constant current
SKU:
PCD-16-1050B
$17.51 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PCD-16-1050B Power Supply 16W 1050mA
$17.51 USD
Unit price /
Unavailable
Description
Description
Features
| AC phase-cut dimming, work with leading edge and trailing edge TRIAC dimmers |
| 115VAC or 230VAC input |
| Protections: Short circuit / Over temperature |
| The constant current design (CC mode) |
| Class 2 power unit / Pass LPS |
| Isolation class II, no FG |
| Fully isolated plastic case |
| Cooling by free air convection |
| Built-in active PFC function |
| IP30 design |
| 3 years warranty |
General Specification
| AC input voltage range | 115VAC (90 ~ 135VAC) or 230VAC (180 ~ 295VAC) |
| AC inrush current (max.) | Cold start, 10A at 230VAC |
| Withstand voltage | I / P - O / P: 3.75 k VAC |
| Working temperature | -30 ~ + 60ºC (refer to output derating curve) |
| Safety standards | UL8750 (PCD-16/25 only), ENEC EN61347-1, EN61347-2-13, EN62384 (B-Type only) approved |
| EMC standards | A-Type: FCC part 18 non-consumer equipment, B-Type: EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | A-Type: UL1430 18AWGx2C (7.5cm); B-Type: NISPT-1 18AWGx2C (7.5cm) |
| Connection Output | UL1430 18AWGx2C (15cm) |
| Dimension (LxWxH) (mm) | 84x 57x 29.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesPCD Series
-
Power Rating16.8 Watt
-
Output Voltage16 Volt
-
Rated Current1.05 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~60°C
-
Warranty3 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.42 lb
