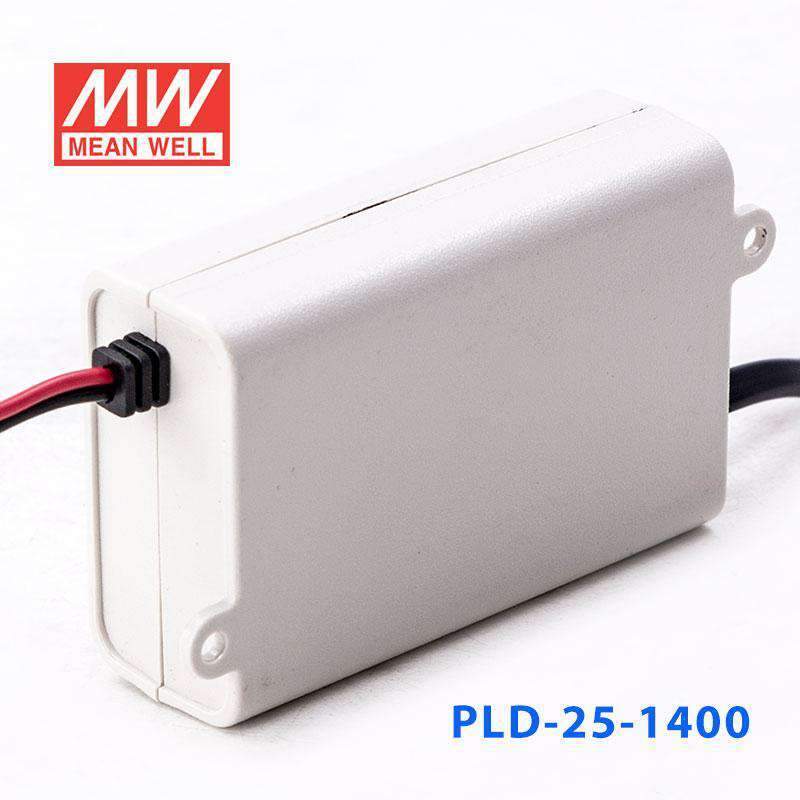

Mean Well PLD-25-1400 Power Supply 25W 1400mA
The PLD-25 is a 25W Mean Well power converter (input range: 40~58V, operating temperature: -30~+60℃).
Key Features
- ✓ Input voltage range: 40~58V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+60℃
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08(except for PLD-25-350, PLD-25-700), ENEC EN 61347-1, EN 61347-2-13 independent, EN 62384, IP42
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLD Series
-
Power Rating25.2 Watt
-
Output Voltage18 Volt
-
Rated Current1.4 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,ENEC,FCC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~60°C
-
Warranty3 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can the PLD-25-1400 power a high-current LED downlight?
Yes, if the downlight is designed for 1400mA constant current and its LED load runs within the 12-18V constant current range. This model is rated for 25.2W, so it fits compact but higher-current downlight assemblies in that voltage window. It is not a constant voltage driver.
Is the PLD-25-1400 a match for small LED arrays with lower forward voltage?
Yes, for small LED arrays that require 1400mA constant current and have a combined forward voltage from 12V to 18V. The number of LEDs depends on the forward voltage of each LED, so it should be sized by total LED voltage rather than LED count. The maximum output power is 25.2W.
Can I use the PLD-25-1400 for compact constant current signage lighting?
It can work for signage lighting if the modules are built for 1400mA constant current and fit within the 12-18V CC range. It is not suitable for constant voltage signage systems. This distinction is important because constant current and constant voltage products are not interchangeable.
What should I verify before pairing LEDs with the PLD-25-1400?
Verify that the LED load requires 1400mA constant current and that its total forward voltage falls within 12-18V. The number of LEDs that can be used depends on each LED's forward voltage, not a fixed quantity. The overall load also needs to remain within the 25.2W rating.
Can the PLD-25-1400 be used in harsher temperature conditions than the PLD-16 models?
Yes, its operating temperature range is -30°C to +60°C, while the PLD-16 units listed here are rated to +50°C. It still uses an IP42 plastic case, so it is meant for protected environments rather than exposed outdoor use. The wider temperature range does not change the IP42 enclosure rating.
