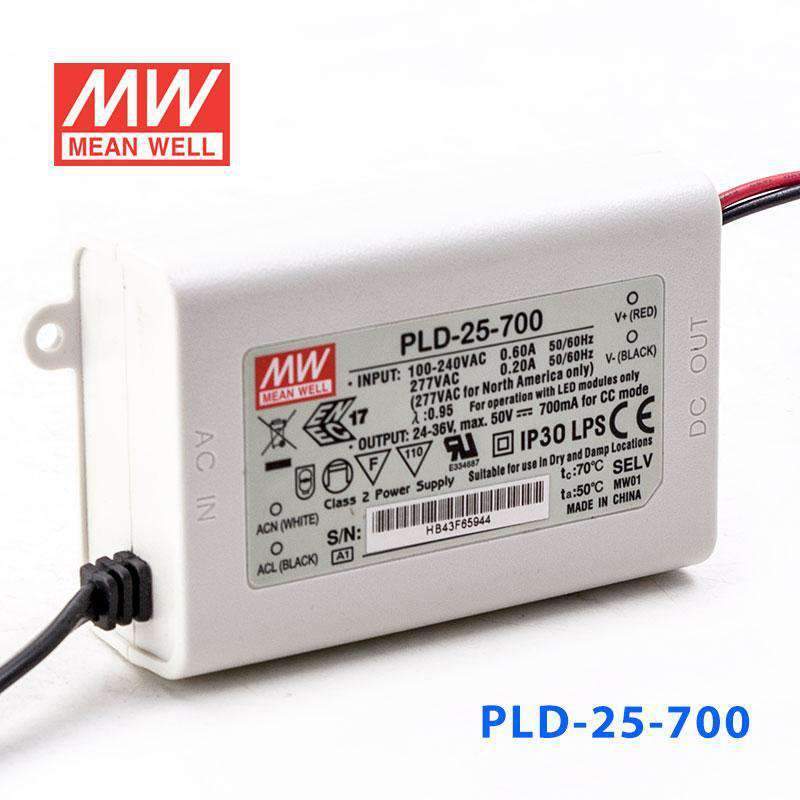

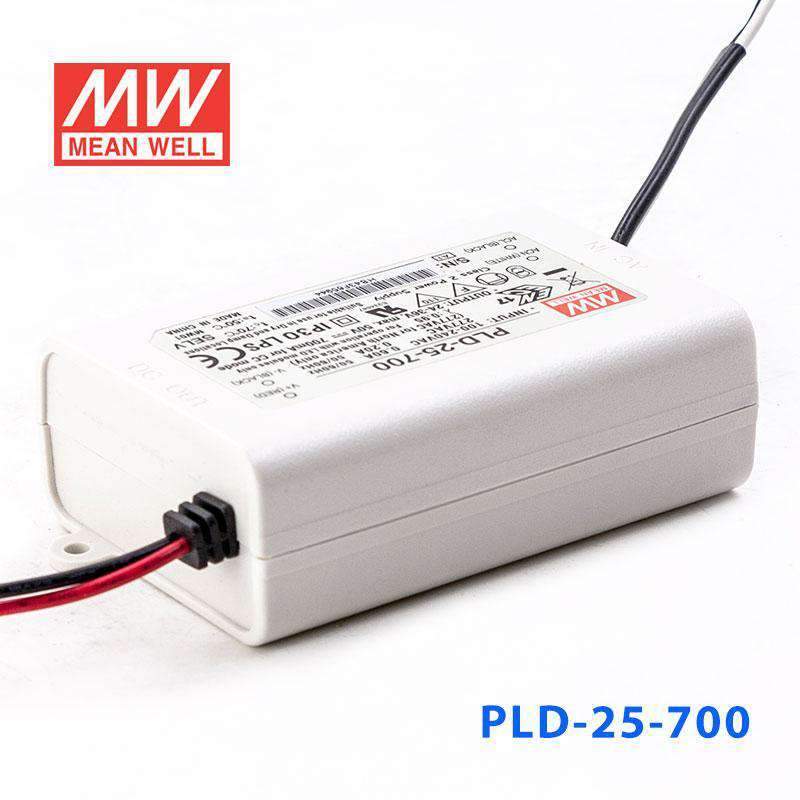

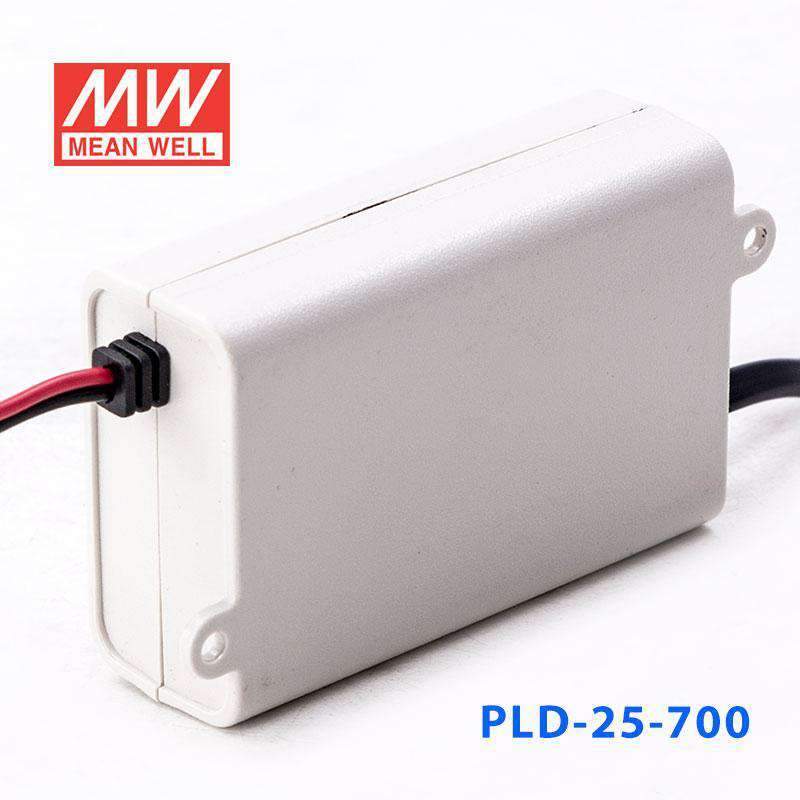

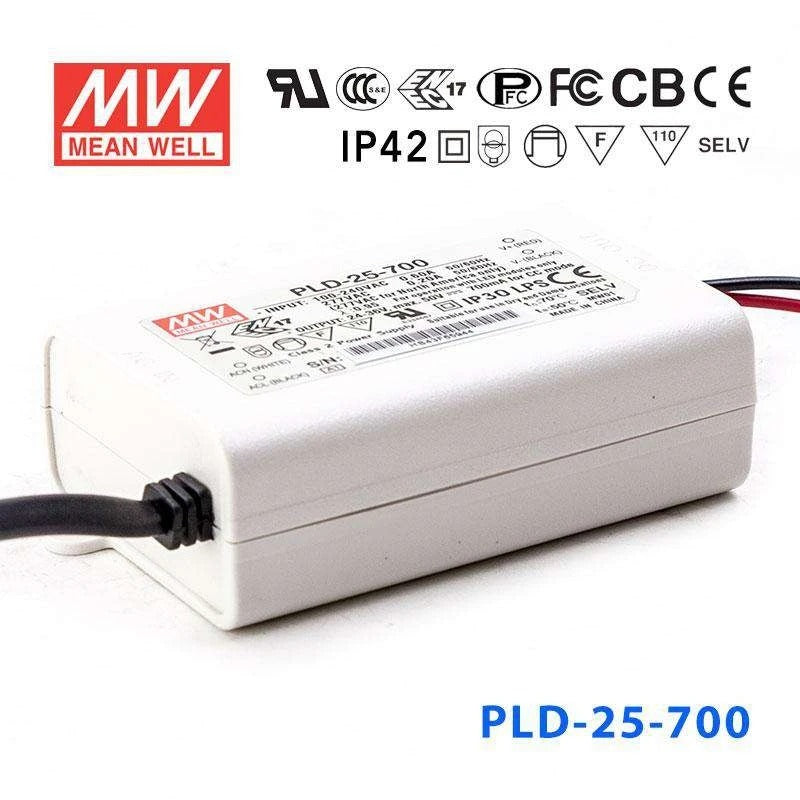

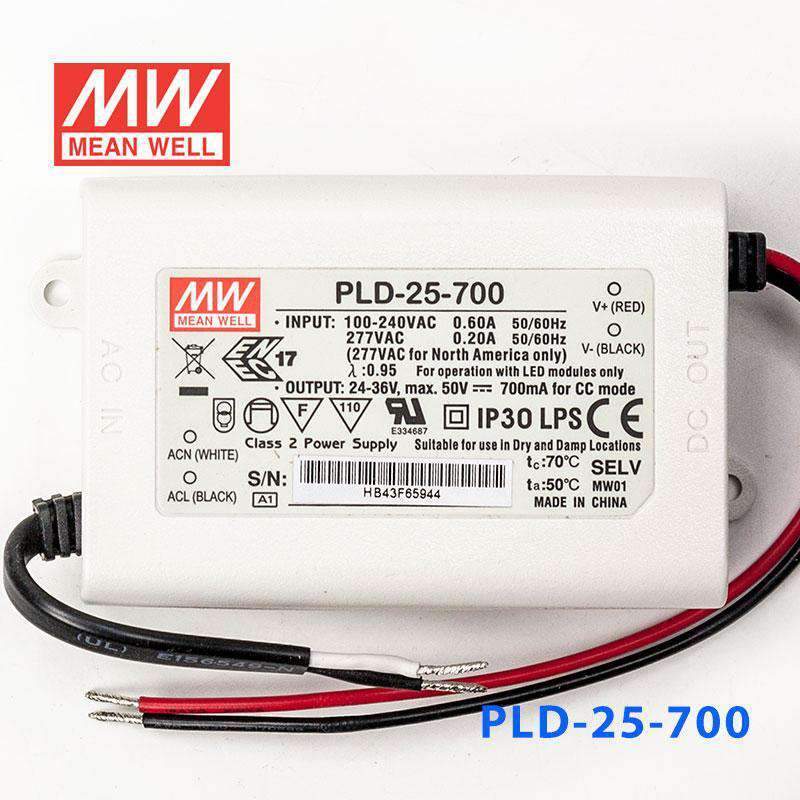

Mean Well PLD-25-700 Power Supply 25W 700mA

plastic case, IP42, Class II design without FG

SKU:

PLD-25-700

$26.06 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

90 ~ 295VAC input

Built-in active PFC function

Fully isolated plastic case

Constant current design (CC mode)

IP30 design

Class 2 power unit / Pass LPS

Isolation class II, no FG

Protections: Short circuit / Over temperature

Suitable for indoor LED lighting applications

Cooling by free air convection

3 years warranty

General Specification

AC input voltage range	90 ~ 295VAC
AC inrush current (max.)	Cold start, 15A at 230VAC
Withstand voltage	I / P - O / P: 3.75 k VAC
Short circuit protection	Hiccup mode, auto-recovery
Over Temp. Protection	95ºC ± 10ºC (RTH1) shut down o / p voltage, re-power on to recover
Working temperature	-30 ~ + 60ºC
Safety standards	UL8750 (PLD-16/25 only), ENEC EN61347-1, EN61347-2-13, EN62384 (except for A-Type) approved
EMC standards	A-Type & PLD-25: EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4,2,3,4, 5,6,8,11, EN61547
Connection Input	A-Type: UL1430 18AWGx2C (7.5cm); B-Type & PLD-25: NISPT-1 18AWGx2C (7.5cm)
Connection Output	UL1430 18AWGx2C (15cm)
Dimension (LxWxH) (mm)	84x 57x 29.5

Specifications

Brand

Mean Well
Series

PLD Series
Power Rating

25.2 Watt
Output Voltage

36 Volt
Rated Current

0.7 Ampere
Input Voltage

90V~295V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,cUL,EAC,ENEC,FCC
Operation Mode

Constant Current
Operating Temperature

-30°C~60°C
Warranty

3 Year
Length

3.31 in
Width

2.24 in
Height

1.16 in
Weight

0.42 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PLD-25-700 for a 700mA LED downlight?

Yes, this model is intended for constant current LED loads at 700mA. It is suitable when the downlight's total forward voltage falls within the 24-36V constant current range and the load stays within 25.2W.

Will the PLD-25-700 work with a small COB LED array?

It can work with a COB or small LED array if the array is specified for constant current operation at 700mA. The total forward voltage of the array must stay within 24V to 36V, since this is not a constant voltage driver.

Is this driver appropriate for compact illuminated signage?

It may be used for compact signage only when the LED modules are built for constant current at 700mA. Constant voltage signage modules are not the right match, and the total LED load must remain within 25.2W.

Can the PLD-25-700 be used in protected indoor commercial fixtures?

Yes, its IP42 plastic case and Class II design suit protected indoor fixture environments. It also supports operating temperatures from -30°C to +60°C, but IP42 is not intended for direct weather exposure.

What kind of LED load is compatible with the PLD-25-700?

The PLD-25-700 delivers constant current at 700mA across a 24-36V CC output range. The number of LEDs depends on each LED's forward voltage, so the correct match is determined by the load's combined forward voltage rather than a specific LED quantity.

What is the difference between the PLD-25-700 and the other 25W PLD drivers?

The PLD-25-700 is the 700mA member of the 25W group, with a 24-36V CC range and 25.2W output. Other 25W versions are PLD-25-350 at 350mA, 40-58V, 20.3W; PLD-25-1050 at 1050mA, 16-24V, 25.2W; and PLD-25-1400 at 1400mA, 12-18V, 25.2W.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well PLD-25-350 Power Supply 25W 350mA	20.3W	58V	0.35A	Indoor	$16.69	View
Mean Well PLD-25-1400 Power Supply 25W 1400mA	25.2W	18V	1.4A	Indoor	$25.45	View
Mean Well PLD-25-1050 Power Supply 25W 1050mA	25.2W	24V	1.05A	Indoor	$18.48	View
