Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

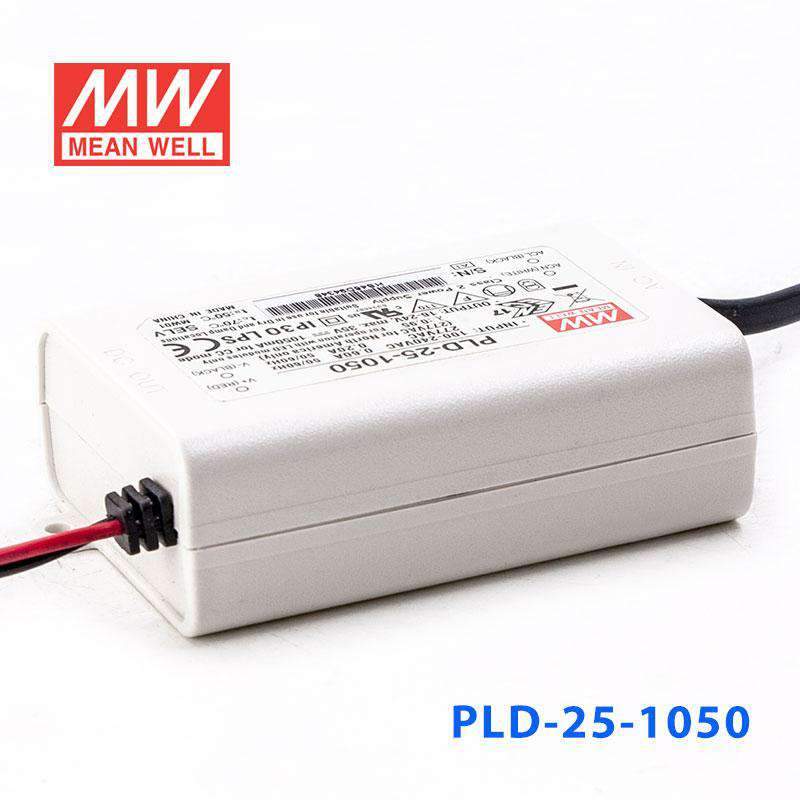

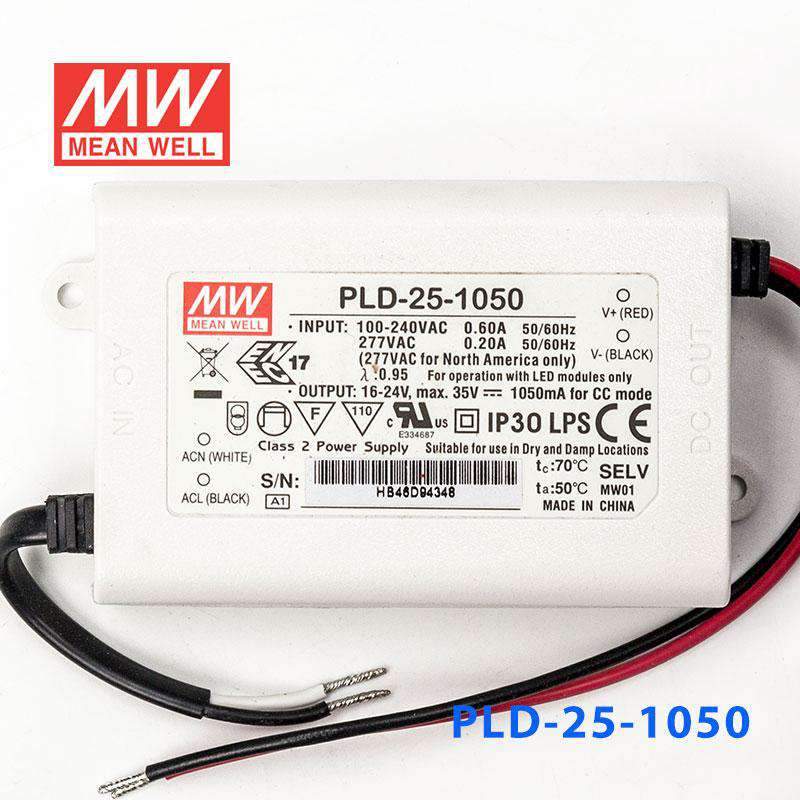

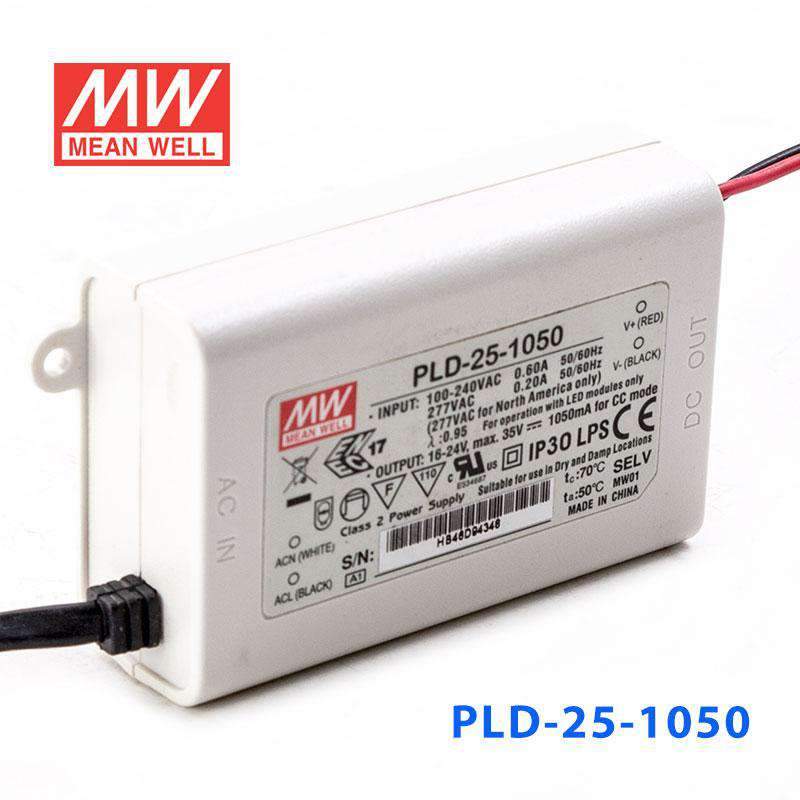

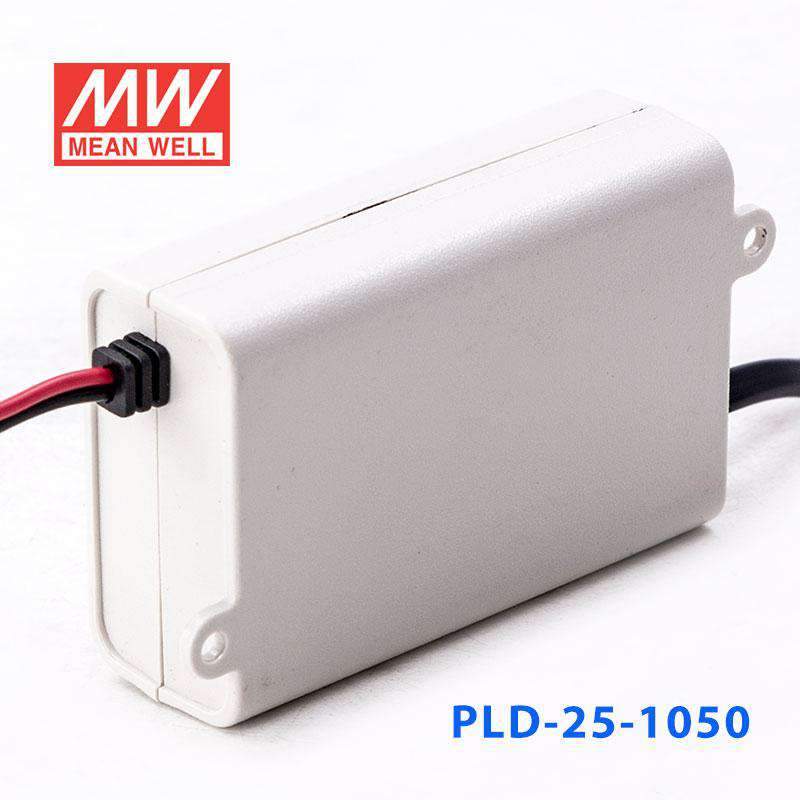

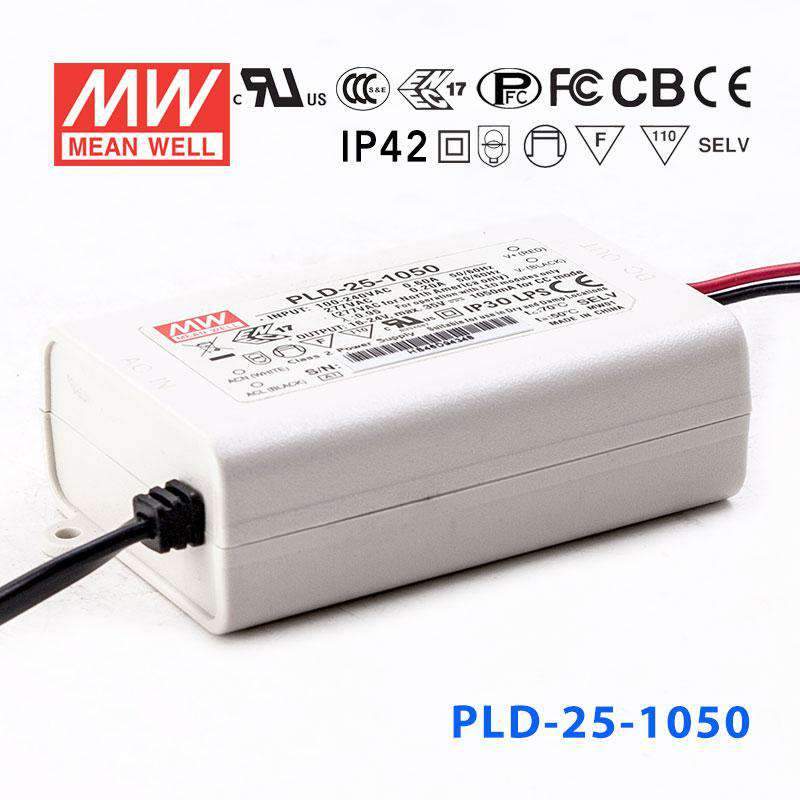

Mean Well PLD-25-1050 Power Supply 25W 1050mA

plastic case, IP42, Class II design without FG

SKU:

PLD-25-1050

$18.48 USD ~~$63.00~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

90 ~ 295VAC input

Built-in active PFC function

Fully isolated plastic case

Constant current design (CC mode)

IP30 design

Class 2 power unit / Pass LPS

Isolation class II, no FG

Protections: Short circuit / Over temperature

Suitable for indoor LED lighting applications

Cooling by free air convection

3 years warranty

General Specification

AC input voltage range	90 ~ 295VAC
AC inrush current (max.)	Cold start, 15A at 230VAC
Withstand voltage	I / P - O / P: 3.75 k VAC
Short circuit protection	Hiccup mode, auto-recovery
Over Temp. Protection	95ºC ± 10ºC (RTH1) shut down o / p voltage, re-power on to recover
Working temperature	-30 ~ + 60ºC
Safety standards	UL8750 (PLD-16/25 only), ENEC EN61347-1, EN61347-2-13, EN62384 (except for A-Type) approved
EMC standards	A-Type & PLD-25: EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4,2,3,4, 5,6,8,11, EN61547
Connection Input	A-Type: UL1430 18AWGx2C (7.5cm); B-Type & PLD-25: NISPT-1 18AWGx2C (7.5cm)
Connection Output	UL1430 18AWGx2C (15cm)
Dimension (LxWxH) (mm)	84x 57x 29.5

Specifications

Brand

Mean Well
Series

PLD Series
Power Rating

25.2 Watt
Output Voltage

24 Volt
Rated Current

1.05 Ampere
Input Voltage

90V~295V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,cUL,EAC,ENEC,FCC
Operation Mode

Constant Current
Operating Temperature

-30°C~60°C
Warranty

3 Year
Length

3.31 in
Width

2.24 in
Height

1.16 in
Weight

0.42 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PLD-25-1050 for a 1050mA LED downlight?

Yes, if the downlight is built for 1050mA constant current and the LED load operates within the 16-24V constant current range. This model provides up to 25.2W, giving it more headroom than the 16.8W PLD-16 versions at similar voltage ranges. It is meant for constant current LED loads, not constant voltage fixtures.

Is the PLD-25-1050 suitable for brighter small LED arrays?

Yes, it can support small LED arrays that require 1050mA constant current and have a total forward voltage between 16V and 24V. The exact LED count depends on the forward voltage of each LED. Its 25.2W rating makes it a stronger fit for higher-power compact arrays than a 16.8W unit.

Can this model be used for compact signage modules that need constant current?

It can be used for signage modules only if they are designed for 1050mA constant current operation and fall within the 16-24V CC range. If the signage system expects constant voltage, this driver is not appropriate. The output mode here is constant current only.

How do I check LED compatibility with the PLD-25-1050?

Look for an LED load that requires 1050mA constant current and whose operating range fits inside 16-24V on the output. The number of LEDs depends on each LED's forward voltage, so there is no single fixed LED quantity. The load should also stay within the 25.2W power rating.

What conditions is the PLD-25-1050 designed to handle?

This driver is rated IP42, so it is intended for protected environments rather than direct exposure to rain or washdown. Its operating temperature range is -30°C to +60°C. That higher +60°C limit gives it a wider temperature envelope than the PLD-16 models listed here.
