Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

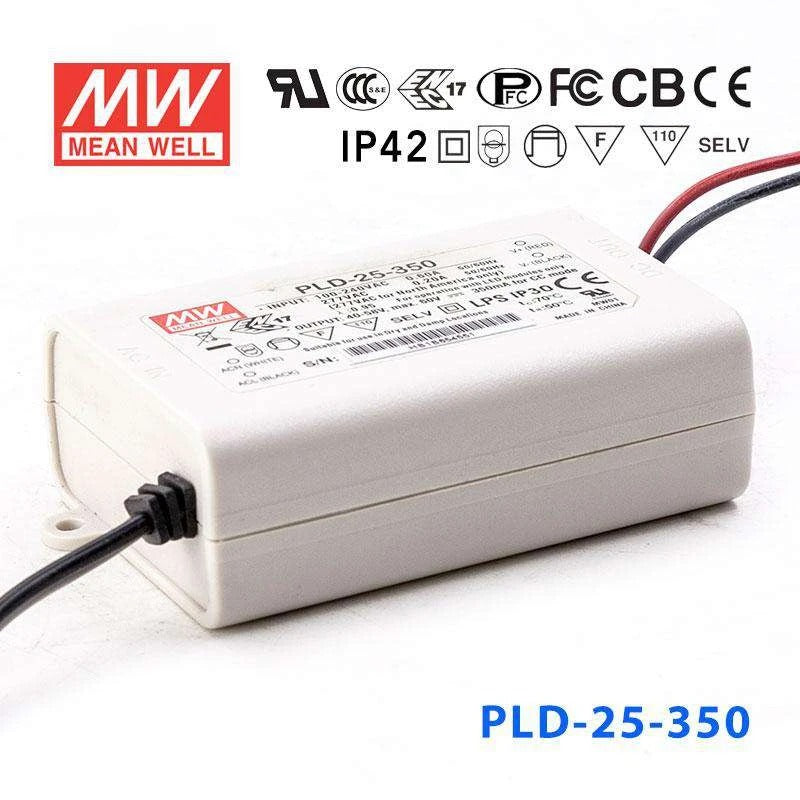

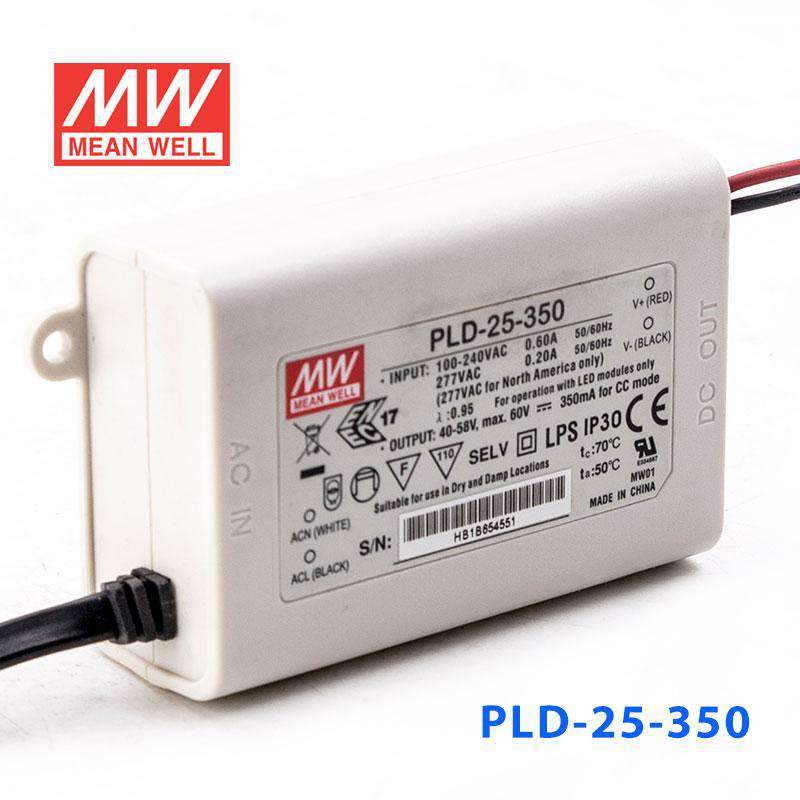

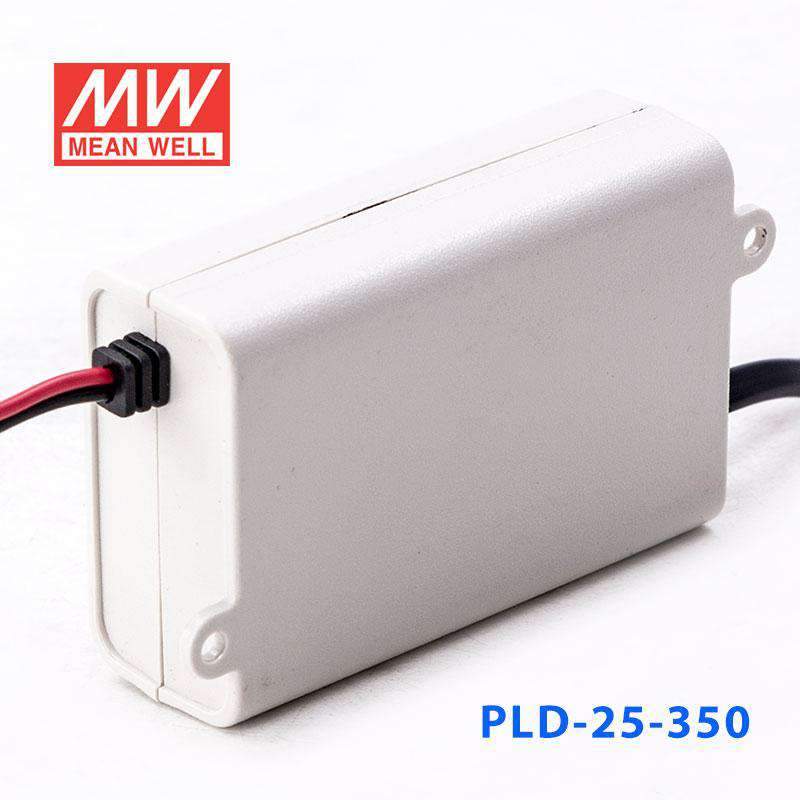

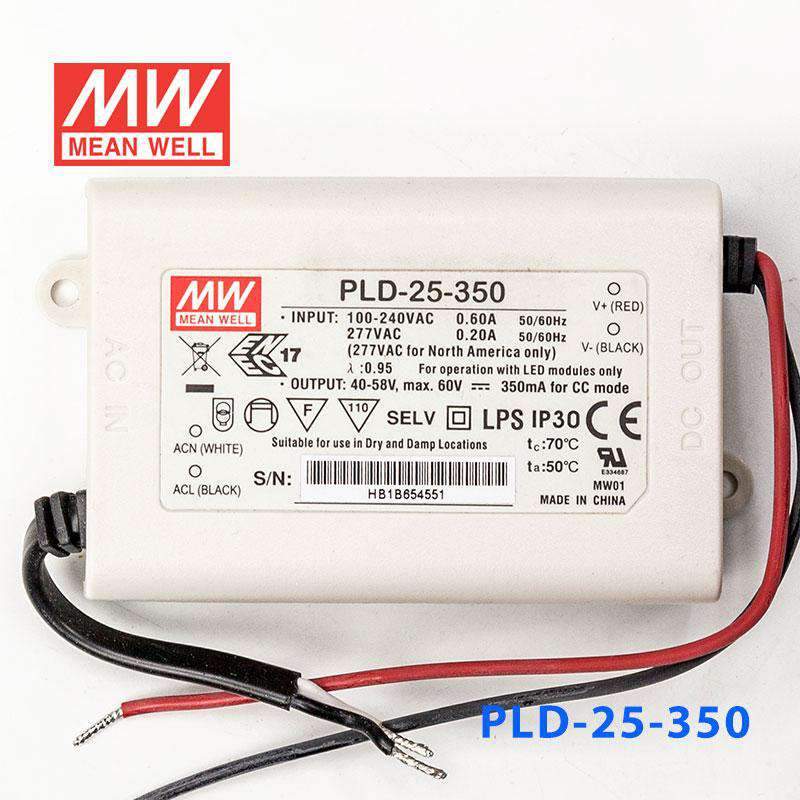

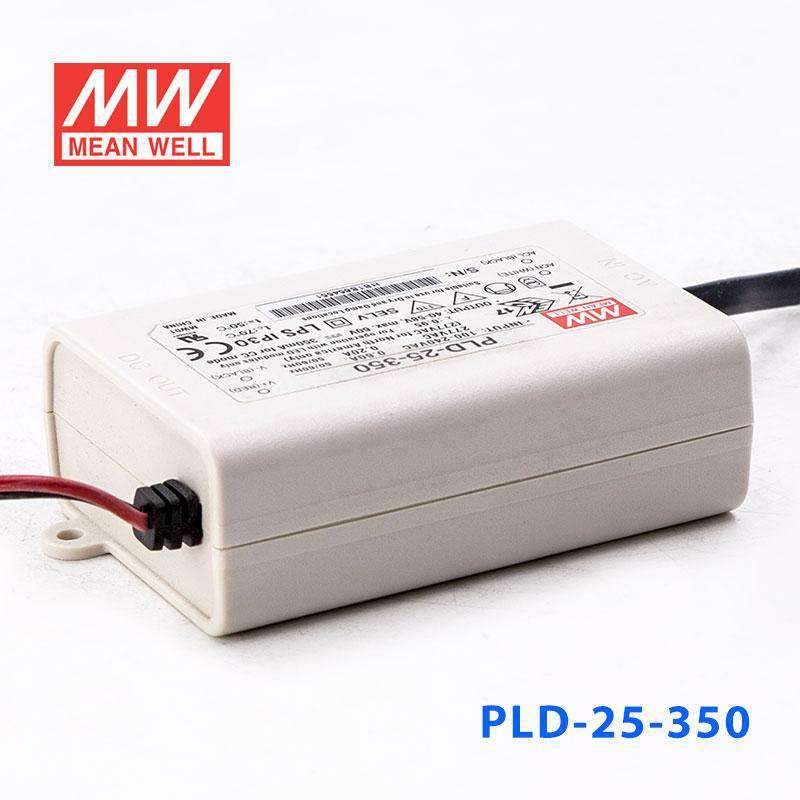

Mean Well PLD-25-350 Power Supply 25W 350mA

plastic case, IP42, Class II design without FG

SKU:

PLD-25-350

$16.69 USD ~~$63.00~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

90 ~ 295VAC input

Built-in active PFC function

Fully isolated plastic case

Constant current design (CC mode)

IP30 design

Class 2 power unit / Pass LPS

Isolation class II, no FG

Protections: Short circuit / Over temperature

Suitable for indoor LED lighting applications

Cooling by free air convection

3 years warranty

General Specification

AC input voltage range	90 ~ 295VAC
AC inrush current (max.)	Cold start, 15A at 230VAC
Withstand voltage	I / P - O / P: 3.75 k VAC
Short circuit protection	Hiccup mode, auto-recovery
Over Temp. Protection	95ºC ± 10ºC (RTH1) shut down o / p voltage, re-power on to recover
Working temperature	-30 ~ + 60ºC
Safety standards	UL8750 (PLD-16/25 only), ENEC EN61347-1, EN61347-2-13, EN62384 (except for A-Type) approved
EMC standards	A-Type & PLD-25: EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4,2,3,4, 5,6,8,11, EN61547
Connection Input	A-Type: UL1430 18AWGx2C (7.5cm); B-Type & PLD-25: NISPT-1 18AWGx2C (7.5cm)
Connection Output	UL1430 18AWGx2C (15cm)
Dimension (LxWxH) (mm)	84x 57x 29.5

Specifications

Brand

Mean Well
Series

PLD Series
Power Rating

20.3 Watt
Output Voltage

58 Volt
Rated Current

0.35 Ampere
Input Voltage

90V~295V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,cUL,EAC,ENEC,FCC
Operation Mode

Constant Current
Operating Temperature

-30°C~60°C
Warranty

3 Year
Length

3.31 in
Width

2.24 in
Height

1.16 in
Weight

0.42 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PLD-25-350 for a 350mA LED downlight?

Yes, this driver is designed for constant current LED loads at 350mA. It fits LED downlights whose total forward voltage stays within the 40-58V constant current range and within the 20.3W output rating.

Is the PLD-25-350 suitable for small LED arrays in architectural fixtures?

It can be a fit for small LED arrays that require a constant 350mA drive current rather than constant voltage power. The array's total forward voltage must fall between 40V and 58V, and total load must remain within 20.3W.

Can this driver power signage LED modules?

It may work for signage modules only if the modules are designed for constant current operation at 350mA. It is not intended for constant voltage LED modules, and the connected load must operate within the 40-58V constant current range.

Is the PLD-25-350 a good choice for indoor recessed lighting in variable temperatures?

For indoor recessed or enclosed lighting, the PLD-25-350 supports operation from -30°C to +60°C. Its IP42 plastic case is better suited to protected indoor locations than exposed outdoor environments.

How do I know if my LED load is compatible with the PLD-25-350?

This is a constant current 350mA driver with a 40-58V CC output range. The number of LEDs depends on each LED's forward voltage, so compatibility is based on the total forward voltage of the load rather than a fixed LED count.

How does the PLD-25-350 compare with other PLD series options?

Within the PLD family, the PLD-25-350 provides 350mA with a 40-58V CC range and 20.3W output. Nearby siblings include the PLD-25-700 at 700mA, 24-36V, 25.2W; PLD-25-1050 at 1050mA, 16-24V, 25.2W; and PLD-25-1400 at 1400mA, 12-18V, 25.2W.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well PLD-25-700 Power Supply 25W 700mA	25.2W	36V	0.7A	Indoor	$26.06	View
Mean Well PLD-25-1400 Power Supply 25W 1400mA	25.2W	18V	1.4A	Indoor	$25.45	View
Mean Well PLD-25-1050 Power Supply 25W 1050mA	25.2W	24V	1.05A	Indoor	$18.48	View
