Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

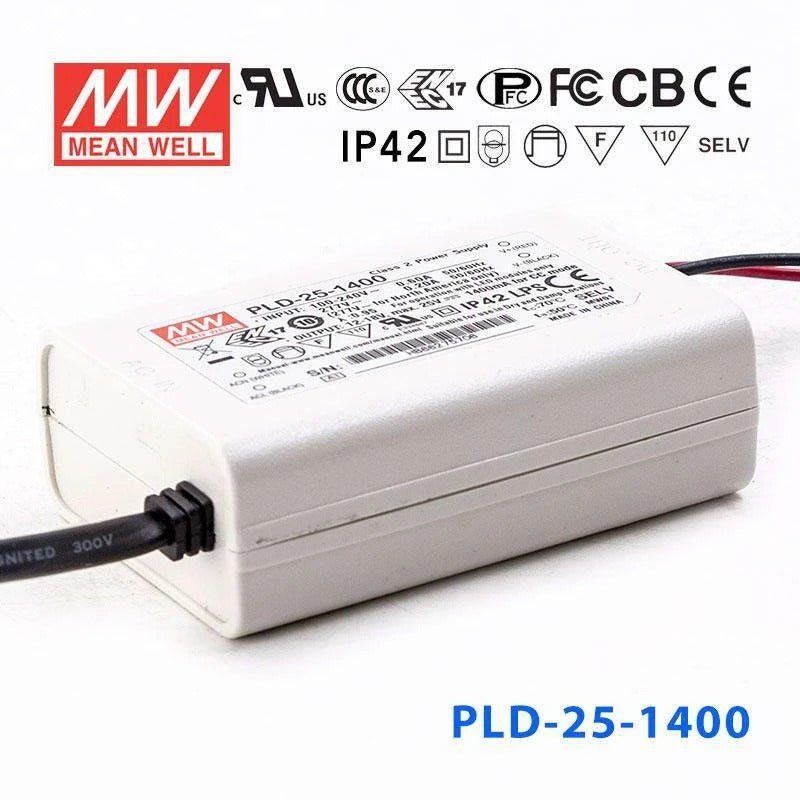

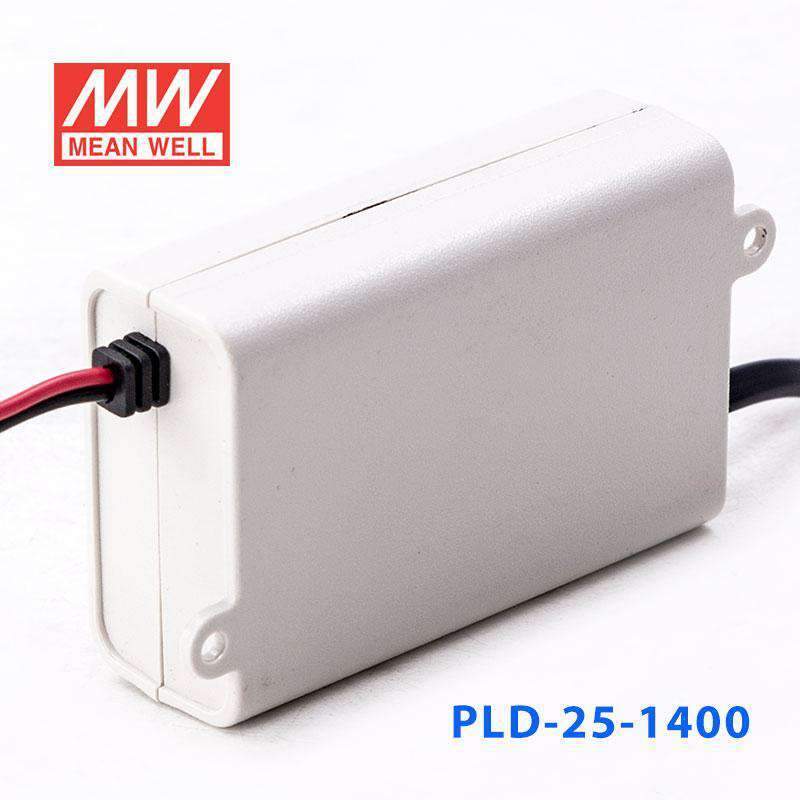

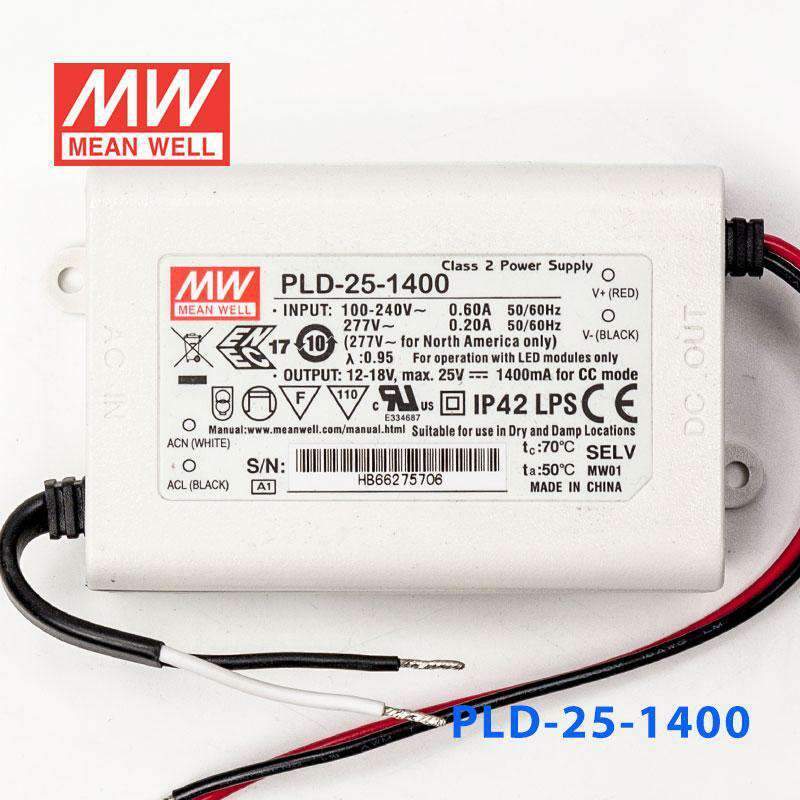

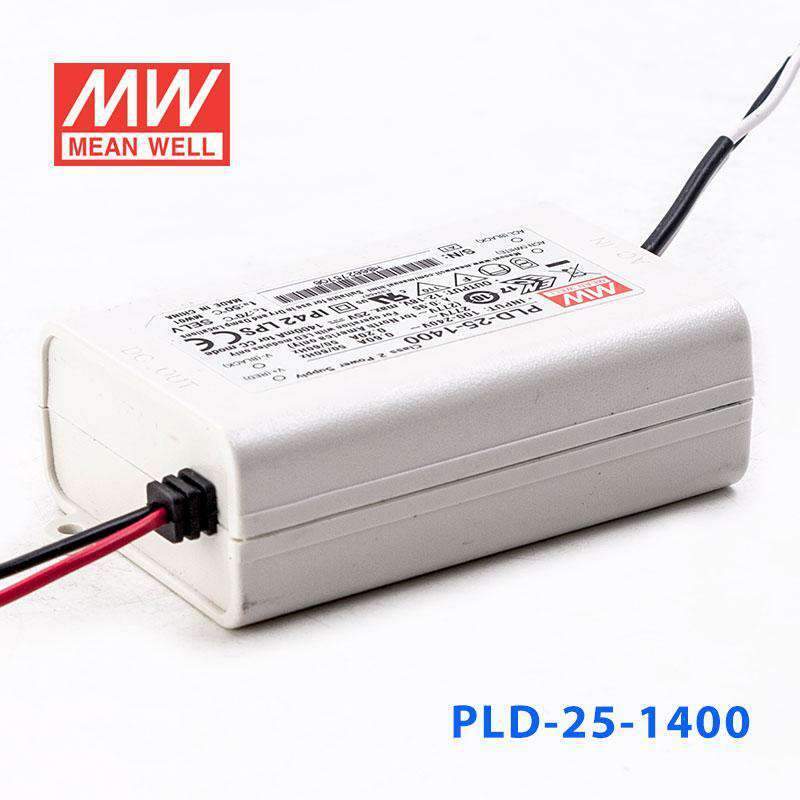

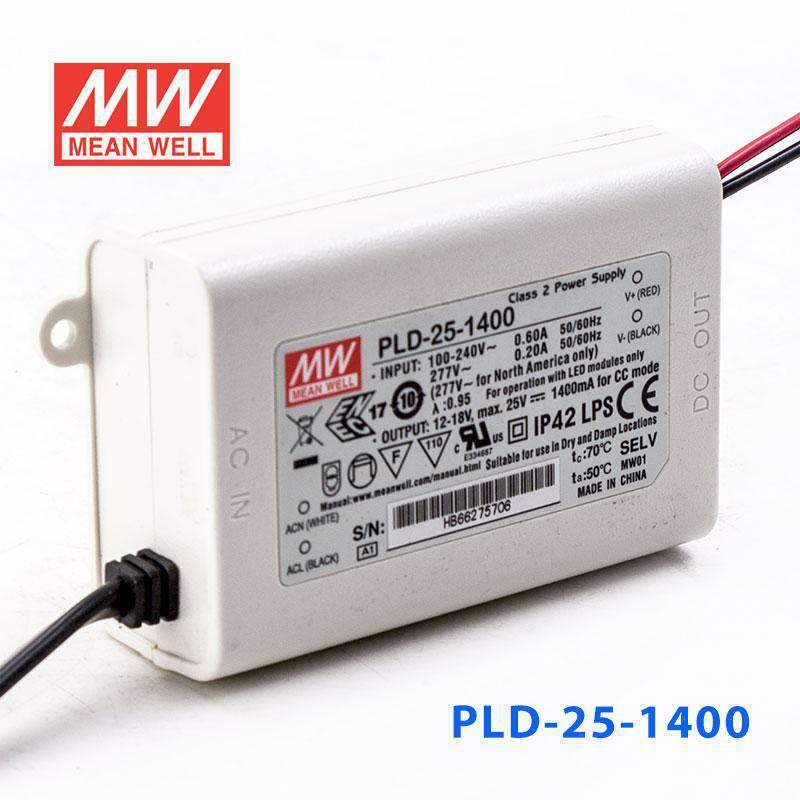

Mean Well PLD-25-1400 Power Supply 25W 1400mA

plastic case, IP42, Class II design without FG

SKU:

PLD-25-1400

$25.45 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

90 ~ 295VAC input

Built-in active PFC function

Fully isolated plastic case

Constant current design (CC mode)

IP30 design

Class 2 power unit / Pass LPS

Isolation class II, no FG

Protections: Short circuit / Over temperature

Suitable for indoor LED lighting applications

Cooling by free air convection

3 years warranty

General Specification

AC input voltage range	90 ~ 295VAC
AC inrush current (max.)	Cold start, 15A at 230VAC
Withstand voltage	I / P - O / P: 3.75 k VAC
Short circuit protection	Hiccup mode, auto-recovery
Over Temp. Protection	95ºC ± 10ºC (RTH1) shut down o / p voltage, re-power on to recover
Working temperature	-30 ~ + 60ºC
Safety standards	UL8750 (PLD-16/25 only), ENEC EN61347-1, EN61347-2-13, EN62384 (except for A-Type) approved
EMC standards	A-Type & PLD-25: EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4,2,3,4, 5,6,8,11, EN61547
Connection Input	A-Type: UL1430 18AWGx2C (7.5cm); B-Type & PLD-25: NISPT-1 18AWGx2C (7.5cm)
Connection Output	UL1430 18AWGx2C (15cm)
Dimension (LxWxH) (mm)	84x 57x 29.5

Specifications

Brand

Mean Well
Series

PLD Series
Power Rating

25.2 Watt
Output Voltage

18 Volt
Rated Current

1.4 Ampere
Input Voltage

90V~295V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,cUL,EAC,ENEC,FCC
Operation Mode

Constant Current
Operating Temperature

-30°C~60°C
Warranty

3 Year
Length

3.31 in
Width

2.24 in
Height

1.16 in
Weight

0.42 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the PLD-25-1400 power a high-current LED downlight?

Yes, if the downlight is designed for 1400mA constant current and its LED load runs within the 12-18V constant current range. This model is rated for 25.2W, so it fits compact but higher-current downlight assemblies in that voltage window. It is not a constant voltage driver.

Is the PLD-25-1400 a match for small LED arrays with lower forward voltage?

Yes, for small LED arrays that require 1400mA constant current and have a combined forward voltage from 12V to 18V. The number of LEDs depends on the forward voltage of each LED, so it should be sized by total LED voltage rather than LED count. The maximum output power is 25.2W.

Can I use the PLD-25-1400 for compact constant current signage lighting?

It can work for signage lighting if the modules are built for 1400mA constant current and fit within the 12-18V CC range. It is not suitable for constant voltage signage systems. This distinction is important because constant current and constant voltage products are not interchangeable.

What should I verify before pairing LEDs with the PLD-25-1400?

Verify that the LED load requires 1400mA constant current and that its total forward voltage falls within 12-18V. The number of LEDs that can be used depends on each LED's forward voltage, not a fixed quantity. The overall load also needs to remain within the 25.2W rating.

Can the PLD-25-1400 be used in harsher temperature conditions than the PLD-16 models?

Yes, its operating temperature range is -30°C to +60°C, while the PLD-16 units listed here are rated to +50°C. It still uses an IP42 plastic case, so it is meant for protected environments rather than exposed outdoor use. The wider temperature range does not change the IP42 enclosure rating.
