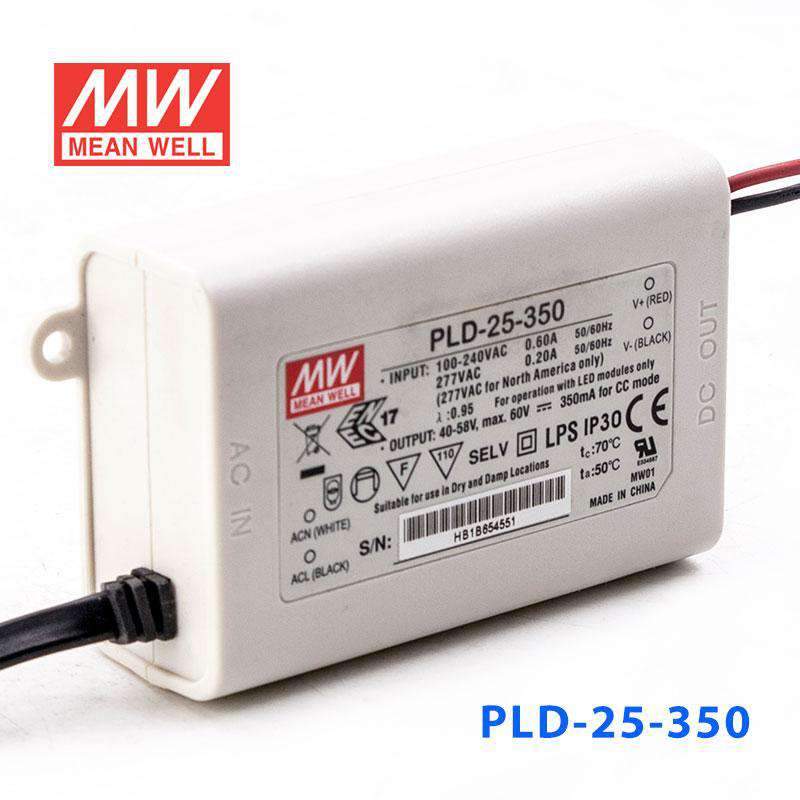

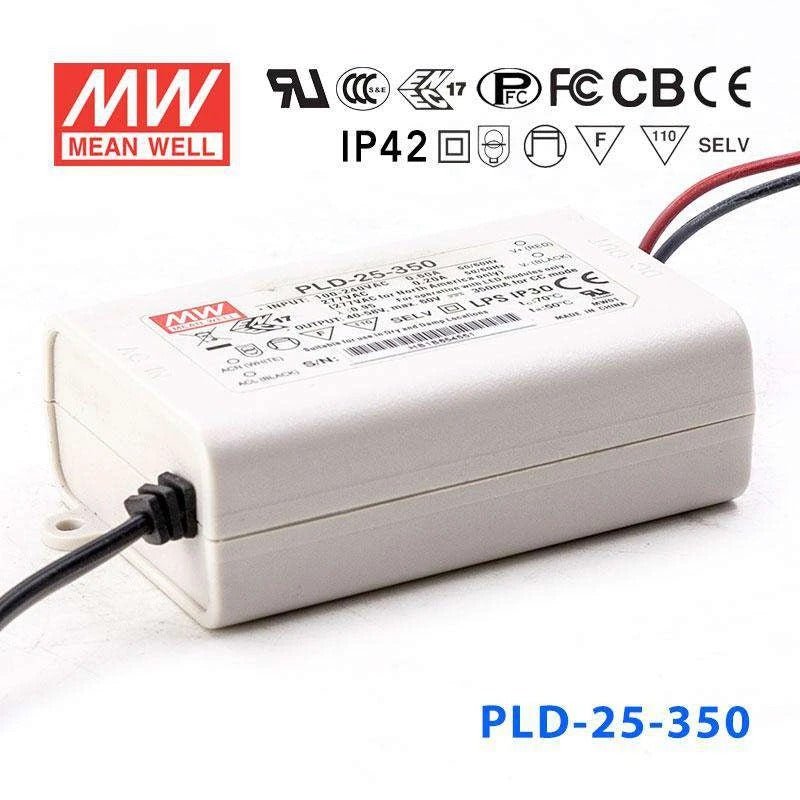

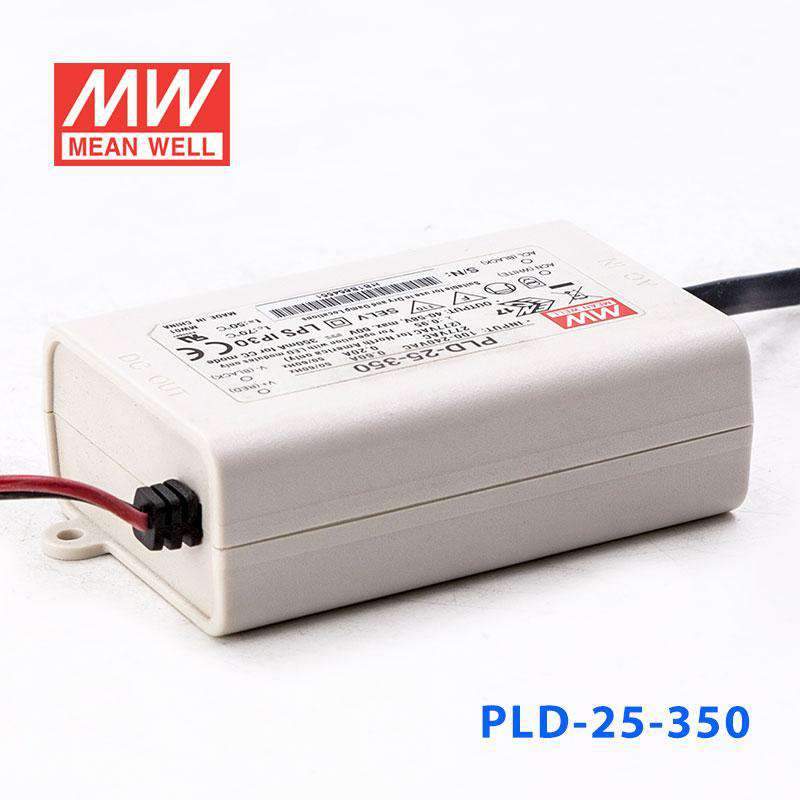

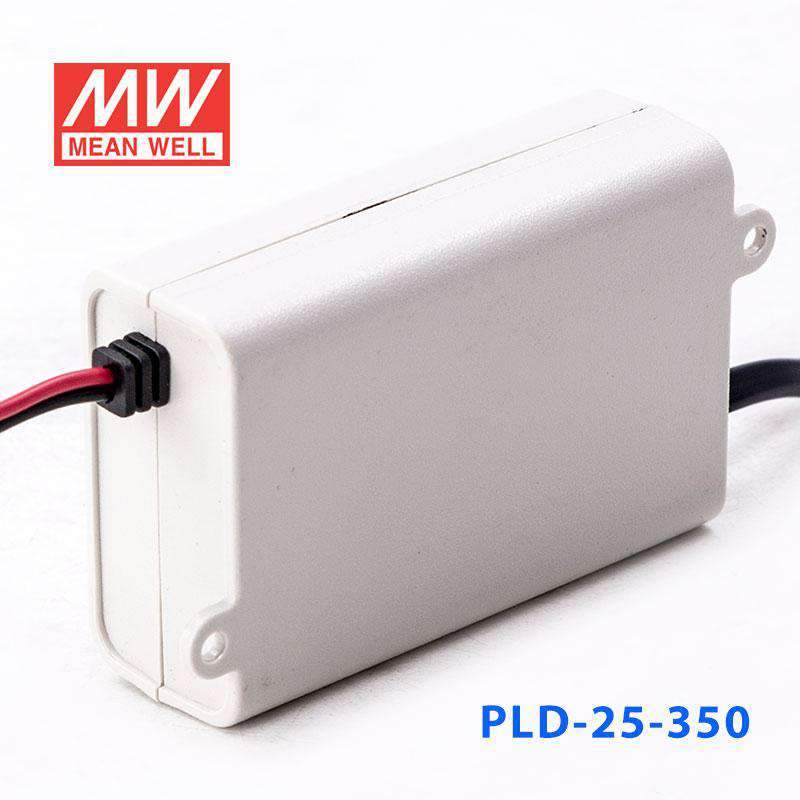

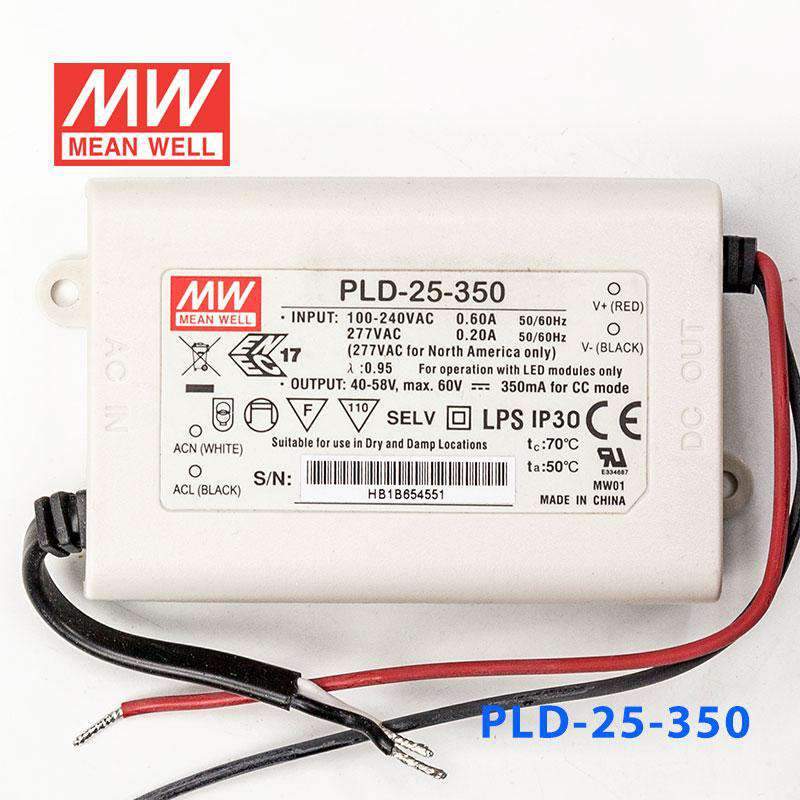

Mean Well PLD-25-350 Power Supply 25W 350mA
The PLD-25 is a 25W Mean Well power converter (input range: 40~58V, operating temperature: -30~+60℃).
Key Features
- ✓ Input voltage range: 40~58V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+60℃
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08(except for PLD-25-350, PLD-25-700), ENEC EN 61347-1, EN 61347-2-13 independent, EN 62384, IP42
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLD Series
-
Power Rating20.3 Watt
-
Output Voltage58 Volt
-
Rated Current0.35 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,ENEC,FCC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~60°C
-
Warranty3 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can I use the PLD-25-350 for a 350mA LED downlight?
Yes, this driver is designed for constant current LED loads at 350mA. It fits LED downlights whose total forward voltage stays within the 40-58V constant current range and within the 20.3W output rating.
Is the PLD-25-350 suitable for small LED arrays in architectural fixtures?
It can be a fit for small LED arrays that require a constant 350mA drive current rather than constant voltage power. The array's total forward voltage must fall between 40V and 58V, and total load must remain within 20.3W.
Can this driver power signage LED modules?
It may work for signage modules only if the modules are designed for constant current operation at 350mA. It is not intended for constant voltage LED modules, and the connected load must operate within the 40-58V constant current range.
Is the PLD-25-350 a good choice for indoor recessed lighting in variable temperatures?
For indoor recessed or enclosed lighting, the PLD-25-350 supports operation from -30°C to +60°C. Its IP42 plastic case is better suited to protected indoor locations than exposed outdoor environments.
How do I know if my LED load is compatible with the PLD-25-350?
This is a constant current 350mA driver with a 40-58V CC output range. The number of LEDs depends on each LED's forward voltage, so compatibility is based on the total forward voltage of the load rather than a fixed LED count.
How does the PLD-25-350 compare with other PLD series options?
Within the PLD family, the PLD-25-350 provides 350mA with a 40-58V CC range and 20.3W output. Nearby siblings include the PLD-25-700 at 700mA, 24-36V, 25.2W; PLD-25-1050 at 1050mA, 16-24V, 25.2W; and PLD-25-1400 at 1400mA, 12-18V, 25.2W.
