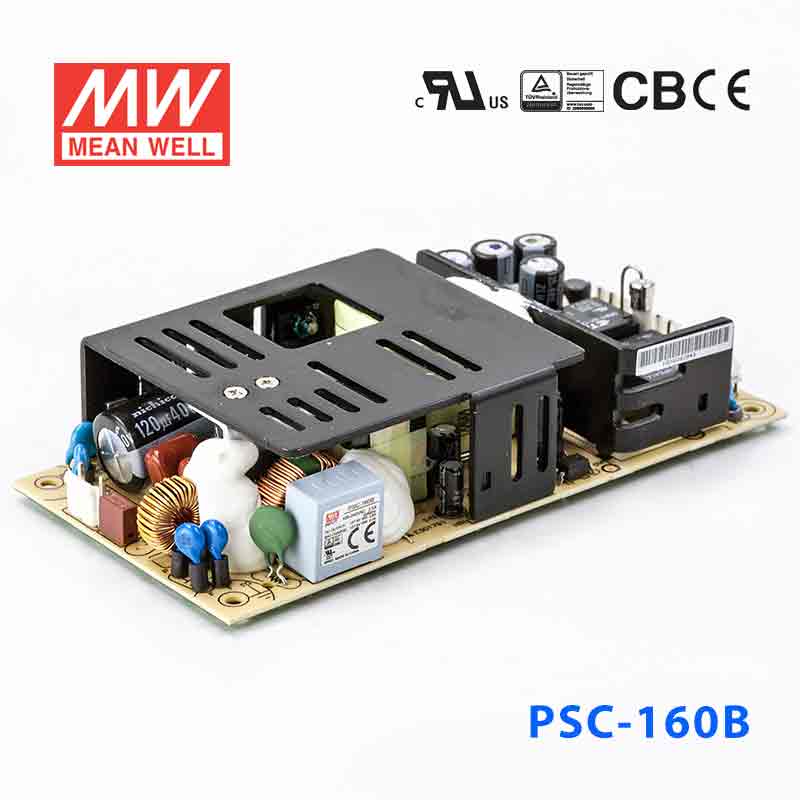

Mean Well PSC-160B Battery Chargers 160W 27.6V 3.8A - PFC
<1mA / 240VAC
Key Features
- ✓Universal AC input / Full range
- ✓5"x3" compact size
- ✓Models with L-Bracket and cover available(PSC-100x-C, x=A,B)
- ✓Protections: Short circuit/Overload/Over voltage
- ✓Battery low protection/Battery reverse polarity protection by fuse
- ✓Relay contat signal output for AC OK and Battery low
- ✓Cooling by free convection
- ✓100% full load burn-in-test
- ✓2 years warranty
-
BrandMean Well
-
SeriesPSC Series
-
Power Rating160 Watt
-
Output Voltage27.6 Volt
-
Rated Current3.8 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length6 in
-
Width3 in
-
Height1.26 in
-
Weight0.77 lb
::specification::
Frequently Asked Questions
Can I use the PSC-160B for a 27.6V battery-backed industrial control system?
Yes, this unit provides constant-voltage 27.6V output and includes a UPS function, which suits battery-backed industrial control systems designed around a 27.6V DC rail. With 160W and 3.8A available, it supports more 27.6V load than the smaller B-series models.
Is the PSC-160B a fit for 27.6V automation or process equipment that needs more capacity than the 100W version?
It can be, because this model is rated for 160W and 3.8A at 27.6V, compared with 100.74W and 2.4A for the PSC-100B. That makes it more suitable for higher-demand 27.6V automation or process loads that still stay within 3.8A.
Would the PSC-160B work for communications or monitoring systems on a 27.6V backup rail?
Yes, if the equipment is designed for a 27.6V constant-voltage source and its total demand does not exceed 160W or 3.8A. The UPS function is relevant for standby communications, monitoring, or supervisory systems that need battery-backed continuity.
Can the PSC-160B be used in globally deployed equipment with varying AC input?
It is suitable for systems that need wide AC input compatibility because it accepts 90-264VAC. The DC output side remains fixed at 27.6V constant voltage with up to 3.8A available.
How does the PSC-160B compare with the other PSC charging models?
For 27.6V output, the series includes PSC-35B and PSC-35B-C at 35.88W and 0.85A, PSC-60B and PSC-60B-C at 59.34W and 1.4A, PSC-100B and PSC-100B-C at 100.74W and 2.4A, and PSC-160B and PSC-160B-C at 160W and 3.8A. For 13.8V output, it includes PSC-35A and PSC-35A-C at 35.88W and 1.7A, PSC-60A and PSC-60A-C at 59.34W and 2.8A, PSC-100A and PSC-100A-C at 100.05W and 4.75A, and PSC-160A and PSC-160A-C at 160W and 7.6A.
Is the PSC-160B suitable for outdoor use or only indoor environments with temperature variation?
The operating temperature range is -20°C to +70°C, which supports use in environments with substantial temperature variation. No IP rating is listed in the provided specifications, so the product data does not establish outdoor enclosure protection.
