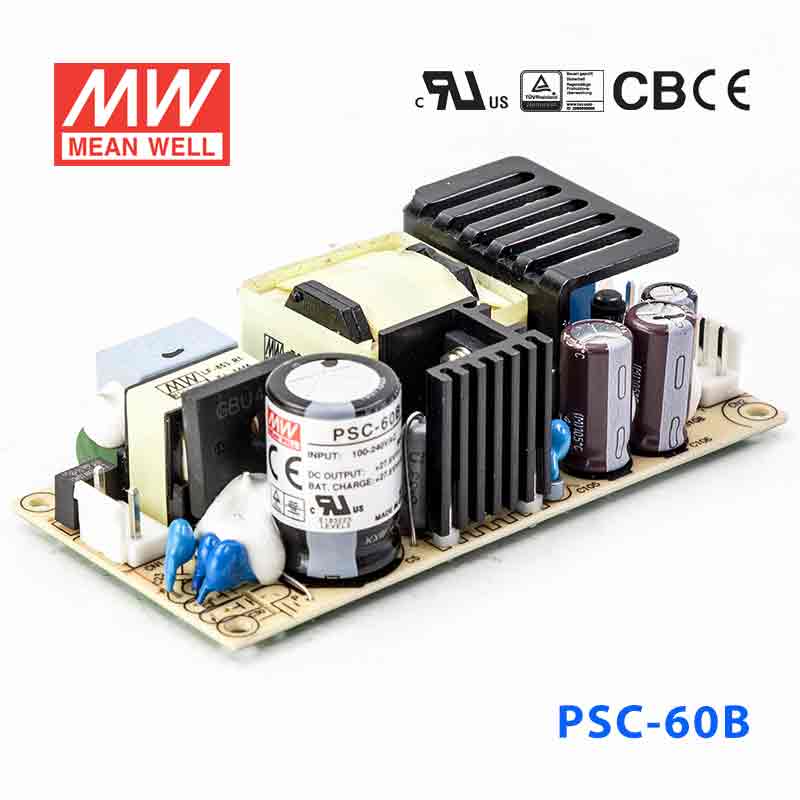

Mean Well PSC-60B Battery Chargers 59.34W 27.6V 1.4A - PFC

Name: Mean Well PSC-60B Battery Chargers 59.34W 27.6V 1.4A - PFC
Brand: Mean Well
SKU: PSC-60B
Price: 24.15 USD
Availability: InStock

with UPS function, models with L-bracket and cover available(-C type)

$24.15 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Models with L-Bracket and cover available(PSC-60x-C, x=A,B)

Protections: Short circuit/Overload/Over voltage

Battery low protection/Battery reverse polarity protection by fuse

Alarm signal for AC OK and Battery reverse low

Cooling by free convection

100% full load burn-in test

2 years warranty

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current	COLD START 30A/115VAC; 60A/230VAC
Leakage current	<1mA / 240VAC
Overload protection	105%~150% rated output power
Over-voltage protection	105%~135% rated output voltage
Setup, rise, hold up time	800ms, 50ms/230VAC; 1600ms, 50ms/115VAC at full load; 50ms/230VAC; 10ms/115VAC at full load
Withstand voltage	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature	-20 ~ +70℃ (Refer to "Derating Curve")
Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Safety standards	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
EMC standards	EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH)	101.6x50.8x29 mm
Packing	96pcs / 13.5kg

Specifications

Brand

Mean Well
Series

PSC Series
Power Rating

59.34 Watt
Output Voltage

27.6 Volt
Rated Current

1.4 Ampere
Input Voltage

90V~264V
No of Output

1
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-20°C~70°C
Warranty

2 Year
Length

4 in
Width

2 in
Height

1.14 in
Weight

0.29 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Features

Universal AC input / Full range

Models with L-Bracket and cover available(PSC-60x-C, x=A,B)

Protections: Short circuit/Overload/Over voltage

Battery low protection/Battery reverse polarity protection by fuse

Alarm signal for AC OK and Battery reverse low

Cooling by free convection

100% full load burn-in test

2 years warranty

General Specification

AC input voltage range

90~264VAC; 127~370VDC

AC inrush current

COLD START 30A/115VAC; 60A/230VAC

Leakage current

<1mA / 240VAC

Overload protection

105%~150% rated output power

Over-voltage protection

105%~135% rated output voltage

Setup, rise, hold up time

800ms, 50ms/230VAC; 1600ms, 50ms/115VAC at full load; 50ms/230VAC; 10ms/115VAC at full load

Withstand voltage

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

Working temperature

-20 ~ +70℃ (Refer to "Derating Curve")

Vibration

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

Safety standards

UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

EMC standards

EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11

Dimension (LxWxH)

101.6x50.8x29 mm

Packing

96pcs / 13.5kg
