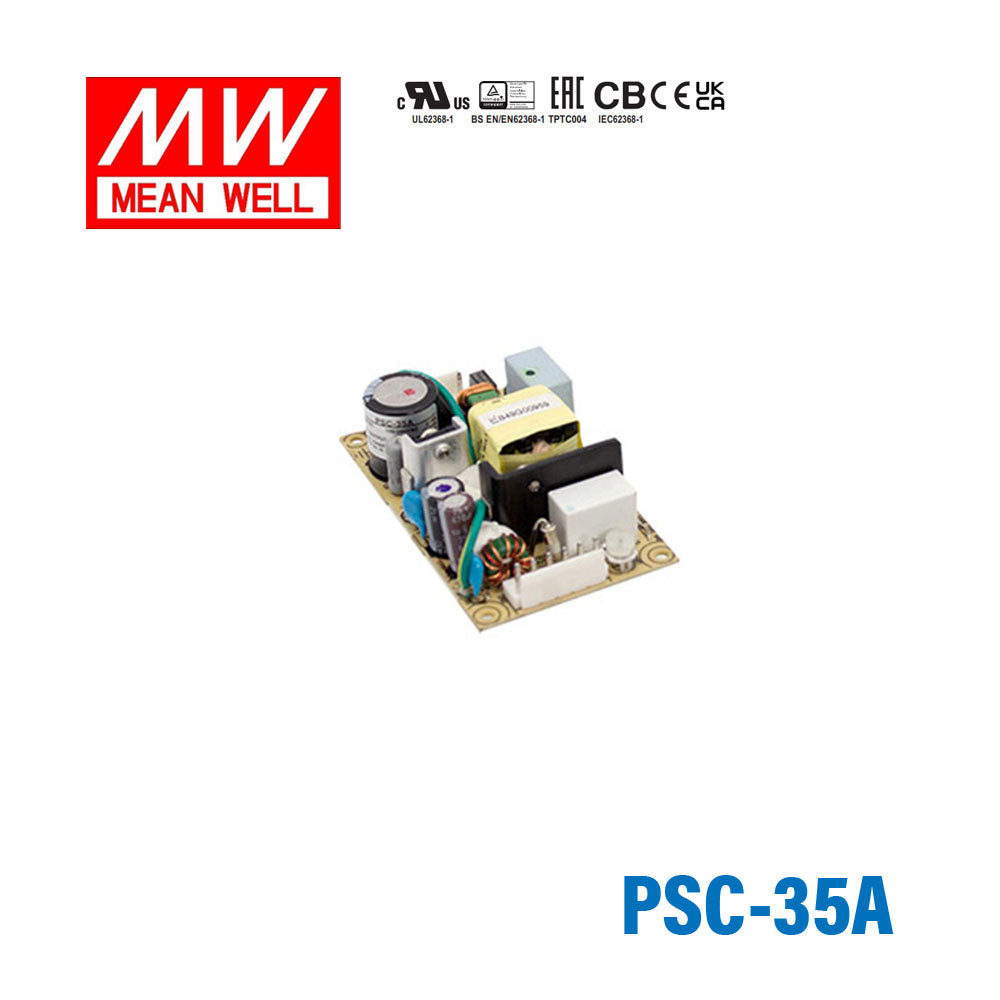

Mean Well PSC-35A Battery Chargers 35.88W 13.8V 1.7A - PFC
<1mA/240VAC
Key Features
- ✓Universal AC input / Full range
- ✓3.3"x2" compact PCB size
- ✓Models with L-Bracket and cover available (PSC-35x-C, X=A, B)
- ✓Protections: Short circuit/Overload/Over voltage
- ✓Battery low protection/Battery reverse polarity protection by fuse
- ✓Alarm signal for AC OK and Battery low
- ✓Cooling by free convection
- ✓100% full load burn-in test
- ✓2 years warranty
-
BrandMean Well
-
SeriesPSC Series
-
Power Rating35.88 Watt
-
Output Voltage13.8 Volt
-
Rated Current1.7 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.33 in
-
Width2 in
-
Height0.94 in
-
Weight0.2 lb
::specification::
Frequently Asked Questions
Can I use the PSC-35A for a small 12V alarm or security backup application?
It provides 13.8V constant-voltage output at up to 1.7A, with 35.88W total output power. That makes it suitable for smaller 12V-class standby or backup applications that align with a 13.8V charging profile and do not exceed 1.7A.
Is the PSC-35A appropriate for low-power embedded control equipment that uses a 12V battery-backed supply?
This unit is aimed at low-power 13.8V applications and can supply up to 1.7A from a 90-264VAC input. It fits embedded or control equipment where the charging and backup requirement stays within 35.88W.
Can the PSC-35A support a compact automation panel that only needs modest charging current?
For lighter-duty 12V-class automation or panel applications, the 13.8V and 1.7A rating is appropriate when the load and charging demand stay within 35.88W. Its UPS function also makes it relevant where backup continuity is needed.
Is the PSC-35A suitable for indoor use in cold or hot equipment areas?
The operating temperature range is -30°C to +70°C, which gives it a broad temperature window for indoor equipment spaces. The provided specs do not include an IP rating, so outdoor suitability is not established here.
How does the PSC-35A compare with the other 13.8V PSC models?
At 13.8V, the series includes PSC-35A and PSC-35A-C at 35.88W and 1.7A, PSC-60A and PSC-60A-C at 59.34W and 2.8A, PSC-100A and PSC-100A-C at 100.05W and 4.75A, and PSC-160A and PSC-160A-C at 160W and 7.6A. The PSC-35A is the lowest-power 13.8V option in that group.
