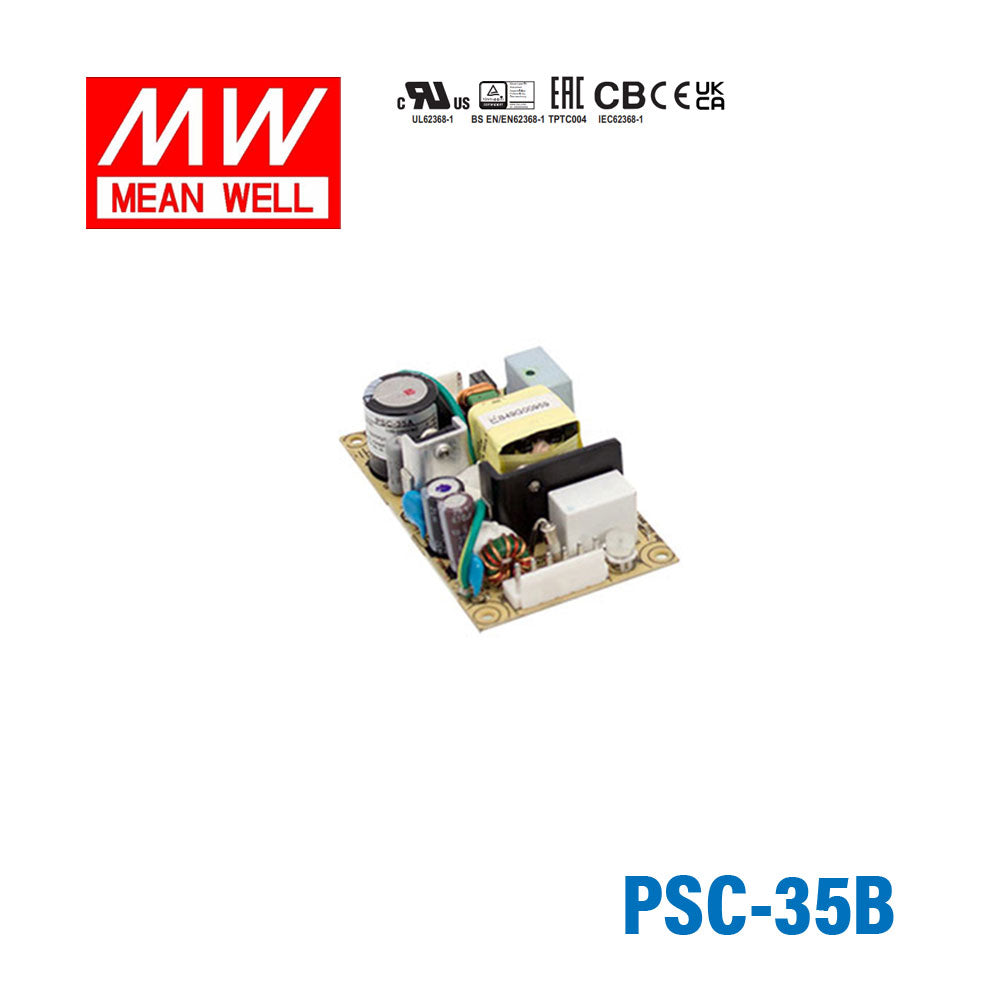

Mean Well PSC-35B Battery Chargers 35.88W 27.6V 0.85A - PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PSC-35B Battery Chargers 35.88W 27.6V 0.85A - PFC
<1mA/240VAC
Key Features
- ✓Universal AC input / Full range
- ✓3.3"x2" compact PCB size
- ✓Models with L-Bracket and cover available (PSC-35x-C, X=A, B)
- ✓Protections: Short circuit/Overload/Over voltage
- ✓Battery low protection/Battery reverse polarity protection by fuse
- ✓Alarm signal for AC OK and Battery low
- ✓Cooling by free convection
- ✓100% full load burn-in test
- ✓2 years warranty
-
BrandMean Well
-
SeriesPSC Series
-
Power Rating35.88 Watt
-
Output Voltage27.6 Volt
-
Rated Current0.85 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.33 in
-
Width2 in
-
Height0.94 in
-
Weight0.2 lb
::specification::
Frequently Asked Questions
Can I use the PSC-35B for a small 24V industrial backup power application?
It provides 27.6V constant-voltage output at up to 0.85A, with 35.88W total output power. That makes it appropriate for smaller 24V-class backup or charging applications that use a 27.6V profile and stay within 0.85A.
Is the PSC-35B suitable for low-power telecom or monitoring equipment on a 24V-class battery system?
For low-demand DC backup roles, this model offers 27.6V and 0.85A from a 90-264VAC input range. It fits 24V-class telecom, monitoring, or remote control equipment where the total requirement stays within 35.88W.
Can the PSC-35B work for embedded or automation loads that need a 24V-class charger with UPS function?
Yes, for lighter-duty use cases it combines 27.6V output with 0.85A current capability and UPS function support. It is best matched to low-power embedded or automation systems rather than higher-demand 24V loads.
Is the PSC-35B meant for indoor or outdoor service?
The unit is specified for -30°C to +70°C operation, which supports a wide indoor temperature range. The provided specifications do not include an IP rating, so outdoor suitability is not confirmed by this data.
How does the PSC-35B compare to the other 27.6V PSC models?
At 27.6V, PSC-35B and PSC-35B-C are 35.88W and 0.85A, PSC-60B and PSC-60B-C are 59.34W and 1.4A, PSC-100B and PSC-100B-C are 100.74W and 2.4A, and PSC-160B and PSC-160B-C are 160W and 3.8A. The PSC-35B is the lowest-current and lowest-power 27.6V model in that set.
