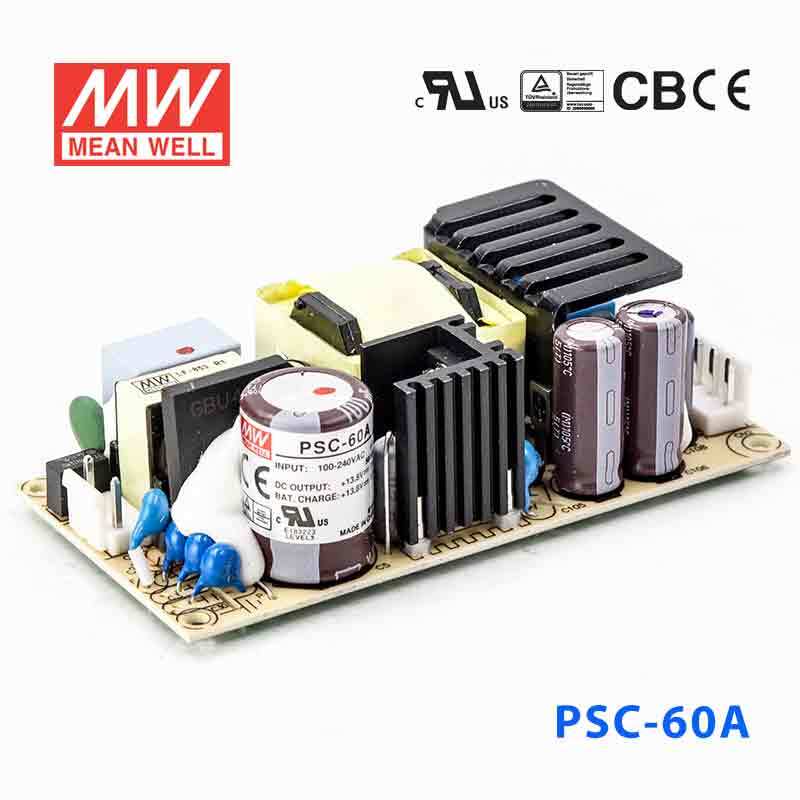

Mean Well PSC-60A Battery Chargers 59.34W 13.8V 2.8A - PFC
<1mA / 240VAC
Key Features
- ✓Universal AC input / Full range
- ✓Models with L-Bracket and cover available(PSC-60x-C, x=A,B)
- ✓Protections: Short circuit/Overload/Over voltage
- ✓Battery low protection/Battery reverse polarity protection by fuse
- ✓Alarm signal for AC OK and Battery reverse low
- ✓Cooling by free convection
- ✓100% full load burn-in test
- ✓2 years warranty
-
BrandMean Well
-
SeriesPSC Series
-
Power Rating59.34 Watt
-
Output Voltage13.8 Volt
-
Rated Current2.8 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
Can I use the PSC-60A to back up a 12V alarm or access control panel?
The PSC-60A is a 13.8V constant-voltage unit rated at 2.8A and 59.34W, which fits many 12V-class backup power applications. It also includes a UPS function, so it is positioned for systems that need a charger and backup-power role in one supply.
Is the PSC-60A suitable for a small 12V industrial controller or embedded system?
It can fit 13.8V control or embedded loads that stay within the unit's 2.8A and 59.34W output rating. The wide 90-264VAC input also makes it practical where the AC source may vary across facilities or regions.
Can the PSC-60A be used for 12V telecom or communications backup equipment?
It is intended for 13.8V output at up to 2.8A, so it can be considered for lower-power 12V-class communications or monitoring equipment within that limit. Buyers should size the load against the 59.34W maximum and confirm the equipment is designed for a 13.8V constant-voltage source.
Is the PSC-60A suitable for outdoor or harsh-temperature locations?
The published operating temperature range is -20°C to +70°C, so the temperature rating is broad for industrial indoor use. No IP rating is listed in the provided specs, so outdoor or washdown exposure should not be assumed from this data alone.
How does the PSC-60A compare with other Mean Well PSC series models?
Within the listed PSC family, 13.8V models are PSC-35A and PSC-35A-C at 35.88W and 1.7A, PSC-60A and PSC-60A-C at 59.34W and 2.8A, PSC-100A and PSC-100A-C at 100.05W and 4.75A, PSC-100A-CWE at 100.5W and 4.75A, and PSC-160A and PSC-160A-C at 160W and 7.6A. The 27.6V branch includes PSC-35B and PSC-35B-C at 35.88W and 0.85A, PSC-60B and PSC-60B-C at 59.34W and 1.4A, PSC-100B and PSC-100B-C at 100.74W and 2.4A, and PSC-160B and PSC-160B-C at 160W and 3.8A; PSC-60-CWE, PSC-60A-CWE, and PSC-100-CWE are also listed, but their electrical specs were not provided here.
