Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

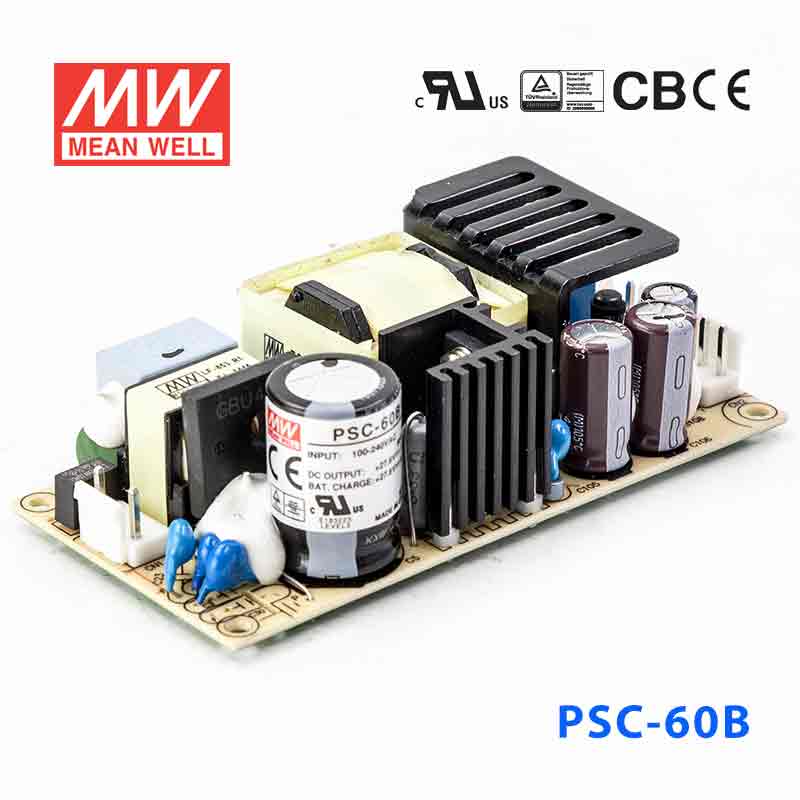

Mean Well PSC-60B Battery Chargers 59.34W 27.6V 1.4A - PFC
<1mA / 240VAC
Key Features
- ✓Universal AC input / Full range
- ✓Models with L-Bracket and cover available(PSC-60x-C, x=A,B)
- ✓Protections: Short circuit/Overload/Over voltage
- ✓Battery low protection/Battery reverse polarity protection by fuse
- ✓Alarm signal for AC OK and Battery reverse low
- ✓Cooling by free convection
- ✓100% full load burn-in test
- ✓2 years warranty
-
BrandMean Well
-
SeriesPSC Series
-
Power Rating59.34 Watt
-
Output Voltage27.6 Volt
-
Rated Current1.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
Can I use the PSC-60B for a 24V industrial control panel with battery backup?
The PSC-60B is a 27.6V constant-voltage model rated at 1.4A and 59.34W, which aligns with many 24V-class backup power applications. It also includes a UPS function, so it is intended for systems that need charging and backup support together.
Is the PSC-60B suitable for 24V embedded or automation electronics?
It can fit 24V-class control, automation, or embedded loads that are designed around a 27.6V supply and stay within 1.4A or 59.34W. The 90-264VAC input range also supports use across varied mains environments.
Can the PSC-60B be used for 24V telecom or monitoring equipment backup?
It is best suited to lower-power 24V-class backup loads that match its 27.6V output and remain under the 1.4A limit. That makes it more appropriate for modest communications, monitoring, or control loads than for higher-current 24V systems.
Is the PSC-60B rated for outdoor service or wide ambient temperatures?
The unit is specified for -20°C to +70°C operation, which supports a wide indoor ambient range. No IP rating is listed in the provided specifications, so outdoor or wet-location use is not established by this data.
How does the PSC-60B fit into the broader PSC charger lineup?
In the 27.6V group, the listed models are PSC-35B and PSC-35B-C at 35.88W and 0.85A, PSC-60B and PSC-60B-C at 59.34W and 1.4A, PSC-100B and PSC-100B-C at 100.74W and 2.4A, and PSC-160B and PSC-160B-C at 160W and 3.8A. The 13.8V side includes PSC-35A and PSC-35A-C at 35.88W and 1.7A, PSC-60A and PSC-60A-C at 59.34W and 2.8A, PSC-100A and PSC-100A-C at 100.05W and 4.75A, PSC-100A-CWE at 100.5W and 4.75A, and PSC-160A and PSC-160A-C at 160W and 7.6A; PSC-60-CWE, PSC-60A-CWE, and PSC-100-CWE are also listed without detailed specs here.
