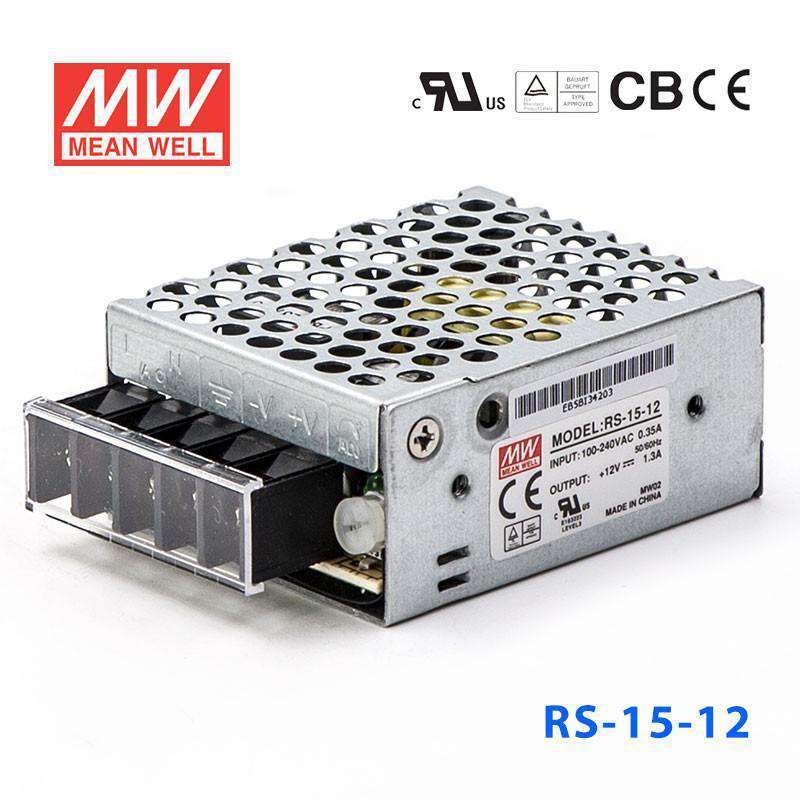

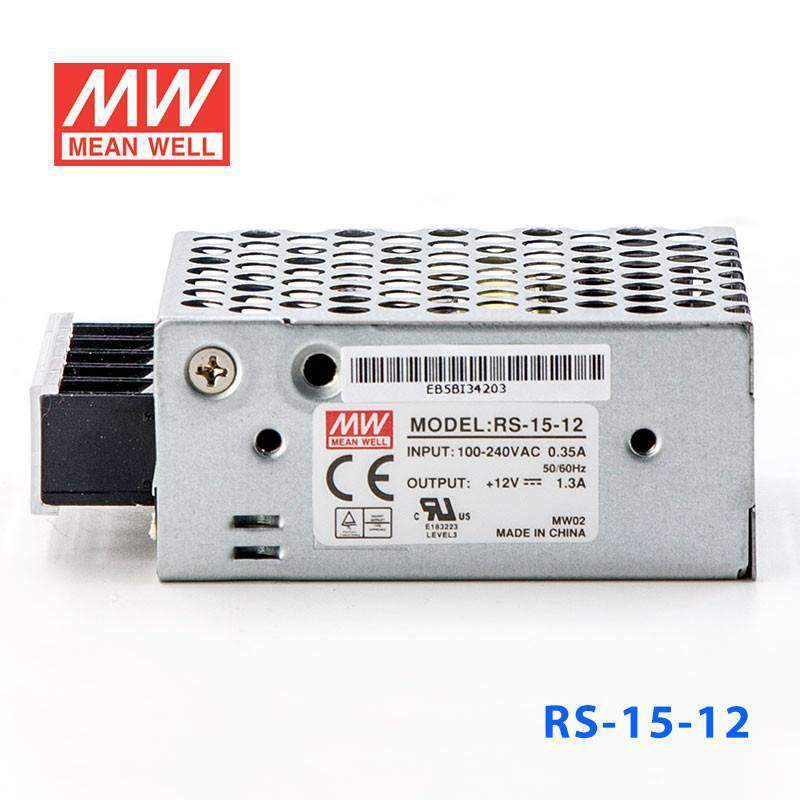

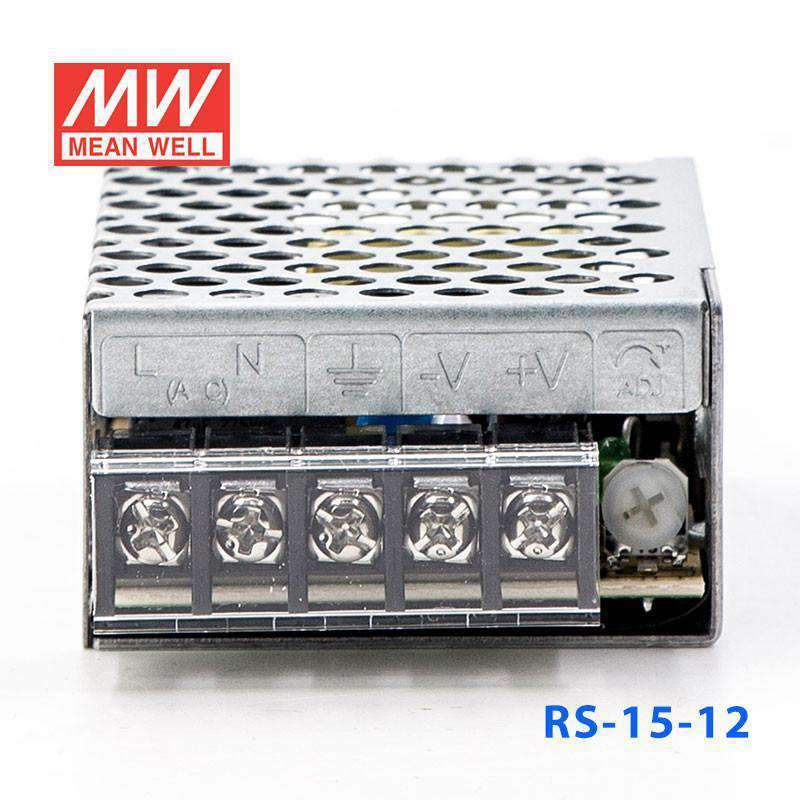

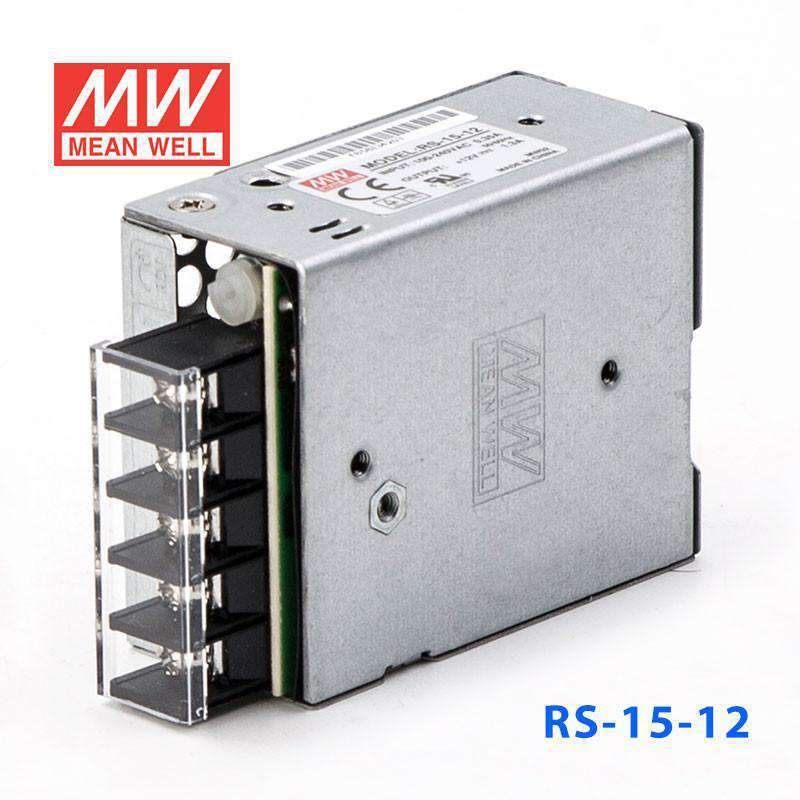

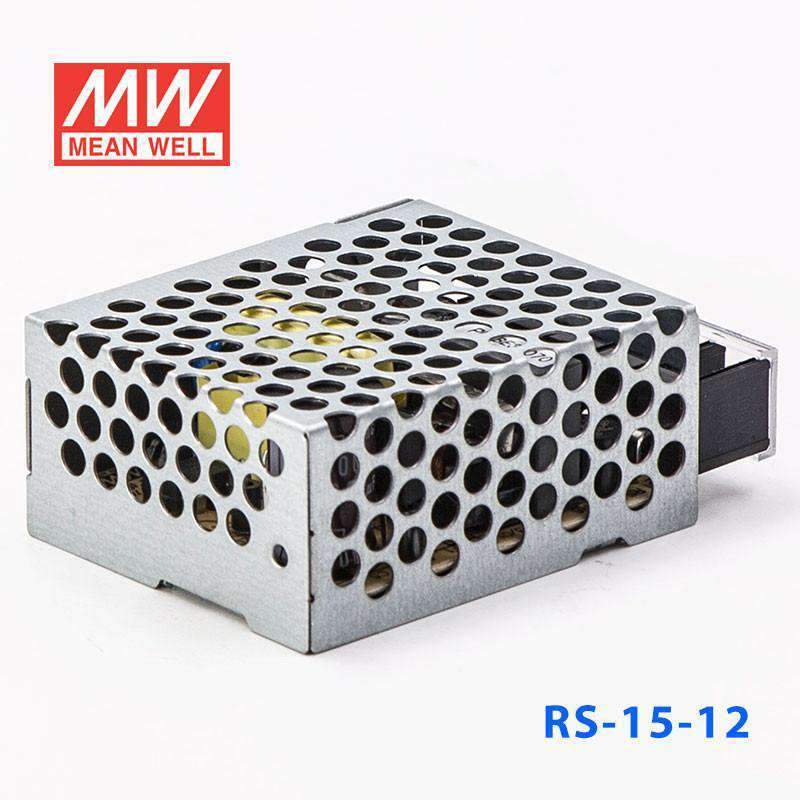

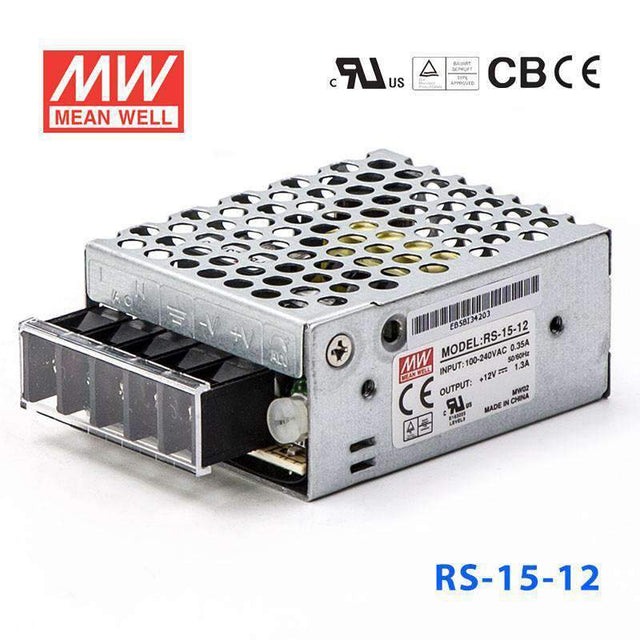

Mean Well RS-15-12 Power Supply 15W 12V
The RS-15 is a 15W Mean Well power converter (input range: 85~264VAC, operating temperature: -20~+70℃).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -20~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: WITHSTAND VOLTAGE 20 ~ 90% RH non-condensing -40 ~ +85 ± 0.03%/ ℃ ℃ , 10 ~ 95% RH ℃ (0 ~ 50 ) 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes UL62368-1, TUV EN62368-1 , EAC TP TC 004, CCC GB4943 .1, BSMI CNS14336-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRS Series
-
Power Rating15.6 Watt
-
Output Voltage12 Volt
-
Rated Current1.3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCE,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.46 in
-
Width2.01 in
-
Height1.1 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
Can I use the RS-15-12 for a small 12V sensor or relay circuit in industrial equipment?
Yes, it provides a constant 12V output with up to 1.3A and 15.6W available. That makes it appropriate for lower-power 12V control loads that do not need the higher current of larger 12V models.
Is the RS-15-12 a good fit for compact embedded 12V electronics?
It can be a good fit for embedded 12V devices that stay within 1.3A and 15.6W. Its 62.5 × 51.0 × 28.0 mm dimensions and 0.13 kg weight are useful where board or enclosure space is tight.
Can this model power a small 12V automation accessory or interface board?
Yes, if the accessory requires a regulated 12V constant-voltage supply and its demand stays at or below 1.3A. It also accepts 85-264VAC input, which helps in applications that may see different AC input conditions.
How does the RS-15-12 compare with other 12V models in the RS line?
For the listed 12V siblings, the RS-15-12 is 15.6W at 1.3A, the RS-25-12 is 25.2W at 2.1A, the RS-35-12 is 35W at 3A, the RS-50-12 is 50.4W at 4.2A, the RS-75-12 is 72W at 6A, the RS-100-12 is 102W at 8.5A, and the RS-150-12 is 150W at 12.5A. The output voltage stays at 12V while the available current and wattage increase across the range.
Is the RS-15-12 suitable for outdoor use or only indoor enclosures?
The specs show an operating range of -20°C to +70°C and note 5G vibration resistance. No IP rating is listed, so the product data supports temperature capability but does not confirm weather-exposed outdoor use.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RS-15 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RS-15-5 Power Supply 15W 5V | 15W | 5V | 3A | Indoor | $9.68 | View |
| Mean Well RS-15-15 Power Supply 15W 15V | 15W | 15V | 1A | Indoor | $9.68 | View |
| Mean Well RS-15-48 Power Supply 15W 48V | 15.02W | 48V | 0.31A | Indoor | $9.68 | View |
| Mean Well RS-15-3.3 Power Supply 15W 3.3V | 9.9W | 3.3V | 3A | Indoor | $9.86 | View |
| Mean Well RS-15-24 Power Supply 15W 24V | 15W | 24V | 0.62A | Indoor | $9.68 | View |
