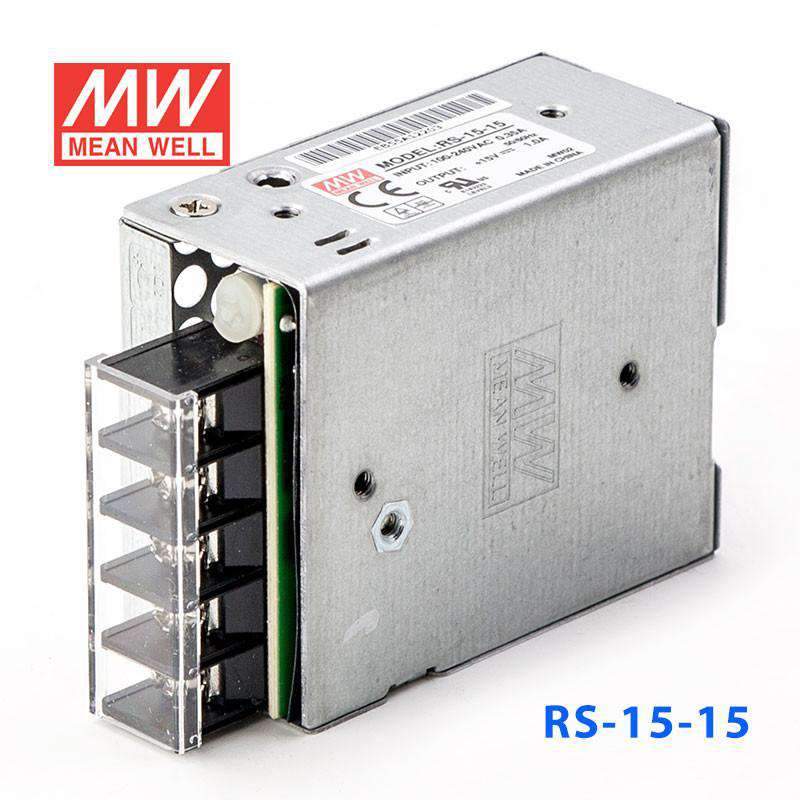

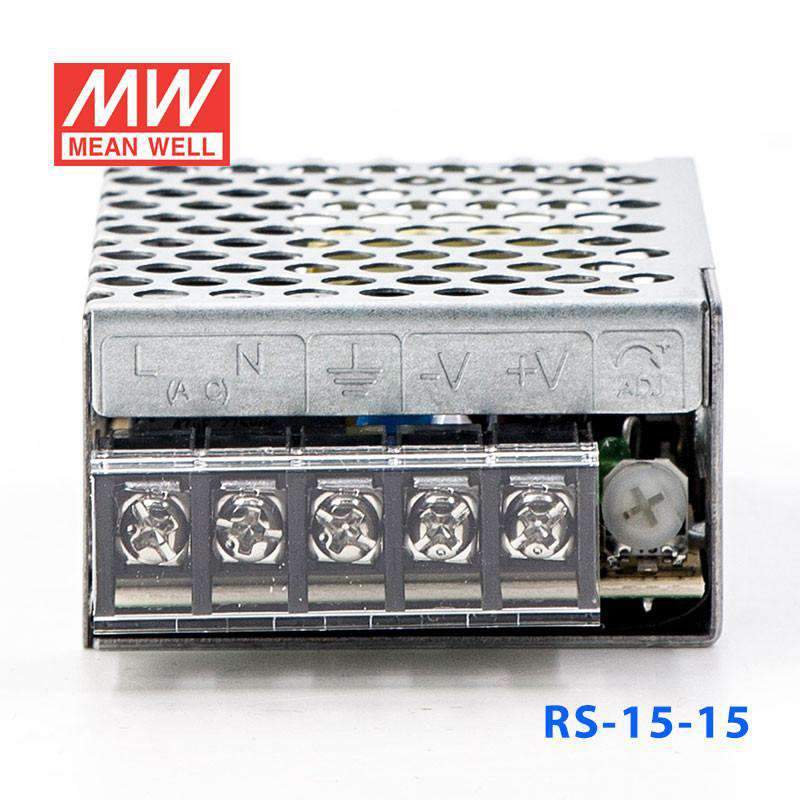

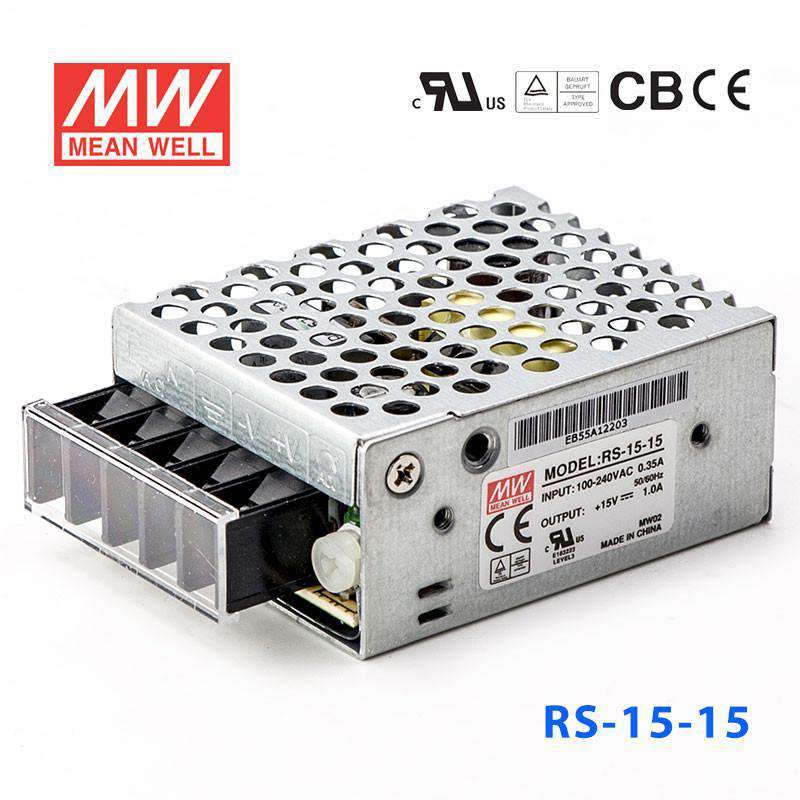

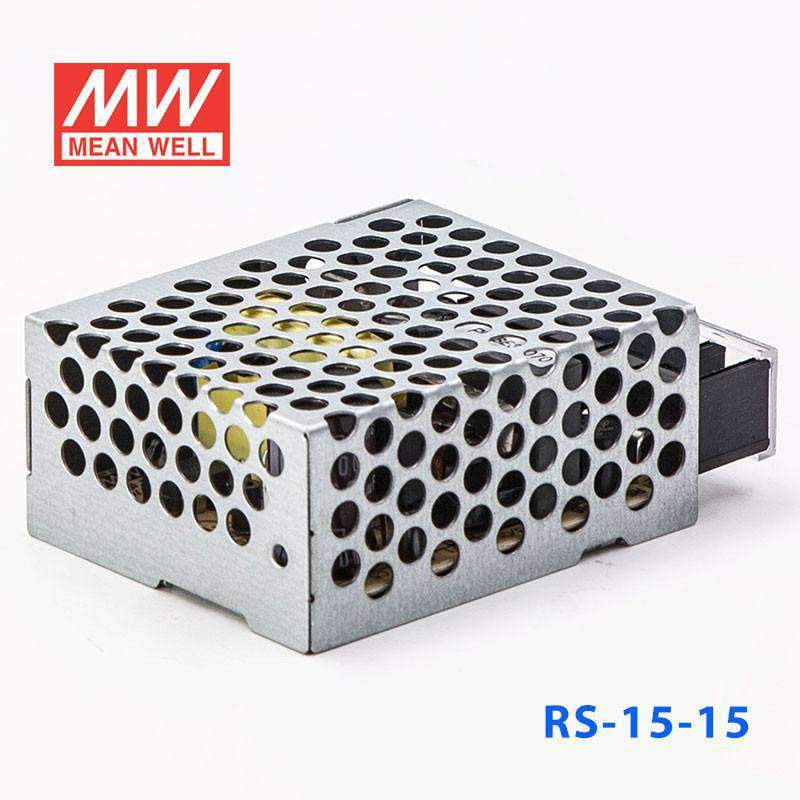

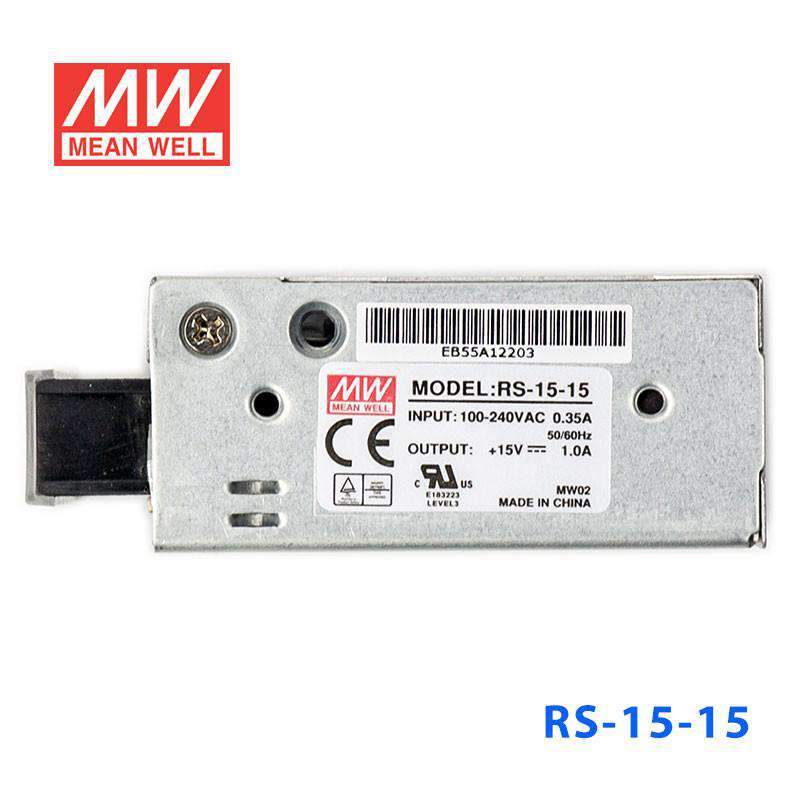

Mean Well RS-15-15 Power Supply 15W 15V
The RS-15 is a 15W Mean Well power converter (input range: 85~264VAC, operating temperature: -20~+70℃).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -20~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: WITHSTAND VOLTAGE 20 ~ 90% RH non-condensing -40 ~ +85 ± 0.03%/ ℃ ℃ , 10 ~ 95% RH ℃ (0 ~ 50 ) 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes UL62368-1, TUV EN62368-1 , EAC TP TC 004, CCC GB4943 .1, BSMI CNS14336-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRS Series
-
Power Rating15 Watt
-
Output Voltage15 Volt
-
Rated Current1 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCE,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.46 in
-
Width2.01 in
-
Height1.1 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
Can I use the RS-15-15 for a small 15V analog or instrumentation circuit?
Yes, it provides a constant 15V output with up to 1A and 15W available. That suits lower-power 15V electronics that need a regulated DC rail rather than a higher-current supply.
Is the RS-15-15 appropriate for embedded control boards that require 15V DC?
It can be, as long as the board stays within 1A and 15W at 15V. Its small 62.5 × 51.0 × 28.0 mm housing and 0.13 kg weight also make it practical in compact equipment.
Can this power supply run a low-power 15V industrial interface or signal-conditioning device?
Yes, if the device is designed for constant 15V input and does not exceed 1A. The 85-264VAC input range is useful for equipment deployed in varied AC mains environments.
What are the differences between the RS-15-15 and other 15V RS models?
In the listed 15V group, the RS-15-15 is 15W at 1A, the RS-25-15 is 25.5W at 1.7A, the RS-35-15 is 35W at 2.4A, the RS-50-15 is 51W at 3.4A, the RS-75-15 is 75W at 5A, the RS-100-15 is 105W at 7A, and the RS-150-15 is 150W at 10A. They all provide 15V output, with the main differences being current and power capacity.
Can the RS-15-15 handle challenging ambient conditions?
The specified operating temperature range is -20°C to +70°C, and the features list includes 5G vibration resistance. No IP rating is provided, so these specs indicate temperature and vibration capability but not sealed outdoor exposure.
