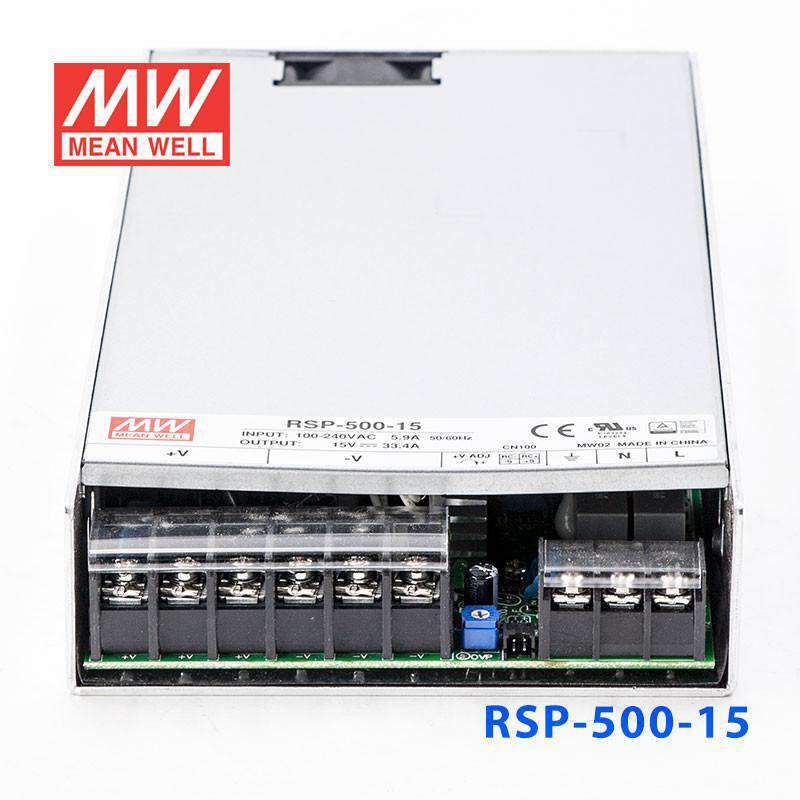

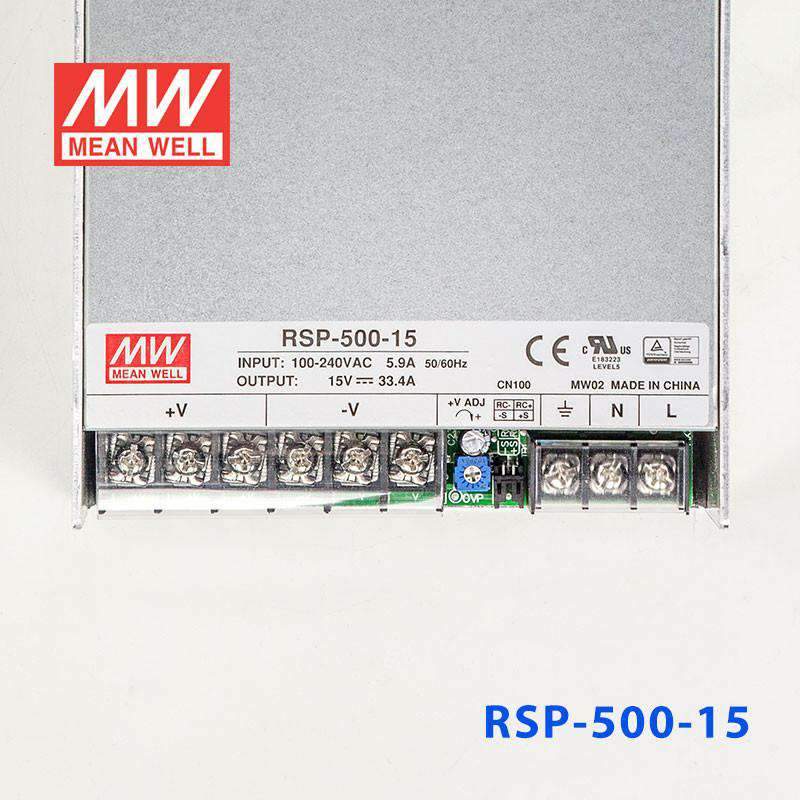

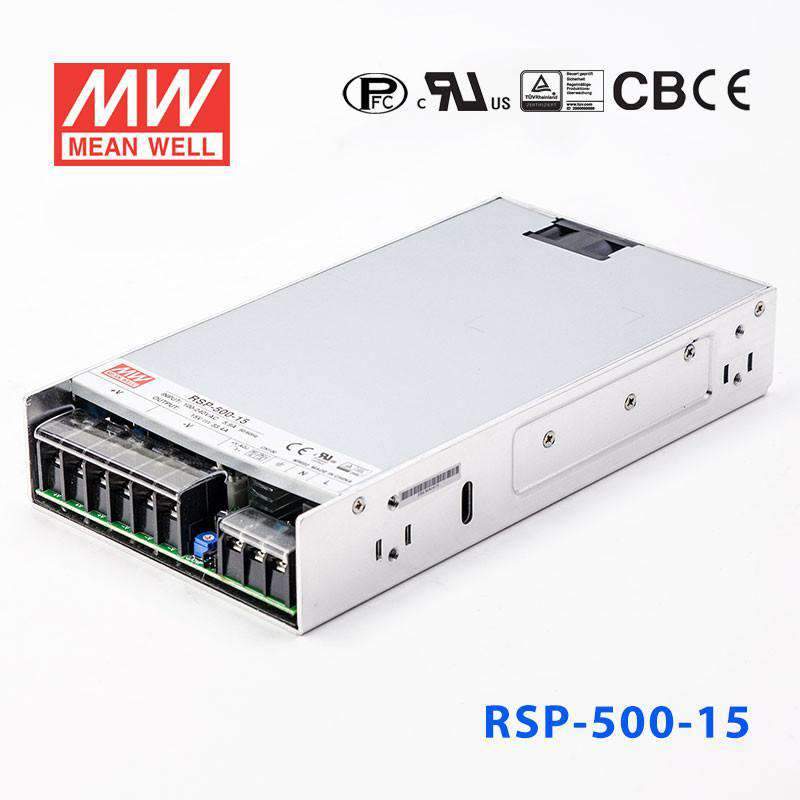

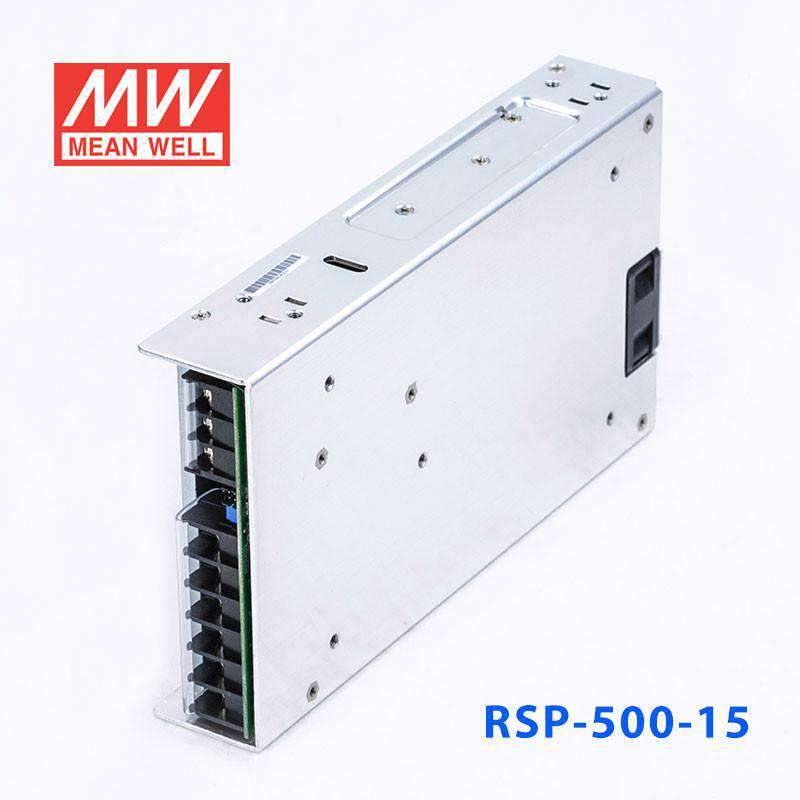

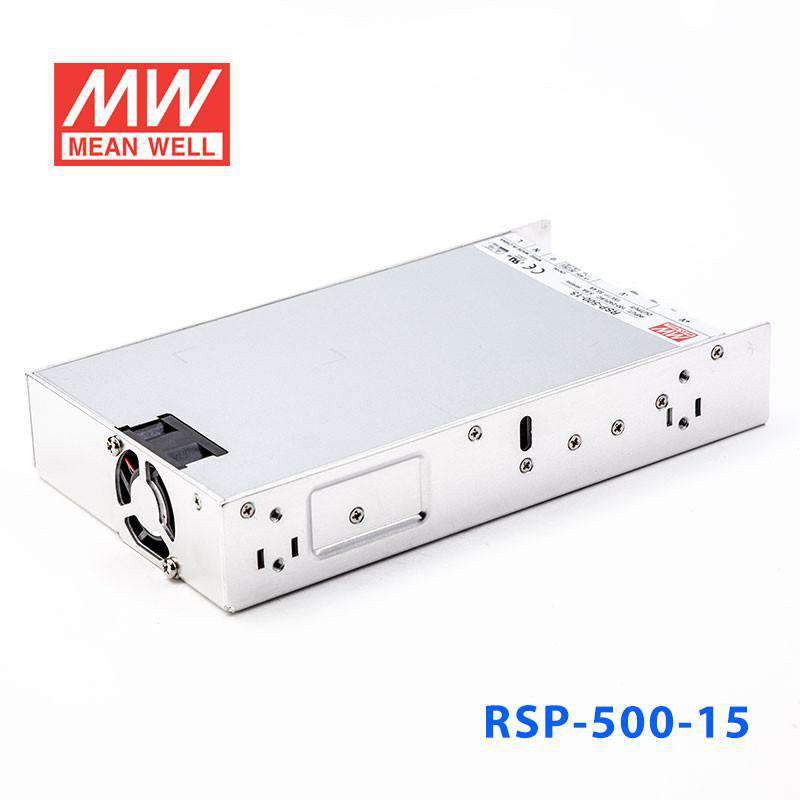

Mean Well RSP-500-15 Power Supply 500W 15V
The RSP-500 is a 500W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating501 Watt
-
Output Voltage15 Volt
-
Rated Current33.4 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.06 in
-
Width5 in
-
Height1.59 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
What equipment runs on 15V that the RSP-500-15 can support?
The RSP-500-15 delivers 501W at 15V and 33.4A, suitable for industrial transducer power supplies, certain servo amplifier auxiliary rails, and embedded systems using a 15V nominal bus. Its 1U form factor (230.0 × 127.0 × 40.5 mm) fits standard rack enclosures.
Is the RSP-500-15 rated for cold-climate indoor use?
Yes. The RSP-500-15 operates from -30°C to +70°C. It is designed for indoor enclosed installations and holds BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications.
How does the RSP-500-15 compare to the RSP-500-12 and RSP-500-24?
All three RSP-500 variants share the 230.0 × 127.0 × 40.5 mm chassis and 85-264VAC input. The RSP-500-12 provides 500.4W at 41.7A, the RSP-500-15 provides 501W at 33.4A, and the RSP-500-24 provides 504W at 21A. Power output is consistent across the three; current rating decreases as voltage increases.
What active power conditioning does the RSP-500-15 include?
The RSP-500-15 includes built-in active PFC to improve input power quality. It weighs 1.3 kg and includes a 3-year warranty.
