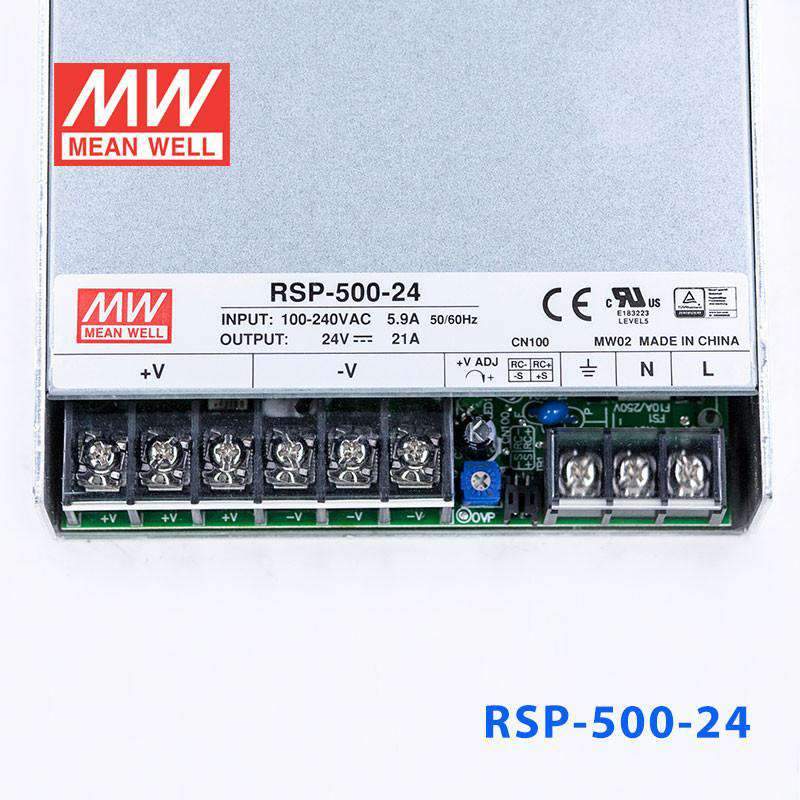

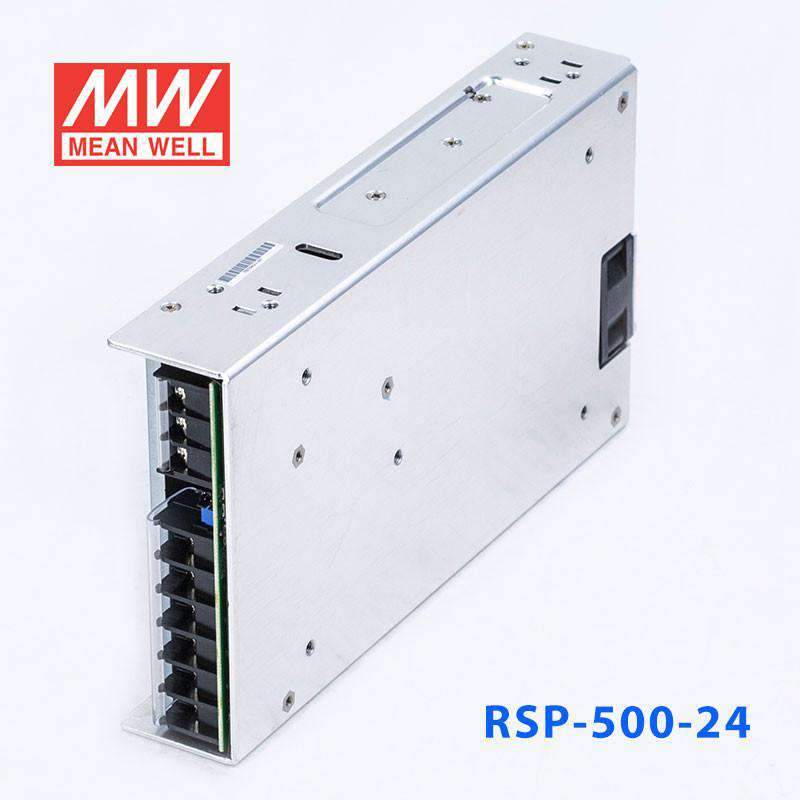

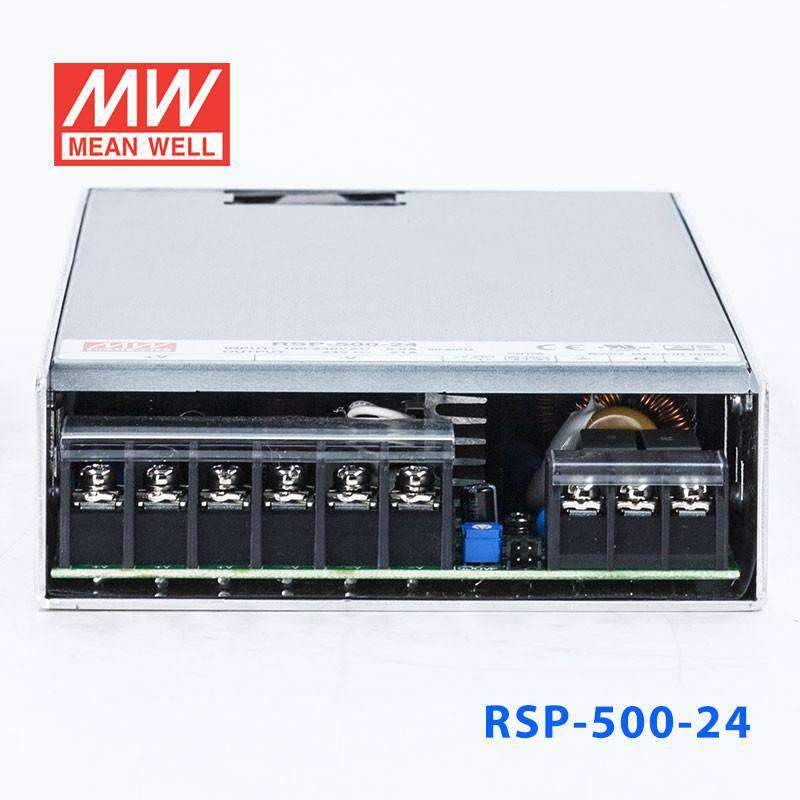

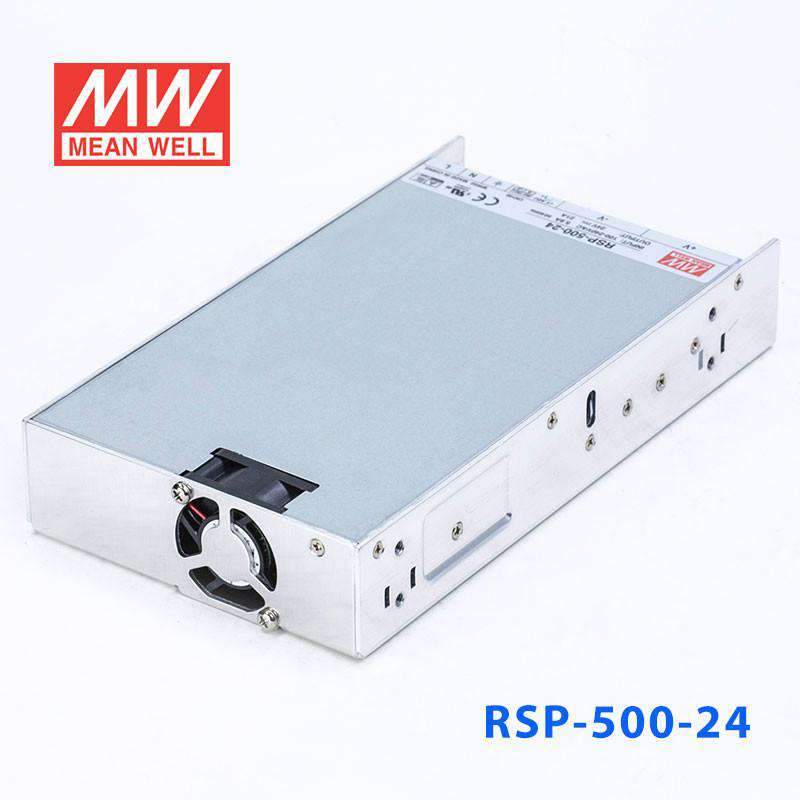

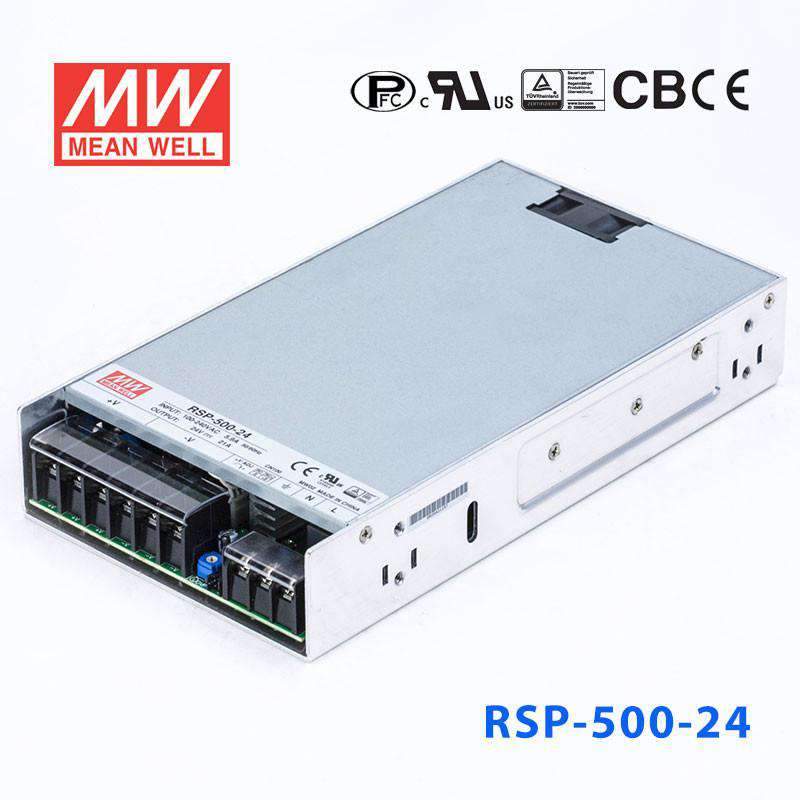

Mean Well RSP-500-24 Power Supply 500W 24V
The RSP-500 is a 500W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating504 Watt
-
Output Voltage24 Volt
-
Rated Current21 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.06 in
-
Width5 in
-
Height1.59 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
What industrial systems is the RSP-500-24 suited to power?
The RSP-500-24 outputs 24V at 21A (504W), matching the 24V DC bus used extensively in PLC systems, industrial robotics, and distributed I/O modules. Its 1U low-profile form factor (230.0 × 127.0 × 40.5 mm) supports rack and panel deployment.
What is the ambient operating range of the RSP-500-24?
The RSP-500-24 operates from -30°C to +70°C. It carries BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications and is rated for indoor enclosed use.
How does the RSP-500-24 compare to the RSP-500-27 at similar voltages?
Both units share the 230.0 × 127.0 × 40.5 mm chassis and 85-264VAC input. The RSP-500-24 delivers 504W at 21A, while the RSP-500-27 delivers 502.2W at 18.6A. Power output is nearly identical; the RSP-500-27 provides a slightly higher voltage at lower current.
Does the RSP-500-24 include active PFC?
Yes. The RSP-500-24 includes built-in active PFC across its 85-264VAC input range. The unit weighs 1.3 kg and carries a 3-year warranty.
