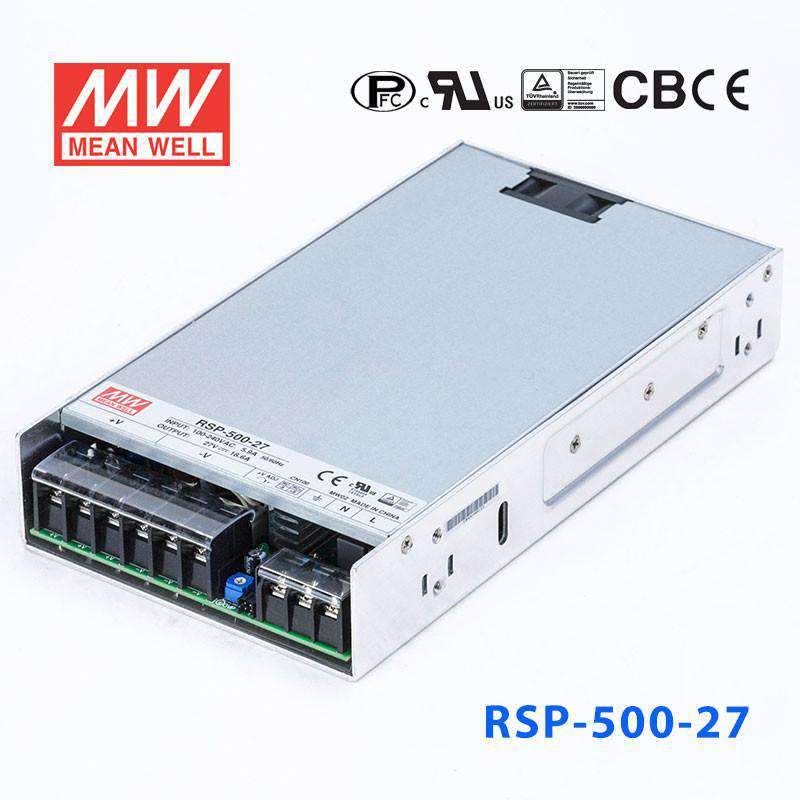

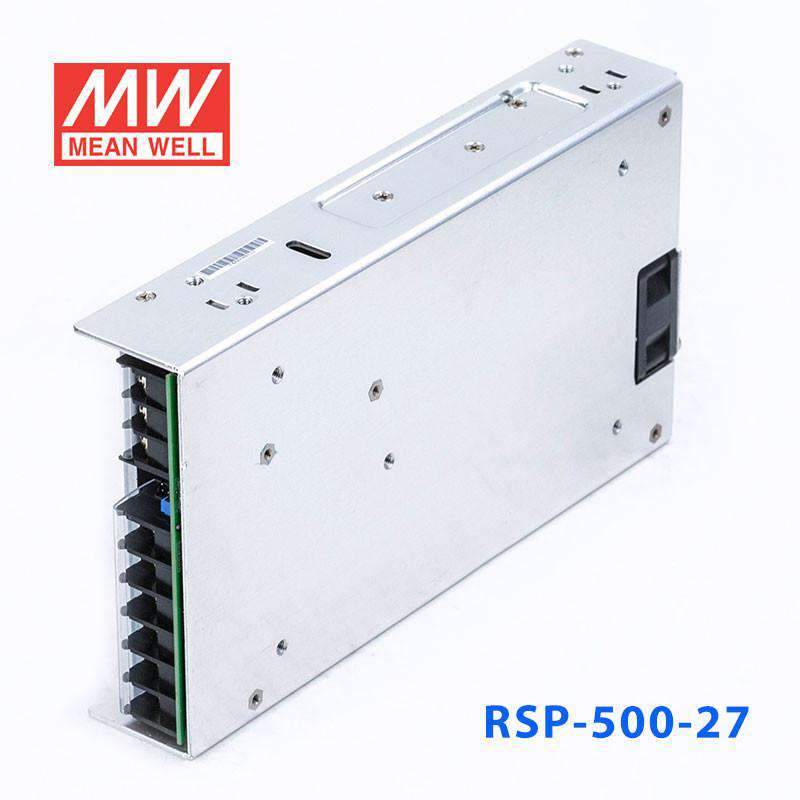

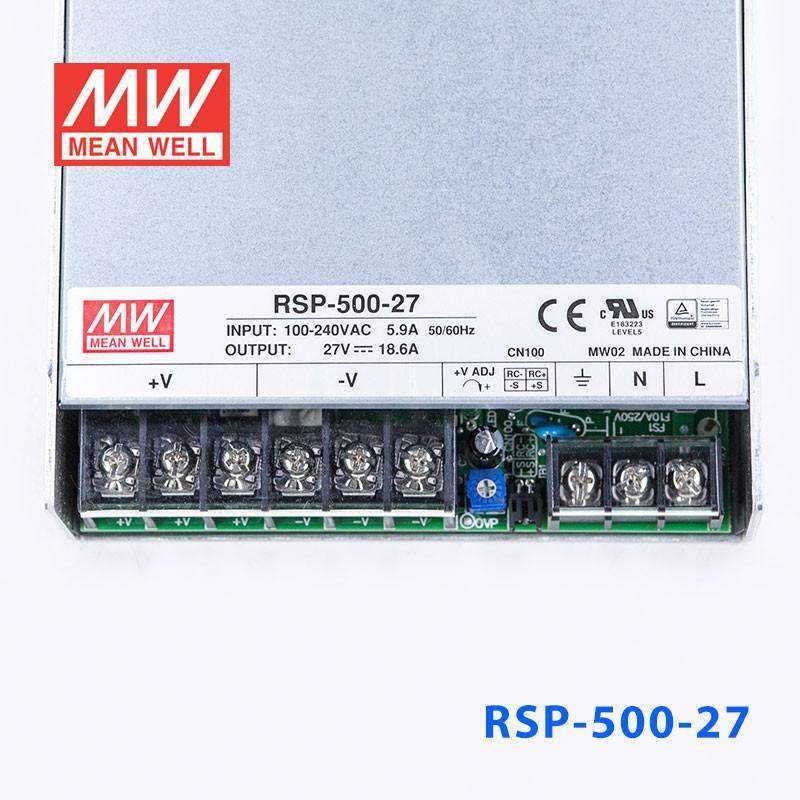

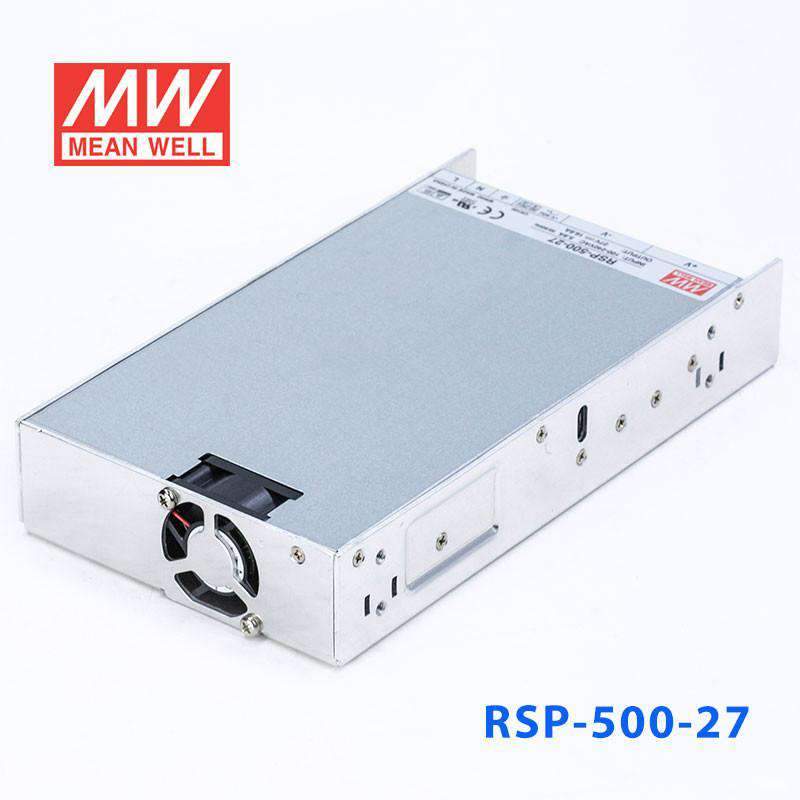

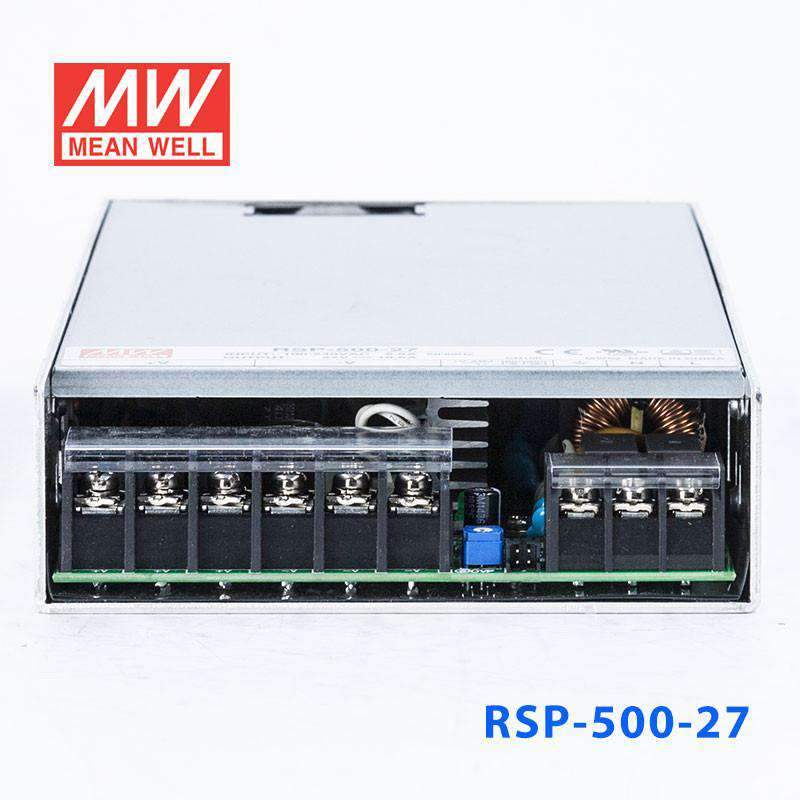

Mean Well RSP-500-27 Power Supply 500W 27V
The RSP-500 is a 500W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating502.2 Watt
-
Output Voltage27 Volt
-
Rated Current18.6 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.06 in
-
Width5 in
-
Height1.59 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
What applications require 27V DC that the RSP-500-27 can serve?
The RSP-500-27 provides 27V at 18.6A (502.2W), used to power certain motion control amplifiers, specialized 24-28V nominal equipment, and industrial bus systems. Its 1U form factor (230.0 × 127.0 × 40.5 mm) is compatible with standard rack enclosures.
What is the operating temperature range of the RSP-500-27?
The RSP-500-27 operates from -30°C to +70°C ambient. It is designed for indoor enclosed use and holds BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications.
How does the RSP-500-27 compare to the RSP-500-24 and RSP-500-48?
All three use the same 230.0 × 127.0 × 40.5 mm chassis and 85-264VAC input. The RSP-500-24 provides 504W at 21A, the RSP-500-27 provides 502.2W at 18.6A, and the RSP-500-48 provides 504W at 10.5A. Power output is similar across the group; current decreases as voltage increases.
What does the RSP-500-27 weigh and what warranty is included?
The RSP-500-27 weighs 1.3 kg and includes a 3-year warranty. It incorporates built-in active PFC and accepts 85-264VAC universal input.
