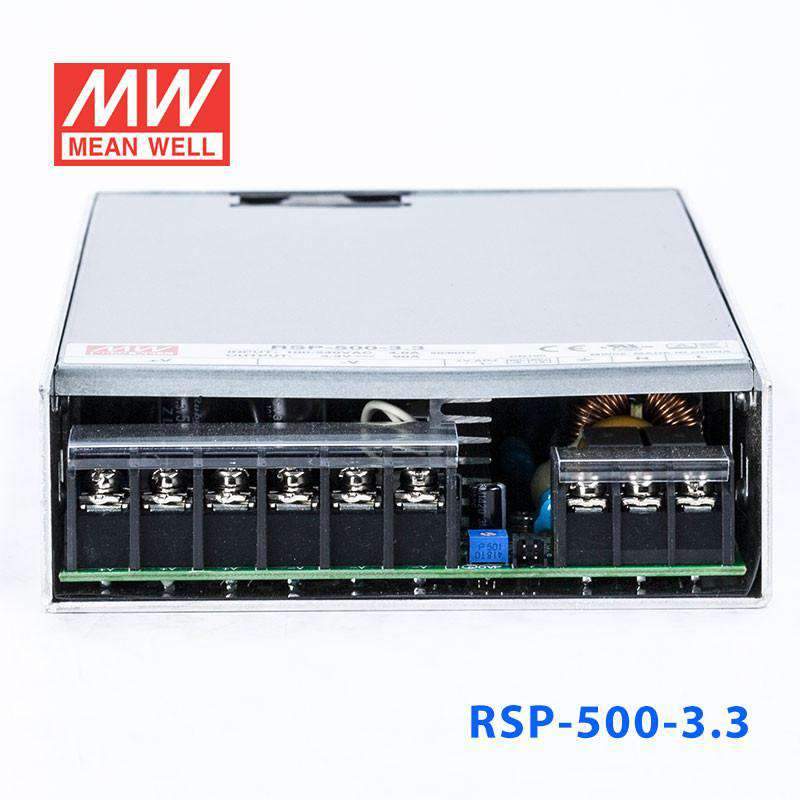

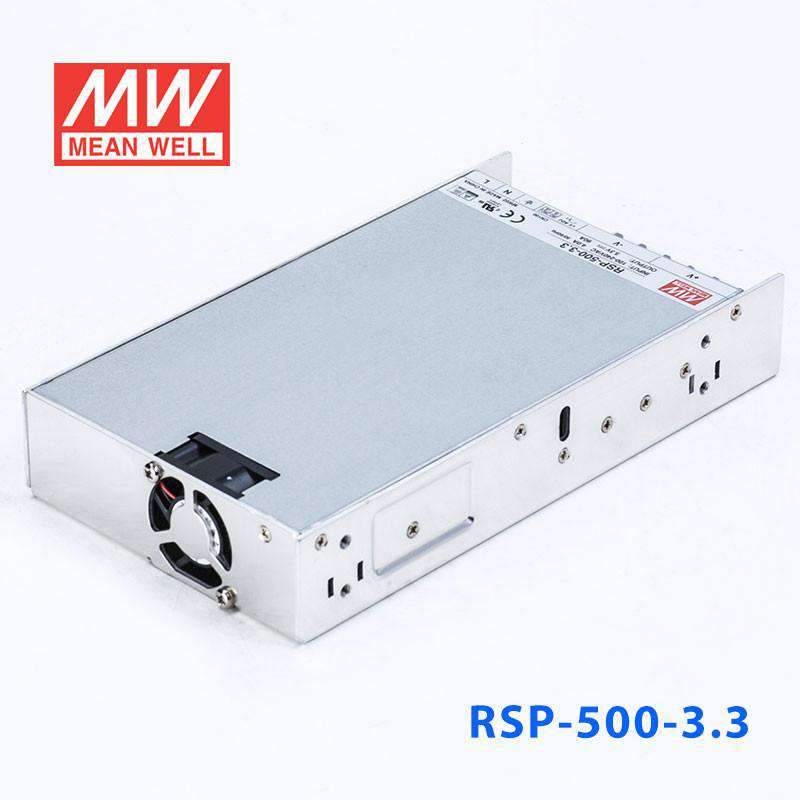

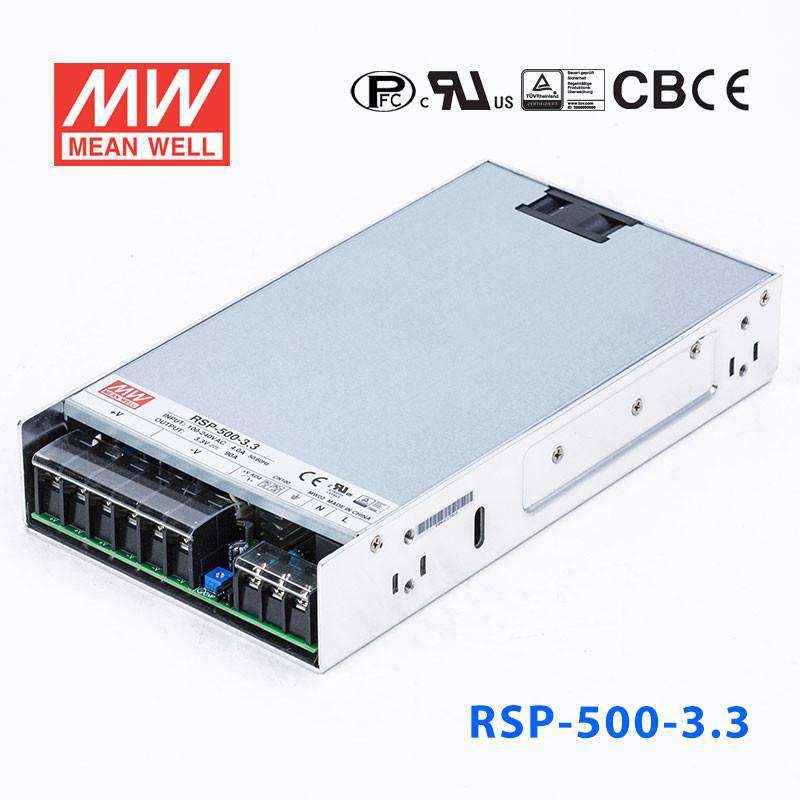

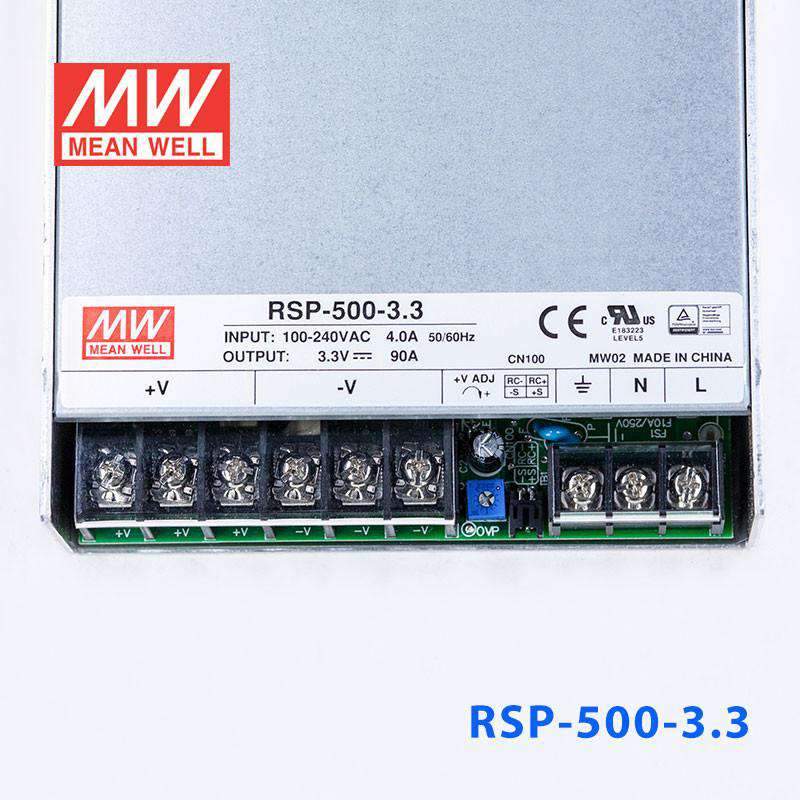

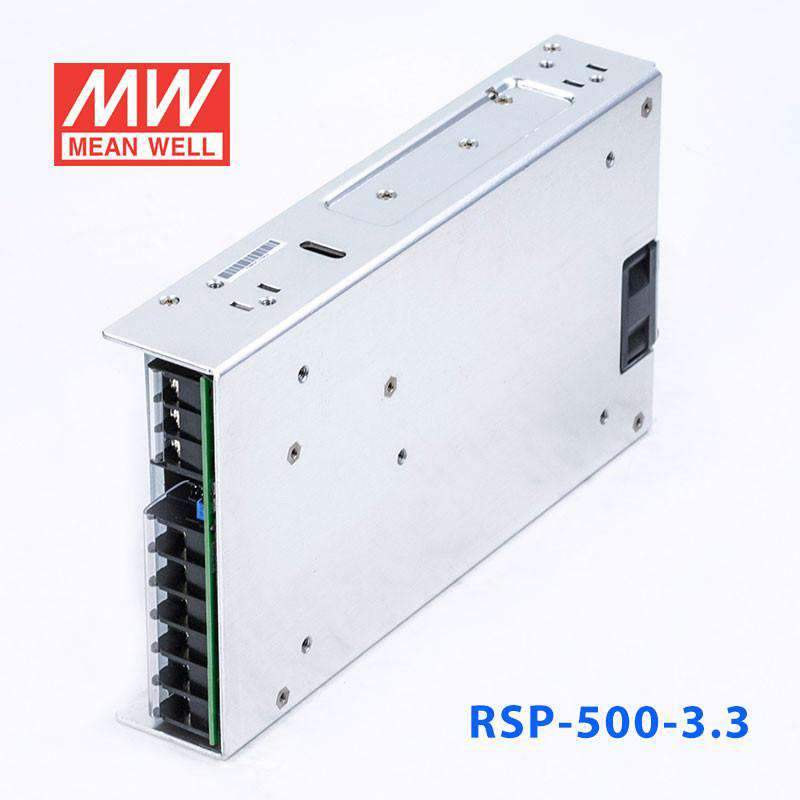

Mean Well RSP-500-3.3 Power Supply 297W 3.3V
The RSP-500 is a 500W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating297 Watt
-
Output Voltage3.3 Volt
-
Rated Current90 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.06 in
-
Width5 in
-
Height1.59 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
What equipment uses a 3.3V, high-current rail that the RSP-500-3.3 can supply?
The RSP-500-3.3 provides 3.3V at 90A (297W), suitable for powering DRAM subsystems, FPGA I/O logic rails, and logic-level loads in industrial computing boards that require a high-current 3.3V source.
What temperature range does the RSP-500-3.3 operate in?
The RSP-500-3.3 is rated for -30°C to +70°C ambient operation. It carries BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications and is designed for indoor enclosed use.
How does the RSP-500-3.3 compare to the RSP-500-4 and RSP-500-5?
All three share the 230.0 × 127.0 × 40.5 mm chassis and 85-264VAC input. The RSP-500-3.3 provides 297W at 90A, the RSP-500-4 provides 360W at 90A, and the RSP-500-5 provides 450W at 90A. All three run at 90A; total power increases as output voltage rises.
What is the actual rated output power of the RSP-500-3.3?
The RSP-500-3.3 is rated at 297W (3.3V × 90A). The low output voltage limits total power below the RSP-500 series nameplate. It weighs 1.3 kg and includes a 3-year warranty.
