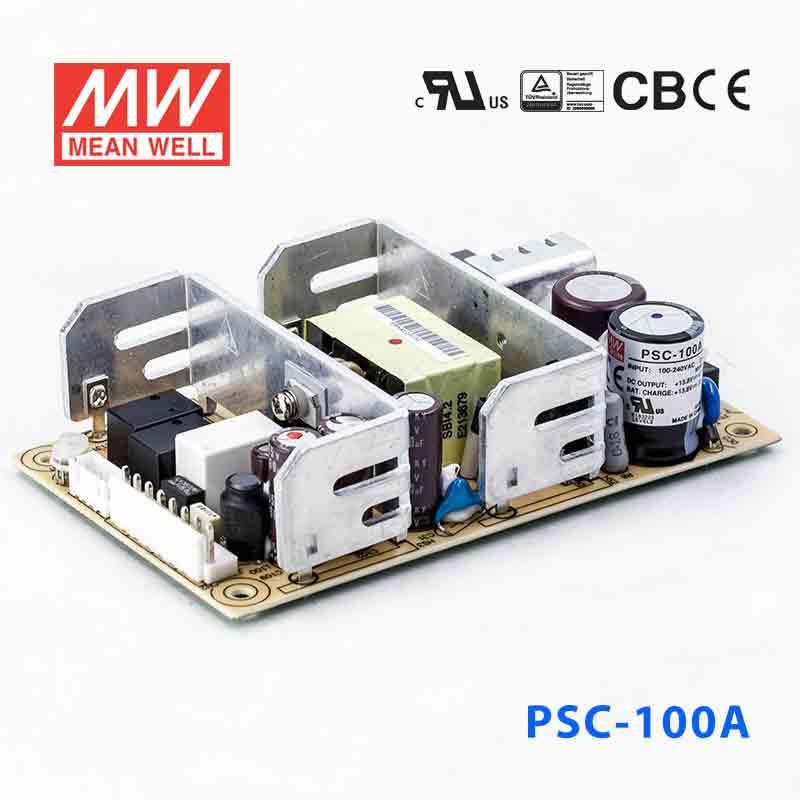

Mean Well PSC-100A Battery Chargers 100.05W 13.8V 4.75A - PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PSC-100A Battery Chargers 100.05W 13.8V 4.75A - PFC
The PSC-100A is a 100.05W Mean Well power supply (input: 90~264VAC, operating temperature: -20~+70°C).
Key Features
- ✓ Input voltage: 90~264VAC
- ✓ Output voltage (max): 13.8V
- ✓ Rated output current: 4.75A
- ✓ Operating temperature: -20~+70°C
- ✓ Safety certifications: CB, CE, EAC, TÜV, UL
- ✓ 2 year warranty
-
BrandMean Well
-
SeriesPSC Series
-
Power Rating100.05 Watt
-
Output Voltage13.8 Volt
-
Rated Current4.75 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length5 in
-
Width3 in
-
Height1.22 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
Can I use the PSC-100A for a 12V nominal industrial control panel that needs battery-backed DC power?
The PSC-100A provides a 13.8V constant-voltage output at up to 4.75A, with 100.05W total output power. Its UPS function makes it suitable for equipment designed for 13.8V battery-backed operation, as long as the connected load stays within 4.75A and 100.05W.
Is the PSC-100A suitable for alarm, security, or access-control electronics that run from a battery-backed DC bus?
It can be a fit for systems that are designed to operate from a 13.8V constant-voltage supply and need up to 4.75A. The built-in UPS function is relevant for battery-backed electronics, but the end device still needs to match 13.8V and remain within the 100.05W output limit.
Can the PSC-100A power embedded or industrial communication equipment that expects regulated low-voltage DC?
This model outputs regulated 13.8V DC in constant-voltage mode with up to 4.75A available. That makes it appropriate for embedded, monitoring, or communication equipment that specifically accepts 13.8V input and draws no more than 100.05W.
Is the PSC-100A a good choice for automation backup power where the AC source may vary by region?
The input range is 90-264VAC, so it is suited to sites using different standard AC mains within that range. On the DC side it delivers 13.8V at up to 4.75A, which is useful for automation loads that need consistent low-voltage power with UPS function support.
Can the PSC-100A be used outdoors or in harsh environments?
The provided specs list an operating temperature range of -20°C to +70°C, which helps define ambient temperature suitability. However, no IP rating is listed here, so outdoor exposure or washdown suitability cannot be confirmed from the provided specifications alone.
How does the PSC-100A compare with other PSC battery charger models in the same series?
Within the listed siblings, 13.8V models are PSC-35A and PSC-35A-C at 35.88W and 1.7A, PSC-60A and PSC-60A-C at 59.34W and 2.8A, PSC-100A and PSC-100A-C at 100.05W and 4.75A, PSC-100A-CWE at 100.5W and 4.75A, and PSC-160A and PSC-160A-C at 160W and 7.6A. The 27.6V models are PSC-35B and PSC-35B-C at 35.88W and 0.85A, PSC-60B and PSC-60B-C at 59.34W and 1.4A, PSC-100B and PSC-100B-C at 100.74W and 2.4A, and PSC-160B and PSC-160B-C at 160W and 3.8A; PSC-100-CWE, PSC-60-CWE, and PSC-60A-CWE are also listed as siblings.
