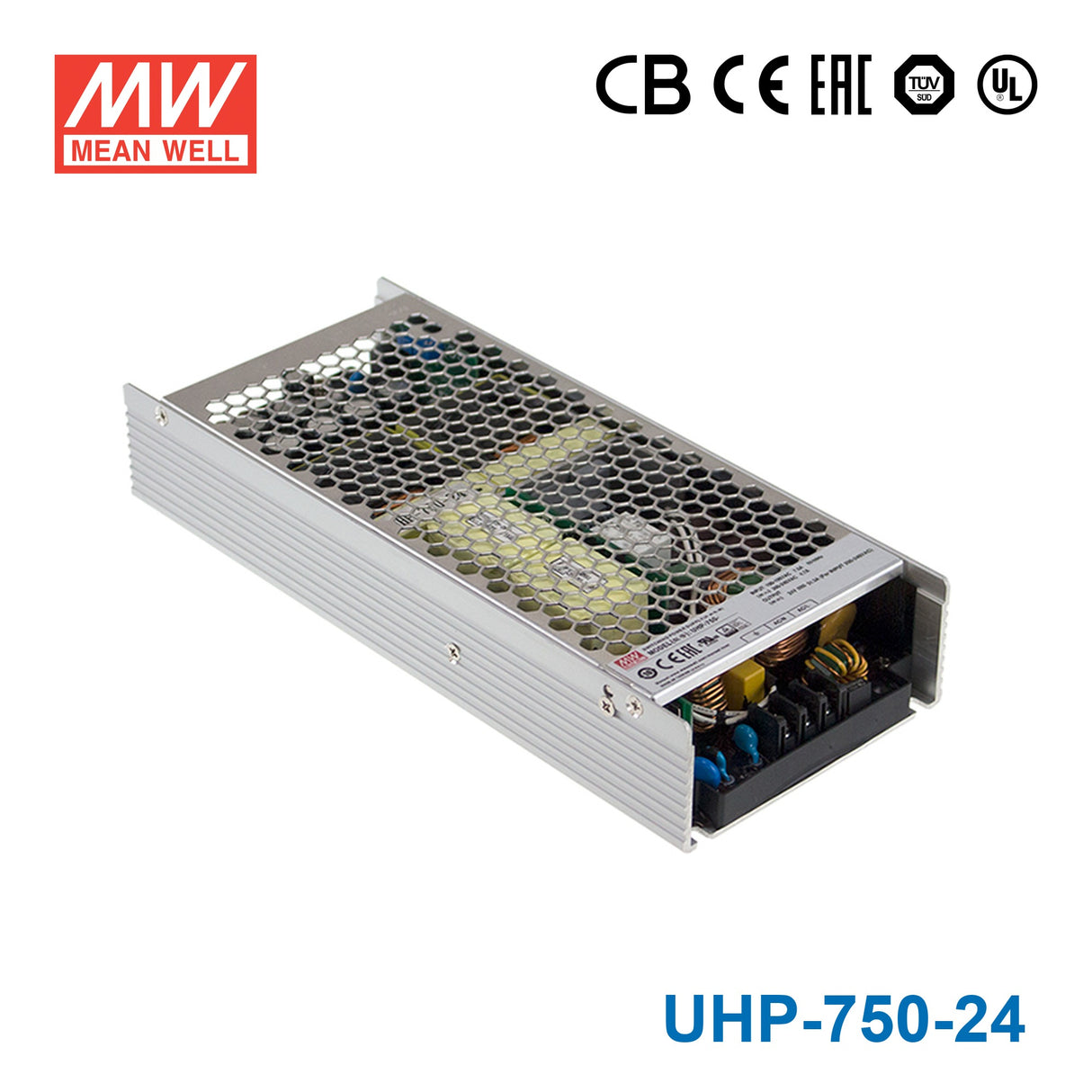

Mean Well UHP-750-24 Power Supply 751.2W 24V
The UHP-750 is a 750W Mean Well power converter (input range: 12~14.4V, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 12~14.4V
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: UL62368-1,TUV EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating751.2 Watt
-
Output Voltage24 Volt
-
Rated Current31.3 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.33 in
-
Width3.94 in
-
Height1.61 in
-
Weight3.09 lb
::specification::
Frequently Asked Questions
Can I use the UHP-750-24 for a 24V PLC and industrial I/O system?
Yes, it is a constant voltage 24V supply rated for 751.2W and 31.3A, which aligns with many 24V industrial control systems. It is a fit when the combined 24V load remains within 31.3A and 751.2W.
Is this power supply suitable for 24V automation equipment with motors, sensors, and control electronics on one DC bus?
It can suit 24V automation equipment that is designed for constant voltage input and stays within 31.3A and 751.2W. The fanless design can also be useful in enclosed equipment where forced-air noise is undesirable.
Can the UHP-750-24 be used for 24V machine vision, IPC, or edge computing hardware?
Yes, if the equipment requires a 24V constant voltage source and the total demand does not exceed 31.3A or 751.2W. The 90-264VAC input range also supports broad AC input compatibility.
Is the UHP-750-24 a good choice for 24V LED, signage, or display systems?
It can be used where the system is built around a constant voltage 24V bus and the total load fits within 751.2W and 31.3A. The low-profile 237.0 × 100.0 × 41.0 mm housing can also help where enclosure depth is limited.
Can this 24V model handle cold or hot operating environments, and is it outdoor-rated?
The specified operating range is -30°C to +70°C, so it is rated for a wide temperature span. No IP rating is listed in the provided specifications, so outdoor suitability is not confirmed by this data.
How does the UHP-750-24 compare with other 24V UHP power supplies?
The listed 24V models are UHP-200-24 at 201.6W and 8.4A, UHP-200R-24 at 201.6W and 8.4A, UHP-350-24 at 350.4W and 14.6A, UHP-350R-24 at 350.4W and 14.6A, UHP-500-24 at 501.6W and 20.9A, UHP-500R-24 at 501.6W and 20.9A, UHP-750-24 at 751.2W and 31.3A, UHP-1000-24 at 1008W and 42A, UHP-1500-24 at 1500W and 62.5A, and UHP-2500-24 at 2500.8W and 104.2A. This model is the 751.2W, 31.3A option in that progression.
