Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

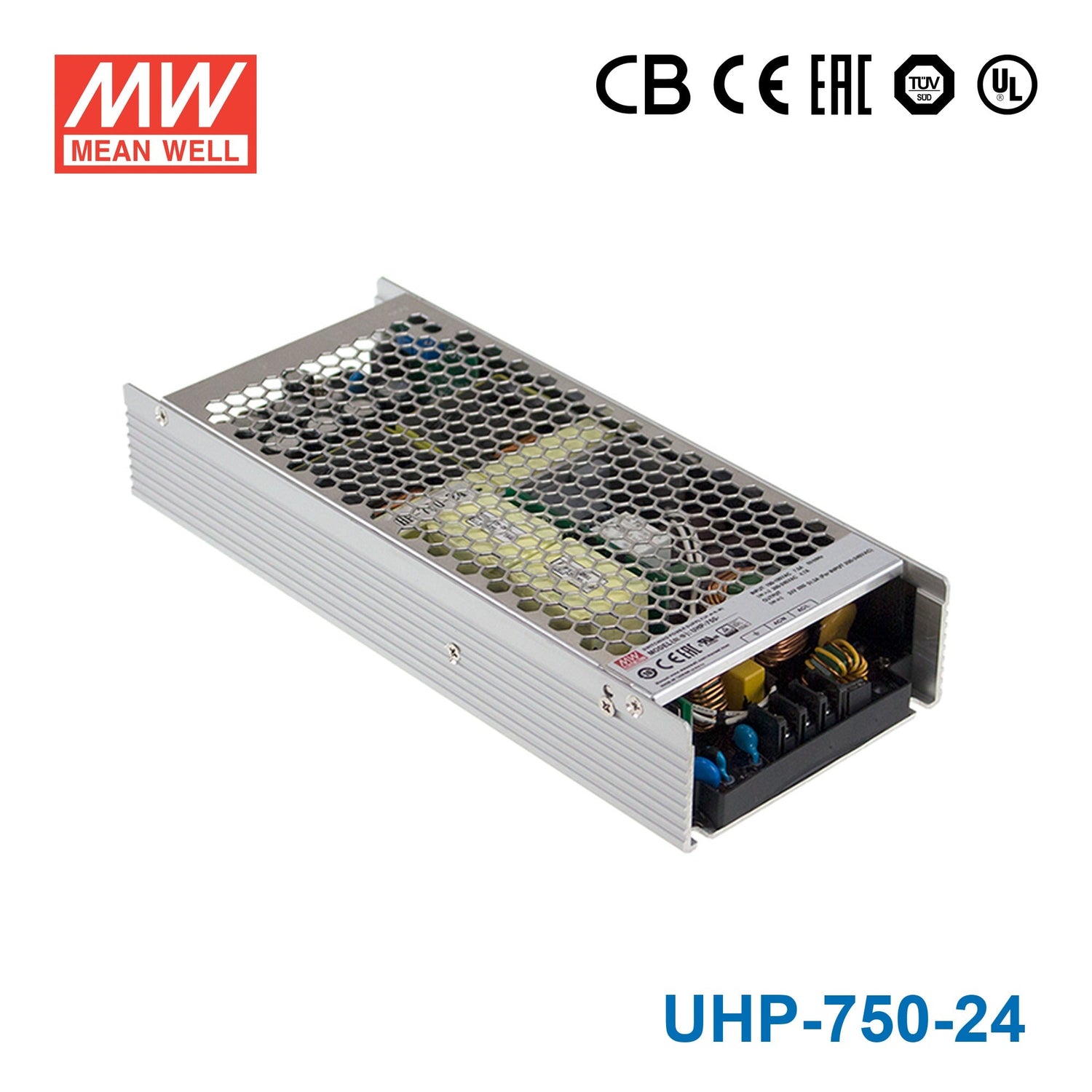

Mean Well UHP-750-24 Power Supply 751.2W 24V

slim and low profile, fanless design

SKU:

UHP-750-24

Model

200W 24V

$54.50 USD

SKU: UHP-200-24

350W 24V

$75.33 USD

SKU: UHP-350-24

500W 24V

$106.64 USD

SKU: UHP-500-24

750W 24V

$208.40 USD

SKU: UHP-750-24

1000W 24V

$290.70 USD

SKU: UHP-1000-24

1500W 24V

$436.80 USD

SKU: UHP-1500-24

2500W 24V

$649.48 USD

SKU: UHP-2500-24

Product variants

$208.40 USD ~~$219.47~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Slim and Low profile (41mm)

Fanless and conduction-cooled design

Withstand 300VAC surge input for 5 seconds

Built-in active PFC function

-30~+70℃ working temperature

Protections: Short circuit / Overload / Over voltage / Over temperature

DC OK relay contact

Operating altitude up to 5000 meter

LED indicator for power on

3 years warranty

General Specification

AC input voltage range	90~264VAC 127~370VDC
AC inrush current	Cold start :20A/115VAC 40A/230VAC
Overload protection	105~125% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over voltage protection	12V:14.5~16V, 24V:29~33V, 36V:43. 5~49V, 48V:59~66V Protection type :Shut down O/P voltage, re-power on to recover
Over temperature protection	Protection type :Shut down O/P voltage, recovers automatically after temperature goes down
Setup, rise, hold up time	1000ms, 50ms/230VAC/115VAC at full load; 12ms/115VAC, 230VAC
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.25KVAC
Working temperature	-30~+70℃ (Refer to Derating Curve)
Safety standards	UL62368-1, TUV EN62368-1, EAC TP TC 004 approved; design refer to EN61558-1, EN60335-1
EMC standards	EN55032 (CISPR32) Class B ;EN61000-3-2, 3; EN61000-4-2, 3, 4, 6, 8, 11, EN61000-6-2
Dimension (LxWxH)	237×100×41mm
Packing	1.4Kg; 10pcs/15Kg

Specifications

Brand

Mean Well
Series

UHP Series
Power Rating

751.2 Watt
Output Voltage

24 Volt
Rated Current

31.3 Ampere
Input Voltage

90V~264V
No of Output

1
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

9.33 in
Width

3.94 in
Height

1.61 in
Weight

3.09 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the UHP-750-24 for a 24V PLC and industrial I/O system?

Yes, it is a constant voltage 24V supply rated for 751.2W and 31.3A, which aligns with many 24V industrial control systems. It is a fit when the combined 24V load remains within 31.3A and 751.2W.

Is this power supply suitable for 24V automation equipment with motors, sensors, and control electronics on one DC bus?

It can suit 24V automation equipment that is designed for constant voltage input and stays within 31.3A and 751.2W. The fanless design can also be useful in enclosed equipment where forced-air noise is undesirable.

Can the UHP-750-24 be used for 24V machine vision, IPC, or edge computing hardware?

Yes, if the equipment requires a 24V constant voltage source and the total demand does not exceed 31.3A or 751.2W. The 90-264VAC input range also supports broad AC input compatibility.

Is the UHP-750-24 a good choice for 24V LED, signage, or display systems?

It can be used where the system is built around a constant voltage 24V bus and the total load fits within 751.2W and 31.3A. The low-profile 237.0 × 100.0 × 41.0 mm housing can also help where enclosure depth is limited.

Can this 24V model handle cold or hot operating environments, and is it outdoor-rated?

The specified operating range is -30°C to +70°C, so it is rated for a wide temperature span. No IP rating is listed in the provided specifications, so outdoor suitability is not confirmed by this data.

How does the UHP-750-24 compare with other 24V UHP power supplies?

The listed 24V models are UHP-200-24 at 201.6W and 8.4A, UHP-200R-24 at 201.6W and 8.4A, UHP-350-24 at 350.4W and 14.6A, UHP-350R-24 at 350.4W and 14.6A, UHP-500-24 at 501.6W and 20.9A, UHP-500R-24 at 501.6W and 20.9A, UHP-750-24 at 751.2W and 31.3A, UHP-1000-24 at 1008W and 42A, UHP-1500-24 at 1500W and 62.5A, and UHP-2500-24 at 2500.8W and 104.2A. This model is the 751.2W, 31.3A option in that progression.
