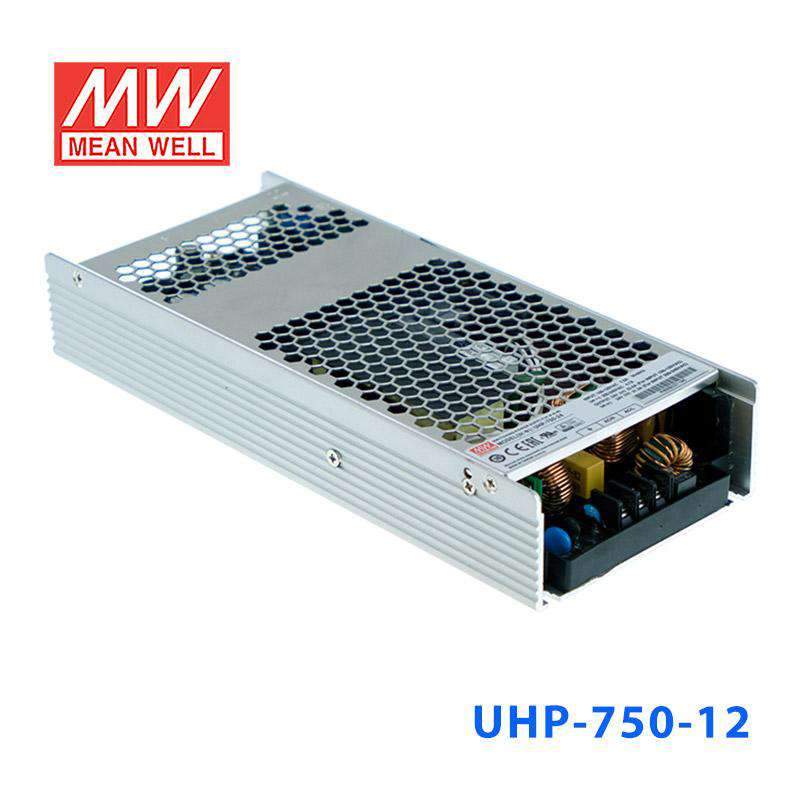

Mean Well UHP-750-12 Power Supply 720W 12V
Description
Description
Features
| Slim and Low profile (41mm) |
| Fanless and conduction-cooled design |
| Withstand 300VAC surge input for 5 seconds |
| Built-in active PFC function |
| -30~+70℃ working temperature |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| DC OK relay contact |
| Operating altitude up to 5000 meter |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC 127~370VDC |
| AC inrush current | Cold start :20A/115VAC 40A/230VAC |
| Overload protection | 105~125% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed |
| Over voltage protection | 12V:14.5~16V, 24V:29~33V, 36V:43. 5~49V, 48V:59~66V Protection type :Shut down O/P voltage, re-power on to recover |
| Over temperature protection | Protection type :Shut down O/P voltage, recovers automatically after temperature goes down |
| Setup, rise, hold up time | 1000ms, 50ms/230VAC/115VAC at full load; 12ms/115VAC, 230VAC |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.25KVAC |
| Working temperature | -30~+70℃ (Refer to Derating Curve) |
| Safety standards | UL62368-1, TUV EN62368-1, EAC TP TC 004 approved; design refer to EN61558-1, EN60335-1 |
| EMC standards | EN55032 (CISPR32) Class B ;EN61000-3-2, 3; EN61000-4-2, 3, 4, 6, 8, 11, EN61000-6-2 |
| Dimension (LxWxH) | 237×100×41mm |
| Packing | 1.4Kg; 10pcs/15Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating720 Watt
-
Output Voltage12 Volt
-
Rated Current60 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.33 in
-
Width3.94 in
-
Height1.61 in
-
Weight3.09 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the UHP-750-12 for a 12V industrial automation panel with multiple DC loads?
Yes, it is a constant voltage 12V supply rated for 720W and 60A, which fits larger 12V automation loads. It is appropriate when the full panel demand stays within 60A and 720W.
Is this power supply suitable for 12V CCTV, security, or access control systems with a high combined load?
It can be suitable for centralized 12V systems that require constant voltage and do not exceed 60A or 720W. The wide 90-264VAC input range can also be useful in projects that need broad AC input compatibility.
Can the UHP-750-12 power 12V LED or signage systems in commercial equipment?
It is designed for constant voltage 12V output, so it can fit 12V LED or signage systems when the total demand remains within 720W and 60A. The fanless design may also help where lower acoustic noise is preferred.
Is the UHP-750-12 a good fit for 12V embedded or communications equipment in a shallow enclosure?
It can fit shallow equipment spaces because the housing is 237.0 × 100.0 × 41.0 mm and uses a slim, low-profile format. The electrical fit depends on needing 12V constant voltage with up to 60A and 720W available.
Can this model be used outdoors or in wide-temperature indoor environments?
The operating temperature range is -30°C to +70°C, so it is specified for demanding temperature conditions. No IP rating is provided in the product data, so outdoor or direct-exposure use is not defined by these specs.
How does the UHP-750-12 compare with other 12V models in the UHP family?
The listed 12V models are UHP-200-12 at 200.4W and 16.7A, UHP-200R-12 at 200.4W and 16.7A, UHP-350-12 at 350.4W and 29.2A, UHP-350R-12 at 350.4W and 29.2A, UHP-500-12 at 500.4W and 41.7A, UHP-500R-12 at 500.4W and 41.7A, UHP-750-12 at 720W and 60A, and UHP-1000-12 at 960W and 80A. This model sits between the 500.4W and 960W 12V options.
